Description

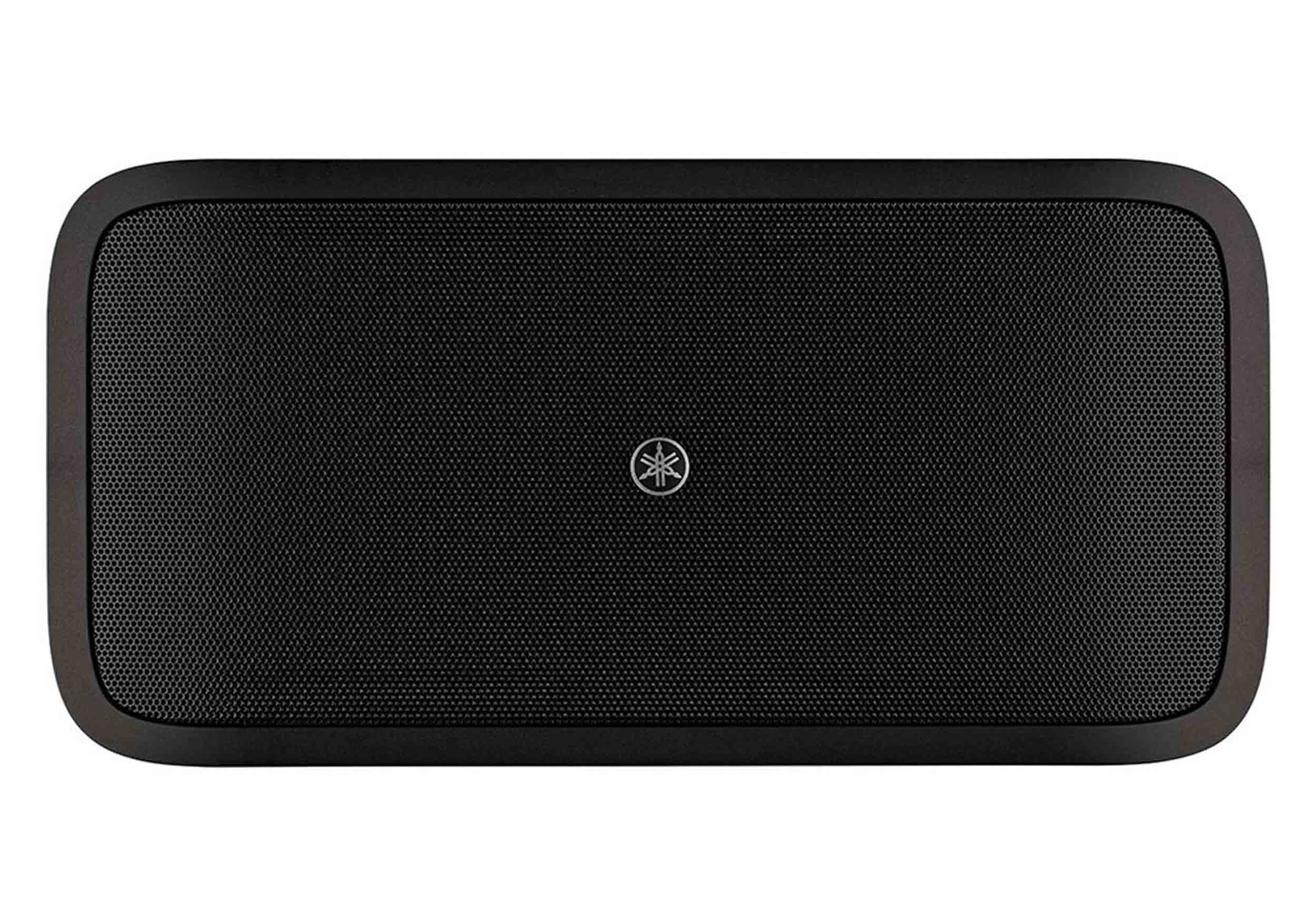

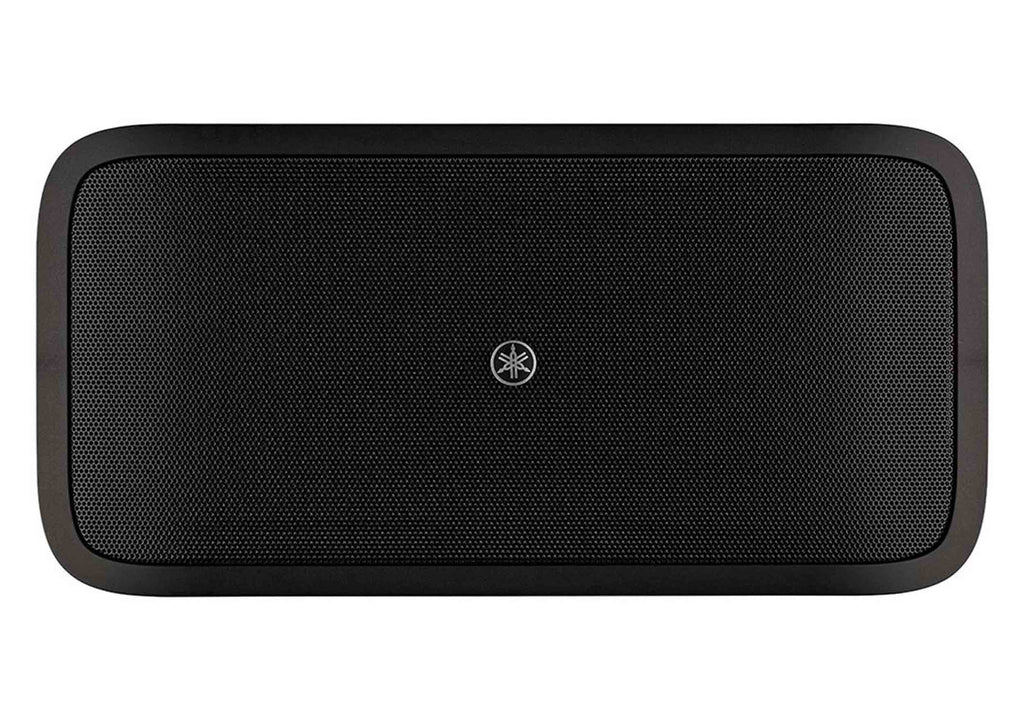

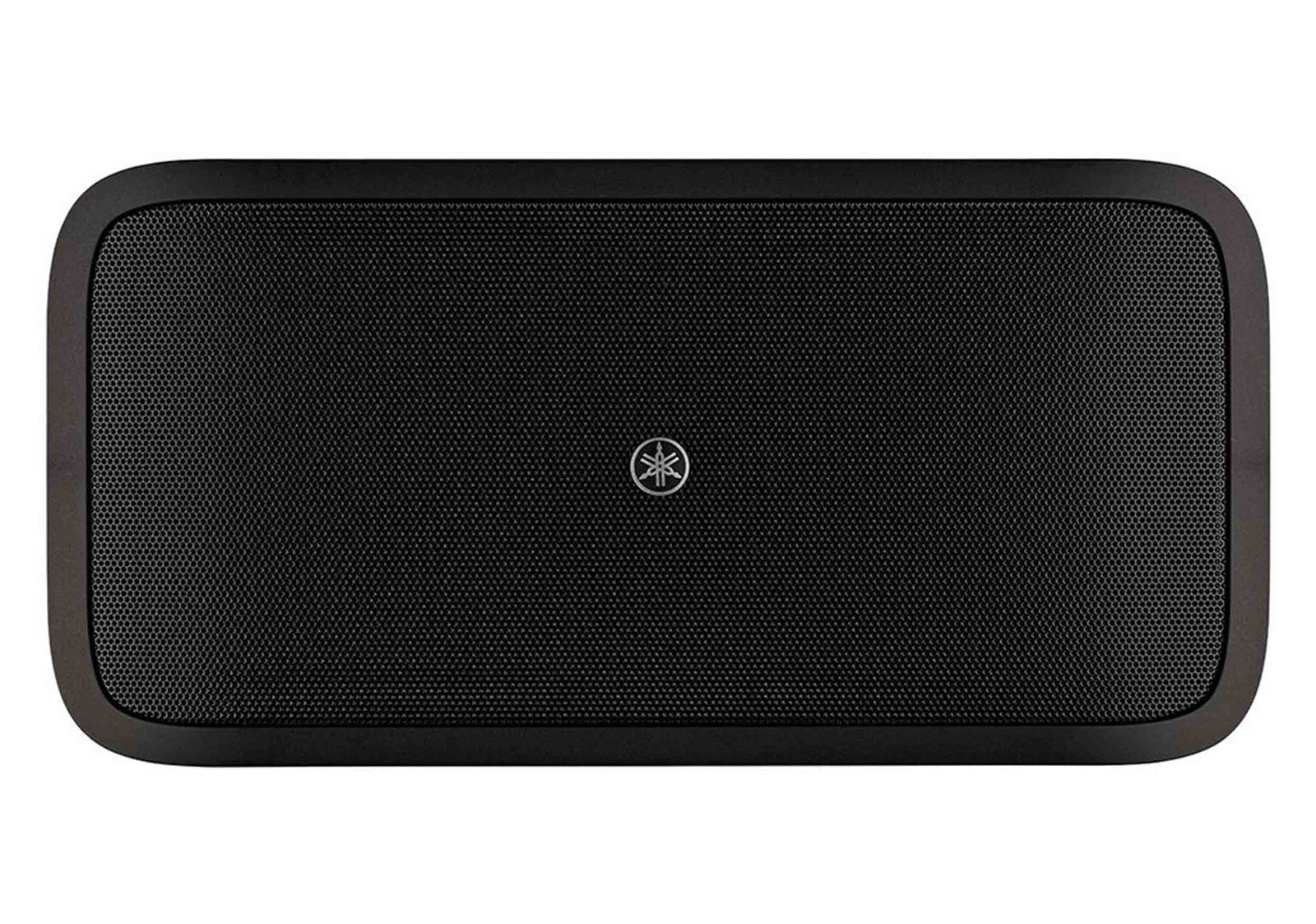

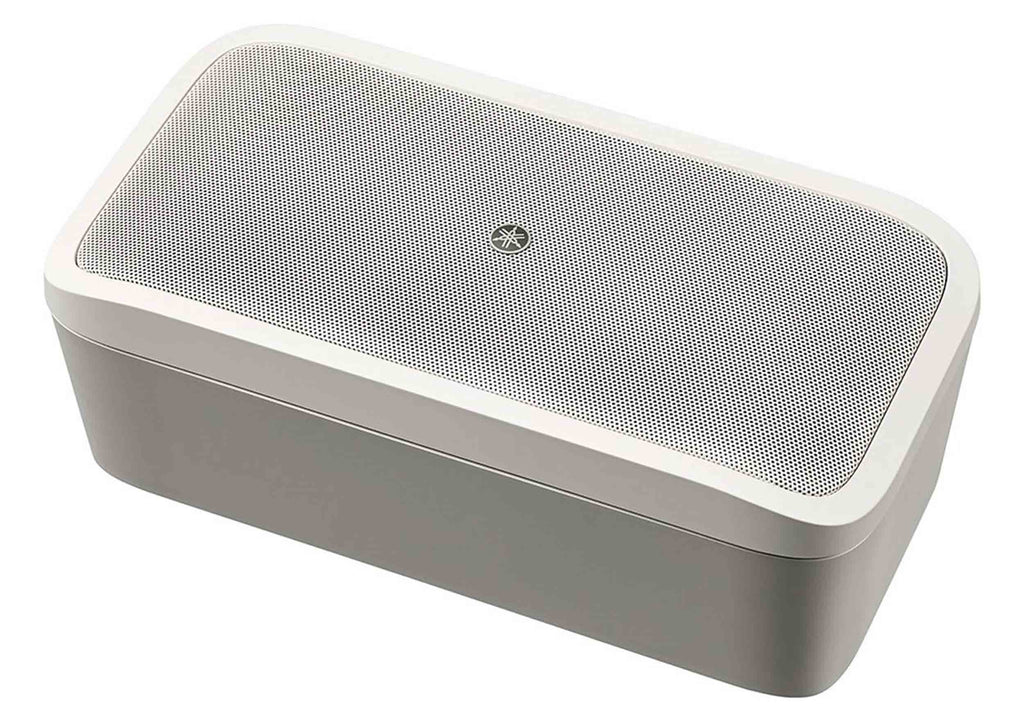

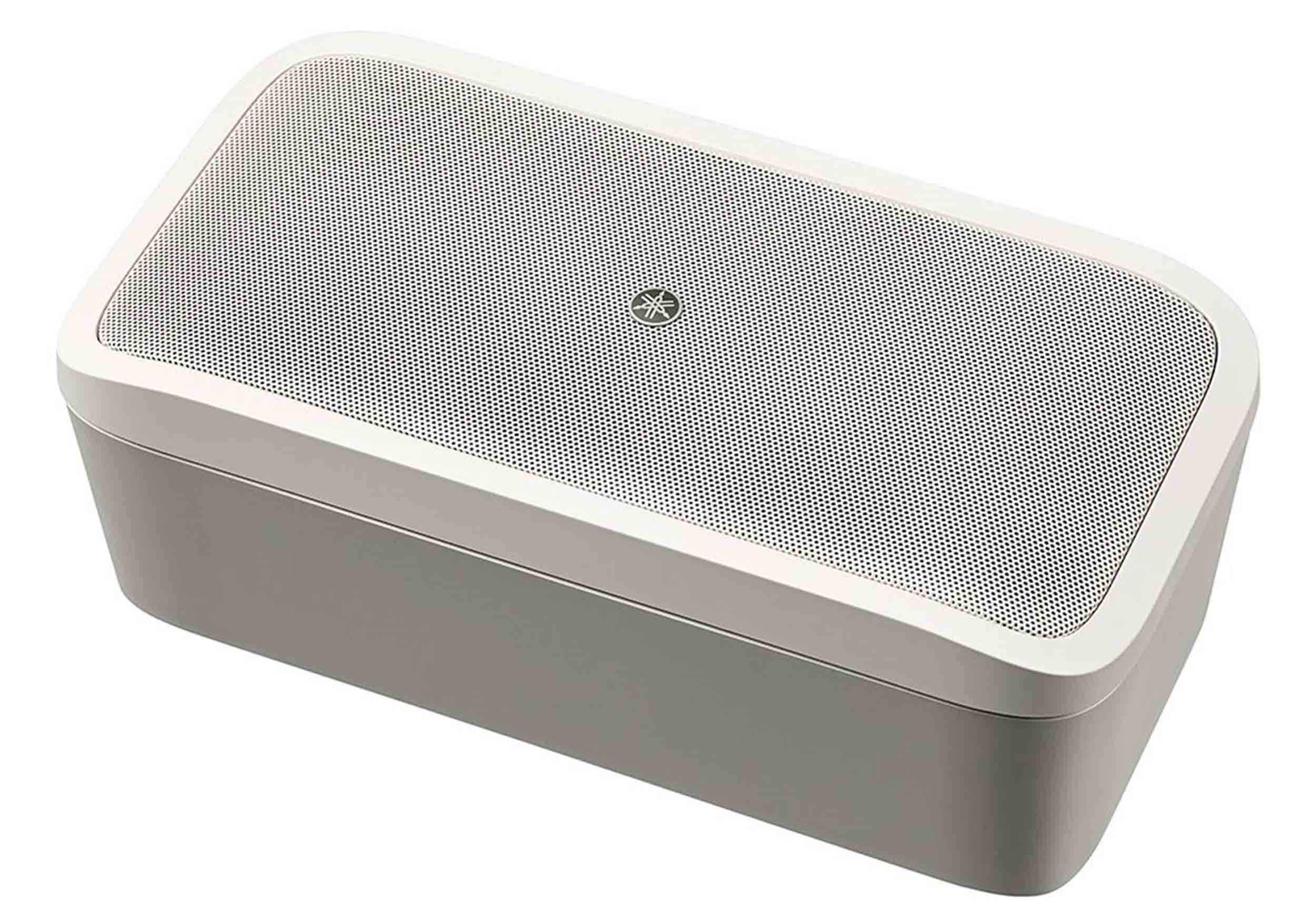

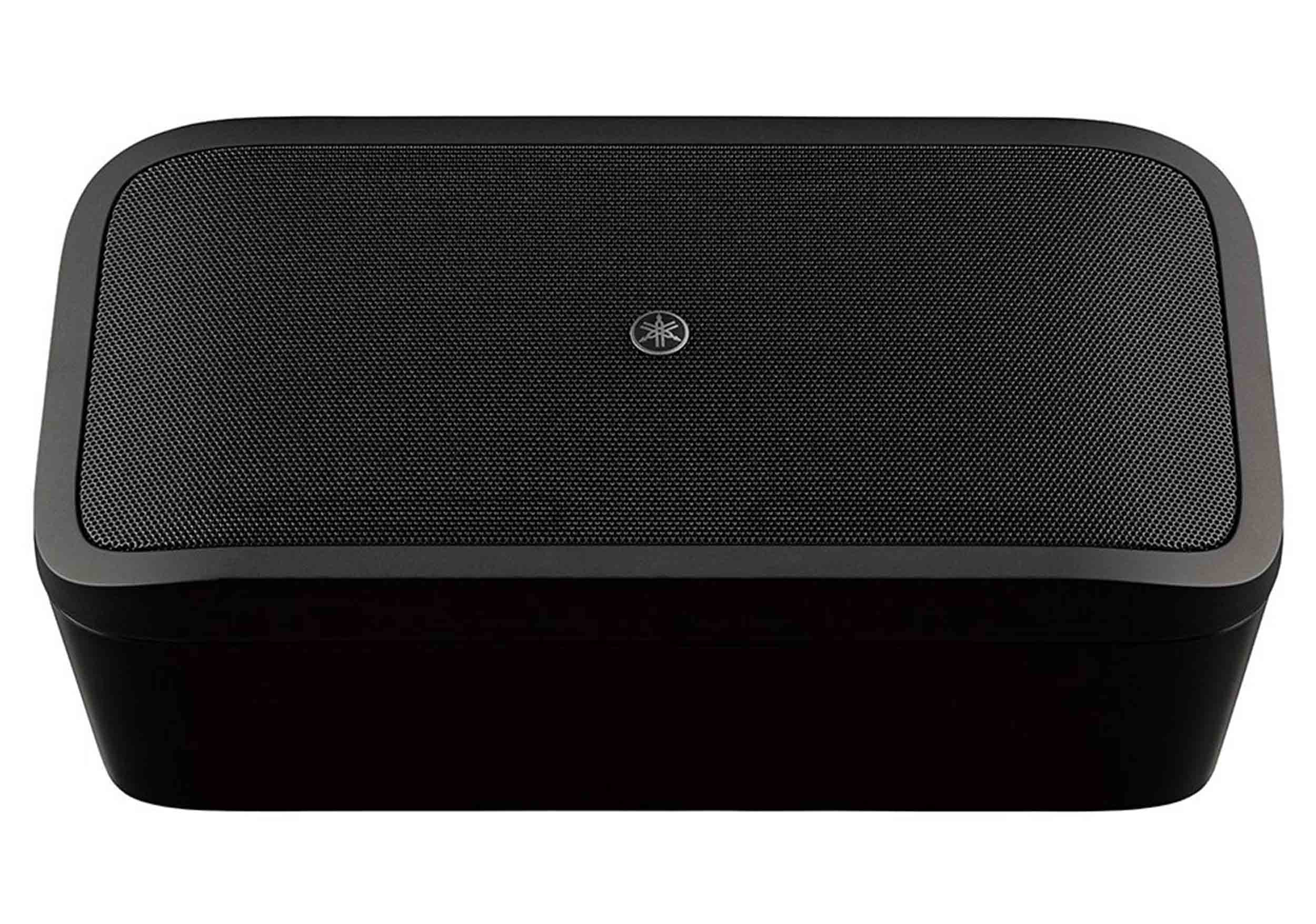

The Yamaha VXS3S Series is a versatile subwoofer engineered to deliver powerful, high-quality low-frequency performance in a compact form factor, perfectly matched to the VXS1ML full-range speakers. Utilizing SR-Bass technology, it produces deep, solid bass with minimal distortion, enhancing musical presence and realism in small to medium-sized commercial installations. The sleek enclosure is available in Black or White, with paintable cabinets and grilles for seamless integration into any interior.

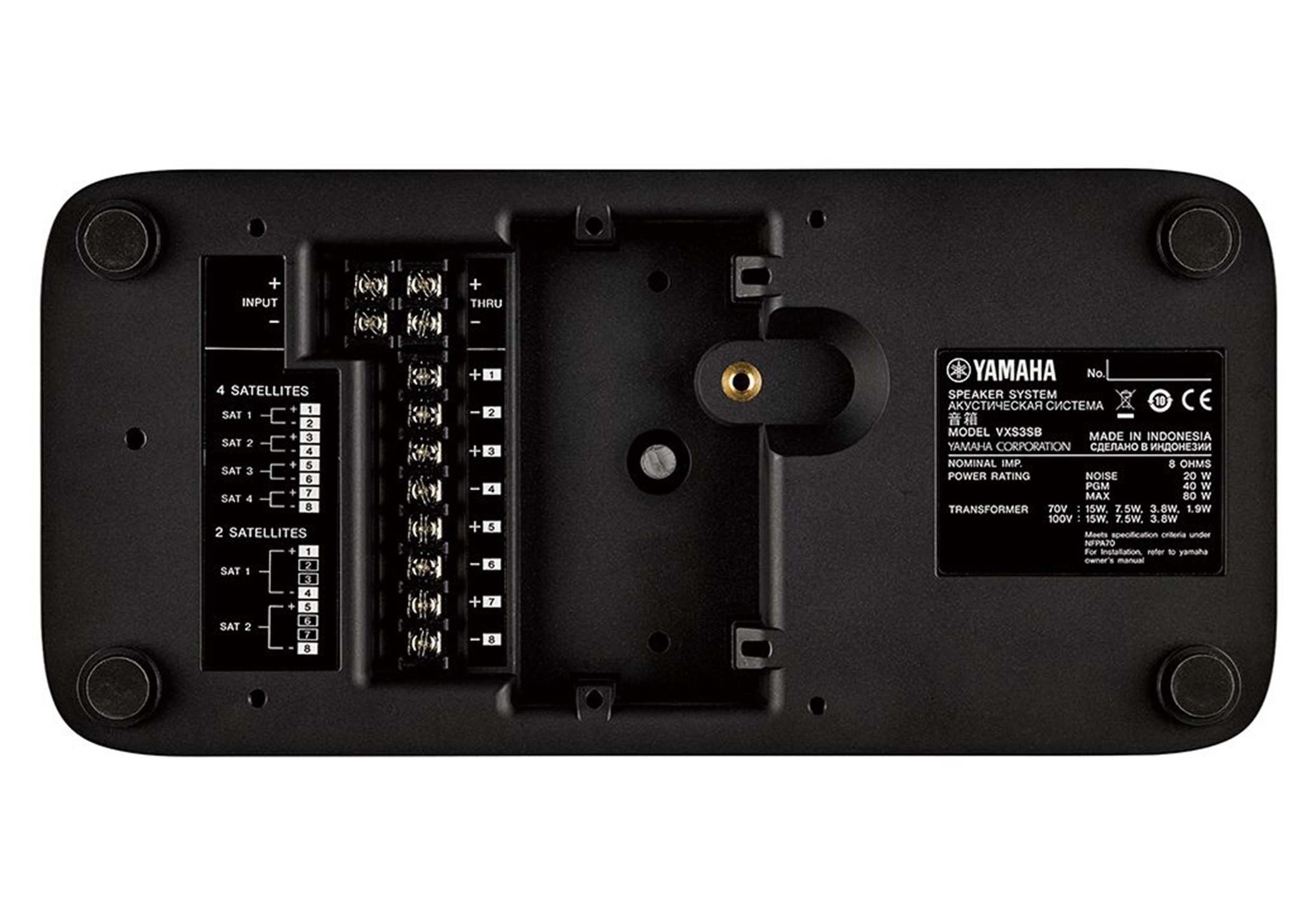

Equipped with rear-panel satellite connectors, the VXS3S Series simplifies system setup by supporting both low-impedance and high-impedance satellite connections. A built-in high-pass filter ensures a smooth, natural crossover from subwoofer to full-range speakers, delivering refined, uniform bass that complements the entire audio system. This makes it ideal for cafés, restaurants, retail spaces, and other environments requiring balanced, professional background music.

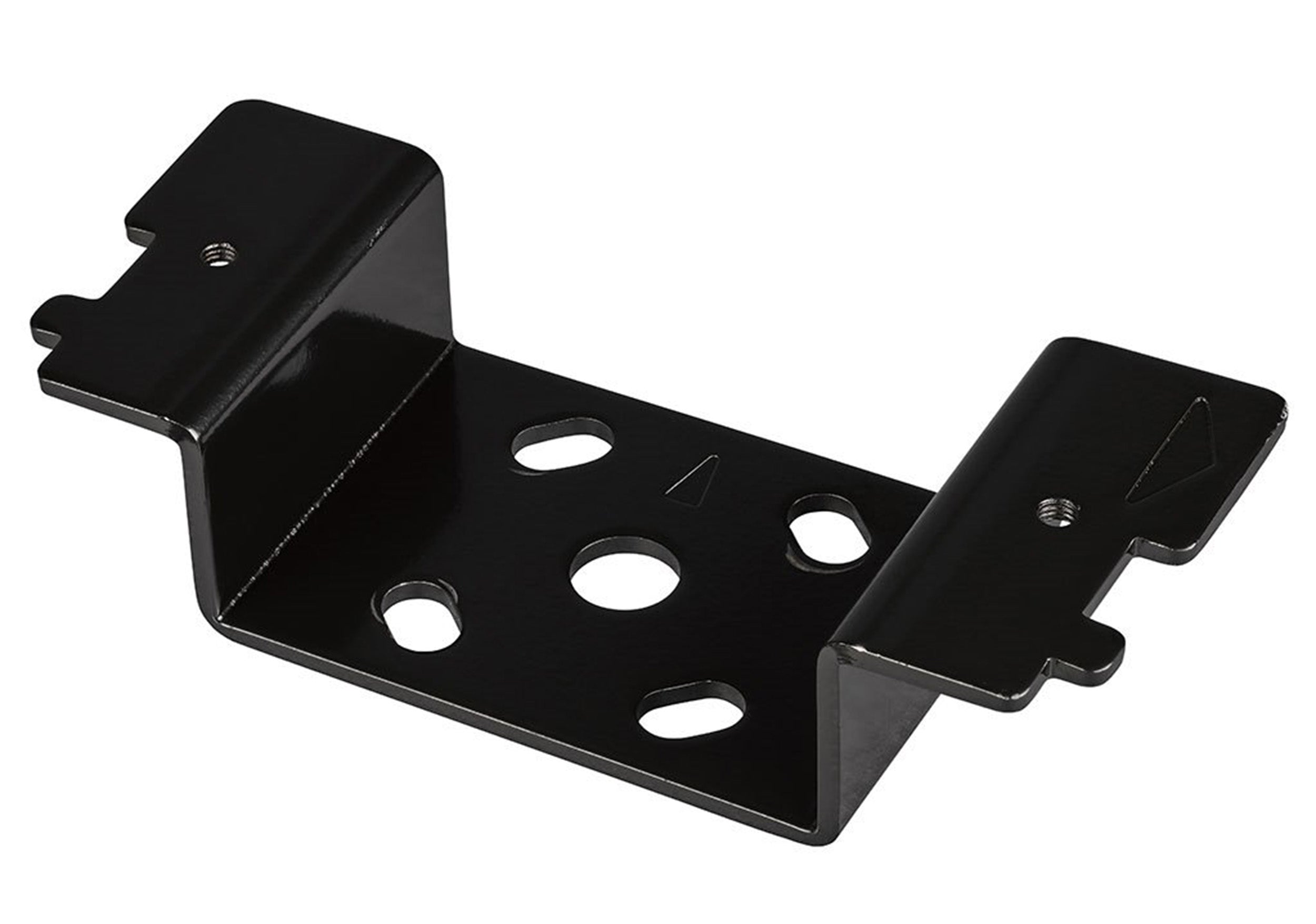

Installation is flexible and convenient. The VXS3S includes dedicated wall and ceiling mount hardware and can be floor-mounted as well, allowing integration into a wide range of spaces. Its compact design and versatile impedance options make it easy to deploy in nearly any audio setup.
Available in Black and White, the Yamaha VXS3S Series combines visual elegance with exceptional low-frequency performance, offering a reliable, professional-grade solution for background music and commercial audio systems.
Product Specifications:
Speaker Type: SR-Bass type Subwoofer
Frequency Range (-10dB): 65 Hz – 180 Hz
Components LF: 3.5" Cone
Power Rating NOISE: 20 W
Power Rating PGM: 40 W
Power Rating PEAK: 80 W
Nominal Impedance: 8 Ω
Satellite Impedance: 8 Ω load per satellite output recommended
Transformer Taps 100V: 15 W, 7.5 W, 3.8 W
Transformer Taps 70V: 15 W, 7.5 W, 3.8 W, 1.9 W
SPL Sensitivity (1W; 1m on axis): 79 dB SPL
Peak SPL (Calculated): 98 dB SPL

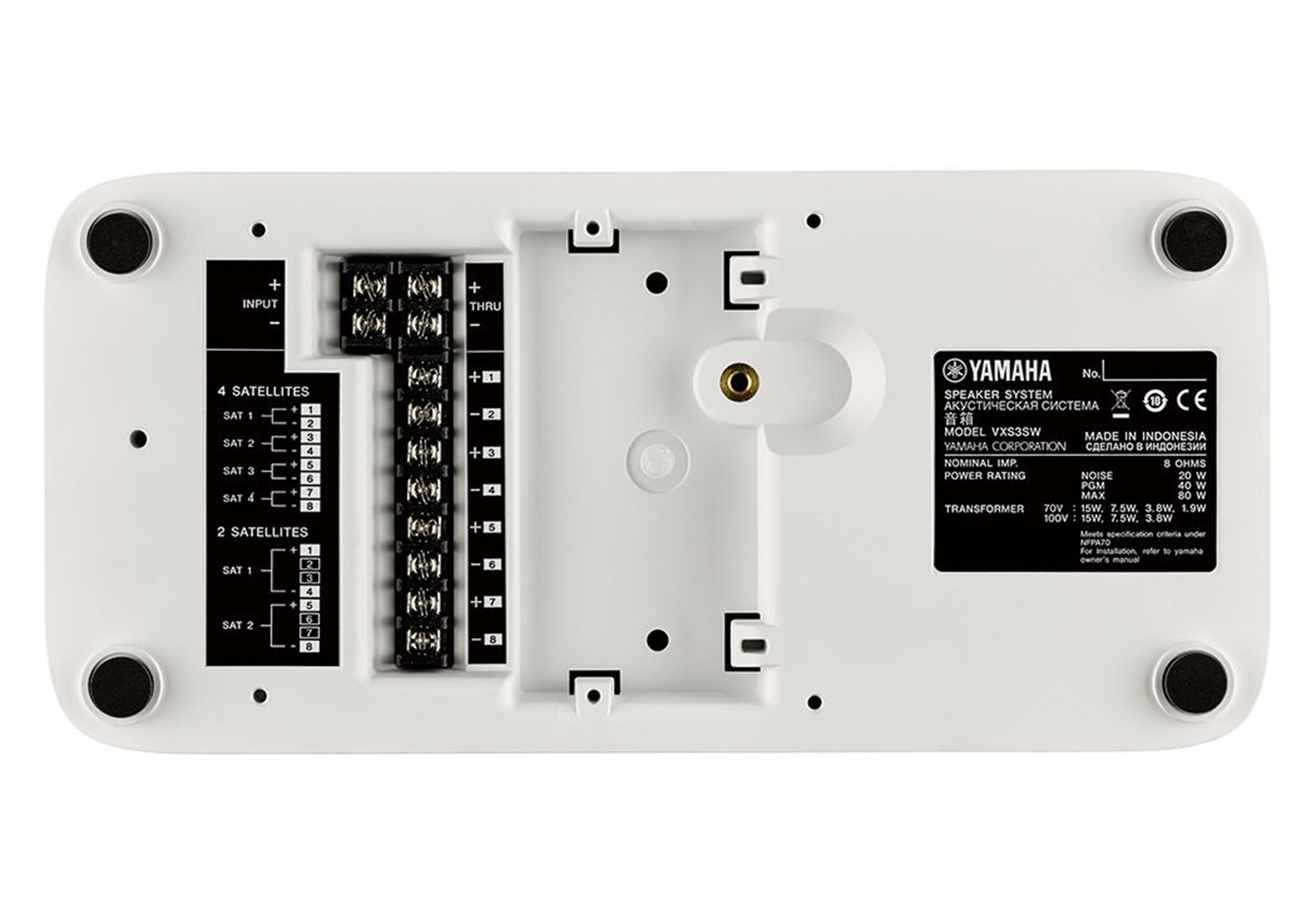

I/O Connectors: TERMINAL BLOCKS (4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS (8pin)
Satellite Output: +/- (ST1–ST4)
Protection Circuit Load Protection: Full-range power limiting for protecting network and transducers
Shape: Rectangular
Cabinet Material: ABS

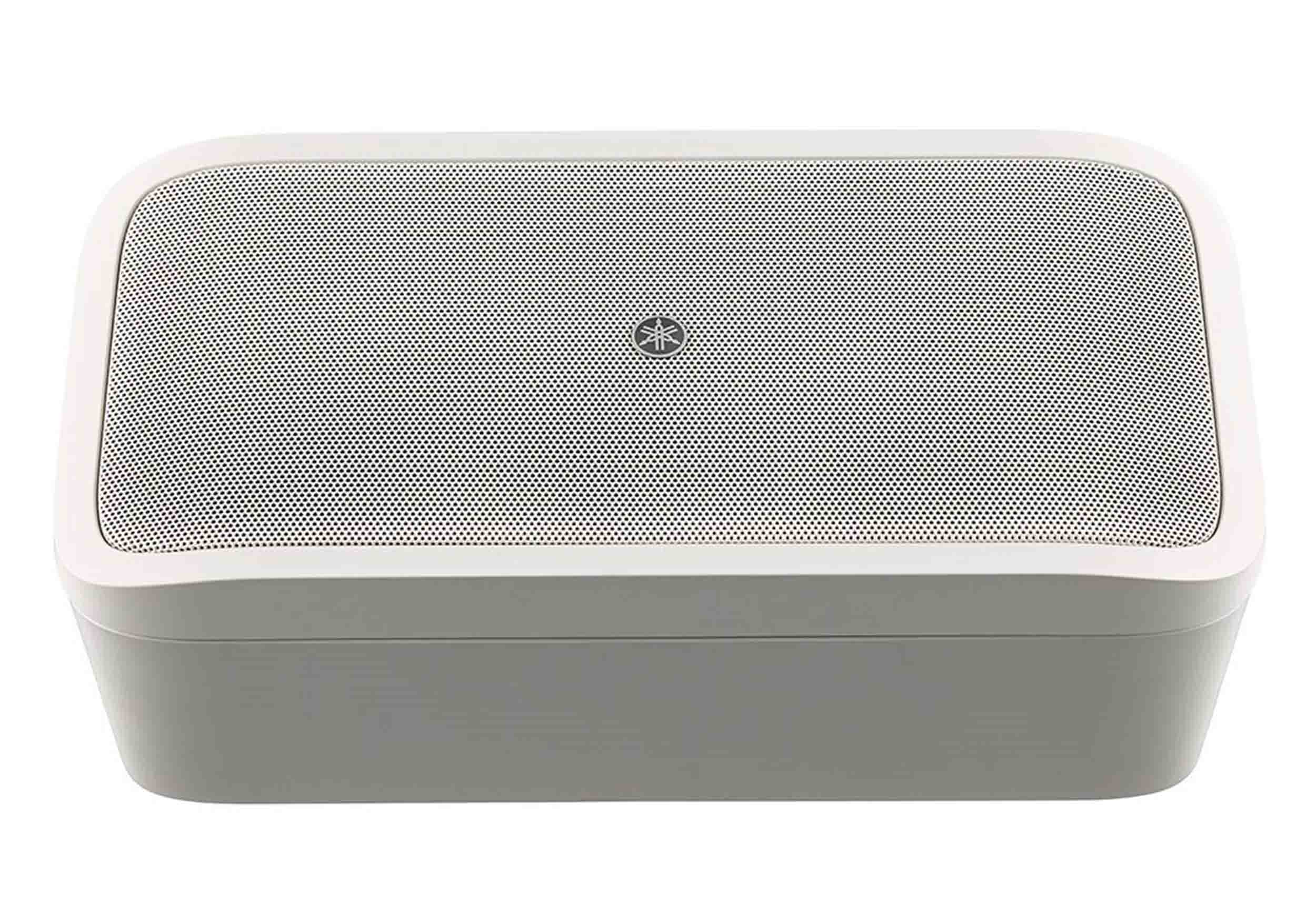

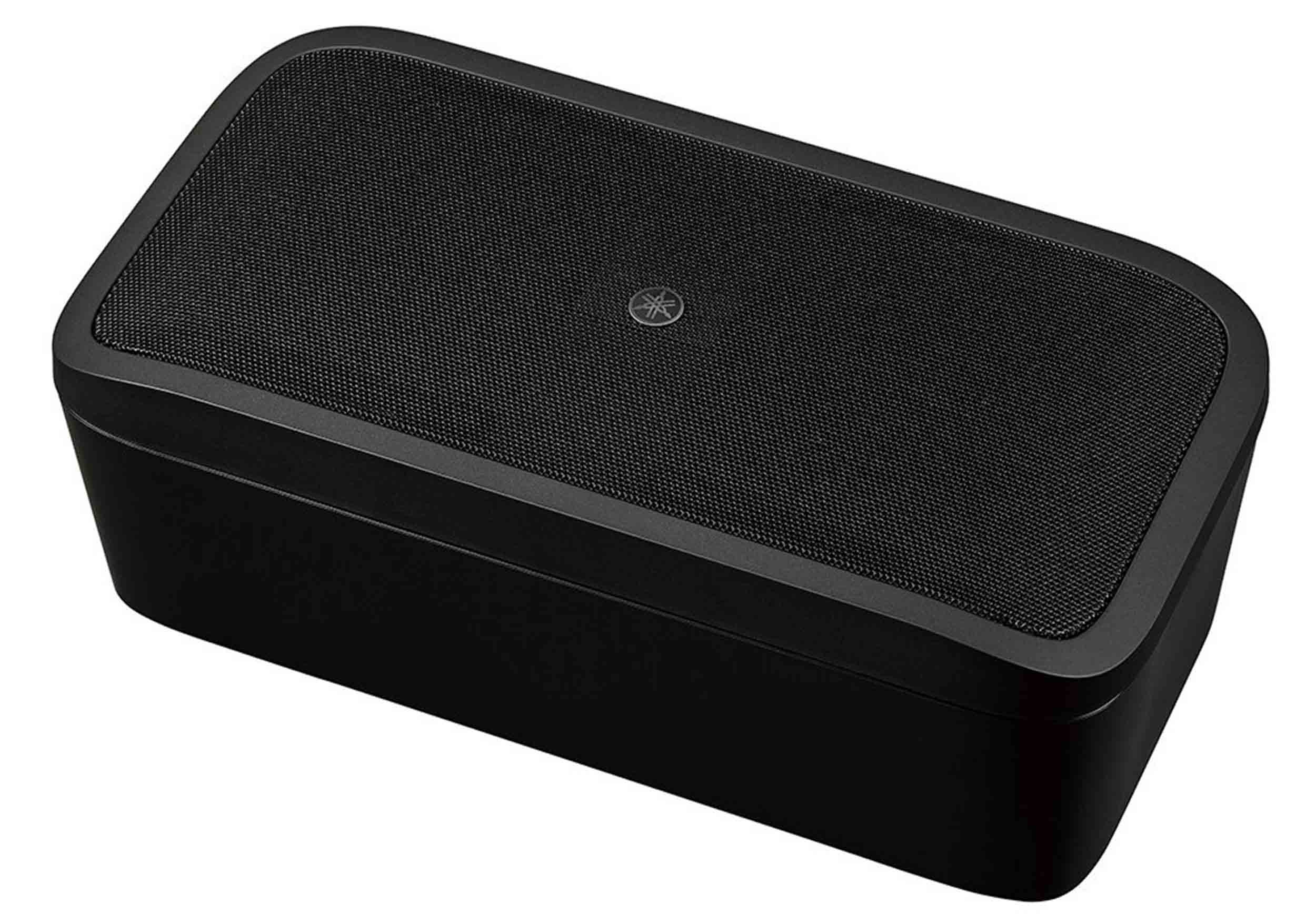

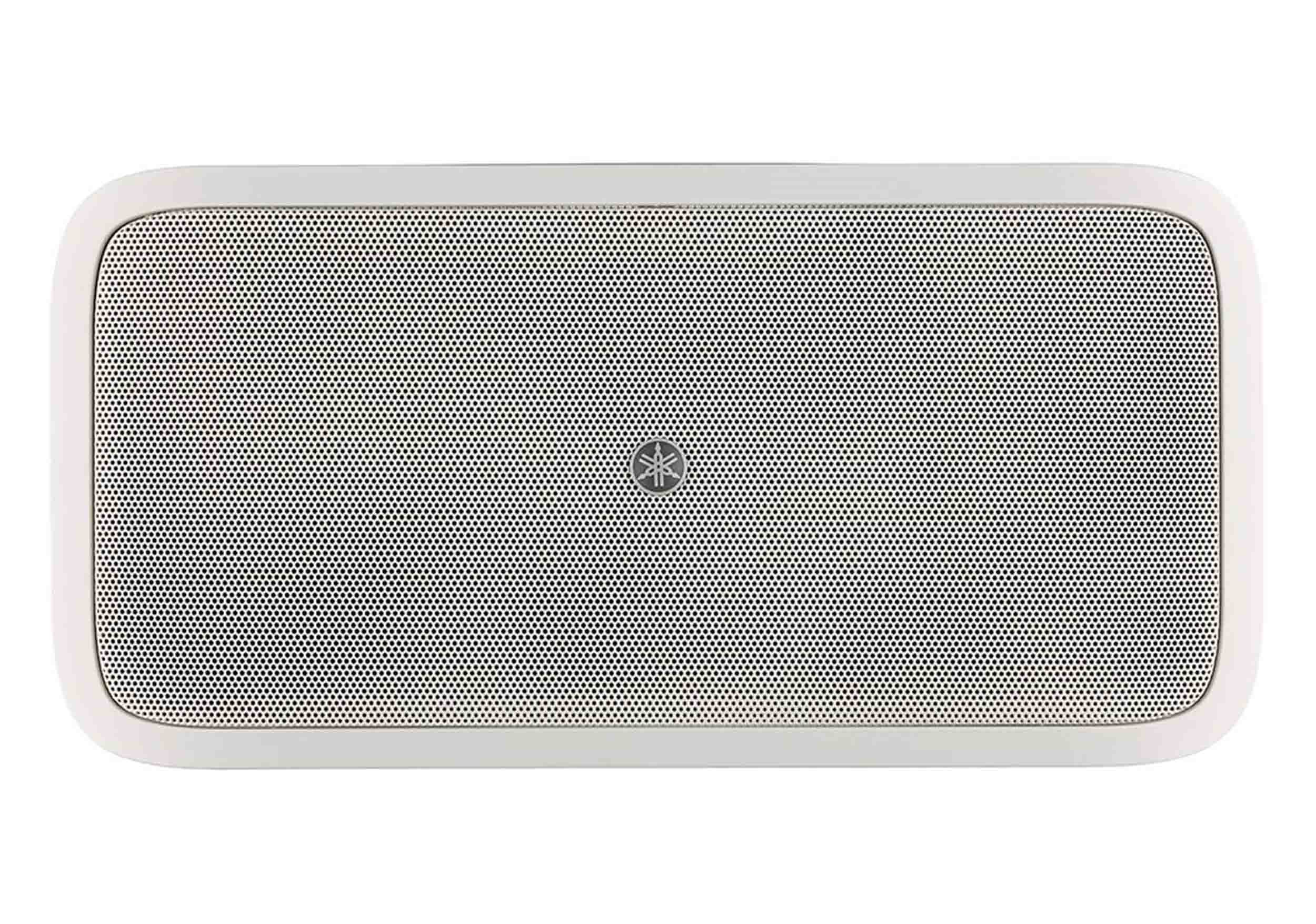

Finish: VXS3SB Black (approx. Munsell N3), VXS3SW White (approx. Munsell N9)
Product Weight: 6.0 lbs / 2.7 kg
Product Dimensions (L × W × H): 4.6 × 12.7 × 6.4 in
