Description

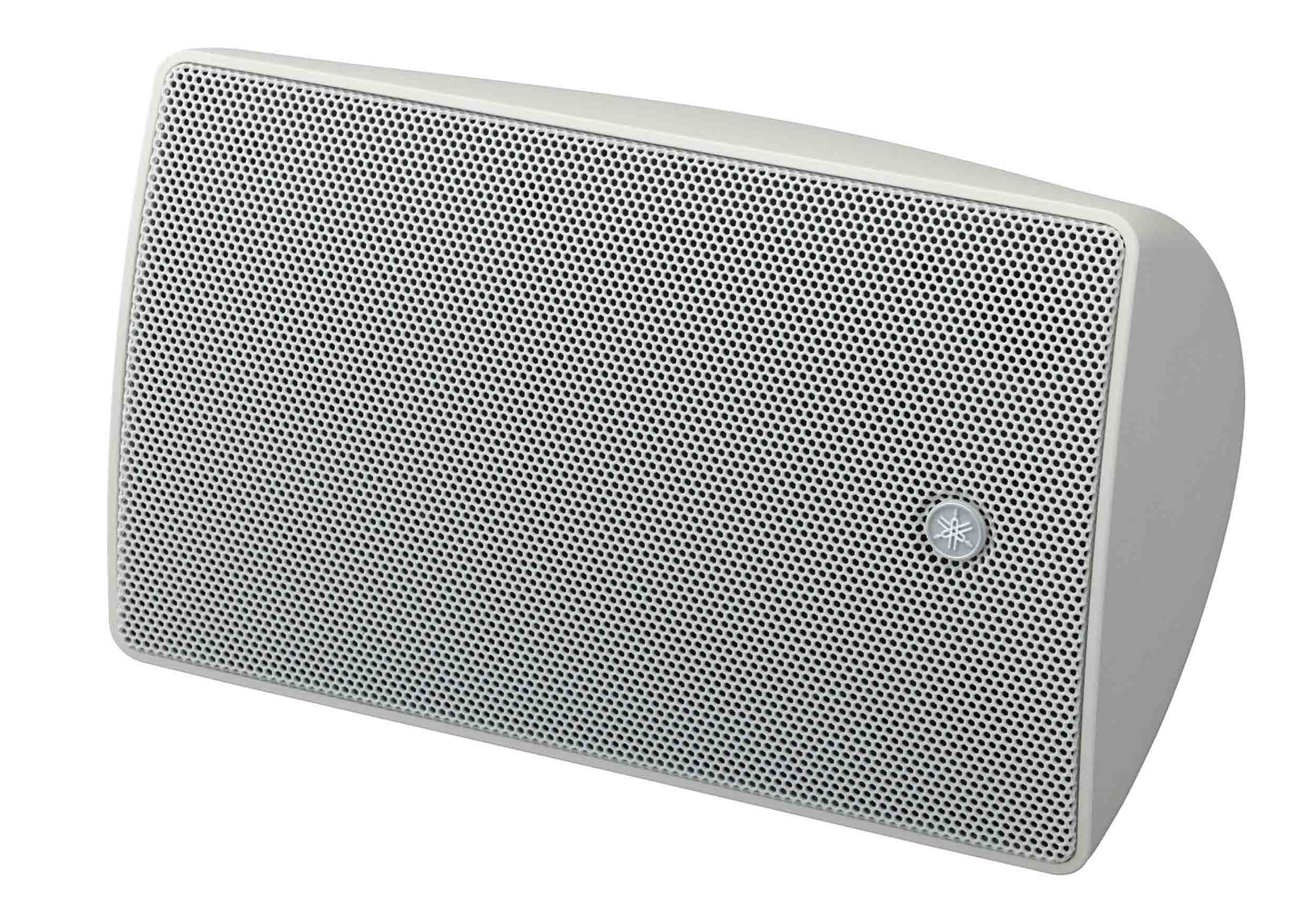

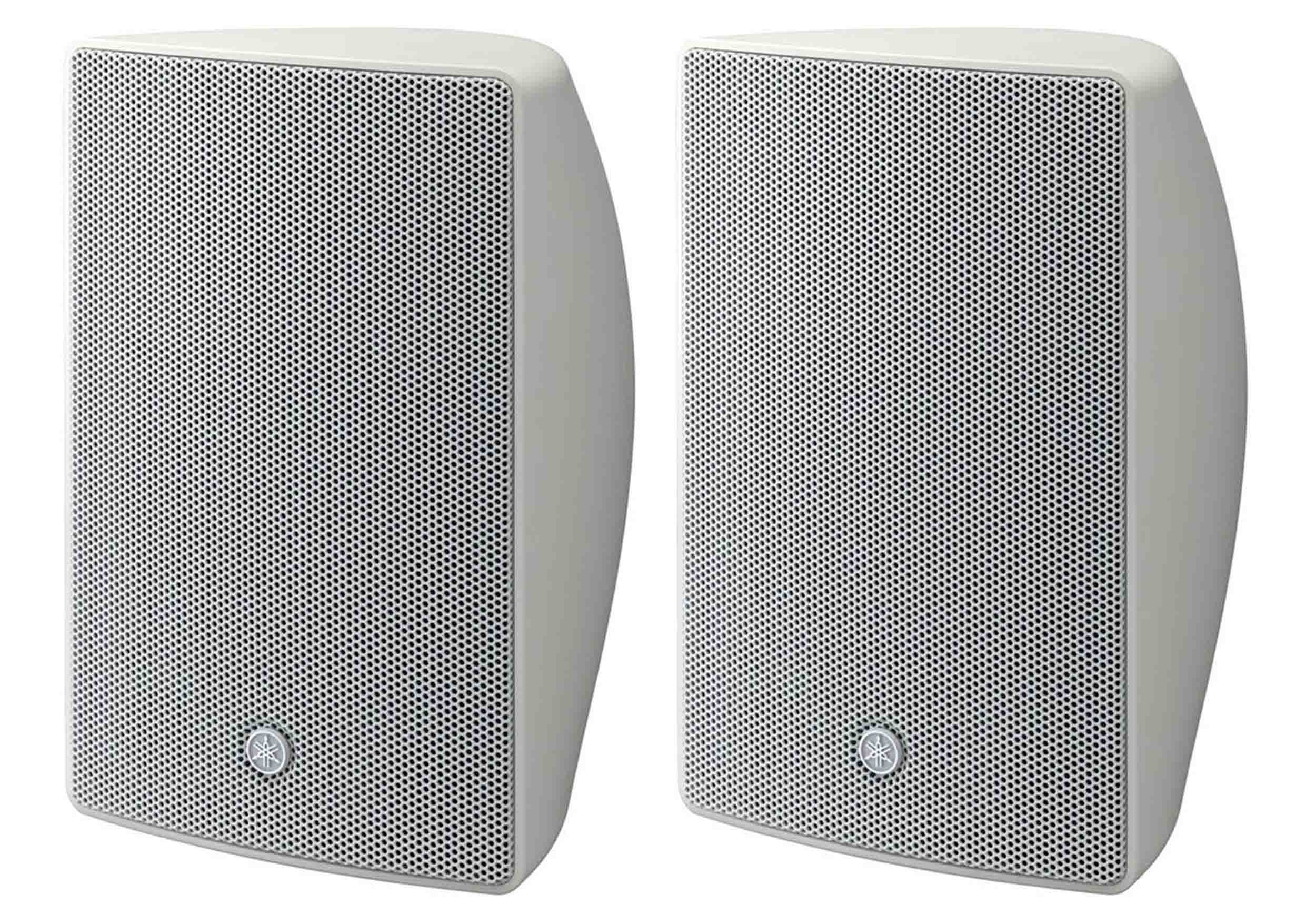

The Yamaha VXS5W is a highly adaptable surface-mount speaker designed for both professional indoor and outdoor applications. Featuring a 5.25" low-frequency driver and a 0.75" soft-dome tweeter, it delivers clear, natural sound with excellent frequency response. With a 120° conical dispersion pattern, the VXS5W ensures uniform coverage across the listening area, making it ideal for background music, public announcements, or multimedia environments. The speaker’s white finish and paintable enclosure allow it to blend seamlessly into any interior or exterior décor.
Equipped with a 30W 70/100V multi-tap transformer and 8-ohm bypass, the VXS5W can operate in both high-impedance and low-impedance systems, providing flexibility for a wide range of installations. Its IP35-rated construction ensures reliable operation even in outdoor or semi-exposed environments, while the dedicated mounting bracket allows for quick, secure, and adjustable wall or ceiling installation. The gear guides in the bracket make it easy to configure the mounting angles consistently, saving time during setup.
Yamaha’s VXS Series design emphasizes both acoustic performance and aesthetic elegance. The hexagonal grille improves sound clarity by increasing the aperture ratio, while the smooth, surface-mount cabinet allows close-to-wall placement without compromising tilt or pan adjustments. With paintable enclosures, grilles, and brackets, the VXS5W offers customizable finishes to match any interior design, combining high-quality audio with sophisticated visual appeal.
Product Specifications:
Speaker type: 2-way, Bass-reflex
Frequency range (-10dB): 62 Hz – 20 kHz
Nominal coverage H: 120°
Nominal coverage V: 120°
Components LF: 5.25" Cone
Components HF: 0.75" Soft dome
Crossover: 3 kHz
Power rating NOISE: 75 W
Power rating PGM: 150 W
Nominal impedance: 8 Ω
Transformer taps 100V: 30 W (330 Ω), 15 W (670 Ω), 7.5 W (1.3 kΩ)
Transformer taps 70V: 30 W (170 Ω), 15 W (330 Ω), 7.5 W (670 Ω), 3.8 W (1.3 kΩ)
SPL Sensitivity (1W; 1m on axis): 89 dB SPL
Peak SPL (Calculated): 114 dB SPL

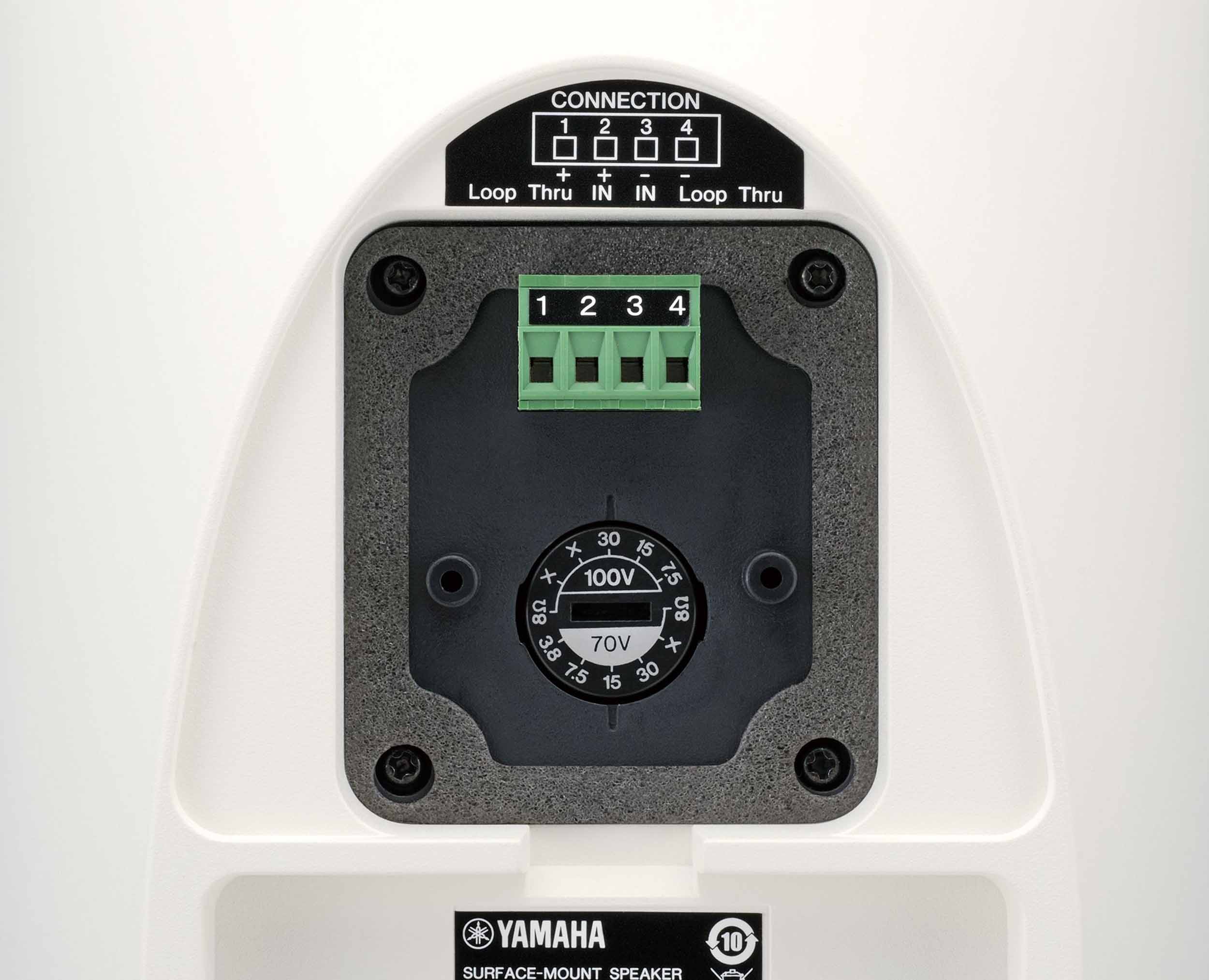

I/O connectors: 1x Euroblock (4P) Input: + / -, Loop Thru: + / -
Shape: Rectangular
Cabinet material: ABS
Finish: VXS5W White
Waterproof: IP35
Product Weight: 7.9 lbs / 3.6 kg
Product Dimensions (L × W × H): 6.4 × 6.9 × 11.0 in
