Description

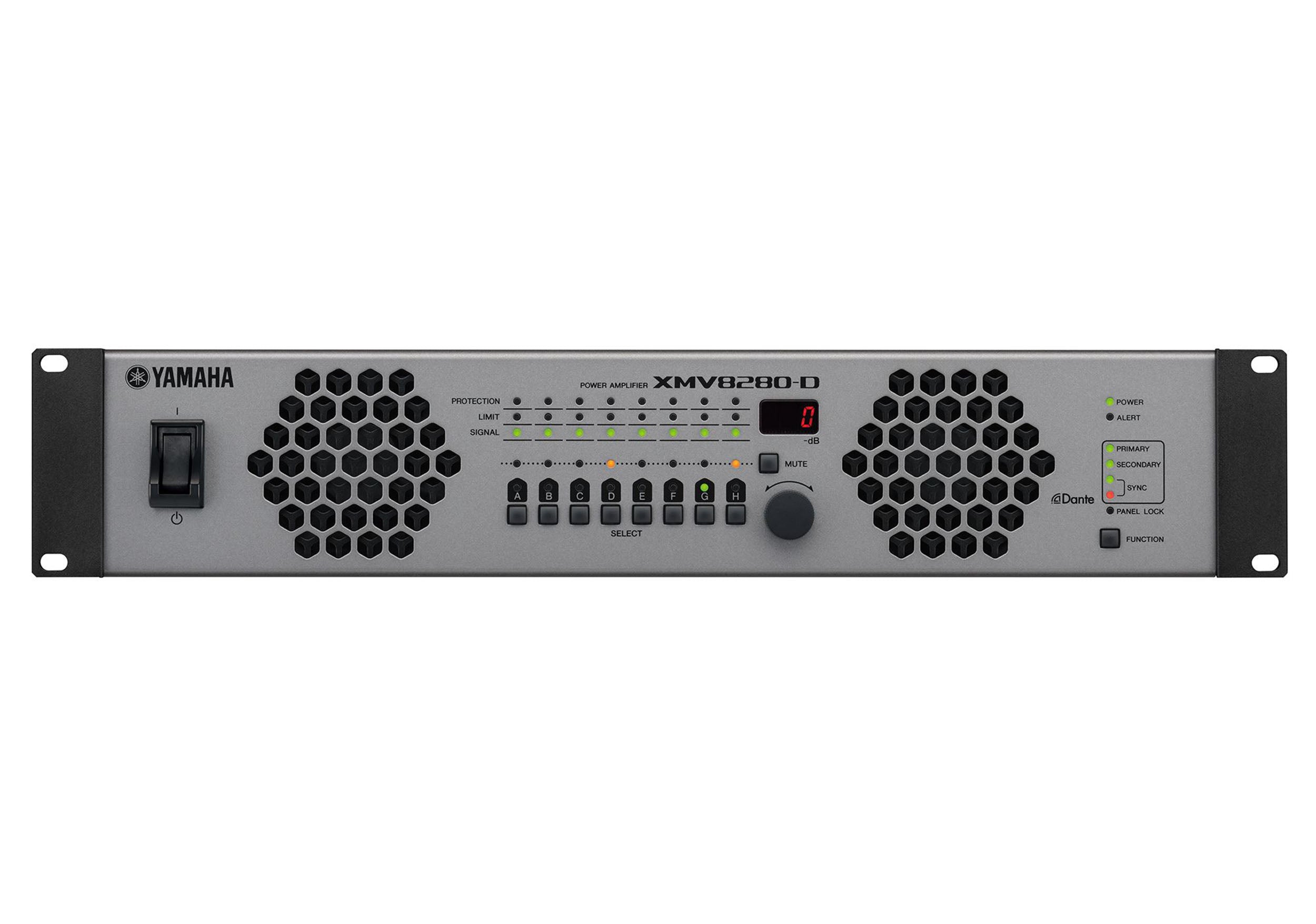

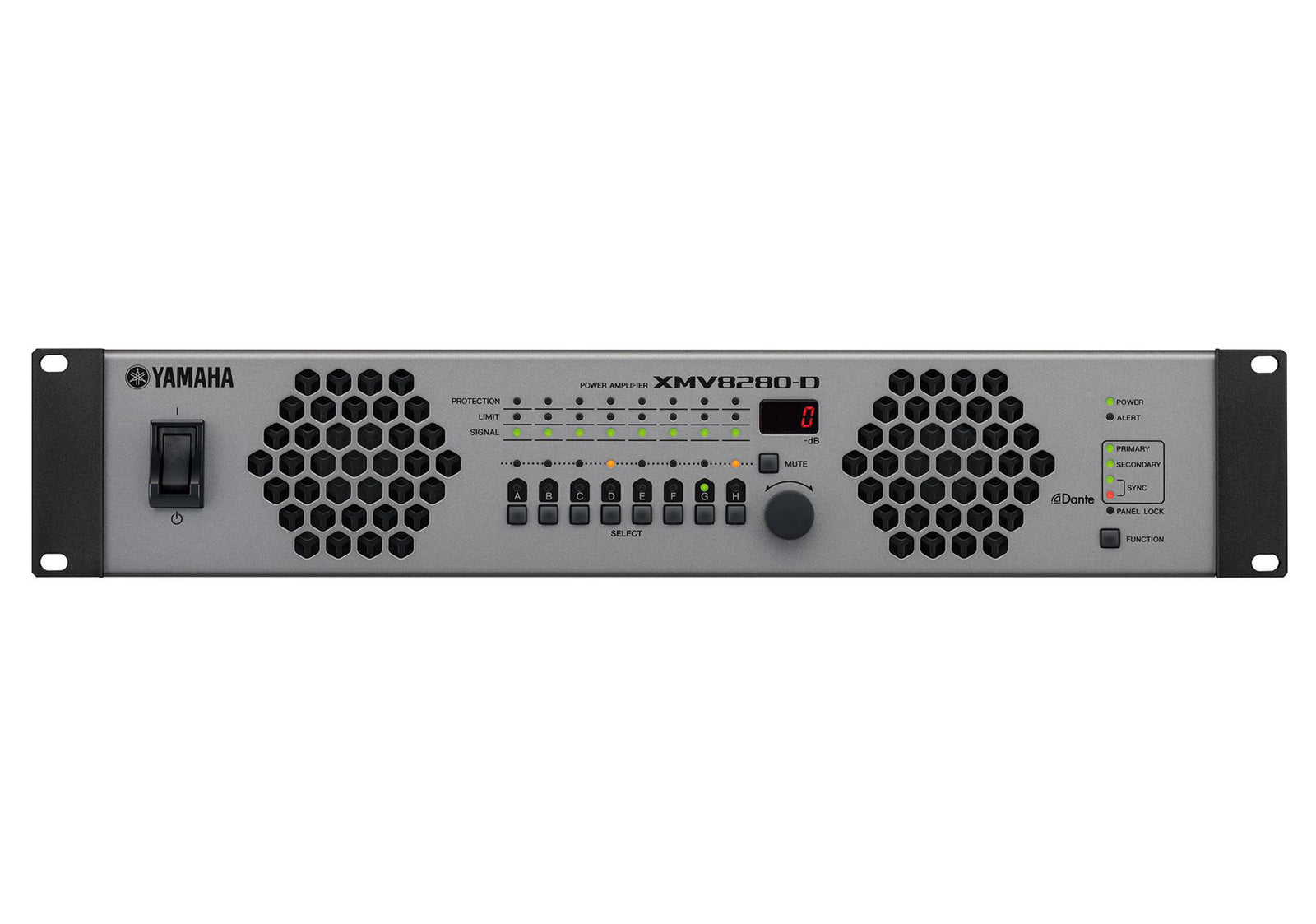

The Yamaha XMV8280-D is a professional multi-channel power amplifier designed for large-scale installations and venues requiring long-distance audio distribution. Delivering 8 × 280W at 8Ω/4Ω, 8 × 250W at 70V/100V, and 4 × 560W in Double Power Mode, it allows flexible operation for both high- and low-impedance connectivity without the need for separate amplifiers or external transformers. Each pair of channels can independently operate at 70V or 100V via rear-panel DIP switches, while the Double Power Mode doubles the output on selected channels, providing the power necessary to drive speakers with higher output requirements. This versatility ensures seamless integration in complex multi-zone systems.
Equipped with YDIF digital audio and full compatibility with Audinate Dante networks, the XMV8280-D supports large venues where long-distance cabling is required. It also supports Dante Domain Manager, AES67, and Dante Device Lock, enhancing system security and scalability while preventing unauthorized changes to networked audio settings. Integration with MTX/MRX series processors enables quick control over settings like mute and attenuator adjustments via the MTX-MRX Editor software, allowing instant connectivity and flexible system management for professional audio installations.

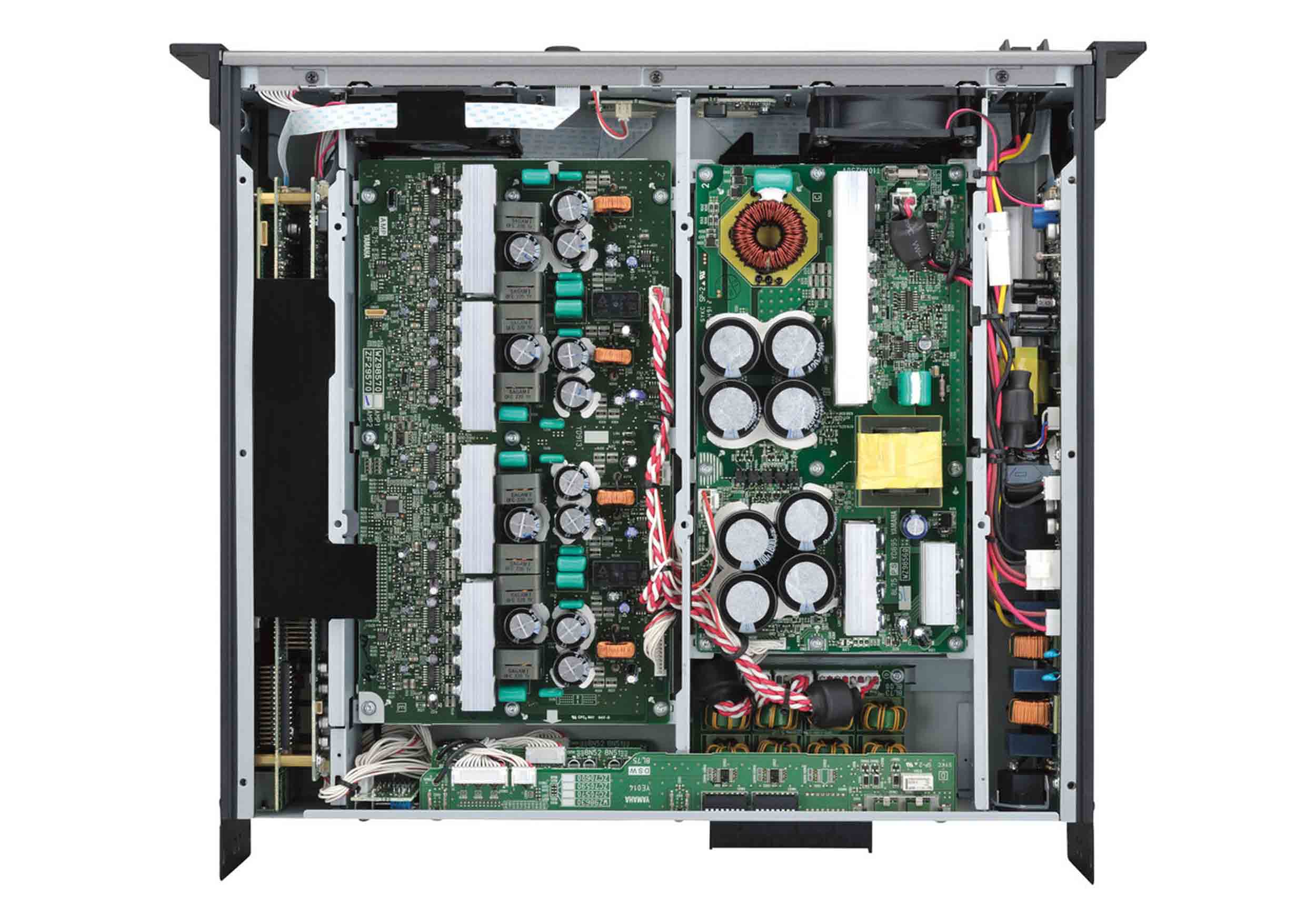

Designed for maximum efficiency and reliability, the XMV8280-D features a patent-pending Class-D amplifier circuit with over 90% efficiency and a PFC-equipped switching power supply, reducing energy loss and minimizing current draw. Intelligent protection circuits guard against low load impedance, overcurrent, and overheating, ensuring long-term durability and consistent performance. Additional capabilities, including per-channel source selection, Backup and Override modes, and Ethernet-based external control, make the XMV8280-D a highly adaptable and secure solution for demanding installed sound environments.
Product Specifications:
Output Power 1kHz (THD+N=1% 4Ω): 280 W x 8
Output Power 1kHz (THD+N=1% 8Ω): 280 W x 8
Output Power 1kHz (THD+N=1% 4Ω Double Power Mode): 560 W x 4
Output Power 1kHz (THD+N=1% 8Ω Double Power Mode): 560 W x 4
High Impedance 100V line: 250 W x 8 / 40 Ω
High Impedance 70V line: 250 W x 8 / 40 Ω
Voltage Gain RL 8Ω: 31.7 dB
Voltage Gain RL 8Ω Double Power Mode: 34.7 dB
Voltage Gain 100V: 38.2 dB
Voltage Gain 70V: 35.2 dB
Power Consumption: 1/8 power 450 W, Idle 73 W, Standby 23 W
Total Harmonic Distortion: ≤ 0.2%
Frequency Response: 20 Hz – 20 kHz ±1.0 dB
S/N Ratio: ≥ 100 dB
Crosstalk: ≤ -60 dB
Input Sensitivity: +4 dBu
Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced

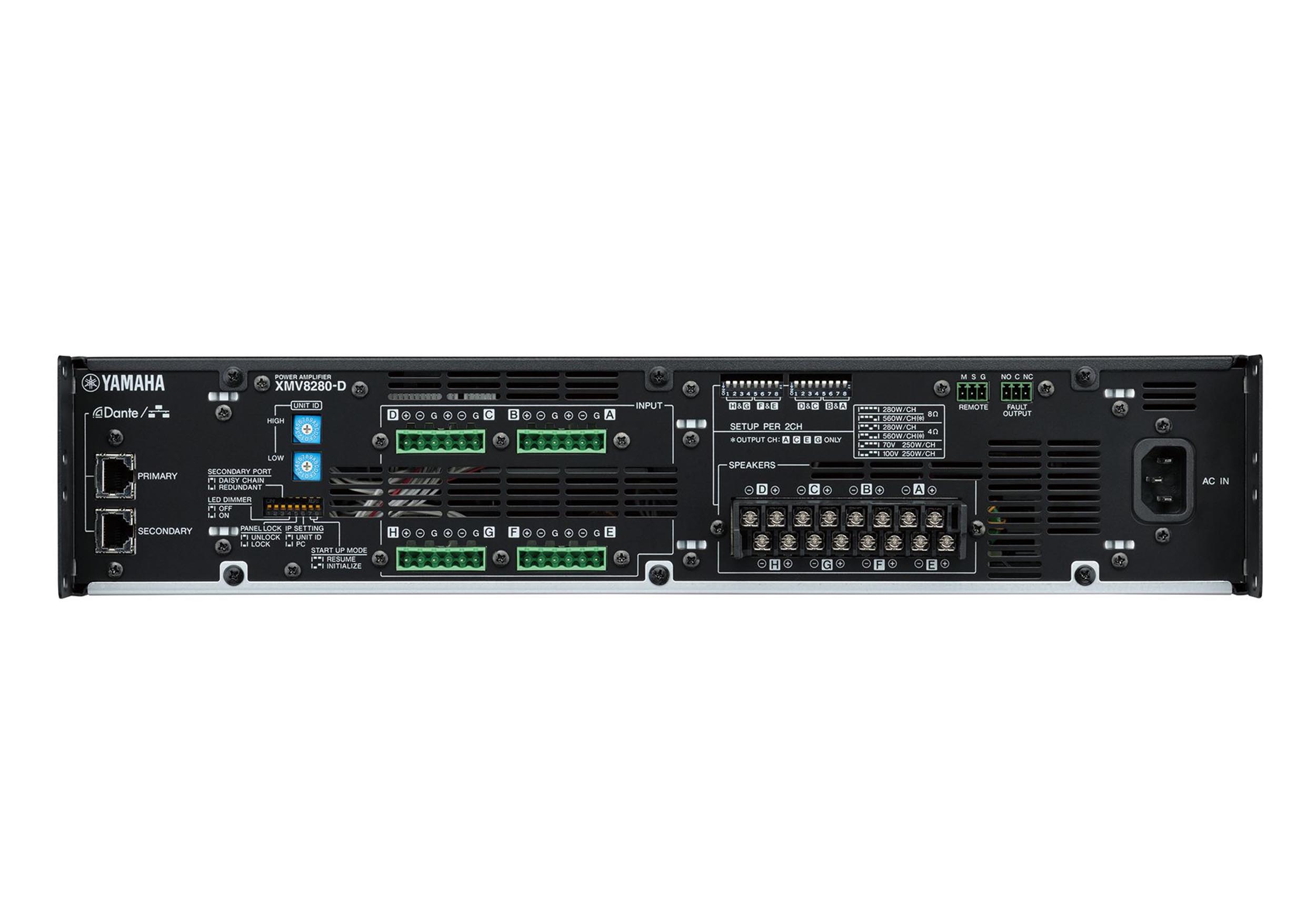

Analog I/O: Euroblock x 2 6P balanced
Digital I/O: RJ45 x 2 Dante Primary / Secondary
Speaker Output: Barrier strip x 8 pairs
Control Ports: Remote and Fault Output Euroblock 3P x 1
Network: Shared with Dante ports
Maximum Input Level: +24 dBu
Load Protection: Output mute on power on/off, DC fault shuts down power supply, clip limiting
Amplifier Protection: Thermal mute ≥90°C, overcurrent mute, low load impedance mute
Power Supply Protection: Thermal shutdown ≥100°C, gain reduction
Cooling: Dual 3-speed fans front to back airflow
Power requirements: 100V, 120V, 230–240V 50/60 Hz
Product Weight: 22.3 lbs / 10.1 kg
Product Dimensions (L × W × H): 16.6 × 18.9 × 3.5 in
