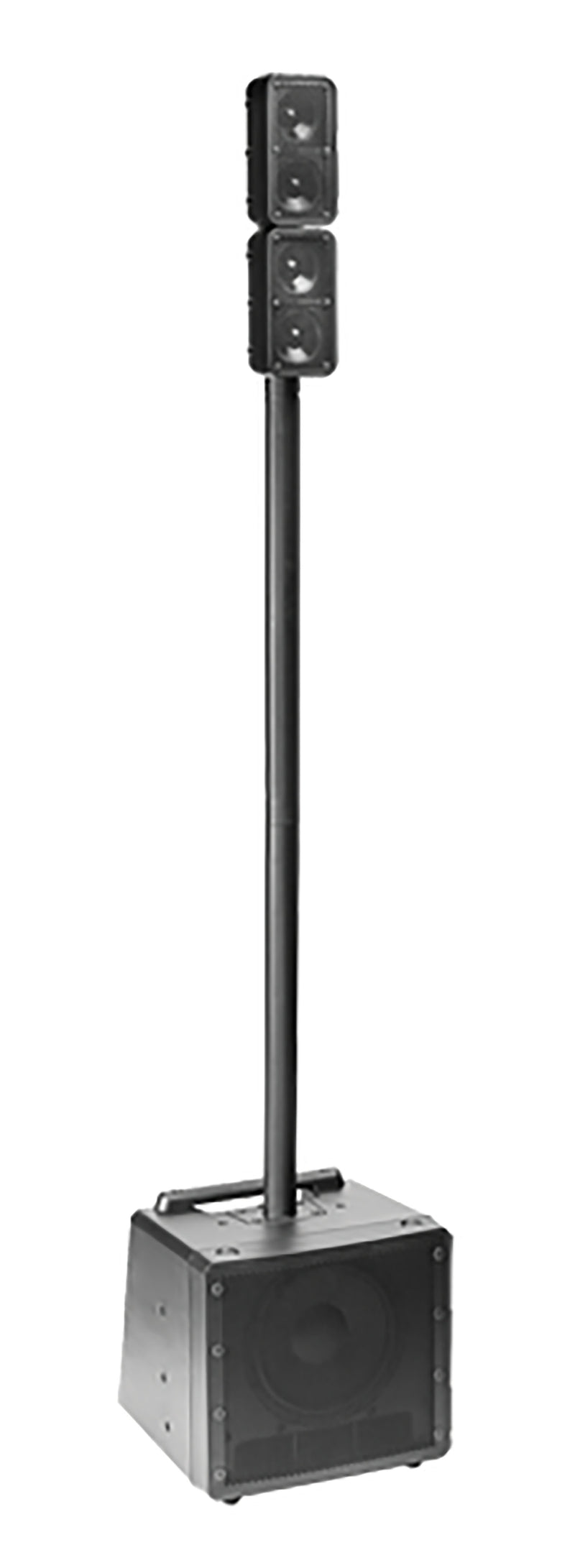

The Yorkville Excursion Mini Series EXM400 Compact PA is a 400 watt, four channel Bluetooth enabled active stereo system built with mobile live sound in mind. Lightweight compact extension speakers, innovative pole-through connectivity and versatile input / mixer functions ensure the EXM400 can easily be used in small solo or duo performances, DJ applications, conferencing and public address functions. Designed for maximum mobility, the center of the EXM400 is a compact powered subwoofer module with integrated mixer. Two high efficiency satellite speakers and two speaker poles complete the core package. Connectivity between subwoofer / mixer and satellite speakers is handled with innovative pole through conductors, meaning no extra cabling is required.
Integrated 24-bit digital effects ensure the EXM400 can be used for live musical performances without need of cumbersome external signal processing. A padded nylon carry bag is included with the package to maximize user convenience. A dedicated Bluetooth channel means direct connection of any Bluetooth enabled audio device for music playback can be made without additional cables. This makes the EXM400 the ideal compact high fidelity conferencing / presentation and public speaking system.
Product Specification:
Active or Passive: Active
Power Rating (Watts): 400 Watts (800 Watts Peak)
Nominal Impedance (Ohms): 4 ohms (sub), 8 ohms (satellites)
Max SPL (dB): 121dB
Frequency Response (Hz +/- 3dB): 50Hz - 20kHz
Crossover Frequency (Hz): 240Hz
HF Driver(s): 2 x 3.5" per satellite
HF Power Rating (Watts): 75W per channel
HF Impedance (Ohms): 8
HF Protection: Peak and RMS limiting
LF Driver(s): 1 x 10-inch
LF Power Rating(Watts): 250
LF Impedance (Ohms): 4
LF Protection: Peak and RMS limiting
HF Amplifier Type: Class AB Half Bridge
LF Amplifier Type: Class D Full Bridge
Cooling Scheme: Passive convection
Channel 1 Input: Combi-jack XLR & 1/4-inch (Microphone / Instrument)
Channel 2 Input: Combi-jack XLR & 1/4-inch (Microphone / Line Input)
Channel 3 Input: 2 x ¼-inch Input (Stereo) / 1 x 1/8th Input (Stereo)
Mixer Controls: Bluetooth Input
Ch. 1 & 2: Level / Tone / Reverb
Ch. 3/4 Level / Treble / Bass
Bluetooth Level, Sub Level, Master Level
Optional Accessories: EXM400SATKIT for additional Power and Coverage
Dimensions (DWH xbackW, inches): sub- 14.5/15.5/14.5
Height assembled system- 78
Dimensions (DWH xbackW, cm): sub- 36.8/39.3/36.8
height assembled system-198
Weight (lbs/kg): 43 / 19.50
