Description

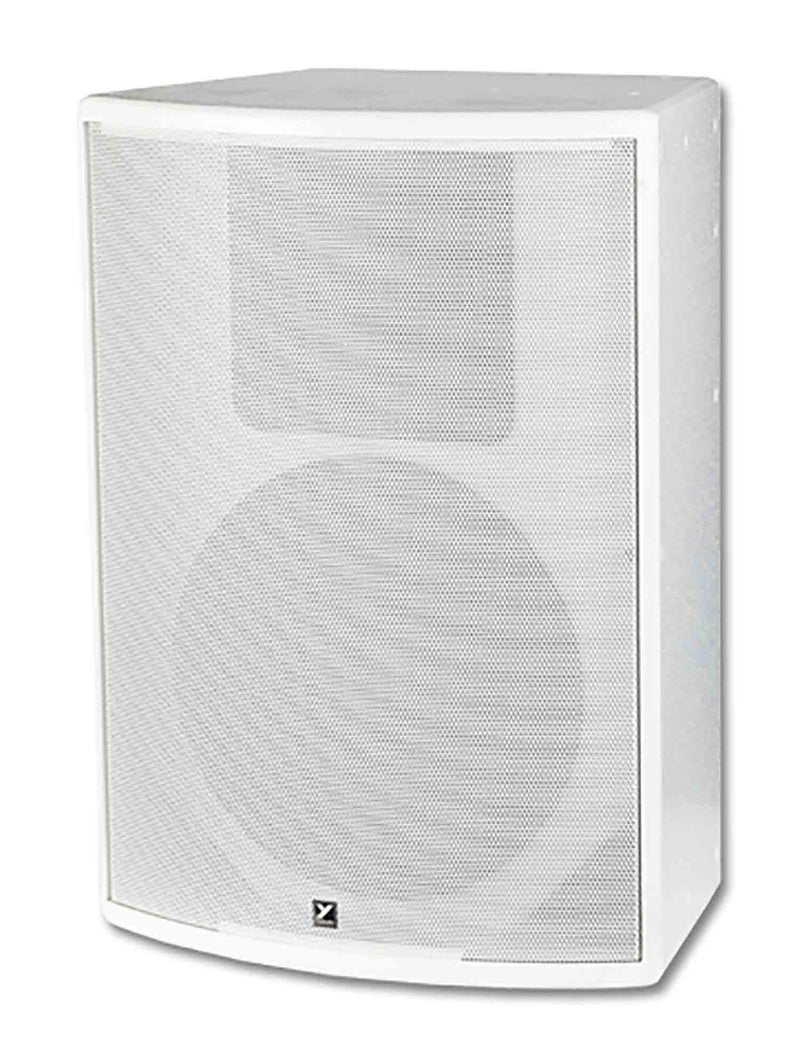

The Yorkville Sound Coliseum C15W installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80° x 50° horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.
Product Specification:
System Type: Two Way
Active or Passive: Passive
Power Rating (Watts): 500
Biampable: No
Nominal Impedance (Ohms): 8
Sensitivity (dB @1Watt/1m): 99
Max SPL (dB): 126
Frequency Response (Hz +/- 3dB): 50 - 20k
Crossover Frequency (Hz): 1100
Driver Configuration: 15 inch / 1 inch
HF Driver(s): 1 inch
HF Horn: Rotatable ABS Waveguide
HF Dispersion (°H x °V): 0 x 50 Rotatable
HF Protection: CTL
Inputs - Speakon 4-pin: 2
Inputs - Screw Terminal: 1 Pair
Flying Hardware: 1/4 inch
Optional Flying Hardware: FH2W Flyware is available
Pole Mount Adapter (1 3/8"-3.5cm): No
Enclosure Materials: 15mm (5/8inch) 11-ply Russian birch
Grille: Perforated Metal
Covering / Finish: Two Part White Epoxy
Other Details: Has rear mounted rigging points for Omnimount 120.0WA bracket
Dimensions (DWH xbackW, inches): 15.4 x 20.9 x 28.7 x 15.7
Dimensions (DWH xbackW, cm): 39.1 x 53.1 x 72.9 x 39.8
Weight (lbs/kg): 75 / 34.2
