Description

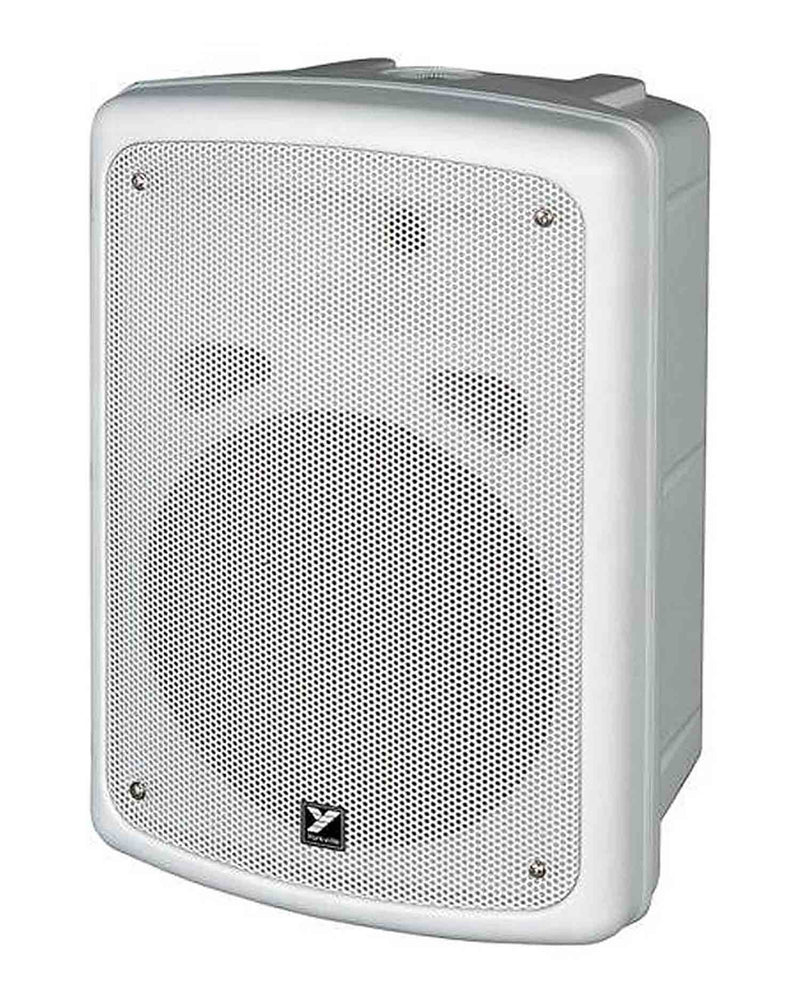

The Yorkville Sound C170W, 100w, 8-inch / 1-inch 70V 'matching transformer' allows multiple C170's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (4, 8, 16, 32 or 100 Watts) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.
Product Specification:
System Type: 2-Way
Active or Passive: Passive
Power Rating (Watts): 100
Biampable: No
Nominal Impedance (Ohms): 8
Sensitivity (dB @1Watt/1m): 93
Max SPL (dB): 113
Frequency Response (Hz +/- 3dB): 60 - 20000
Driver Configuration: 8 inch / 1 inch dome tweeter
HF Driver(s): 1 inch Mylar Dome Tweeter
LF Driver(s): 8 inch
LF Power Rating(Watts): 100
LF Impedance (Ohms): 8
Inputs - 1/4" Jacks: 2
Inputs - Binding Post: Yes
Feet: Yes
Included Hardware: Mounting Bracket
Pole Mount Adapter (1 3/8"-3.5cm): Optional Adapter (C170ADAPT)
Enclosure Materials: ABS Plastic
Grille: Perforated Metal
Finish: White
Dimensions (DWH xbackW, inches): 11.25 x 9.75 x 16.25 x 9.5
Dimensions (DWH xbackW, cm): 28.5 x 25 x 42 x 24
Weight (lbs/kg): 14.5 / 6.6
