Description

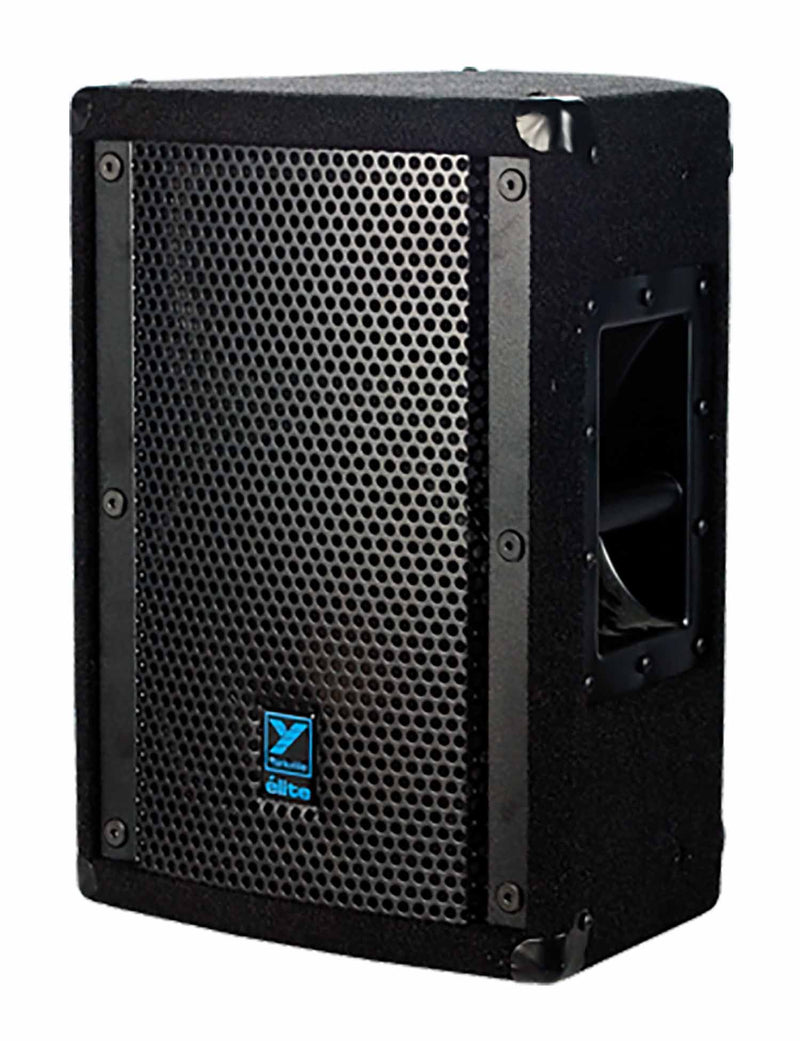

The Yorkville Sound E10P is an advanced, compact two-way active loudspeaker designed for a wide variety of pro-audio applications. Built for maximum versatility, the E10P input section will easily handle microphone or line level inputs through the XLR / TRS Combi-jack. Bass and Treble EQ in addition to Level control and a Mic/Line input gain selector ensure the E10P can handle virtually any audio source. A Live/Playback EQ preset selector, a 100Hz/50Hz low-frequency Roll-off selector (no crossover needed for subs), a full-time Limiter with LED indicator, a Clip LED, a Link output ensure the E10P can adapt easily to any audio application including use as a front-of-house PA loudspeaker, as a personal wedge monitor or as a single unit micro PA for a paging and playback system (no additional mixer required).
Product Specification
| Specification | Value |
|---|---|
| System Type | Powered Loudspeaker |
| Active or Passive | Active |
| Power Rating (Watts) | 325 Watts (650 Watts Peak) |
| Max SPL (dB) | 129dB Peak (123dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 65 - 20k |
| Crossover Frequency (Hz) | 1500 |
| Driver Configuration | 10-inch / 1-inch |
HF Dispersion (°H x °V): 100 x 25
HF Protection: Peak and Average Limiting
LF Protection: Excursion, RMS
Cooling Scheme: Convection
Power Cable: Removable IEC
Power Switch: Yes
Power Consumption (typ/max): 120VA / 200VA
Inputs: 1 Combijack (XLR / 1/4-inch)
Input Impedance (Bal/UnBal): 4k ohms / 2k ohms
Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.35 at max
Level Controls: Gain
EQ Controls: Bass, Treble
Limiter: Peak and Average limiting on horn and woofer
LED Indicators: Power, Clip
Corners: Metal
Feet: Plastic Glides
Bar Handles: One Side
Flying Hardware: 5 (2 Top, 2 Bottom, 1 Pullback), 1/4" Threading
Pole Mount Adapter (1 3/8"-3.5cm): Yes
Enclosure Materials: 15mm (5/8-inch) 11-ply Russian Birch
Port(s): Rear
Grille: Perforated Metal
Covering / Finish: Black Ozite (Carpet)
Dimensions (DWH xbackW, inches): 12 x 13 x 18.5 x 5.5
Dimensions (DWH xbackW, cm): 30 x 33 x 45 x 14
Weight (lbs/kg): 34 / 15.5
