Description

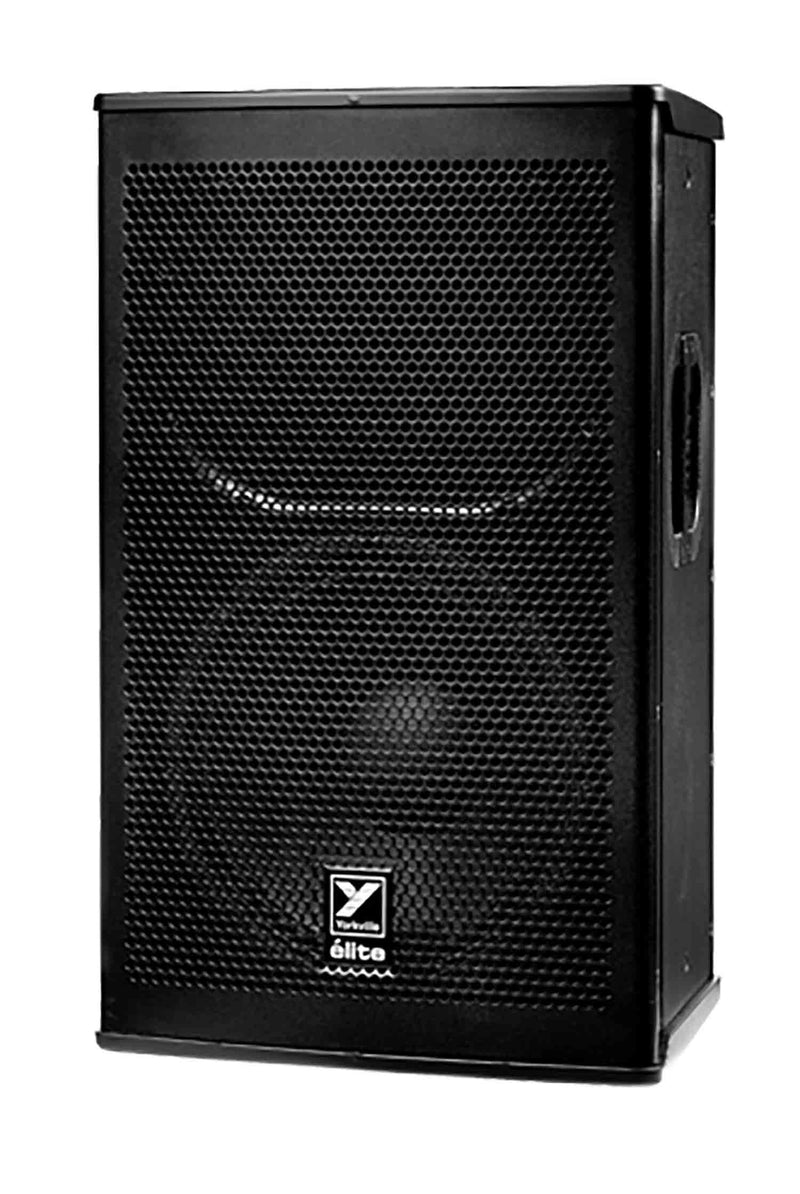

The Yorkville Sound EF15 Elite Series 15" Passive Speaker - 700W, High quality passive speaker. Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.
Product Specification
| Specification | Value |
|---|---|
| System Type | Two Way |
| Active or Passive | Passive |
| Power Rating (Watts) | 700 Watts (1400 Watts Peak / 450 Watts Continuous) |
| Biampable | No |
| Nominal Impedance (Ohms) | 8 |
| Sensitivity (dB @1Watt/1m) | 97 |
| Max SPL (dB) | 128.5dB Peak (125.5dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 55 - 18k |
| Crossover Frequency (Hz) | 1900 |
| Driver Configuration | 15-inch, 3-inch Diaphragm |
| HF Driver(s) | 3-inch Voicecoil (Titanium Diaphragm) |
| HF Horn | ABS plastic custom Waveguide |
| HF Dispersion (°H x °V) | 60x40 |
| HF Protection | 3xSK3 protection bulbs |
| LF Driver(s) | 15-inch (3-inch voicecoil) |
| Inputs - 1/4" Jacks | 2 |
| Inputs - Speakon 4-pin | 2 |
| Bar Handles | 2 |
| Flypoints | 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) |
| Pole Mount Adapter (1 3/8"-3.5cm) | Yes |
| Enclosure Materials | 15mm (5/8inch) 11-ply Russian Birch |
| Grille | Perforated Metal |
| Covering / Finish | Black Ultrathane Paint |
| Dimensions (DWH xbackW, inches) | 14 x 18.5 x 30 x 12 |
| Dimensions (DWH xbackW, cm) | 35.5 x 47 x 76 x 30.5 |
| Weight (lbs/kg) | 61 / 27.8 |
