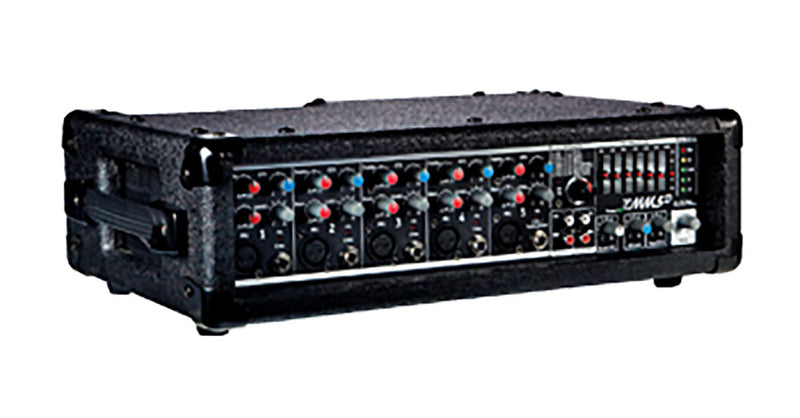

Yorkville Sound MM5D, MicroMix 5 Channel Mixer Amp - 2x90W

Save 28%
YorkvilleSKU: H-YORK-MM5D
UPC: 840402027249 MPN:MM5D
Price:
Sale price$379.00 Regular price$530.00
Stock:
In stock (9 units), ready to be shipped

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

Description

The Yorkville Sound MicroMix MM5D powered box mixer is the ideal PA solution for most applications where 2 x 90 watts (stereo) is enough power yet input flexibility is required. Balanced XLR mic, 1/4-inch phone and dual RCA line inputs, onboard user controlled digital effect unit and tape outs (with separate level controls) make the MM5D the perfect powered mixer for live PA, rehearsal, installation or announcement PA applications.

Product Specification:

Number of Channels: 5

Mono Channel EQ: 2 band shelving

Channel Effects: Yes

Inputs - XLR (bal): Ch. 1 - 5

Inputs - 1/4": Ch. 1 - 5

Inputs - RCA (unbal): Tape/CD in

Internal Effects: 16 Digital Effects: reverb, echo, chorus, flange

Effects Send: No

Effects Return: No

Effects Return to Main: Yes

Effects Return to Monitor: No

Record Outputs: Stereo RCA with level control

Max Gain to Line Out -Mic Input (dB): 84dB

Max Gain to Line Out -Line Input (dB): 70dB

Main Outputs (Line Level): No

Outputs - Amp A - 1/4" Jacks: 1

Outputs - Amp A - Speakon 4-pin: 1

Mixer - Freq Resp (Tone and EQ Flat,2dB): 40Hz - 20,000Hz

Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 2 x 60 watts

Amp A - Power Output @ 4 Ohms: 2 x 90 watts

THD - 1kHz (dB): less than 0.1%

Typical crosstalk -1 kHz (dB-: less than - 60dB

Power Consumption (typ/max): 1.0 A @ 120VAC / 0.5 A @ 230VAC

Protection: Clip limiter, thermal shutdown

Cooling: Passive heatsink and internal Fan

Dimensions (DWH, inches): 9 x 17.75 x 6

Dimensions (DWH, cm): 22.85 x 45 x 15.25

Weight (lbs/kg): 19.2 / 9.7
