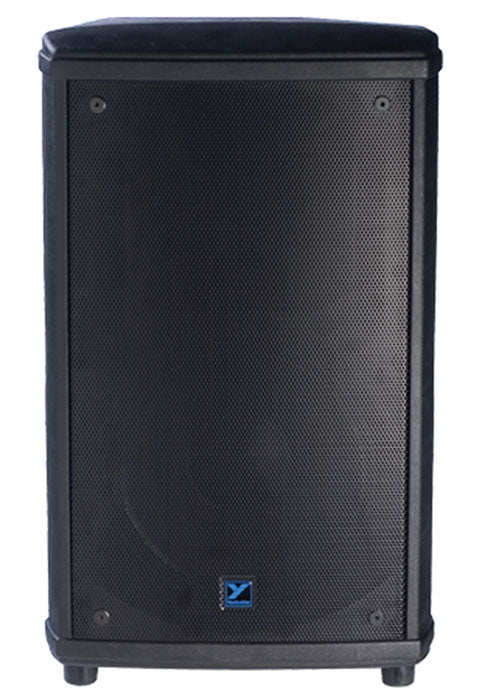

Yorkville Sound NX35-2, 2-Way Passive Loudspeaker - 12 Inch

The Yorkville Sound NX35-2 is a 2-Way Passive Loudspeaker.NX35-2 is the next evolution of the molded loudspeaker. Based on its predecessor, the popular NX20, the NX35-2 incorporates many new features and subtle improvements. For example, the NX35-2 is slightly larger than the NX20.and that increased cabinet volume greatly increases low-frequency output making for a balanced overall response with high efficiency. Its deep-excursion 12-inch woofer easily handles 500 watts and is complemented by a smooth, 1-inch compression driver on a custom 80° x 50° ABS waveguide horn similar to those used in the renowned élite loudspeaker line.

The new NX35-2 is slightly larger than the original NX20. The increased cabinet volume greatly increases low-frequency response and makes for a better, more balanced overall cabinet tone. It features a new 80° x 50° horn, patterned after the custom ABS waveguide horn used in the popular élite loudspeaker line.

As with all NX series enclosures, the NX35-2 is manufactured with rigid internal bracing and using tough, lightweight low resonance variable density composite materials that are UV and moisture resistant. The new shape employed on the NX35-2 makes for an improved monitor angle when it is employed in that role and upright, it is ideal for mounting in tight arrays, or in multiple cabinet clusters. The NX35-2 is the ideal cabinet to become the flagship of the NX Series' compact models. All in all, the NX35-2 is an ideal solution to professional sound requirements where high performance is needed from a compact, lightweight speaker.

The NX35-2 enclosure itself has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor. An improved wedge monitor angle has been incorporated into the new design.

Product Specifications:

System Type: 2-Way

Active or Passive: Passive

Program Power (Watts): 500 Watts (1000 Watts Peak)

Frequency Response (Hz +/- 3dB): 60 - 18k

Crossover Frequency (Hz): 2k

Driver Configuration: 12 inch / 1 inch

HF Driver(s): 1.4-inch Aluminum Diaphragm / 1-inch exit

HF Impedance (Ohms): 8

HF Dispersion (°H x °V): 80 x 50

Dimensions (DWH xbackW, inches): 12.25 x 16 x 26.5 x 9

Weight (lbs/kg): 28 / 12.7
