Description
Yorkville Sound PS15P is a 15-Inch Active Loudspeaker. The PS15P delivers maximum bottom end from a high power 15-inch ceramic woofer (with 3-inch voicecoil). A focused 85° x 50° (H x V) conical horn delivers improved constant directivity and better midrange response than competitive cabinets in this class.
Integrated DSP ensures the PS15P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low-frequency material when PS15P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS15P without cluttering the midrange program or affecting the cabinet's overall intelligibility - making it the perfect small speaker solution for larger events where additional subwoofer support is not available.
Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS15P's speaker components. Unlike competitive powered cabinets, the Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low-frequency material like kick drums and bass tracks. This delivers an extremely smooth and precise mix even at the highest output levels the cabinet can produce.

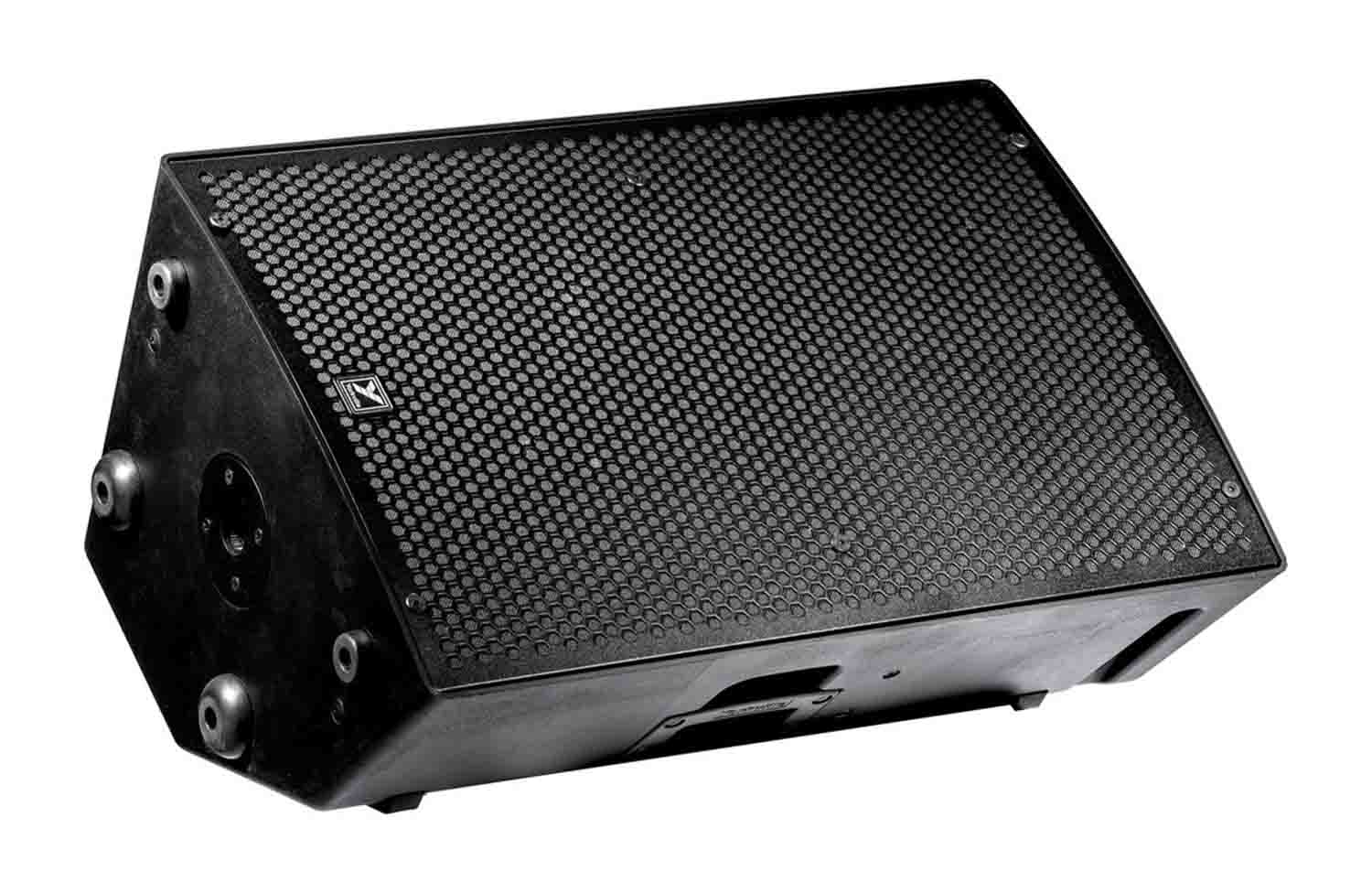

Designed for maximum versatility, the PS15P works equally well as a Front-of-House cabinet, side fill cabinet, or floor monitor. An innovative and highly efficient passive cooling scheme ensures the PS15P will operate in any environment without the need of noisy internal dust collecting fans. Integrated reinforced fly points ensure the PS15P can be flown quickly and easily in any fixed installation. Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long-term reliability in the field.
Product Specifications:
System Type: Active Loudspeaker
Active or Passive: Active
Program Power (Watts): 1400 watts (4400 watts peak)
Max SPL (dB): 134dB Peak (129dB Continuous)
Frequency Response (Hz +/- 3dB): 45Hz to 26kHz
Crossover Frequency (Hz): 1.0kHz
Driver Configuration: 15-inch / 1-inch
HF Driver(s): 38mm Voicecoil w/ 1-inch Exit
HF Dispersion (°H x °V): 85 x 50
HF Protection: Thermal/Peak Limiter
LF Driver(s): 15-inch (3-inch voice coil)
LF Protection: Thermal/Multiband Peak Limiter
Cooling Scheme: Passive
Power Cable: Detachable IEC
Power Consumption (typ/max): 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Dimensions (DWH xbackW, inches): 14.2 x 20.5 x 30.75
Weight (lbs/kg): 65 / 29.5
