Description

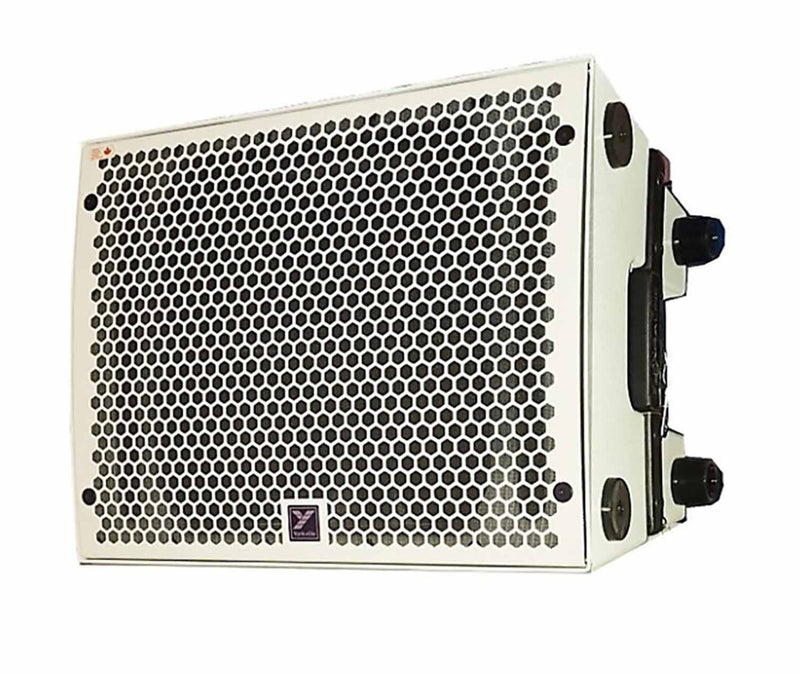

The Yorkville Paraline Series - PSA1W 4 x 6-inch / 2 x 1-inch - 700 watts Sound's Paraline Series active full range loudspeaker system delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.
Product Specification:
Active or Passive: Active
Power Rating (Watts): 700 (1200 Watts Peak)
Biampable: Biamp
Max SPL (dB): 128dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3dB): 75Hz-20K
Crossover Frequency (Hz): 1.2K
Driver Configuration: 2x1", 4x6"
HF Driver(s): 2x1-inch Ceramic w/ 1.75-inch VoiceCoil
HF Power Rating (Watts): 75 Watts (200 Watts Peak)
HF Dispersion (°H x °V): 110x15
HF Protection: Peak and Average Limiting
LF Driver(s): 4x6-inch neo with 45mm VC
LF Power Rating(Watts): 675 Watts Program (1000 Watts Peak)
LF Impedance (Ohms): 2 Ohm Load
LF Protection: Excursion, RMS
HF Power Amplifier (Watts): 75W
HF Amplifier Type: 2-Tier Class H
LF Power Amplifier (Watts): 625W
LF Amplifier Type: Class D
Cooling Scheme: Convection
Power Cable: Removable Locking IEC Input and Loop Thru Output
Power Switch: Yes
Power Consumption (typ/max): 135 VA / 225 VA
Inputs: 1 Combijack (XLR / 1/4-inch)
Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.35 at max
Level Controls: Volume
EQ Controls: HF Boost switch, Fullrange/Sub switch
Limiter: Peak and Average limiting on horn and woofer
LED Indicators: Power, Limit, Clip
Optional Flying Hardware: 1 x PSA1RIGKIT per cabinet, 1 x PSA1FRAME1 per hung
Enclosure Materials: Injection Molded ABS
Baffle Material: Injection Molded ABS
Covering / Finish: Paint
Optional Covering / Finishes: Optional Colours available
Dimensions (DWH xbackW, inches): 14.5 x20.5 x16
Dimensions (DWH xbackW, cm): 36.8 x 52.1 x 40.6
Weight (lbs/kg): 52 / 23.6
