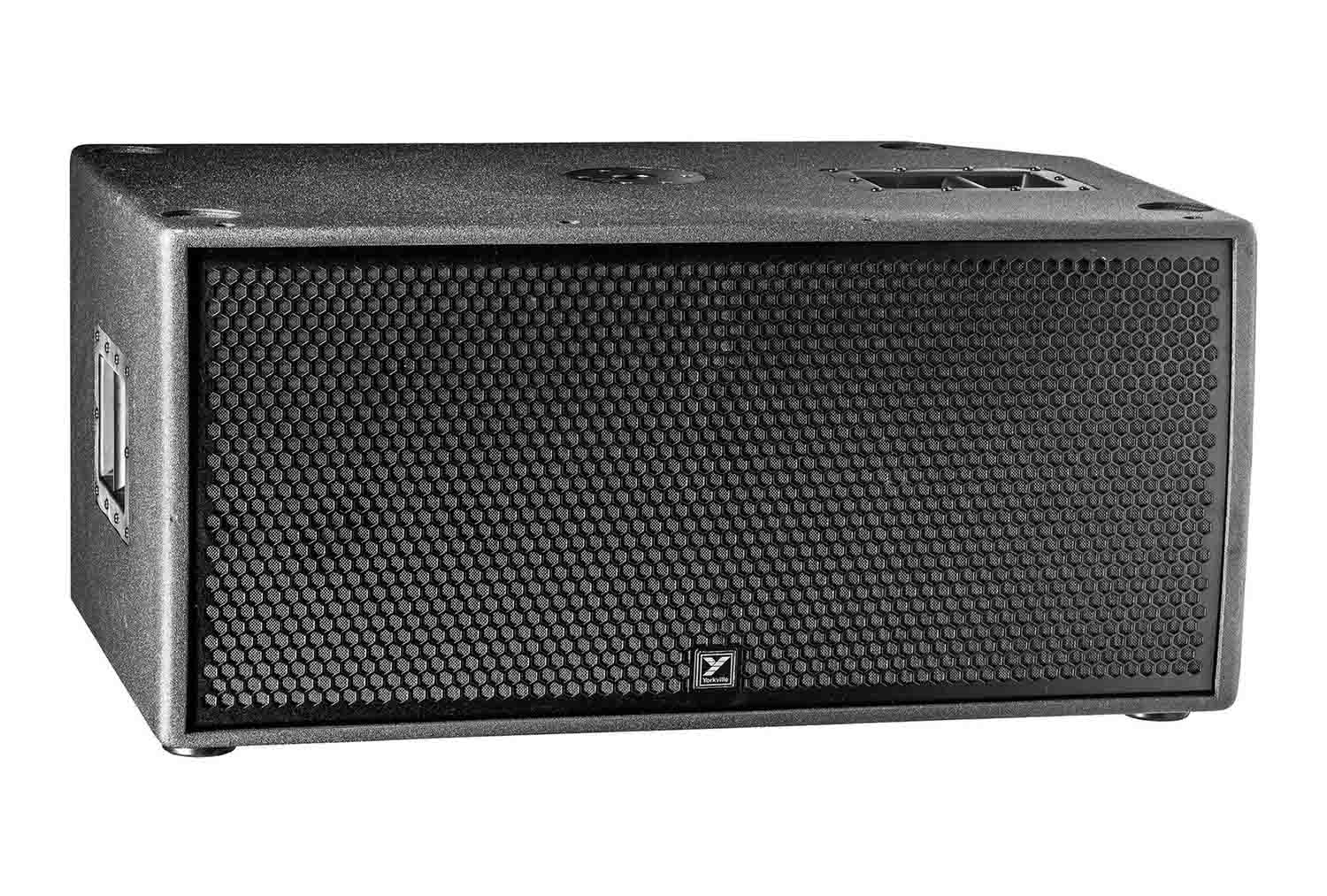

Yorkville Sound PSA2S, Bass Reflex Subwoofer - Dual 15-inch

The Yorkville Sound PSA2S is a Bass Reflex Subwoofer with a 4800-watt (peak-2400-watt program) dual 15-inch and active Subwoofer. This particular subwoofer is an is an ideal companion sub for the PSA1 full-range loudspeaker system. Solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA2S the perfect platform for stacking PSA1 cabinets in a scalable array system.

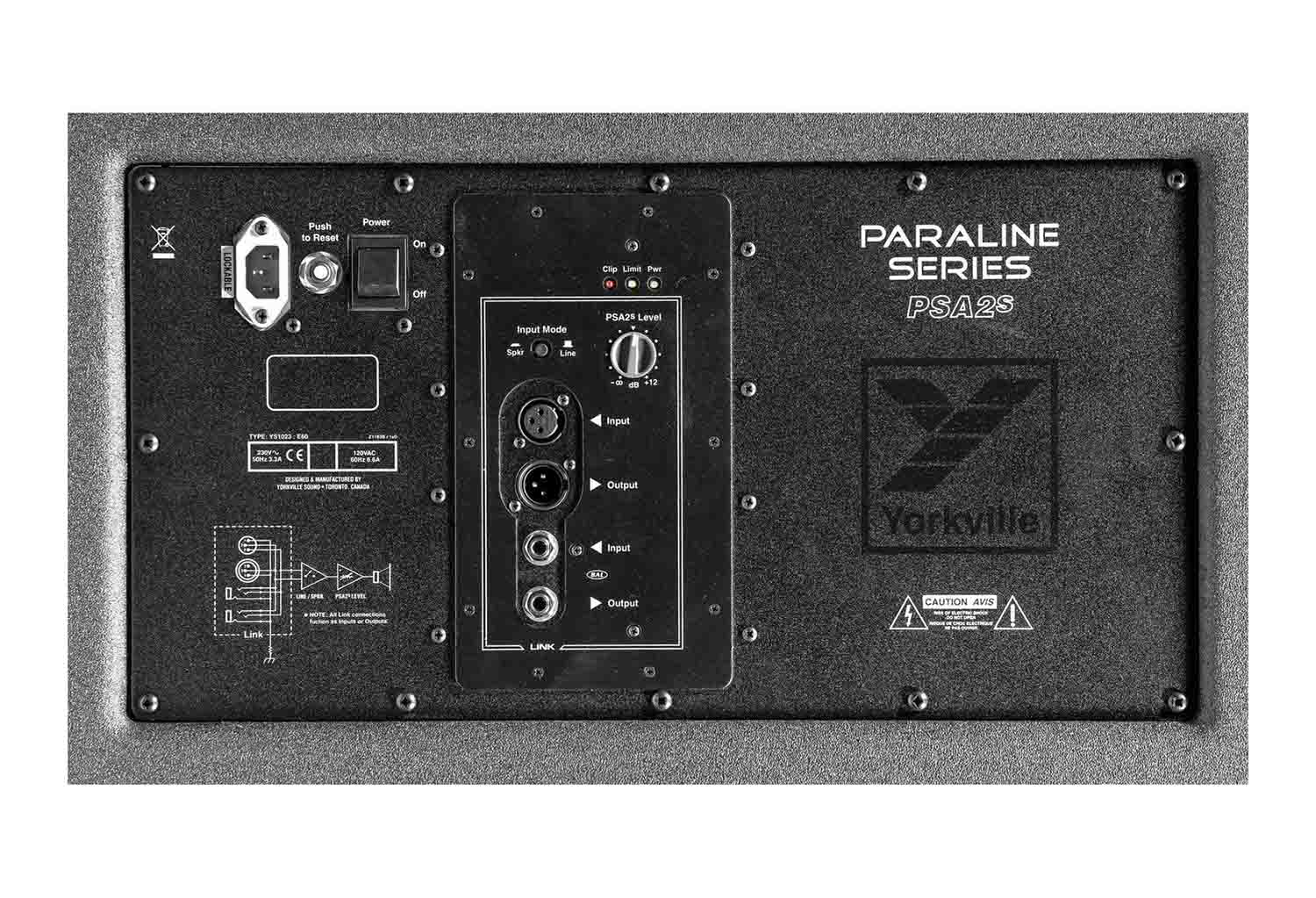

Efficient Class-D power amplifier design provides unmatched long-term reliability in the field. The cable of direct connection to any audio source (including speaker level input) the PSA2S can be easily integrated into virtually any PA application, making it one of the most versatile active subwoofer solutions Yorkville Sound currently offers.

Heavy Duty Precision Stand Adaptor

The PSA2S Subwoofer uses Yorkville Sound's new Heavy-Duty Precision Stand Adaptor. In order to minimize top cabinet sway and provide an improved stand mount platform for multiple PSA1 cabinets, the PSA2S subwoofer stands mount adaptor uses an extremely thick-walled cast aluminum stand receiver with a wider mounting plate than has been used on Yorkville subwoofers in the past.

Precision machining after casting allows the highest tolerances possible, this new improved stand adaptor provides a more stable, highly secure pole mount system for mobile Paraline systems when used in combination with the Yorkville SW-TUBEHD Heavy Duty all steel subwoofer tube.

Product Specifications:

Active or Passive: Active

Program Power (Watts): 2400 Watts Program (4800 Watts Peak)

Max SPL (dB): 134 Peak (131dB Continuous)

Frequency Response (Hz +/- 3dB): 30Hz-100Hz (Hz +/- 3db)

Crossover Frequency (Hz): fixed @ 100Hz

Driver Configuration: 2x15-inch (Bass Reflex Cabinet)

Dimensions (DWH xbackW, inches): 23.75 x18 x 38

Weight (lbs/kg): 156 / 70.76
