Description

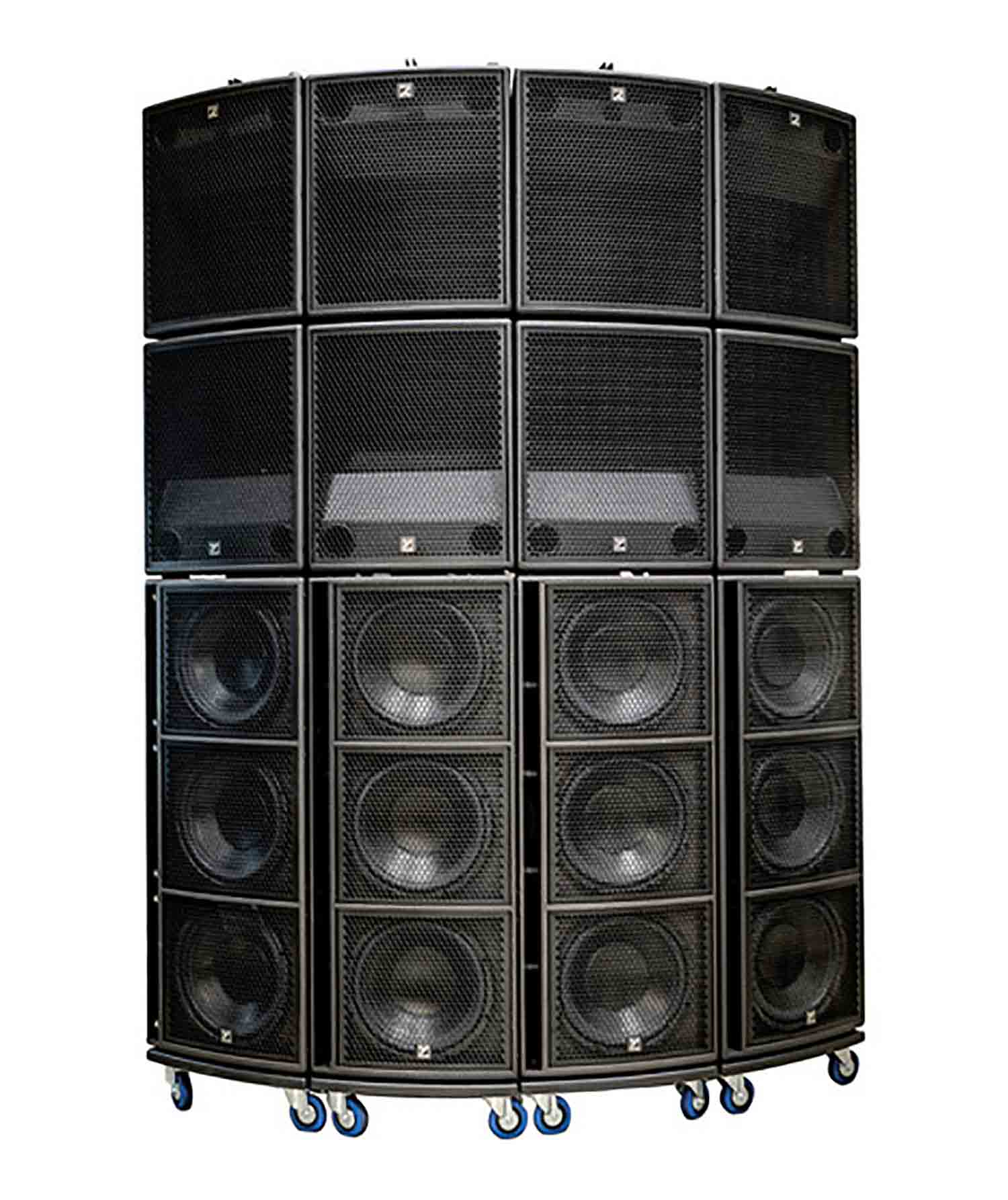

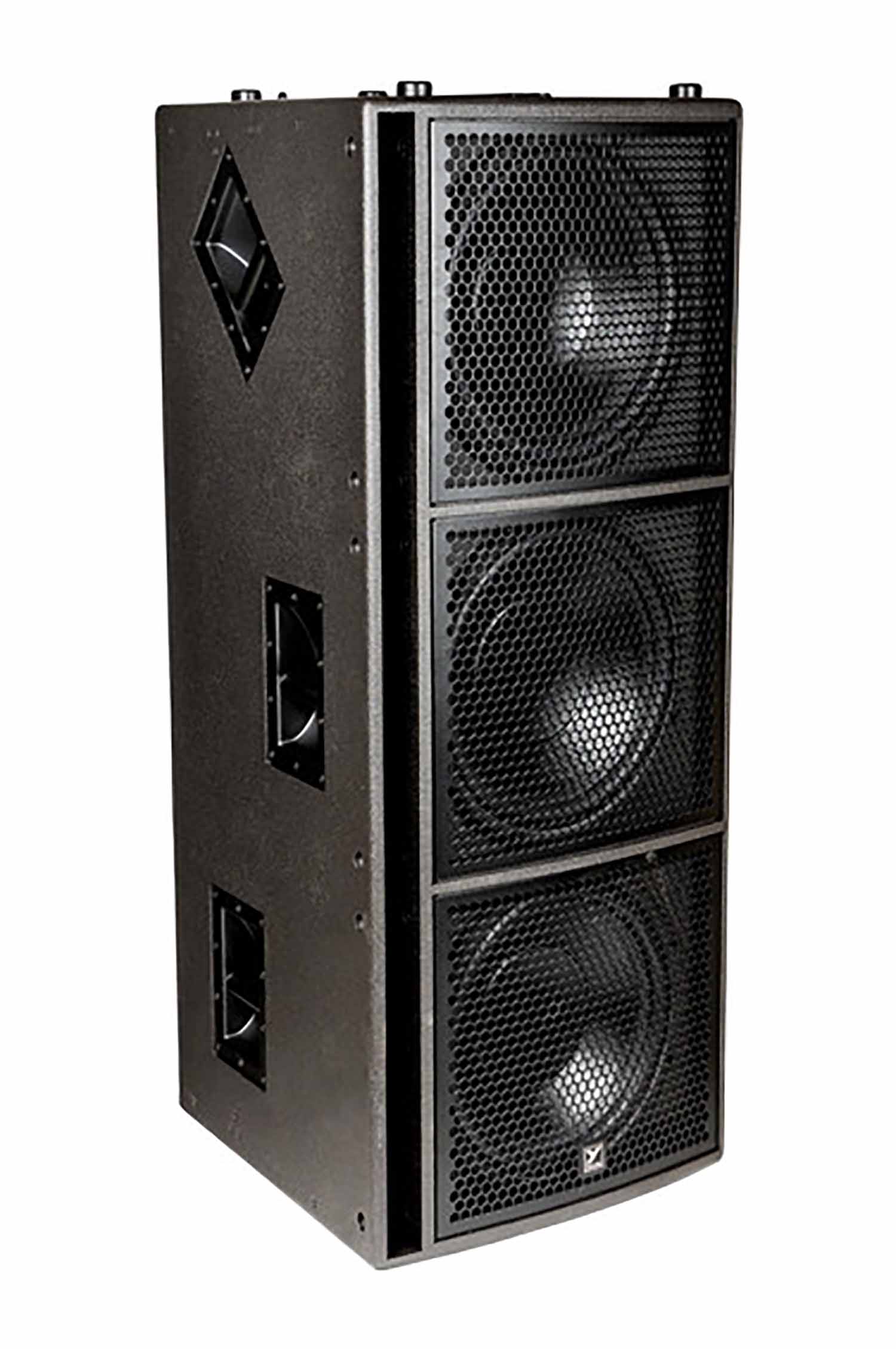

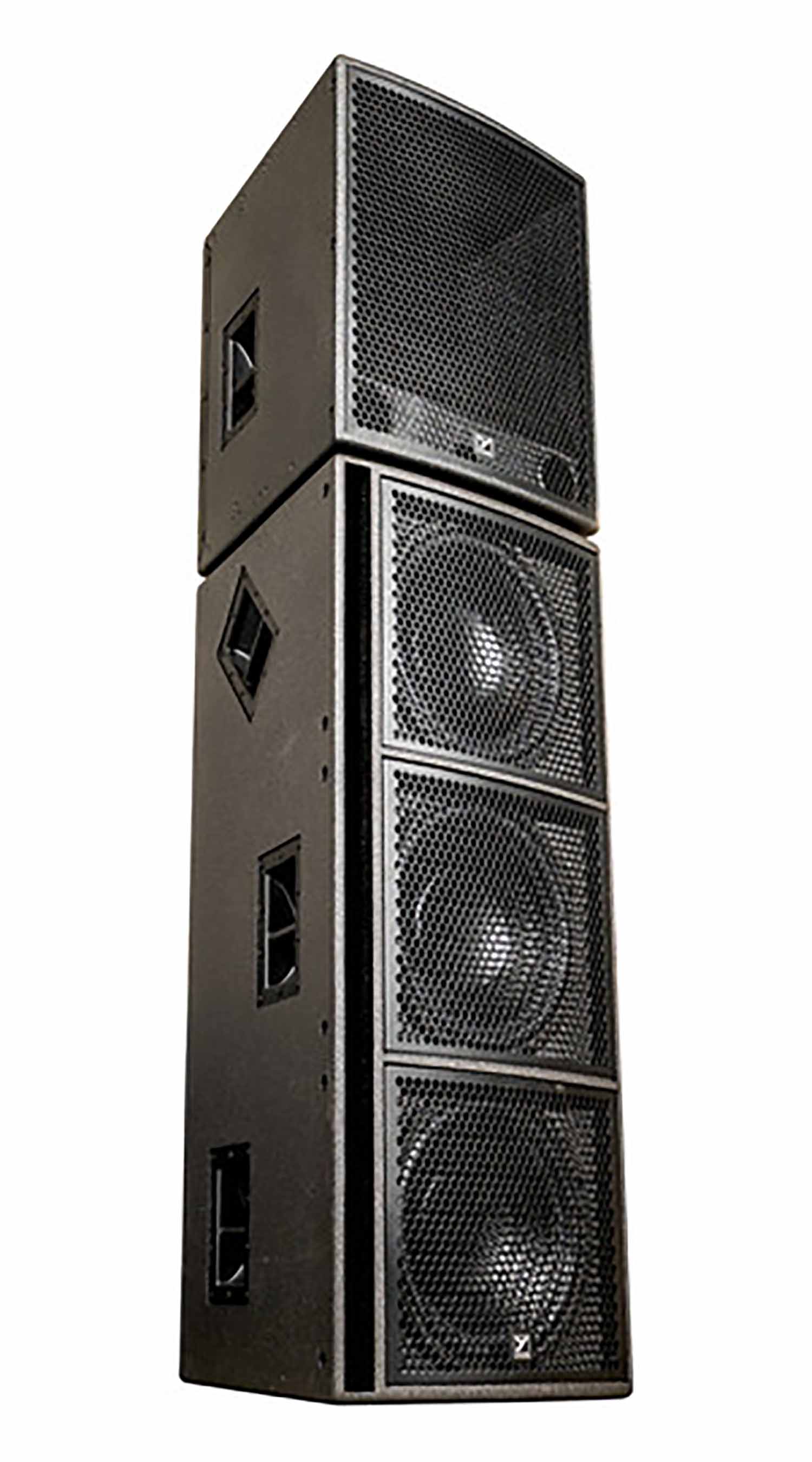

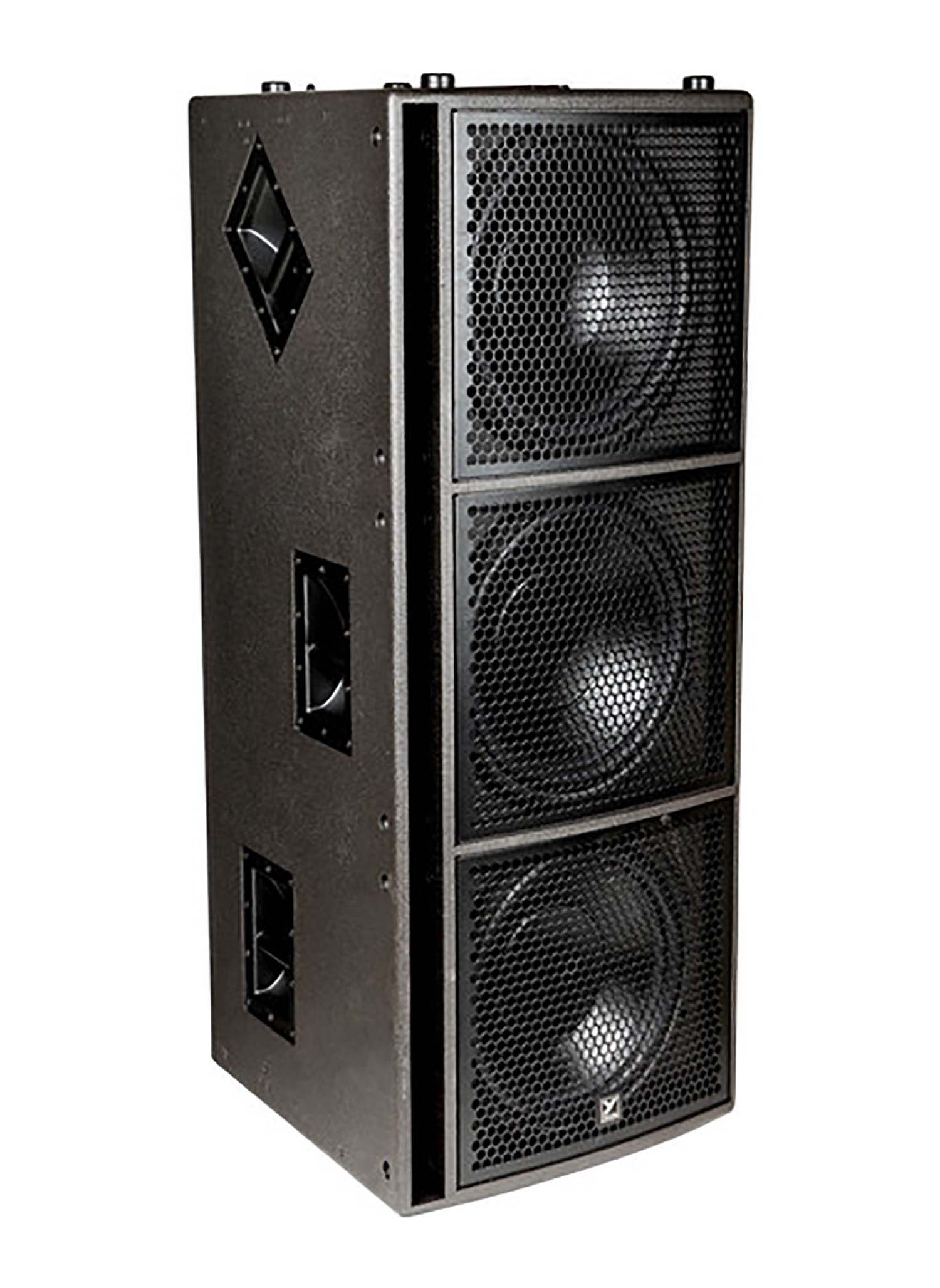

The Yorkville Sound SA315S Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance. The Synergy Array Series consists of the SA153 full-range powered cabinet, along with the SA315S powered subwoofer. This dynamic duo makes the ultimate point source speaker system scale-able for club gigs of all sizes, outdoor festivals, inclined seating venues, and arenas. Never before has a large point source system with this much output and sound quality been this easy to set up and use.
Product Specification:
Active or Passive: Active
Power Rating (Watts): 6500 Watts Program (13000 Watts Peak)
Measured Max SPL (C-Weighted, Max Hold): 130 dB Cont. 136 dB Peak
Frequency Response (Hz +/- 3dB): 31Hz-100Hz
Crossover Frequency (Hz): 100 Hz lowpass
Cabinet Configuration: Bass Reflex
Driver Configuration: 3x15" LF woofer
LF Driver(s): 15" Ceramic with 3" Voice Coil
LF Power Rating(Watts): 6500 Watts Program (13000 Watts Peak)
LF Impedance (Ohms): 2.7 ohm Load (3x 8 ohm)
LF Protection: Excursion, Voice Coil Thermal (RMS)
LF Power Amplifier (Watts): 6500 Watts Program (13000 Watts Peak)
LF Amplifier Type: Class D
Cooling Scheme: Convection
Power Cable: Removable Locking Powercon True Input and Loop Thru Output
Power Switch: Yes
Power Consumption (typ/max): 600 VA / 1200 VA

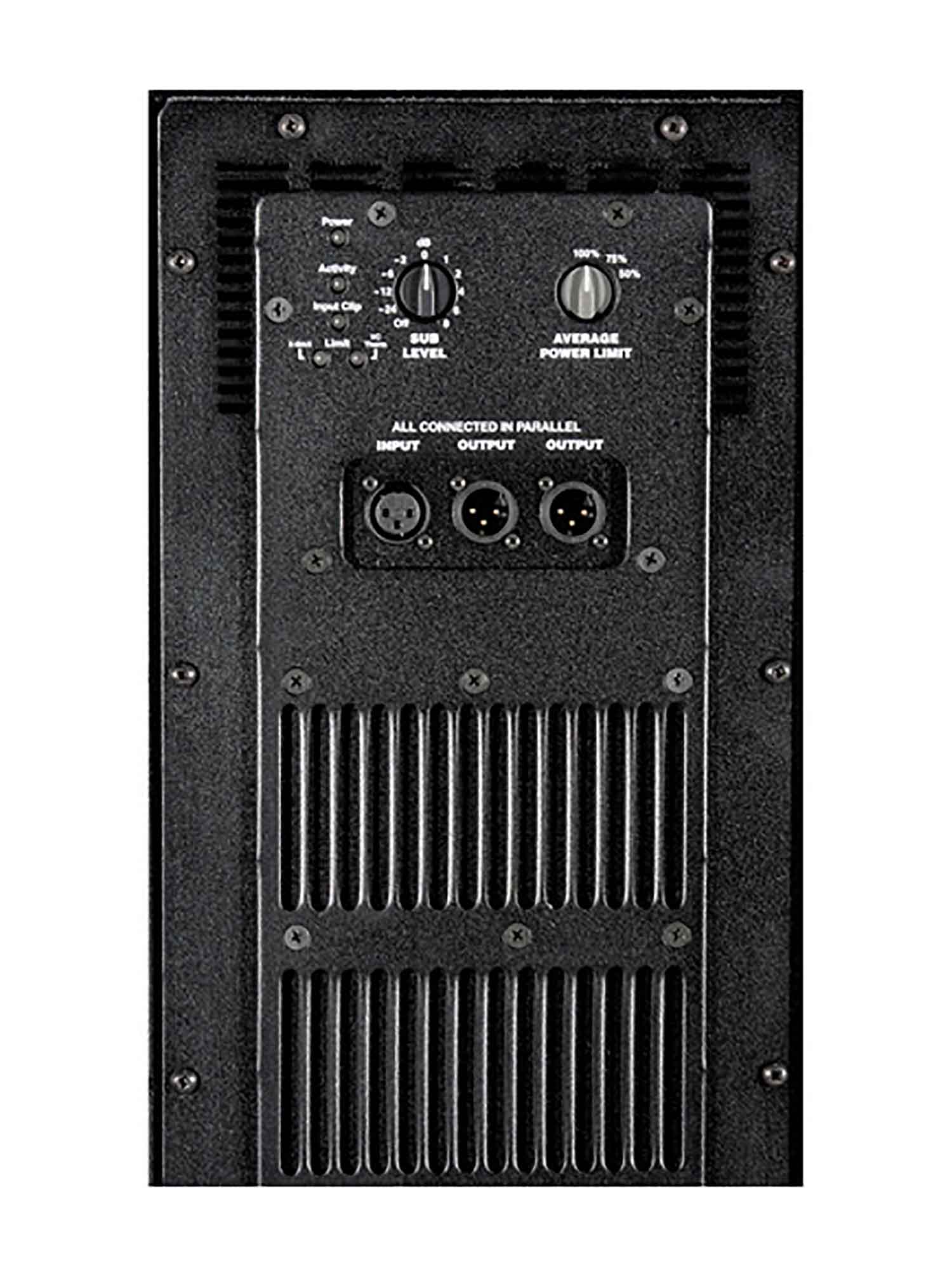

Inputs: 1 XLR with 2x XLR Parallel out, Impedance 35k ohms
Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.56 at max
Level Controls: Volume, -∞,0dB,8dB (Min, Top, Max)
EQ Controls: Thermal Limiter Advance for power consumption management
Limiter: Excursion, Thermal (RMS), Clipping
LED Indicators: Power, Excursion Limit, Thermal (RMS) Limit, Input Clip, Activity
Enclosure Materials: Multiply 15mm Birch Plywood
Standard Rigging Hardware: RAIL and LOCKBAR Rigging System (Top and Bottom)
Stacking Feature: Interlocking UHMW Feet (Top and Bottom)
Covering / Finish: Paint
Dimensions (DWH xbackW, inches): 24 x 21 x 51.5 x 12.25
Dimensions (DWH xbackW, cm): 60.9 x 53.3 x 130.8 x 31.1
Weight (lbs/kg): 236/107
Optional Synergy Series Accessories
Pick Up Bar (SAPICKUPBAR1): Single column cabinet hanging hardware (2xSA153 Plus 1xSA315S MAX)
Flying Bumper (SABUMPER1): 4 wide flying bumper (8xSA153 Plus 4xSA315S MAX)
SA153 Cabinet Cover (SA153COVER): Will cover 2 Cabinets (stacked)
SA315S Cabinet Cover (SA315SCOVER): Will cover 1 Cabinet
Cabinet Dolly (SADOLLY1): Holds 2 x SA153 stacked or 1 x SA315S
