Description
1550-watt peak column PA with 12-inch neodymium subwoofer, 3-channel mixer, Bluetooth stereo, three voicing modes, and linkable design for up to 16 units — for mobile DJs and corporate presenters.

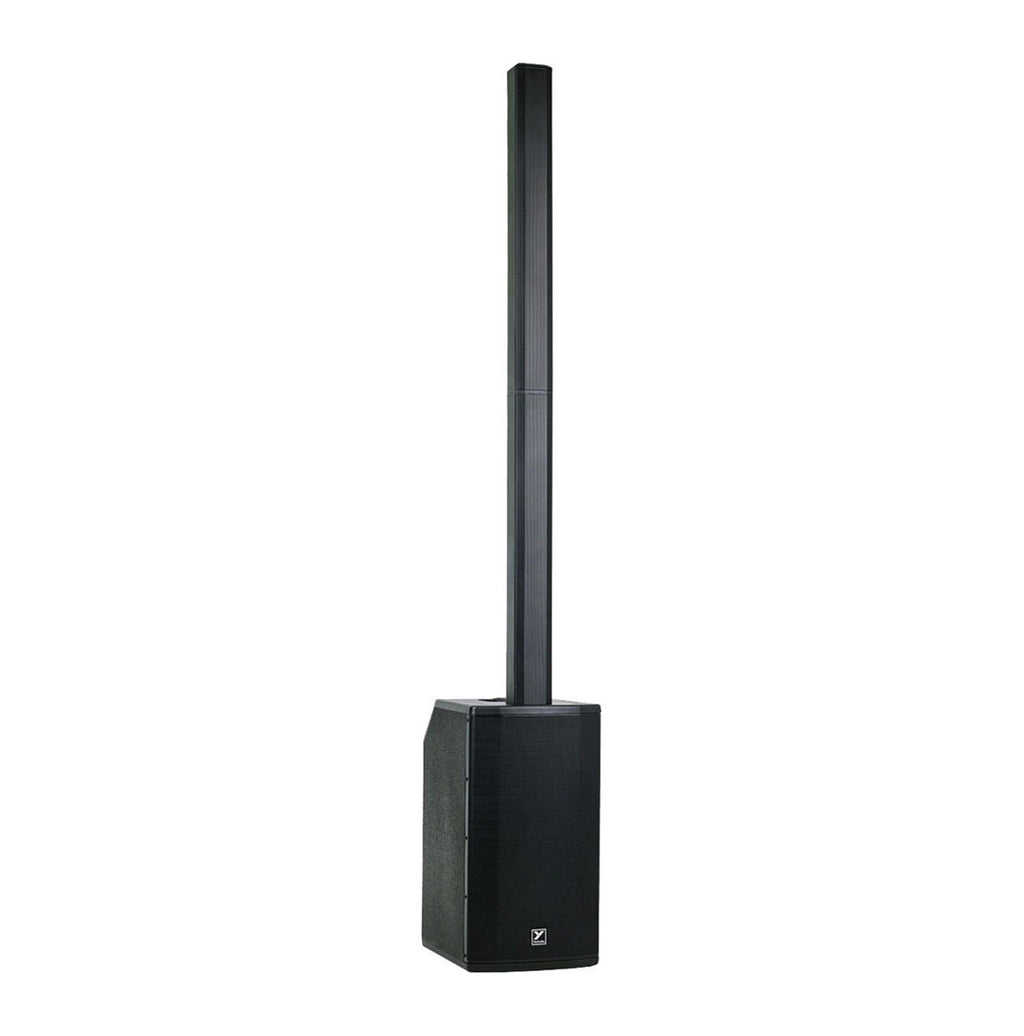

The Yorkville YXL Tower12 is a 1550-watt peak column PA with a 12-inch neodymium subwoofer, a 3-channel integrated mixer, and Bluetooth connectivity for mobile DJs, event production, and corporate presenters. Its bi-amped module delivers 1250 watts to the subwoofer and 300 watts to the mid-high column, reaching 126 dB peak SPL with a frequency response of 45 Hz to 20 kHz across a 100-by-35-degree dispersion pattern. The onboard mixer provides two XLR microphone inputs with phantom power, quarter-inch instrument and line inputs, and Bluetooth streaming with wireless stereo playback between paired systems. Three DSP voicing modes — Concert, Club, and Speech — optimize the system for live music, DJ playback, and spoken-word presentation without external processing. Up to sixteen YXL Tower units can be linked with up to three active mixers, scaling from solo setups to multi-zone corporate events with the Yorkville YXL Tower12.
1550-Watt Bi-Amped Power Module and Neodymium Drivers
The Yorkville YXL Tower12 delivers 1550 watts peak through a bi-amped module routing 1250 watts to the 12-inch neodymium subwoofer and 300 watts to the mid-high column. Four 3-inch neodymium midrange drivers and a three-quarter-inch compression driver produce 126 dB peak SPL across 45 Hz to 20 kHz, with a 100-by-35-degree dispersion pattern that keeps energy focused on the audience. For mobile DJs working small to mid-sized venues, this power-to-weight ratio delivers room-filling output from a 41.1-pound system.
3-Channel Integrated Mixer with Phantom Power

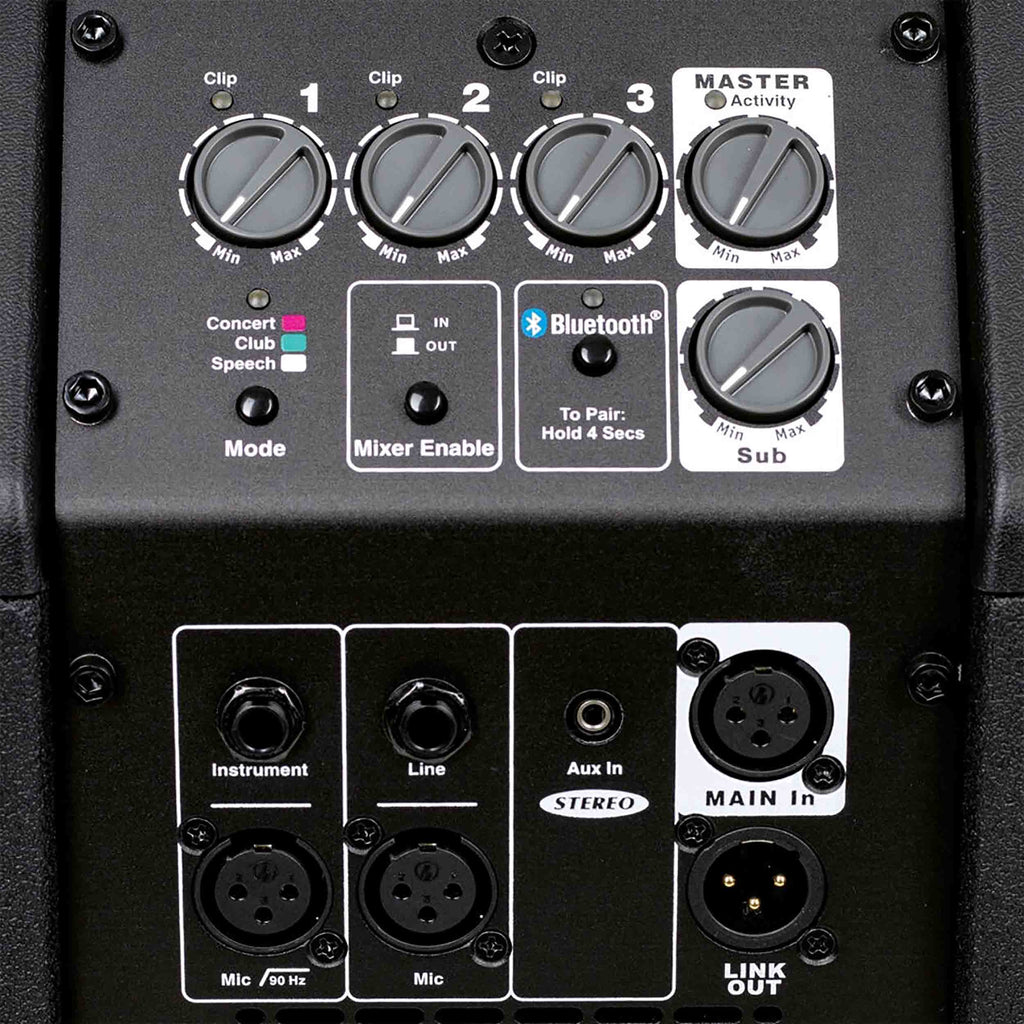

The onboard mixer provides three channels with independent level controls and clip indicators. Channel 1 accepts mic (XLR) or instrument (quarter-inch), Channel 2 accepts mic (XLR) or line (quarter-inch), and Channel 3 handles eighth-inch aux or Bluetooth. Both mic inputs include phantom power, with master level and sub level controls for volume and bass. For corporate presenters running a lapel mic alongside laptop audio, this mixer handles both sources without an external console.
Bluetooth Wireless Stereo Playback
The Yorkville YXL Tower12 includes a Bluetooth receiver on Channel 3 for wireless streaming from phones, tablets, and laptops. When two units are linked, the Bluetooth input supports wireless stereo playback with left and right channels across the paired systems. For mobile DJs using Bluetooth during setup transitions and corporate planners streaming presentation audio, this eliminates cable runs between source devices and the PA.
Concert, Club, and Speech DSP Voicing Modes
Three DSP voicing modes tailor the frequency response to specific applications: Concert provides flat full-range output for live music, Club emphasizes low-frequency energy for DJ playback, and Speech optimizes midrange intelligibility for presentations. The DSP includes thermal and over-excursion protection for safe operation during extended use. For mobile DJs and corporate presenters who alternate between music and spoken-word segments, mode switching adapts the system without external EQ.
Linkable Design for Up to 16 Units
Main In and Link Out via XLR allow up to sixteen YXL Tower units to be linked with up to three active mixers, providing six mic and six instrument or line sources across the system. Master level controls on each unit enable independent volume for zoned coverage. For corporate conferences needing distributed sound across breakout areas and mobile DJs covering large spaces with repeater columns, the linking system scales without a separate distribution rack.
Portable Design with Included Accessories

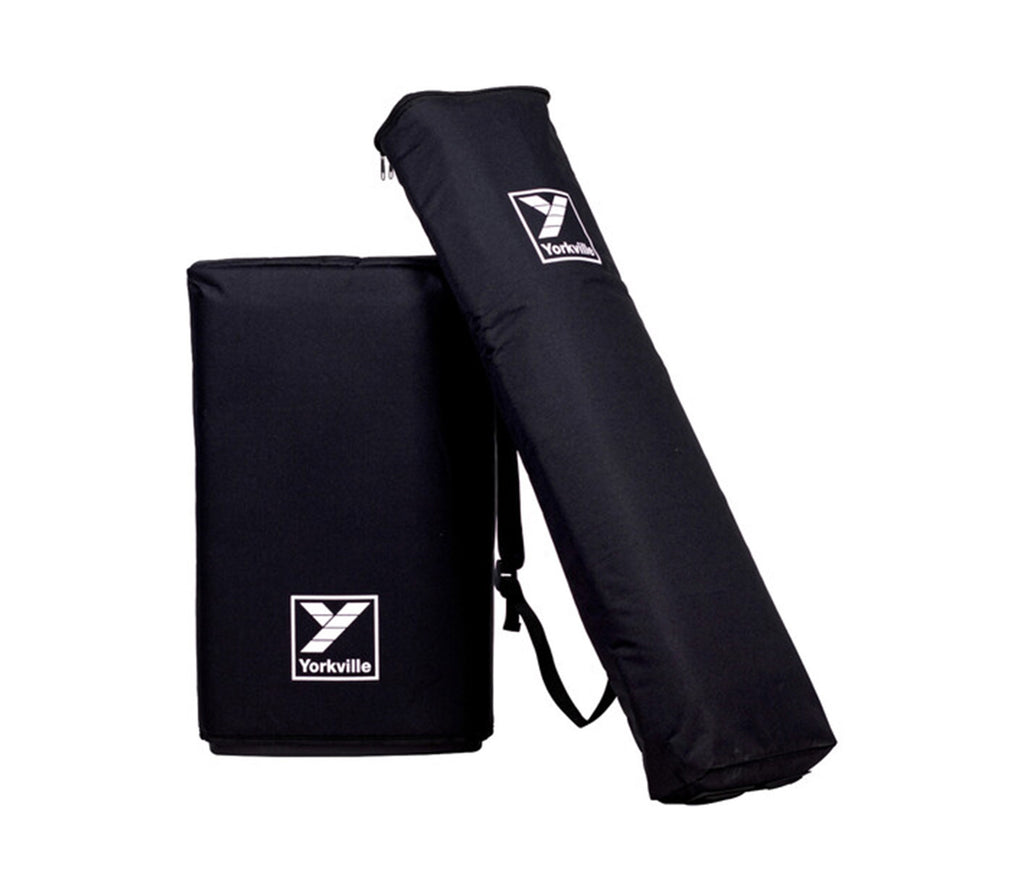

The Yorkville YXL Tower12 features a wood cabinet subwoofer with a metal grille and an ABS plastic column that mounts directly into the sub or on the included extension column for a 81.9-inch assembled height. A gig bag and subwoofer cover are included, and a recessed control panel protects connections during transport. For mobile DJs loading between venues and corporate AV teams managing inventory, the included accessories and single-column assembly simplify deployment.
Talk to a Hollywood DJ Expert
Not sure whether the Yorkville YXL Tower12 or another system in the YXL Tower series is the right match — Hollywood DJ specializes in portable sound for mobile DJs and corporate presenters. Whether choosing between Tower10 and Tower12 subwoofer sizes, planning a linked array for a corporate event, or outfitting a mobile rig with an all-in-one column PA, the team can help. Contact our experts for personalized recommendations and pricing.
TECHNICAL SPECIFICATIONS
SYSTEM
System Type: Powered PA System
Power Rating: 1550W peak (1250W subwoofer, 300W mid/high)
Program Power: 775W (625W subwoofer, 150W mid/high)
Max SPL: 126 dB peak (119 dB continuous)
Frequency Response: 45 Hz - 20 kHz
Dispersion (H x V): 100 degrees x 35 degrees
TRANSDUCERS
LF Driver: 12-inch neodymium
MF Drivers: 4 x 3-inch neodymium
HF Driver: 3/4-inch exit neodymium compression driver
INTEGRATED MIXER
Channel 1: Mic (XLR) / Instrument (1/4-inch TRS)
Channel 2: Mic (XLR) / Line (1/4-inch TRS)
Channel 3: Aux (1/8-inch stereo) / Bluetooth
Phantom Power: Channels 1 and 2
Master Controls: Master level, sub level
LED Indicators: Ch. 1 clip, Ch. 2 clip, Ch. 3 clip, master activity, mode, Bluetooth status
DSP AND VOICING
Voicing Modes: Concert, Club, Speech
Protection: Loudspeaker thermal and over-excursion protection
WIRELESS
Bluetooth: Built-in receiver with wireless stereo playback support
LINKING
Link In/Out: XLR
Maximum Linked Units: 16
Maximum Active Mixers: 3 in a linked system
PHYSICAL
Subwoofer Dimensions: 16 x 12.6 x 23.9 in (40.6 x 32 x 60.7 cm)
Speaker Column Dimensions: 3.6 x 3.6 x 32.8 in (9.1 x 9.1 x 83.3 cm)
Extension Column Dimensions: 3.6 x 3.6 x 32.5 in (9.1 x 9.1 x 82.6 cm)
Assembled Height: 81.9 in (208 cm)
Weight: 41.1 lb (18.6 kg)
Subwoofer Construction: Wood cabinet with full-length metal grille
Column Construction: ABS plastic
Included Accessories: Gig bag
