Yorkville YXL10P 10-Inch Woofer with 2-Inch Voice Coil

Save 28%
YorkvilleSKU: H-YORK-YXL10P
UPC: 840402047667 MPN:YXL10P
Sale price$429.00 Regular price$599.00
In stock (34 units), ready to be shipped

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

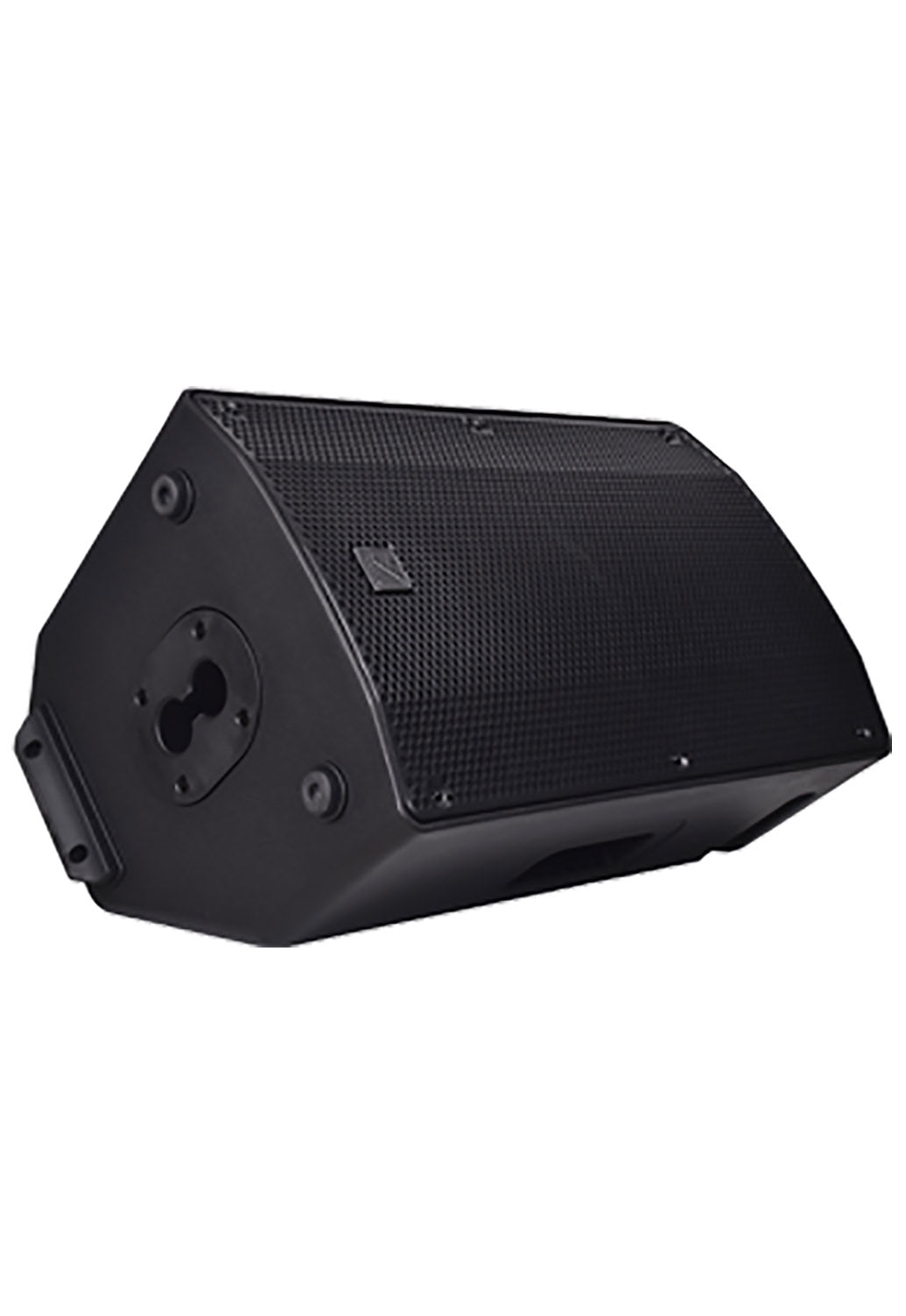

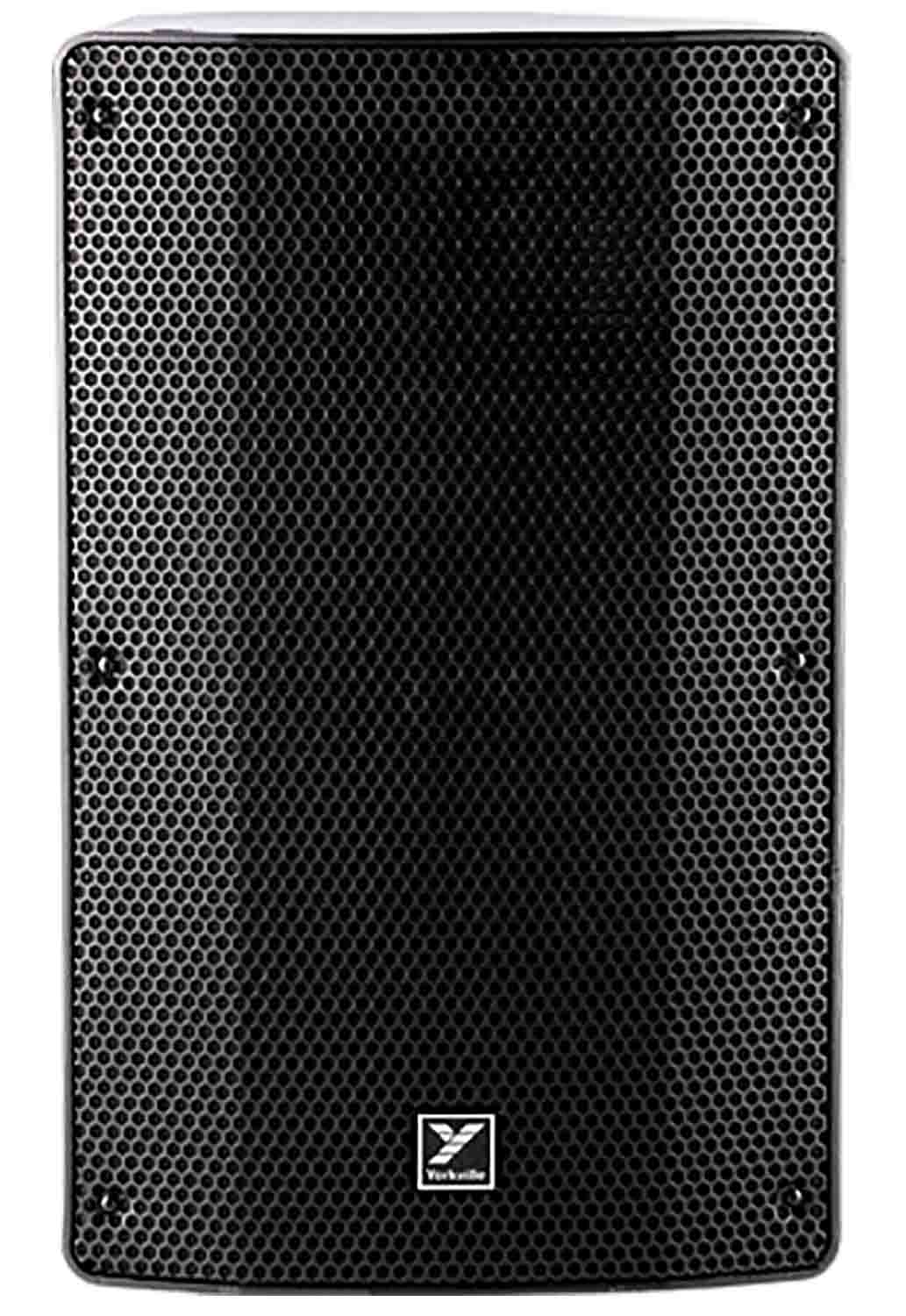

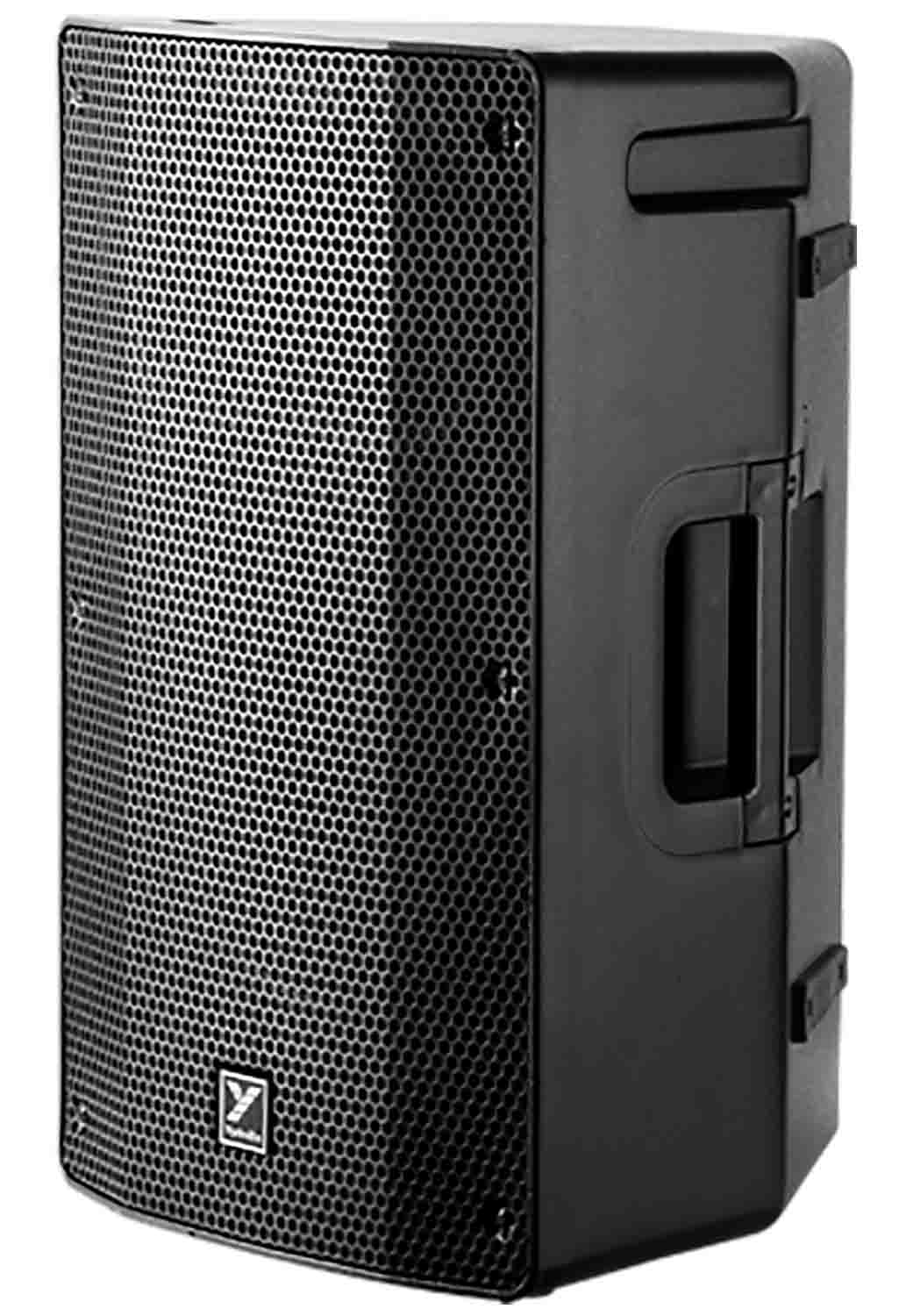

The Yorkville YXL10P cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.

Product Specification:

System Type: Active Loudspeaker

Active or Passive: Active

Power Rating (Watts): 500 Watts Program (1000 Watts Peak)

Max SPL (dB): 126dB Peak

Frequency Response (Hz +/- 3dB): 55 - 16k (Hz +/-3dB)

Dispersion (°H x °V): 90 x 40

Crossover Frequency (Hz): 1.6kHz

HF Horn: Integrated into Baffle

LF Driver(s): 10-inch (2-inch voice coil)

LF Power Rating(Watts): 450 Watts Program (900 Watts Peak)

HF Power Amplifier (Watts): 50

HF Amplifier Type: Class A/B

LF Amplifier Type: Class D

Cooling Scheme: Speed controlled fan

Power Cable: Yes

Power Switch: Yes

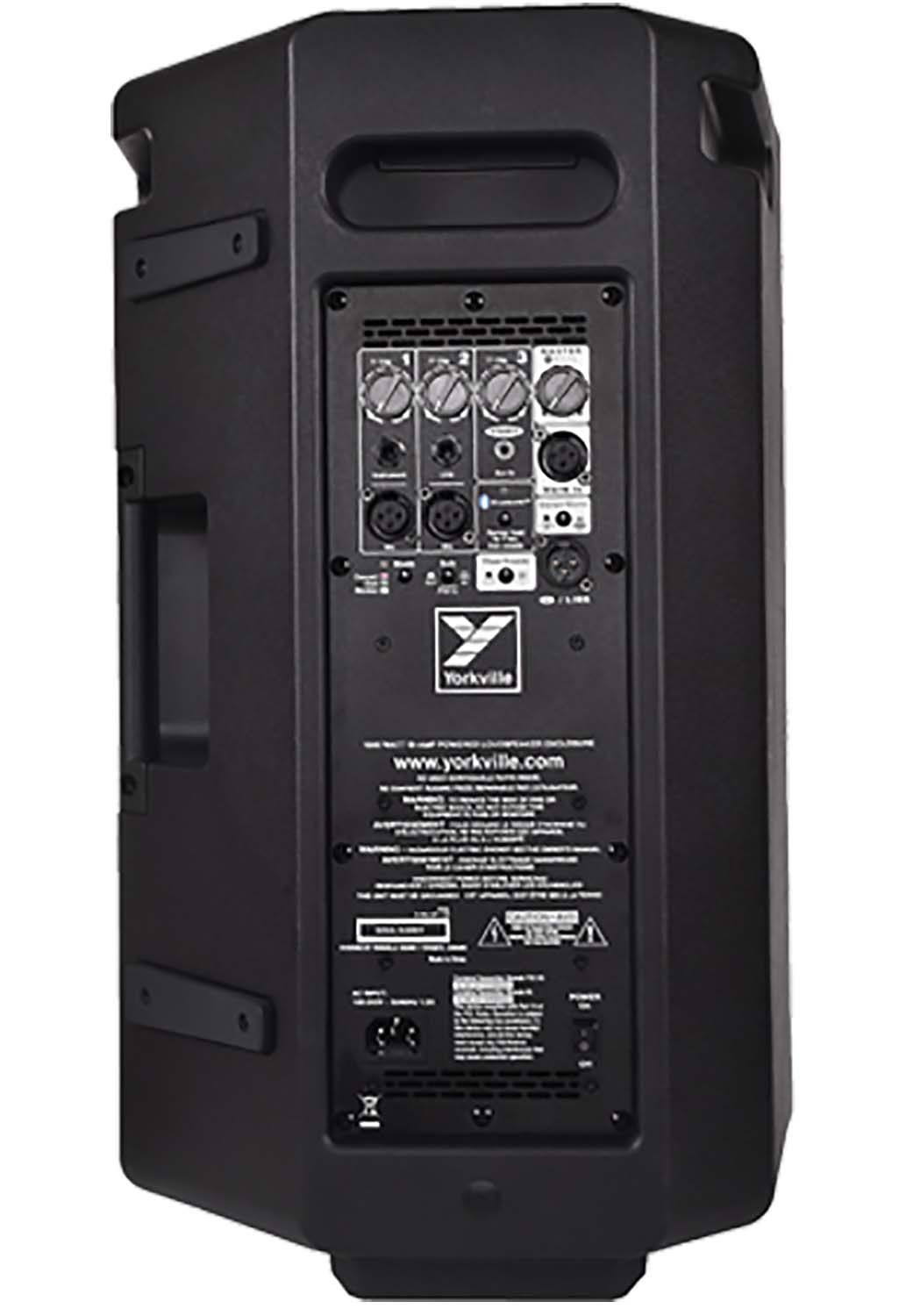

Inputs: 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)

Level Controls: x3 Chanels + Master

EQ Controls: Push button select, Concert, Club, Monitor

Limiter: Multiband excursion, RMS, rail

Other Controls / Features: Sub mode HP filter, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming

Feet: Rubber

Bar Handles: 1 x Side / 1 x Back

Flying Hardware: 2 (Top), 1 (Pullback)

Optional Flying Hardware: Yes

Enclosure Materials: Polypropelene, Metal grille

Baffle Material: Polypropylene

Grille: Powder Coated Steel with Grille Cloth

Other Details: Rubber feet on bottom and side with the monitor Wedge

Dimensions (DWH xbackW, inches): 11 x 13.25 x 20.5

Dimensions (DWH xbackW, cm): 28 x 33.5 x 52

Weight (lbs/kg): 28 / 14
