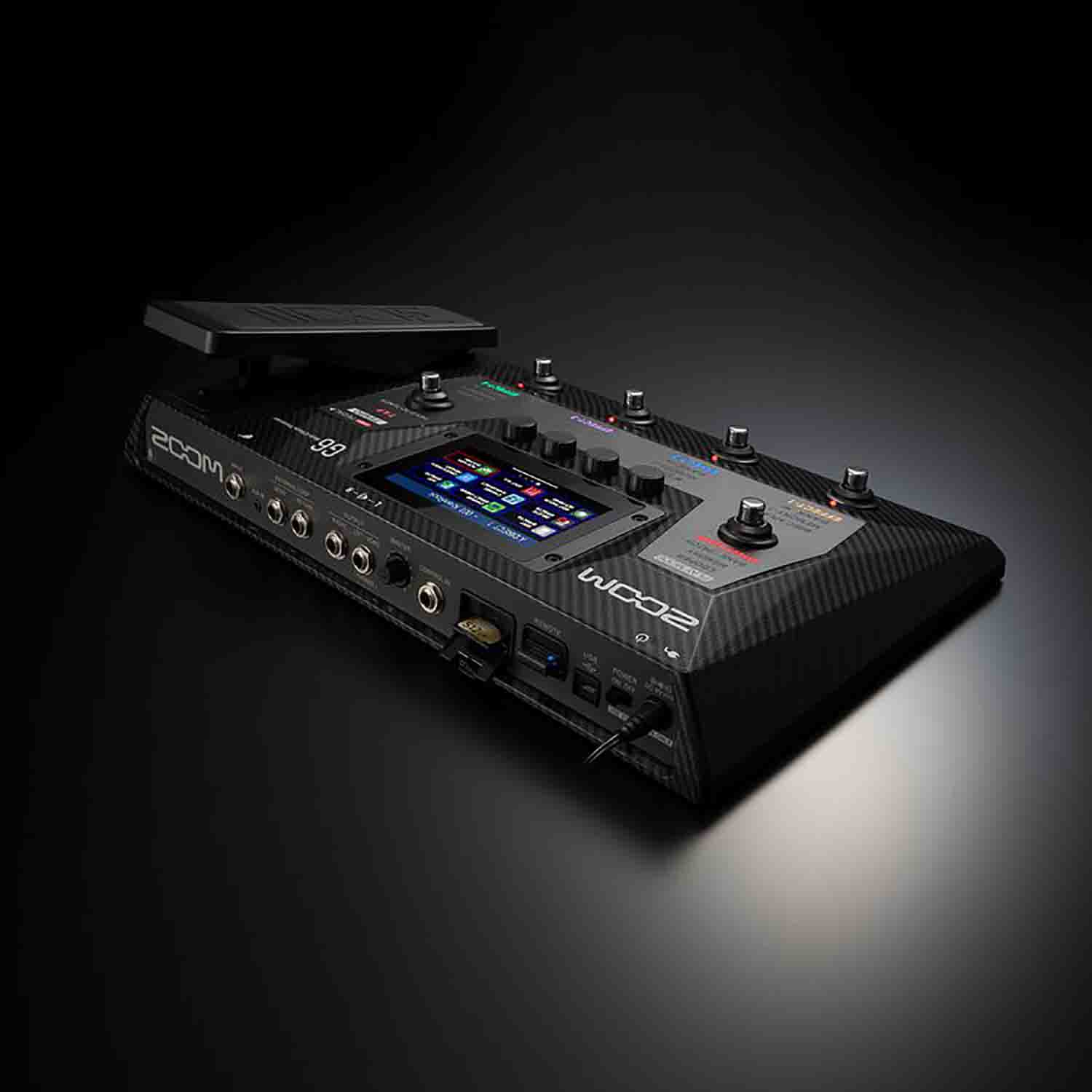

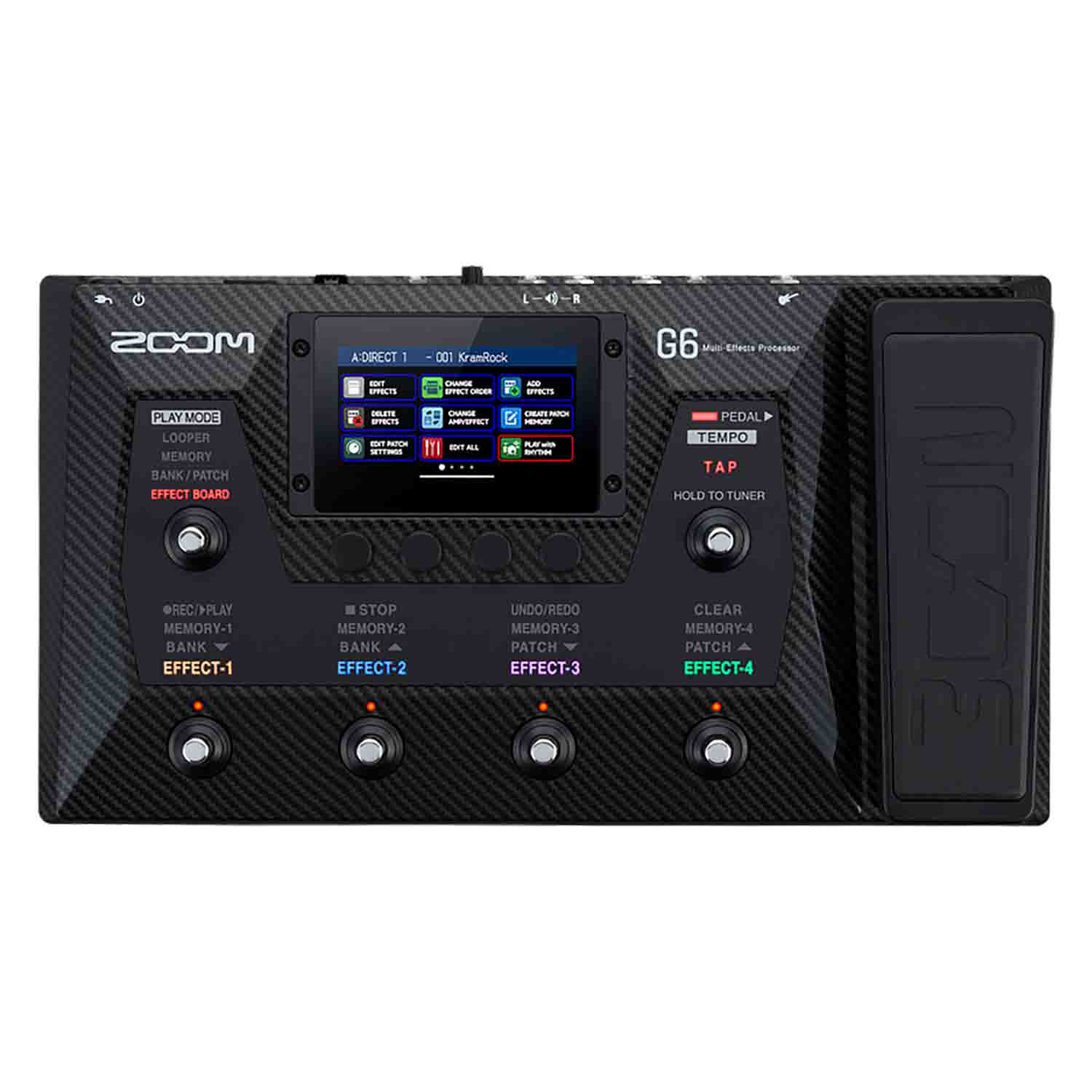

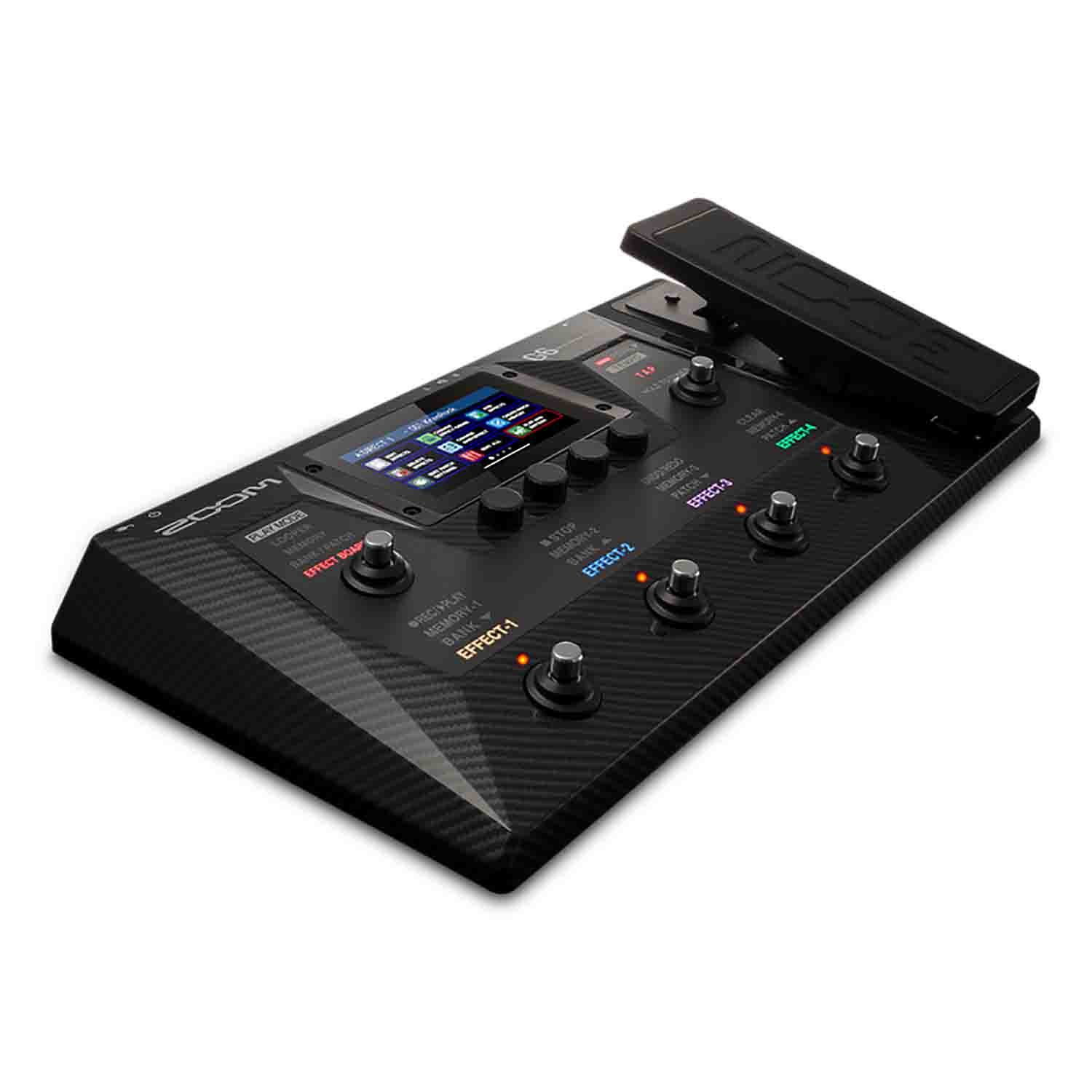

Zoom G6 Multi-Effects Processor for Guitar

The Zoom G6 Jaw dropping effects combined with powerful amp modeling, the G6 gives you more sonic possibilities than ever before.

Drag and Drop

Your sounds may be complex but building them shouldn’t be. With easy-to-use application driven technology, the G6’s 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

The Right Sound

The G6 also delivers the ultimate collection of Zoom’s legendary guitar effects and tones, including brand new Distortion and Modulation effects.

Plan Ahead

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to seven effects.

Infinite Looping

The G6 can create multiple loops up to 2 hours each in length with an SD/SDXC card. Create, store and recall up to 256 loop files. 45-second looper without SD card.

Take It with You

Portable, versatile, and packed with tonal possibilities, the G6 is perfect for guitar players on the move.

Connectivity

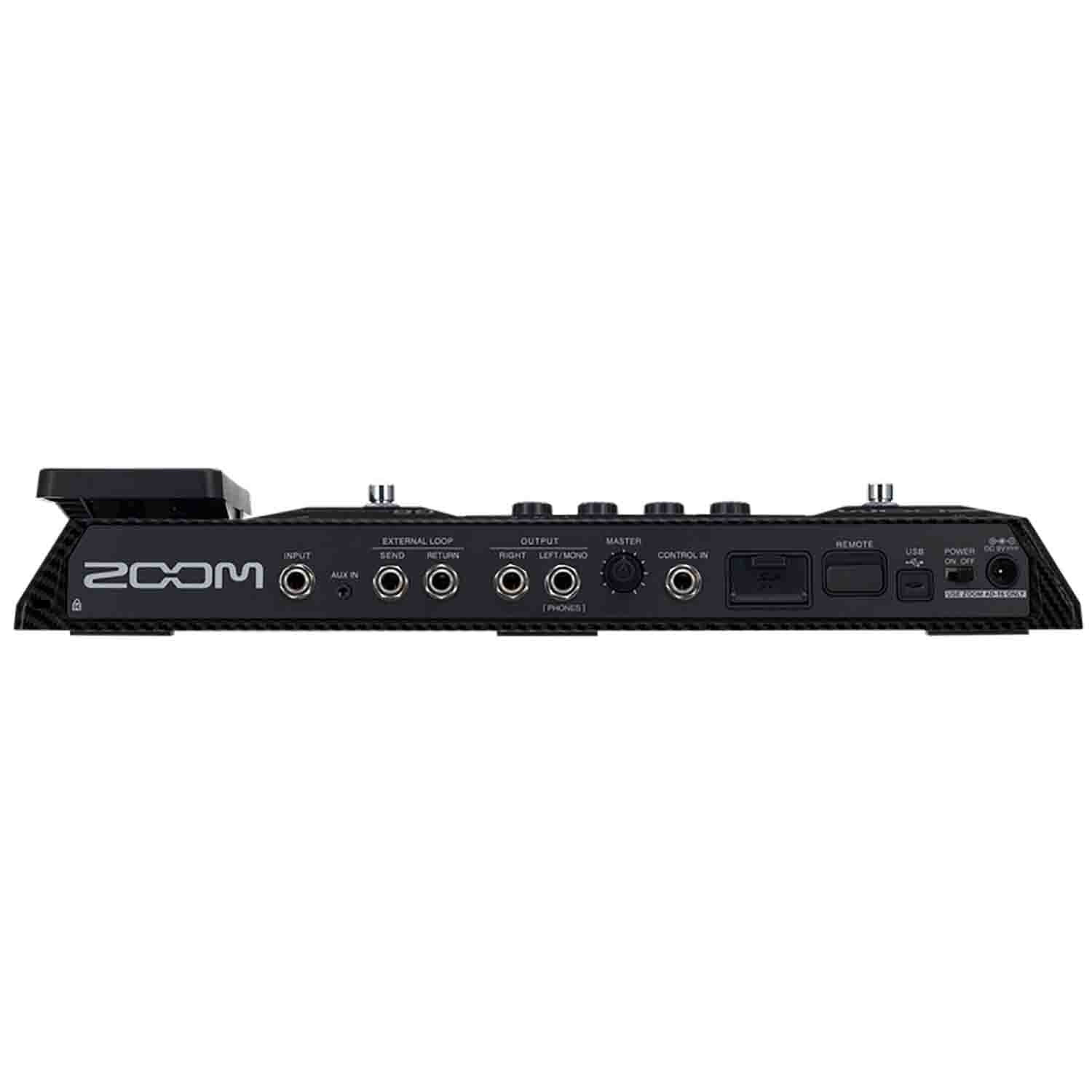

The G6 has a mono input, stereo outputs with volume control, a mono fx loop, aux in, control in and headphone out. Using the USB port, the G6 also functions as a 2in/2out audio interface for Mac and PC.

Guitar Lab Software

With a USB connection, Guitar Lab software allows you to browse and upload/download an endless assortment of amps, effects and artists patches.

Handy Guitar Lab App

Connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor wirelessly connect your phone as a secondary interface for your G6.

Product Specification:

Maximum Number of Simultaneous Effects: 7

User Patches: 240

Sampling Frequency: 44.1 kHz

A/D Conversion: 24-bit 128x oversampling

D/A Conversion: 24-bit 128x oversampling

Signal Processing: 32-bit

Frequency Characteristics: 20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)

Display: 4.3" TFT color LCD (480x272)

Inputs:

Input: Standard mono phone jack, Rated input level: -20 dBu, Input impedance (line): 500 Ωk

Return: Standard mono phone jack, Rated input level: -20 dBu, Input impedance (line): 1 ΩM

Aux in: Stereo mini jack, Rated input level: -10 dBu, Input impedance (line): 10 Ωk

Outputs:

Output R: Standard mono phone jack, Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)

Output L/Mono (Phones): Standard stereo phone jack, Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher), Headphones 24 mW + 24 mW (at 32 load)

Send: Standard stereo phone jack, Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)

Input S/N: 123 dB

Noise Floor (Residual Noise):

L/R: -99.3 dBu

Send: -99.0 dBu

Control Input: FP02M input

Power: AC adapter (9v DC 500mA, center negative) (Zoom AD-16)

USB: Port: USB 2.0 Micro-B/Supported cable type: Micro-B, Guitar Lab: USB 1.1 Full Speed, Audio Interface: USB 2.0 Full Speed, 44.1 kHz/32-bit, 2 in, 2 out, - Use a USB cable that supports data transfer. USB bus power is not supported

SD Card:

Standards: Cards that support SD/SDXC/SDHC specifications (class 10 or higher)

Looper: 44.1 kHz/ 16-bit stereo WAV

IR: 44.1 - 192kHz, 16/24/32-bit WAV

Remote : ZOOM BTA-1 or other dedicated wireless adapter

External Dimensions: 228 mm (D) x 418 mm (W) x 65 mm (H)

Weight: 1.94 kg
