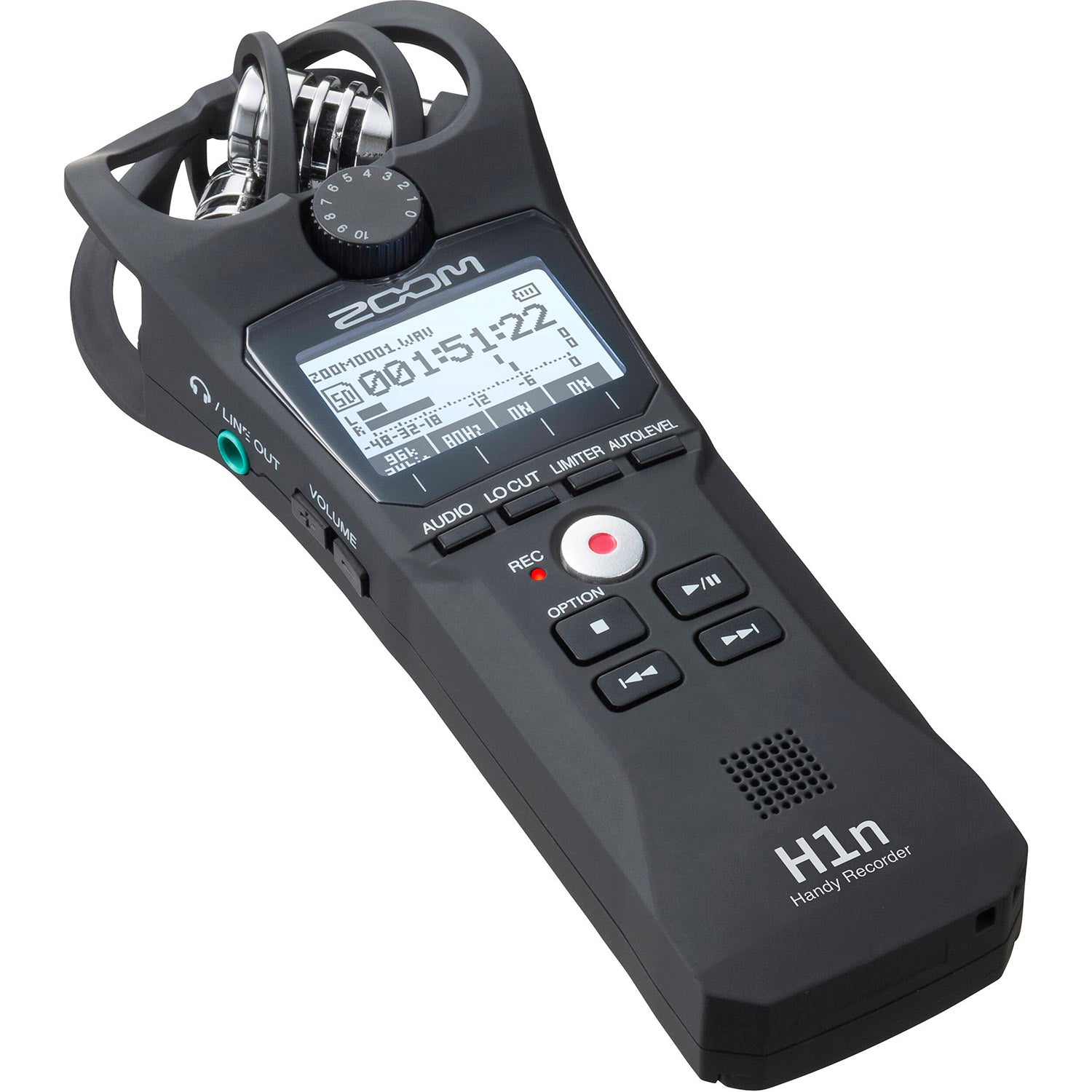

Zoom H1N-VP Portable Handy Recorder with Windscreen

The H1n is loved by musicians, podcasters and filmmakers because of its incredible audio, ease of use and small size. Now the H1n-VP includes a padded shell case, micro USB cable, AD-17 Power Adapter and foam windscreen, offering creators more value than ever before.

Zoom’s Flagship Sound

The H1n is the ultimate take-anywhere recorder for every creator’s gear bag. Its X/Y microphones capture high-quality stereo sound, supporting up to 24-bit/96 kHz.

Just Press Record

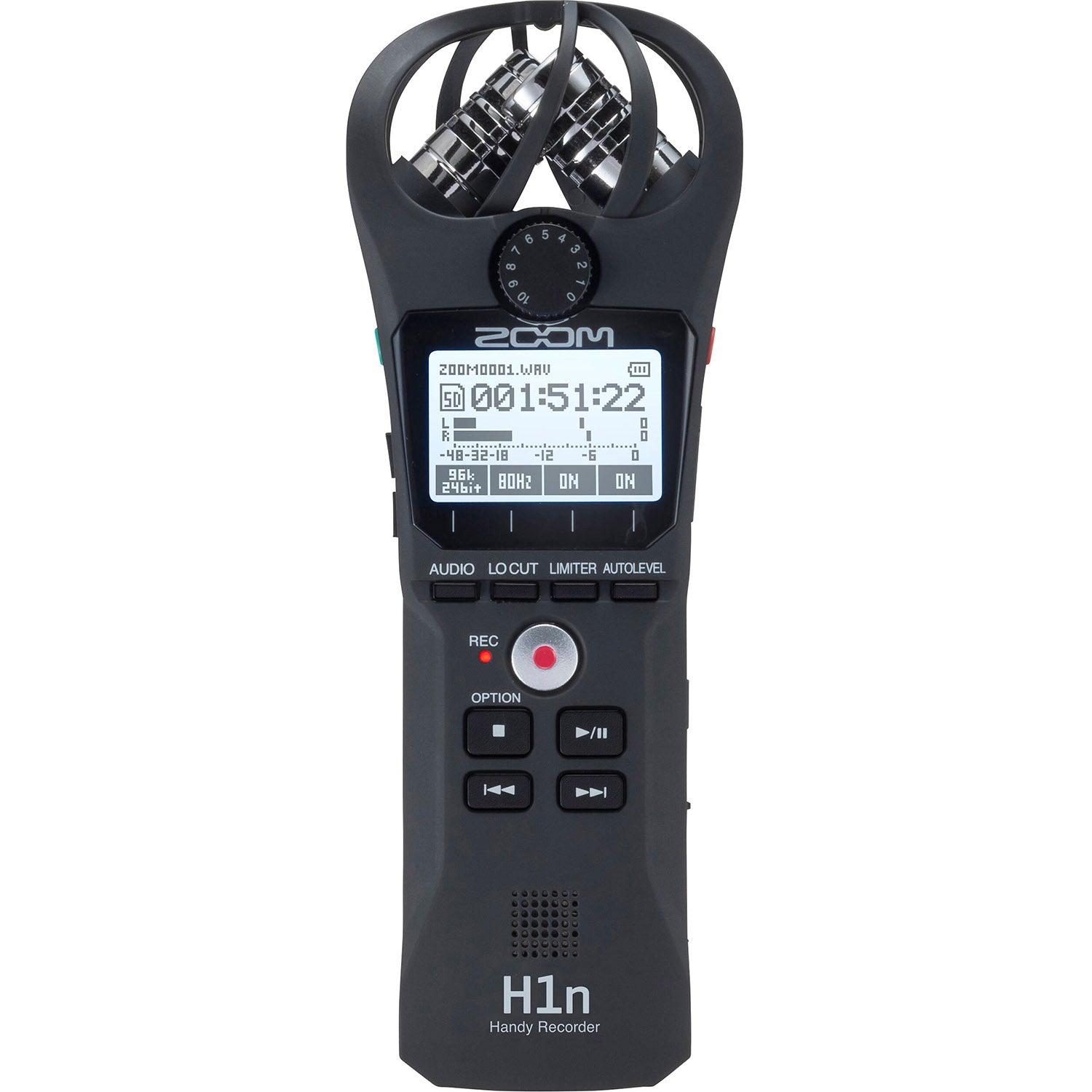

One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasts and more. Its monochromatic 1.25” LCD display is easy to read even in the brightest lighting conditions.

Get Loud

An advanced onboard limiter offers distortion-free recording up to 120 dB SPL-- the same volume as a jet engine during take off. A low-cut filter helps eliminate pops and unwanted low frequency rumble.

Unlimited Overdubbing

The H1n is the perfect song-writing companion, allowing you to build compositions and layer audio with the overdub function.

Transcription Made Easy

The H1n playback speed adjustment helps you transcribe music, interviews and other types of recordings without altering pitch.

Don’t Miss The Moment

You can set the H1n to auto-record, pre-record and use the self-timer to make sure you always capture the moment.

Mark And Sync

The built-in tone generator makes it easy to calibrate your H1n and camera audio levels.

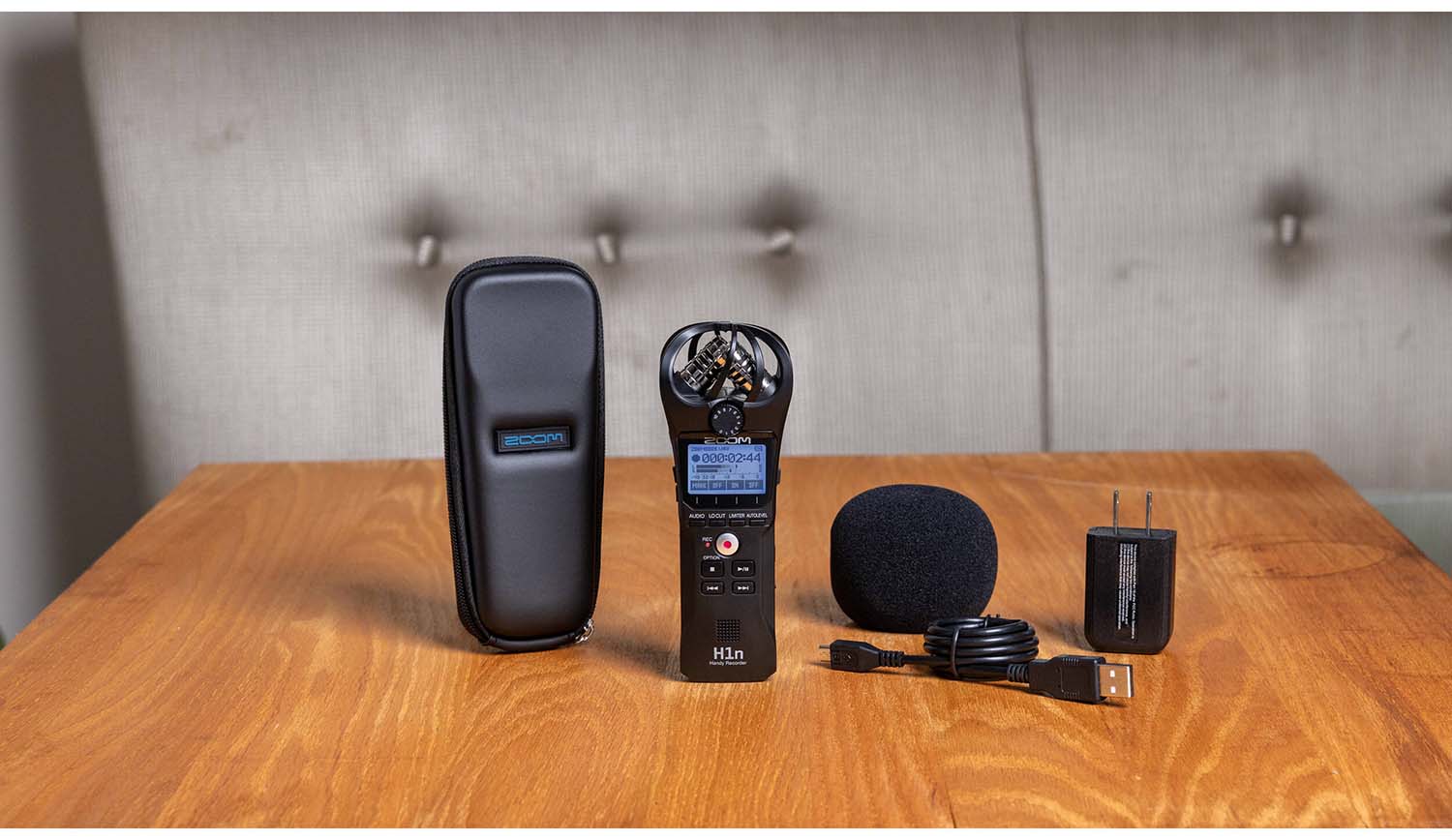

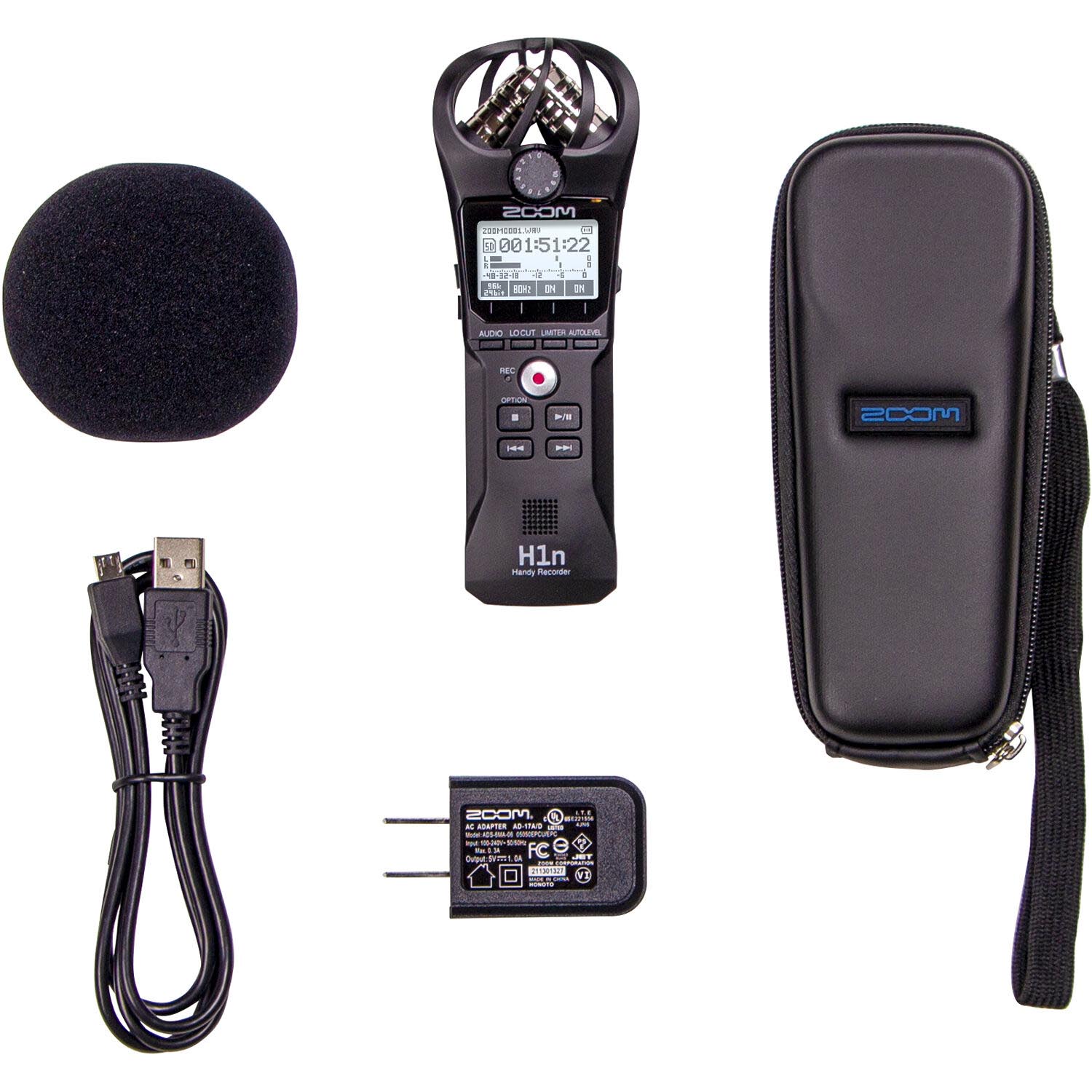

WHAT’S IN THE BOX:

Here’s what you get:

H1n Handy Recorder

Windscreen

AD-17 AC adapter

USB cable

Padded-shell case

Product Specification:

SIMULTANEOUS PLAYBACK TRACKS: 2

SIMULTANEOUS RECORDING TRACKS: 2

FUNCTIONS:

Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize

Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing

RECORDING FORMATS: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96

kHz/24-bit

A/D CONVERSION: 24-bit, 128x oversampling

D/A CONVERSION: 24-bit, 128x oversampling

SIGNAL PROCESSING: 32-bit

RECORDING MEDIA: microSD/microSDHC cards (Class 4 or higher, up to 32

GB

DISPLAY: 1.25" monochrome LCD (96 × 64)

BUILT-IN STEREO MIC:   Unidirectional condenser, 90° XY stereo format

Gain: -∞ dB to +39 dB

Maximum sound pressure level: 120 dB SPL

INPUTS:

1/8" stereo phone jack

Rated input level: -∞ dB to -39 dBm

Input impedance: 2 kΩ

Plug-in power supported (2.5 V)

BUILT-IN SPEAKER:

Built-in 500 mW mono speaker

Output impedance: 8 Ω

OUTPUTS:

1/8" stereo phone jack (combined line/headphones)

Rated output level: 20 mW + 20 mW into 32Ω load

Output impedance: 10 kΩ or more

USB:

Micro USB port

Mass storage class operation: USB 2.0 high speed

Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out

Transfer method: asynchronous

POWER REQUIREMENTS:

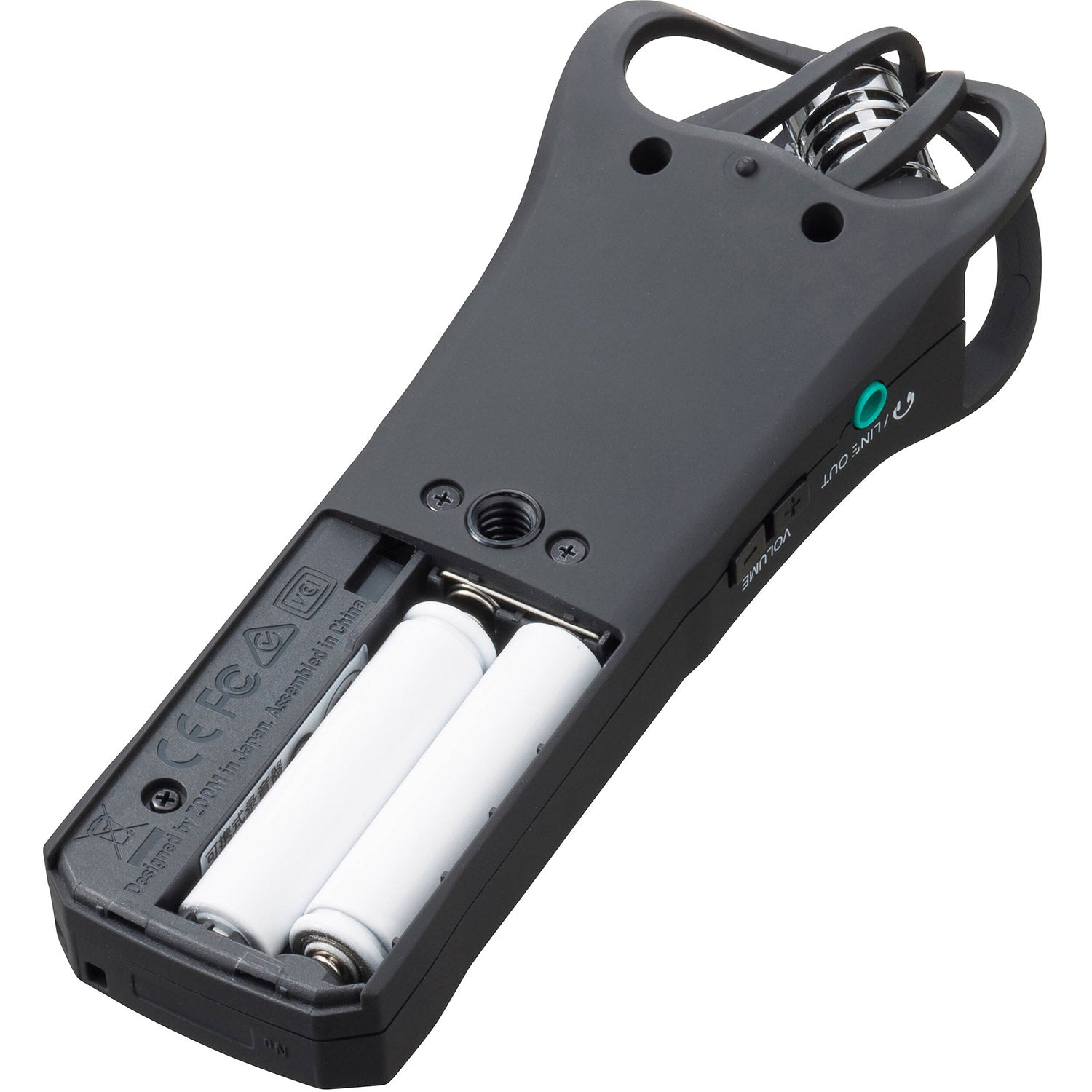

2 AAA batteries (alkaline, nickel-metal hydride rechargeable, or lithium)

AC adapter (ZOOM AD-17): DC 5V/1A

USB bus power

BATTERY LIFE (ALKALINE BATTERIES):

Approximately 10 hours

(continuous recording time using built-in mic, 44.1 kHz/16-bit)

DIMENSIONS: 1.9 in (W) x 5.4 in (D) x 1.2 in (H)

WEIGHT: 0.13 lbs / 60 g (without batteries)
