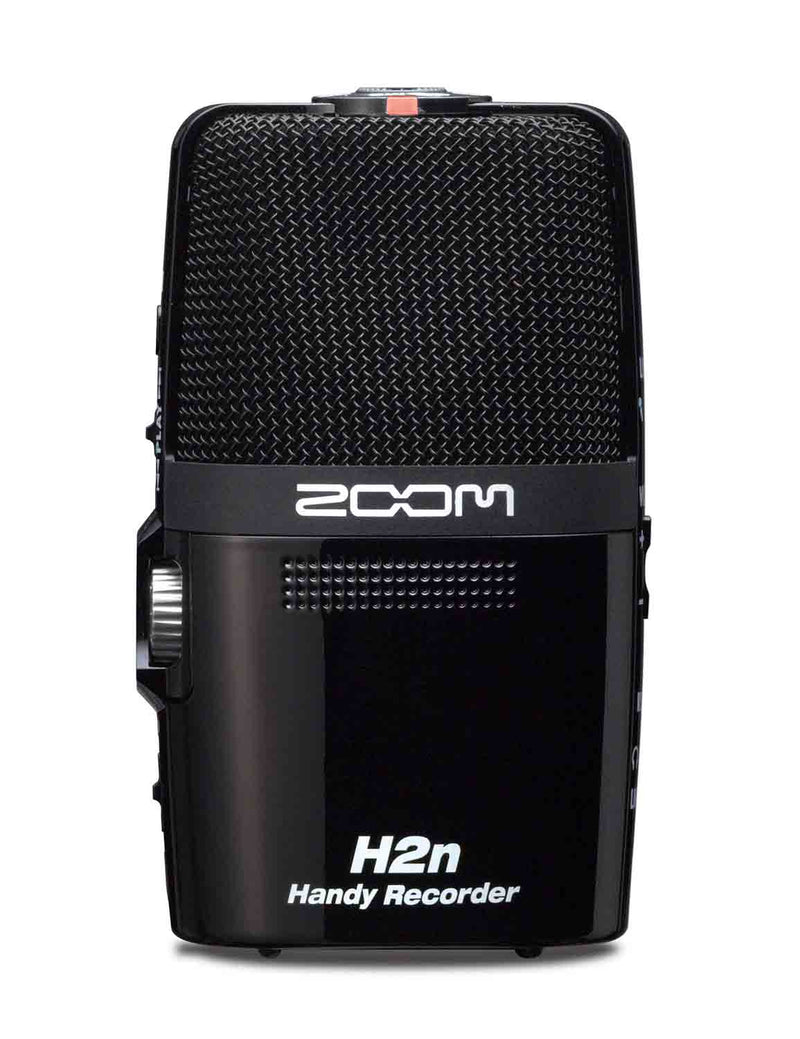

ZOOM H2N Portable Digital Audio Handy Recorder

The H2n Handy Recorder is the only portable recording device to come with five built-in microphones and four different recording modes: X/Y, Mid-Side, 2-channel surround and 4-channel surround. Other advanced features include automatic gain control and onboard MS decoding, plus effects like compression, limiting and low-cut filtering. You can even use the H2n as a multi-purpose USB microphone!

Five microphones, four ways of recording

The H2n offers not one, not two, but five built-in microphones. Two of them are arranged as an X/Y pair, while the other three are configured in an MS ("Mid-Side") pattern. They can be used separately for X/Y or MS stereo recording, or combined to create stunning 2- or 4-channel surround sound.

Mid-Side for variable stereo width

Mid-Side recording is an incredible technique that allows you to actually adjust the width of the stereo image after it has been recorded, while maintaining perfect mono compatibility, making it especially useful for film, video and television projects.

The three microphone elements in the H2n MS mic are set directly on top of one another. One faces forward and the other two face to the side:

The H2n's onboard MS decoder allows you to adjust the relative level of the mic elements, either during the recording process or afterwards, during post-production. As you increase the level of the Side microphones, the perceived stereo width increases as well.

X/Y for natural-sounding stereo

The X/Y technique provides a great way to cover a wide area while still capturing sound sources in the center with clarity and definition, making it perfect for all types of live stereo recording.

The H2n's built-in X/Y microphone provides two matched unidirectional microphones set at a 90 degree angle relative to one another, optimum for most stereo recording applications.

Surround sound for lifelike realism

The H2n allows you to combine the signals from both the X/Y and MS microphones in order to create surround sound recordings of everything you hear—not just those sounds coming from in front of you, but from all directions.

Use 2ch mode to create a single stereo file of the combined mics, or 4ch mode to record the signal from the H2n's X/Y mics onto one stereo track and signal from the MS mics onto another. The resulting pair of tracks can then be routed to separate speakers for an immersive listening experience or can be blended into a custom stereo track. In addition, the H2n's MS decoding feature can be used to independently alter the level of the Side signal in both 2ch and 4ch modes.

Spatial Audio for VR

The Zoom H2n is the only handheld recorder that captures four-channel surround sound audio. With Firmware v 2.00, it’s perfect for the creation of 360-degree “Spatial Audio” files, the next-generation surround sound format native to the google JUMP Virtual Reality Platform.

The Ins and Outs

The H2n Line In is a stereo ⅛" mini phone jack that can accept two channels of mic- and/or line-level signals. Condenser microphones requiring Plug-In Power (2.5 volts) can be connected to this jack. An analog-type Mic Gain dial allows you to manually set input level, or you can choose one of the three Auto Gain presets to automatically set the optimum recording level.

The H2n Line Out is a stereo ⅛" phone jack with dedicated volume control. Headphones can be connected to this jack for private monitoring of the input or recorded signal. There's also a built-in speaker on the back panel for fast monophonic monitoring of the recorded signal without the need to make any connections.

The H2n USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. From there, it can be imported into editing software such as the supplied wave Lab LE. USB also enables the H2n to be used as a 4-in/2-out audio interface or as a USB microphone.

Pre-Record

The interview started a split-second before you were ready. The conductor lifted his baton just as you were checking a cable. The talent went back on-air a moment too soon.

Auto-Record

Auto-Record allows the H2n to automatically start recording when a certain level of sound is detected. As soon as an incoming signal exceeds the Start Level you've set, recording begins. There's an equivalent Auto-record Stop function, too; as soon as incoming signal drops below the Stop Level you've set, recording ends.

Data Recovery

The H2n's Data Recovery feature automatically repairs corrupted files—something that can happen if power is interrupted during recording or if an SD card is removed during a writing or editing procedure.

Product Specifications:

Recording Media: 16MB–2GB SD cards, 4GB–32GB SDHC cards

Built-in memory: Up to 1 minute in 96kbps MP3 format

Mic arrangements: 90˚ X/Y stereo, MS stereo with adjustable side mic level.

Recording modes: MS, XY, MS+XY (2ch), MS+XY (4ch)

Power: Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A)

Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteries

Physical features: Tripod mounting socket, strap attachment

Dimensions: 67.6mm (W) × 113.85mm (H) × 42.7mm (D)

Weight: 130 g (without batteries)
