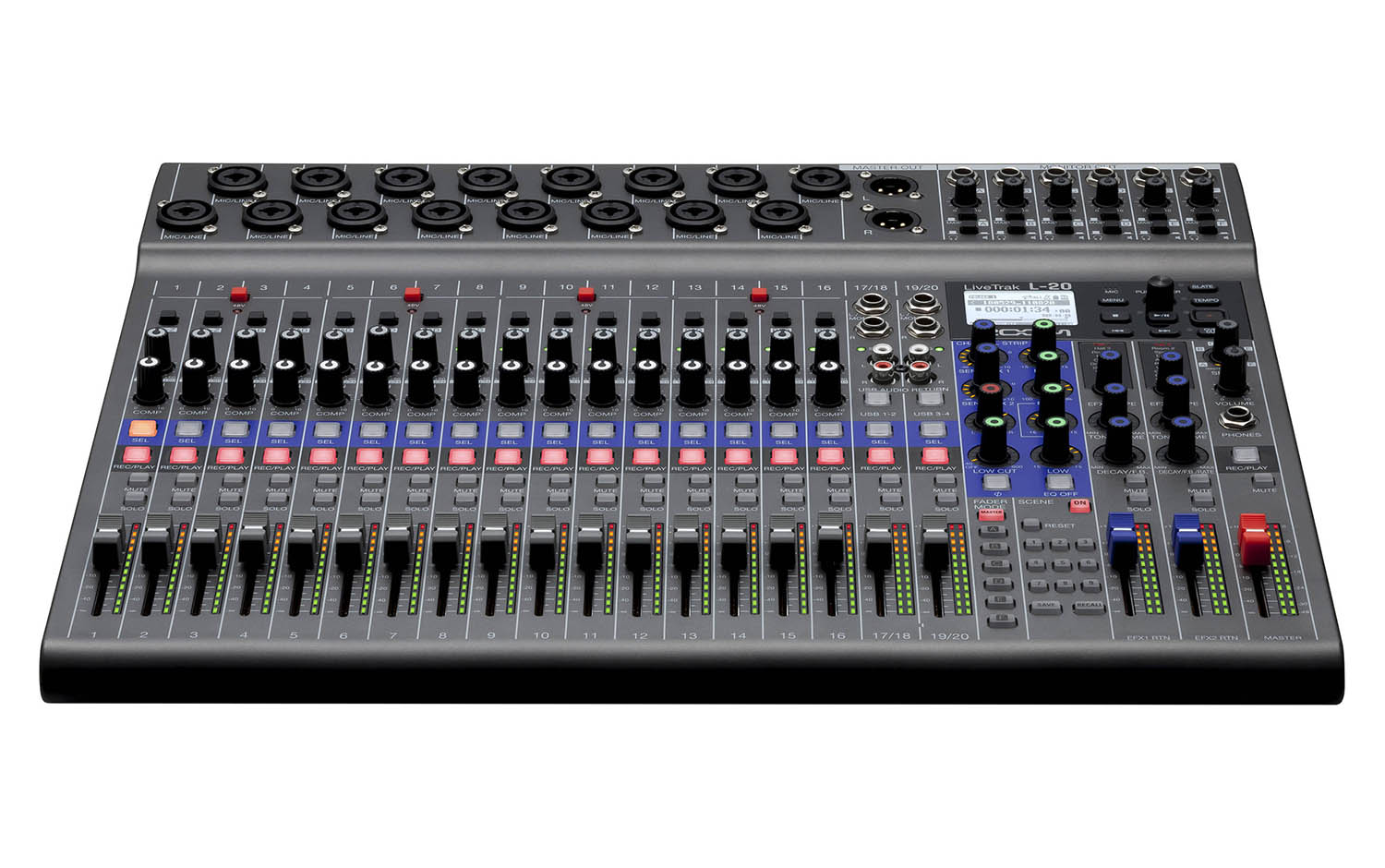

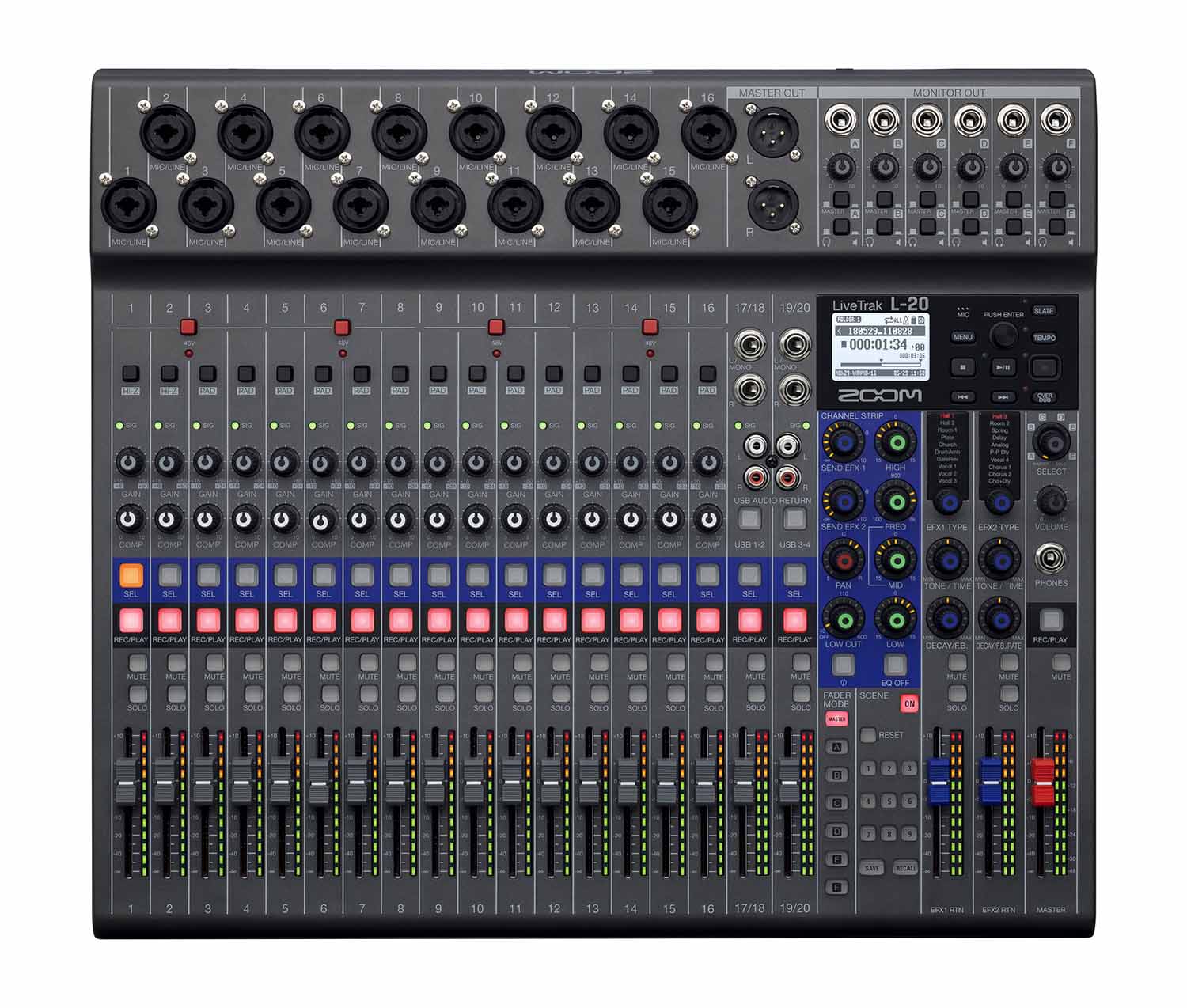

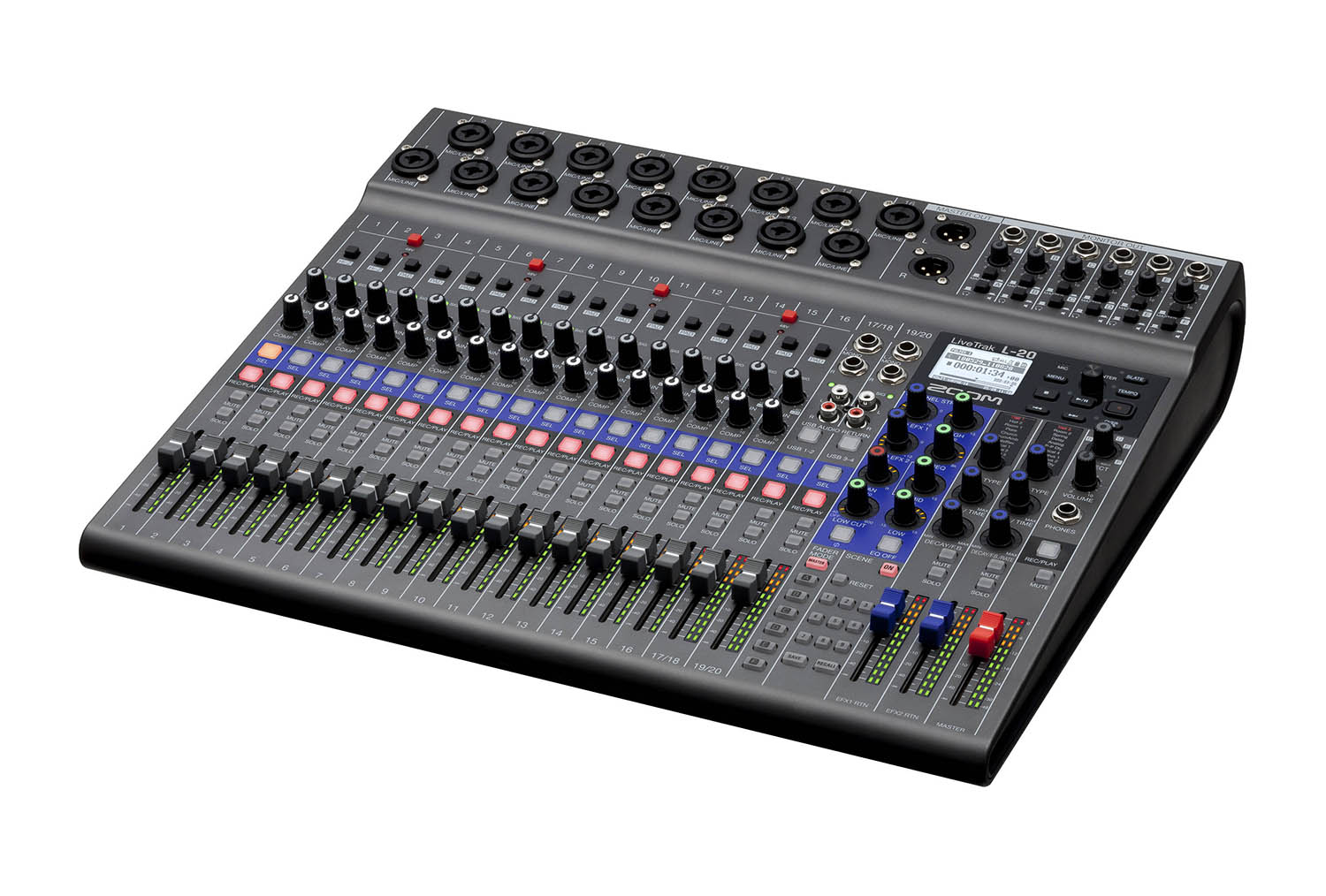

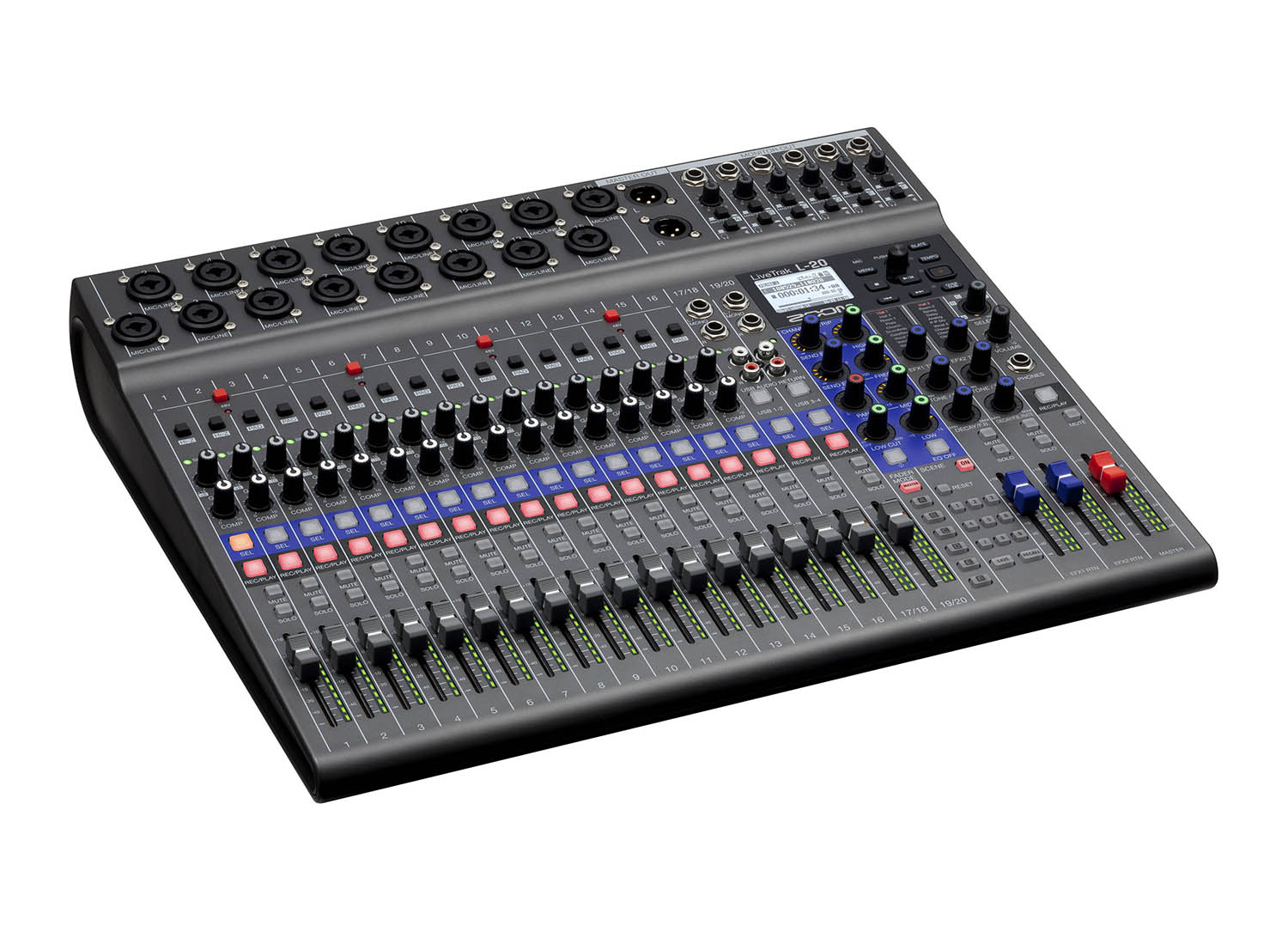

Zoom LiveTrak L-20 Digital Console With 16 Mono Mic/Line Inputs And Two Stereo Inputs

Save 25%
UPC: 884354019846 MPN:ZL20
Sale price$899.99 Regular price$1,199.99
In stock (2 units), ready to be shipped

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.


The LiveTrak L20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it is built for bigger, bolder arrangements.

20 Inputs for Bigger Sound:

The LiveTrak L20 is designed to mix bigger. It features 20 inputs 16 mono mic or line inputs and two stereo inputs, all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand alone compressor control.

22 Tracks of Recording:

Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24bit or 96 kHz. At 128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mixdown finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later. Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

Create Six Custom Monitor Mixes:

With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from powerful headphone output to a balanced line output for stage monitors.

Big Beautiful Interface:

Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.

Wireless Mixing:

The LiveTrak L-20 offers wireless control* via a free iOS mobile app "L-20 Control" featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.

Product Specifications:

Inputs: Mono (MIC/LINE): 16. Stereo (LINE): 2


MASTER OUT: Type: XLR jacks (balanced) Maximum output level:+14.5 dBu Output impedance: 100 Ω.

Level segments: 12.

Frequency characteristics: 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz 96 kHz: −3.0 dB, 20 Hz – 40 kHz.

Display: LCD with backlight (128×64 resolution).

Power: AD-19 AC adapter (DC12V 2A).

dimensions: 445 mm (W) × 388.4 mm (D) × 82.6 mm (H).

Weight: 3.71 kg.
