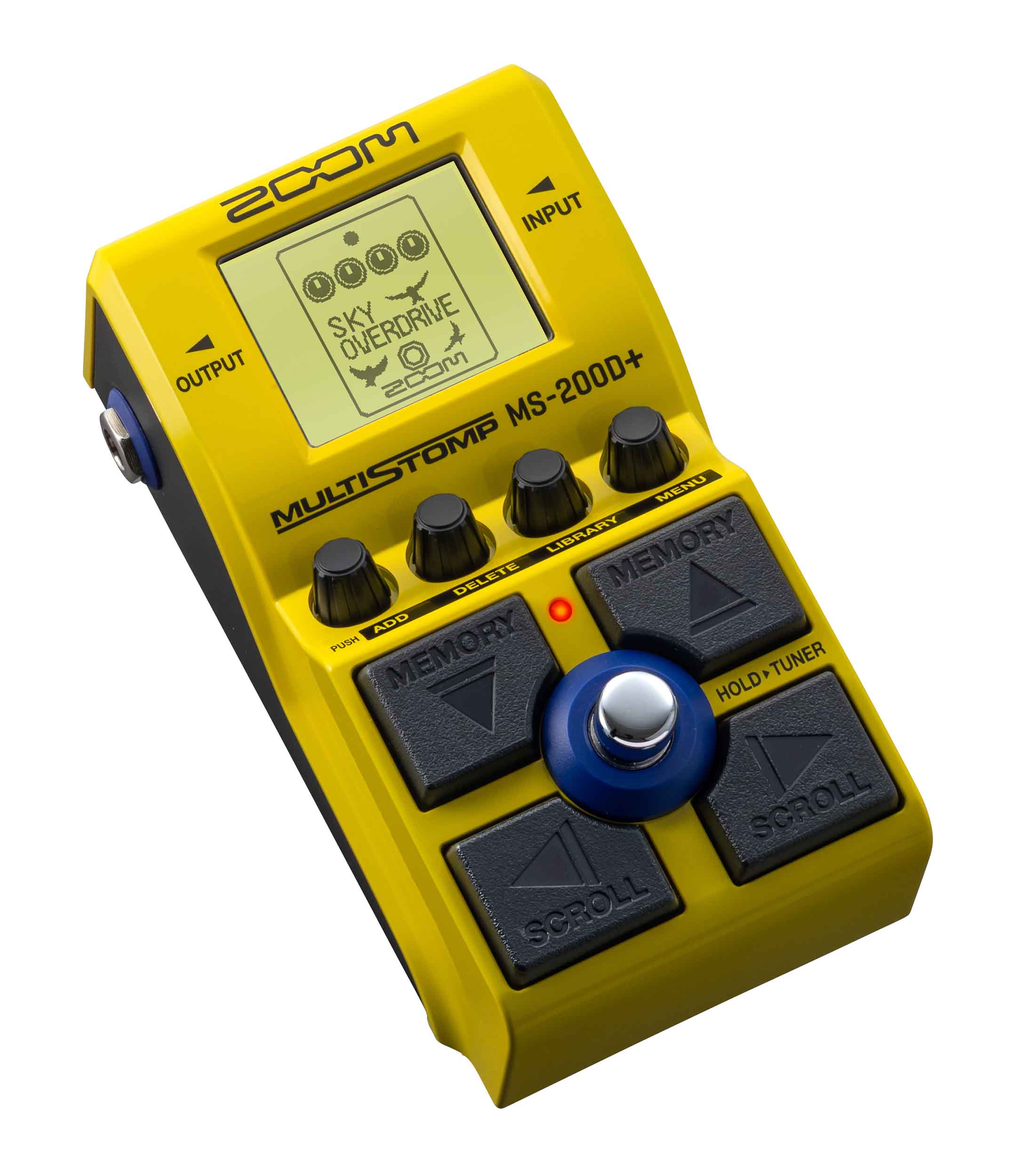

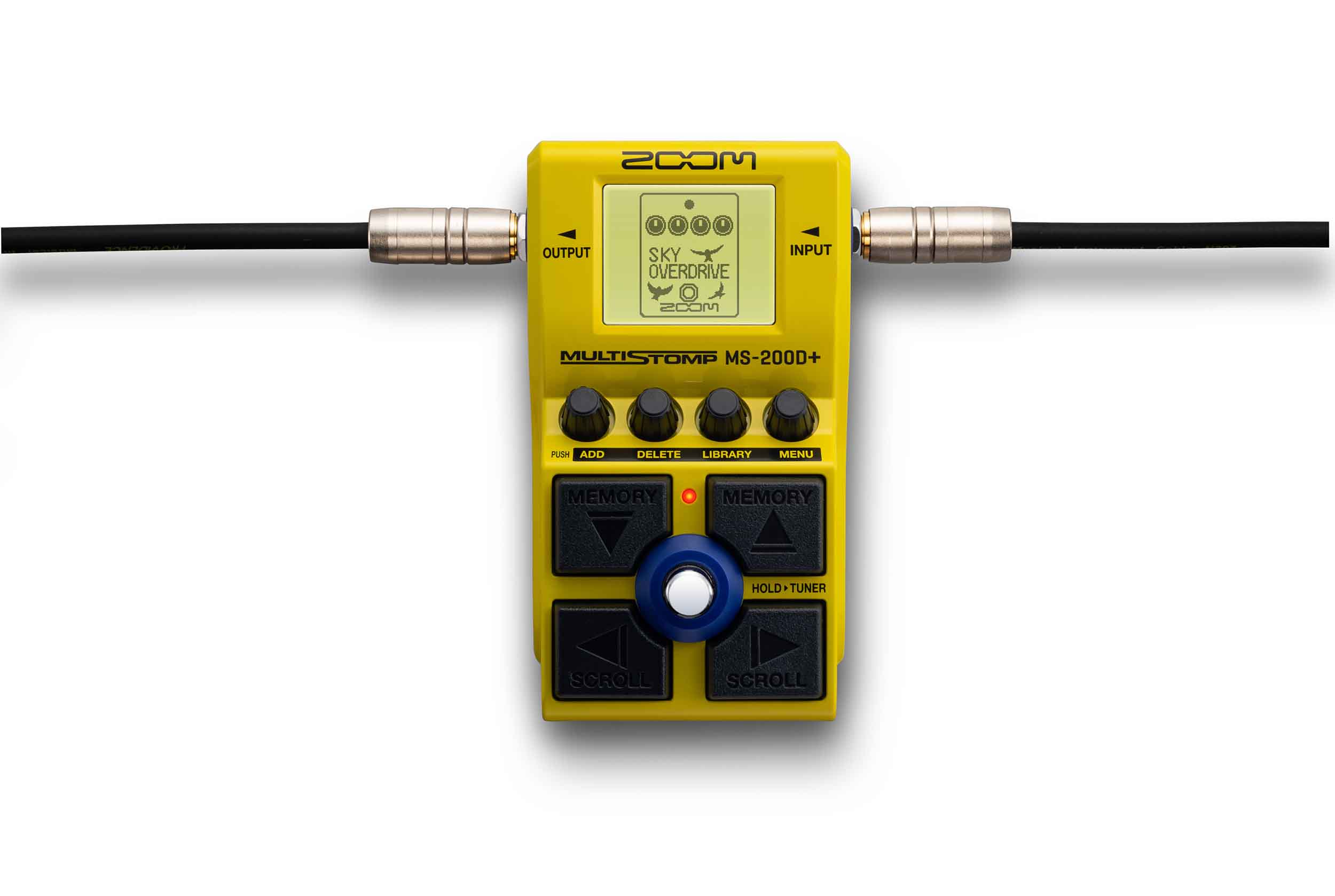

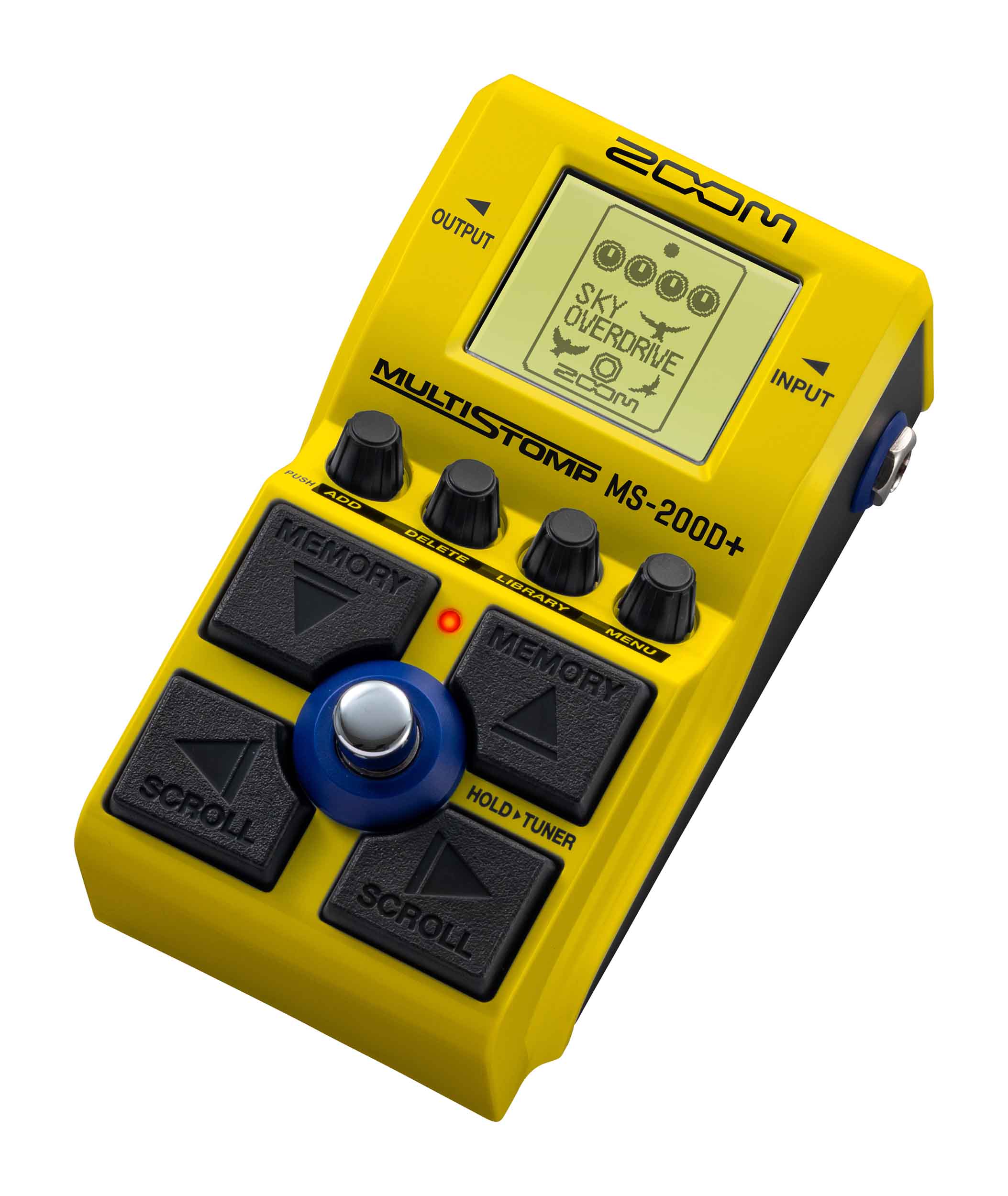

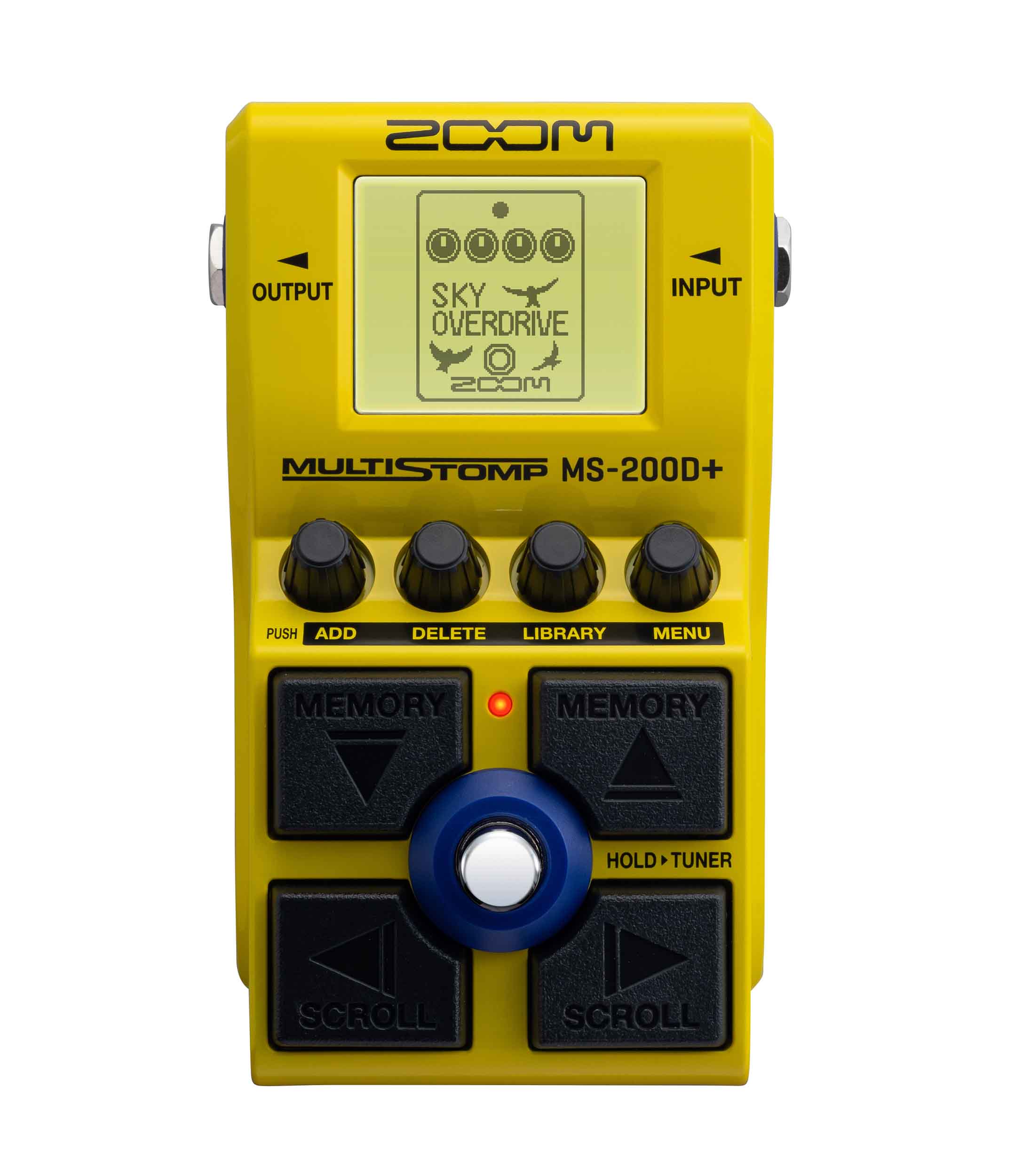

Zoom MS-200D+, Multistomp Drive Pedal

The Zoom MS-200D+, Multistomp Drive Pedal. The MS-200D+ features 200 drives and distortions, the most ever in one stompbox.

New Zoom Originals and Much, Much More

The MS-200D+ features 164Zoom originals plus 36 emulations of classic tones that cover overdrives, distortions, boosts, fuzz, and more.

Create Your Own Distortions

With up to 200 custom patches, you can create unique distortions by chaining any two effects together in series, parallel, or alternate for the ability to quickly switch between two tones.

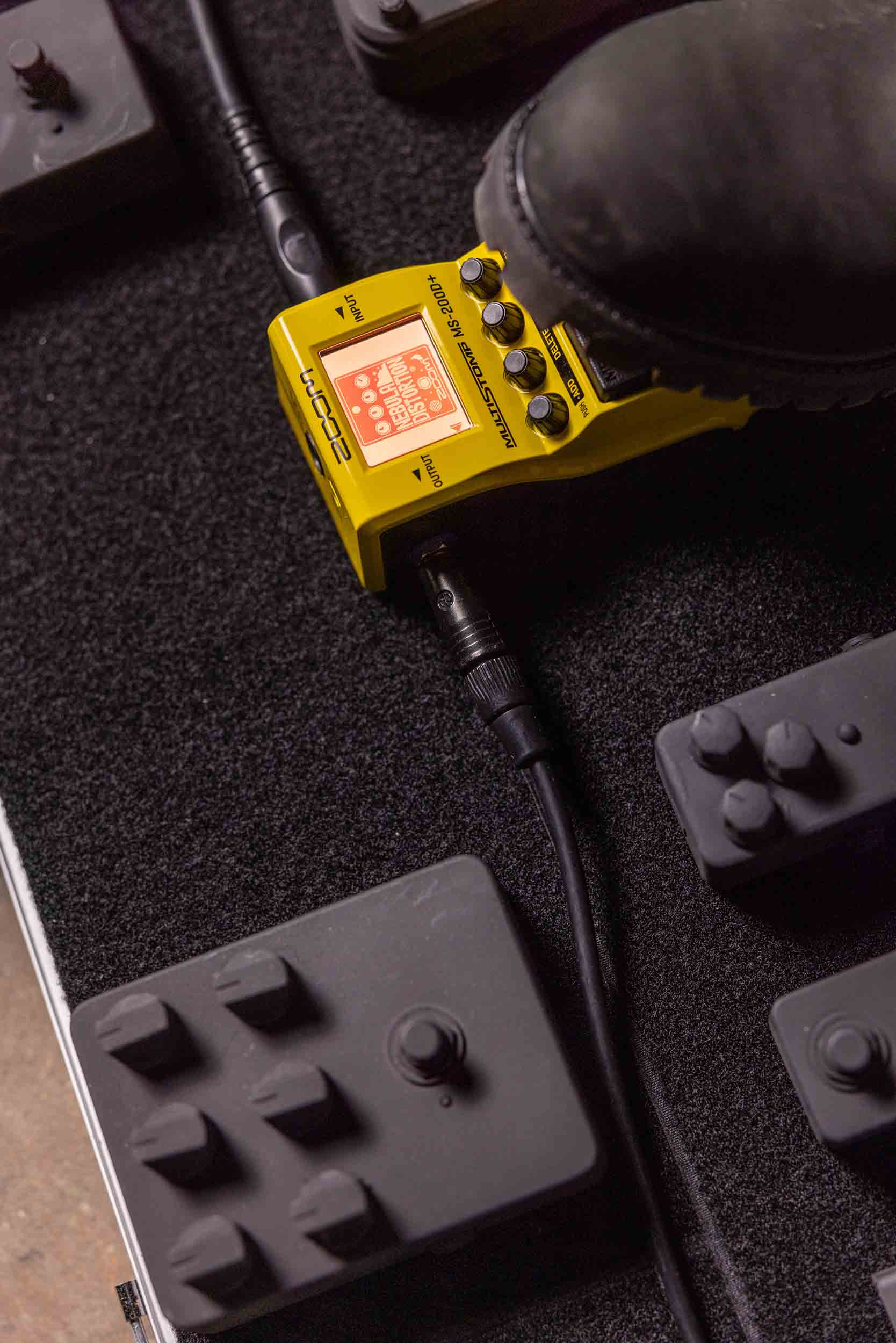

Color Changing Display

The LCD screen changes color, making it easier to distinguish each drive and distortion type while scrolling

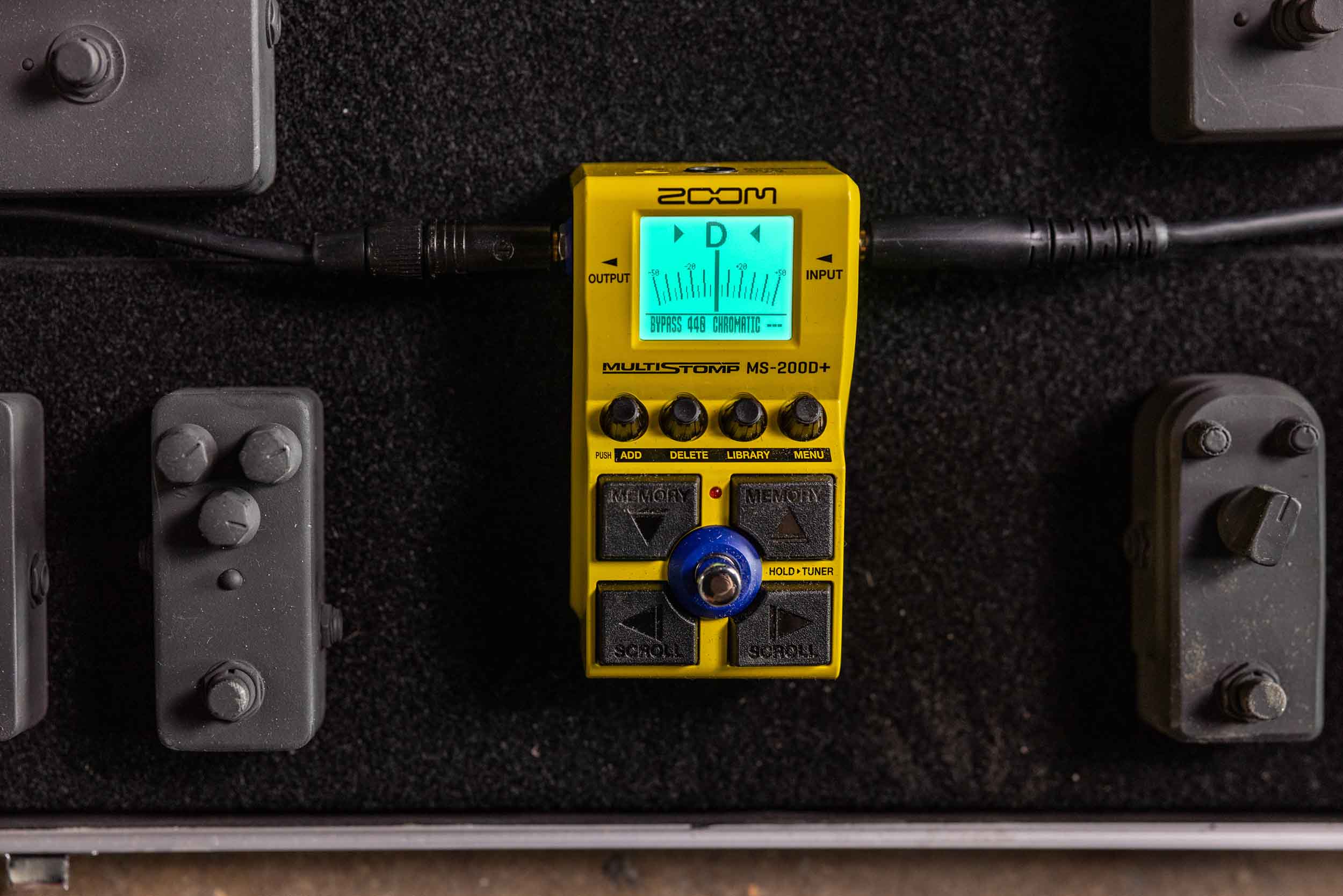

Stay Tuned

The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open& drop tunings.

Handy Guitar Lab

With a growing library of patches and drives & distortions, guitarists can continue to expand their sound with the Handy Guitar Lab app for iOS.

Product Specifications:

User Patch Memories: 250

Sampling Frequency: 44.1 Khz

A/D Conversion: 24-Bit 128× Oversampling

D/A Conversion: 24-Bit 128× Oversampling

Signal Processing: 32-Bit

Frequency Response: 20 Hz – 20 Khz (+0.5 Db/−0.5 Db) (When 10kω Load)

Display: 160×128 Dot-Matrix LCD

Input S/N: 122 Db

Noise Floor (Residual Noise): –100 Dbu

Power:

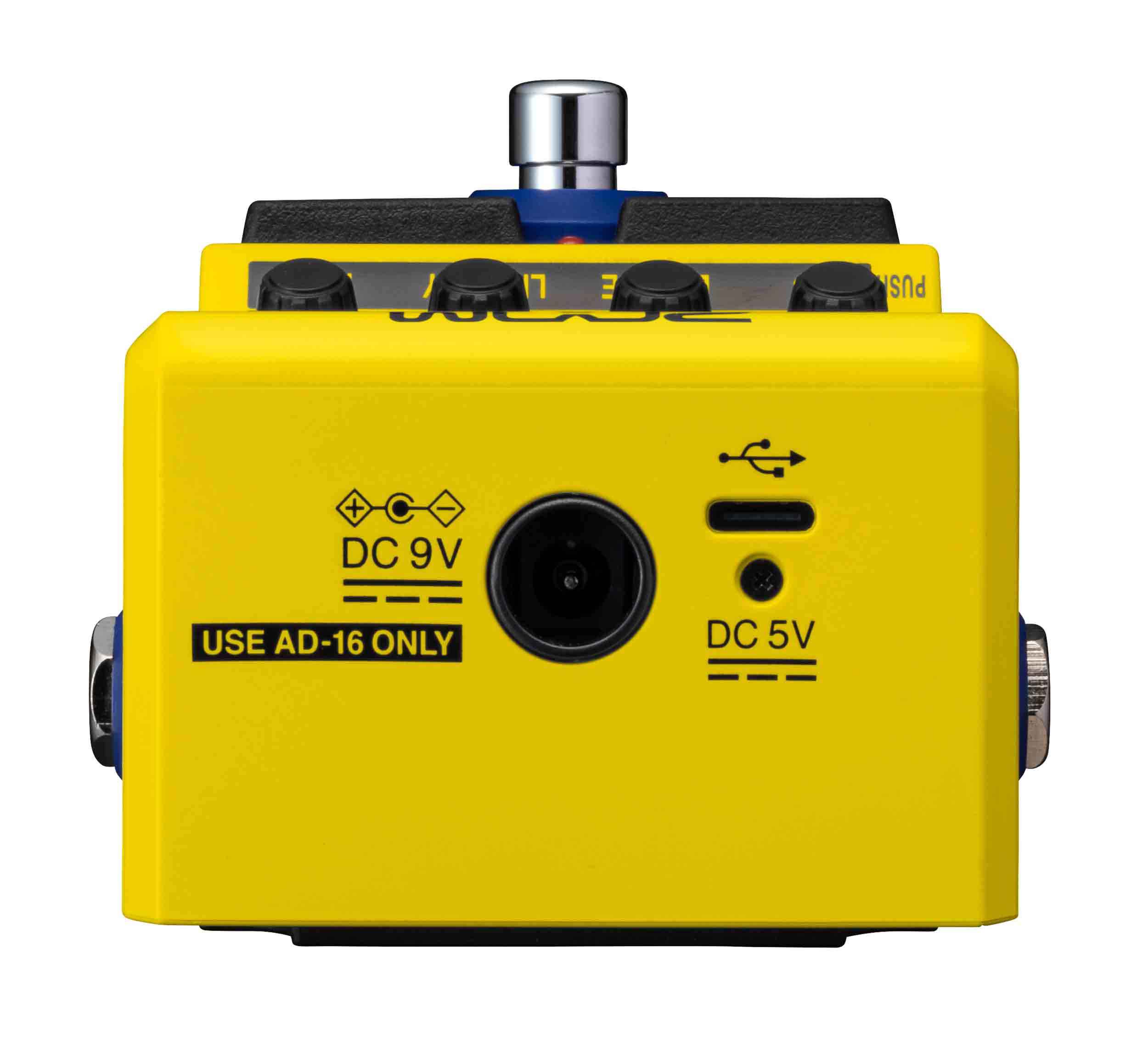

AC adapter: 9V DC 500mA center negative (ZOOM AD-16)

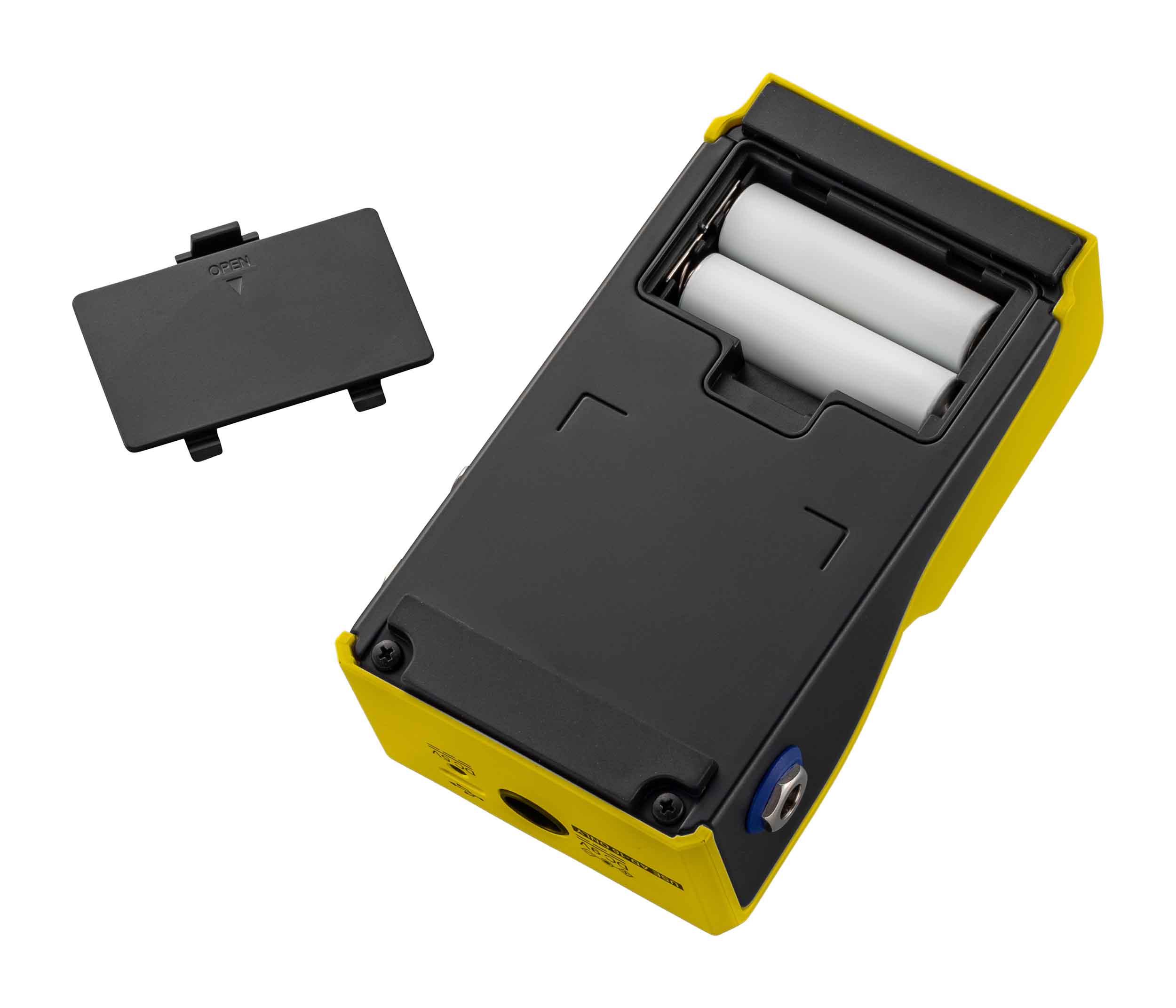

2 AA batteries (alkaline, lithium or rechargeable NiMH

batteries)

USB:

Port: USB 2.0 Type-C/Supported cable type: Type-C

Handy Guitar Lab: USB 1.1 Full Speed

Use a USB cable that supports data transfer. USB bus

power is supported.

Dimensions:

133 mm (D) × 79 mm (W) × 61 mm (H)

Weight:

346 g (excluding batteries)

393 g (including batteries
