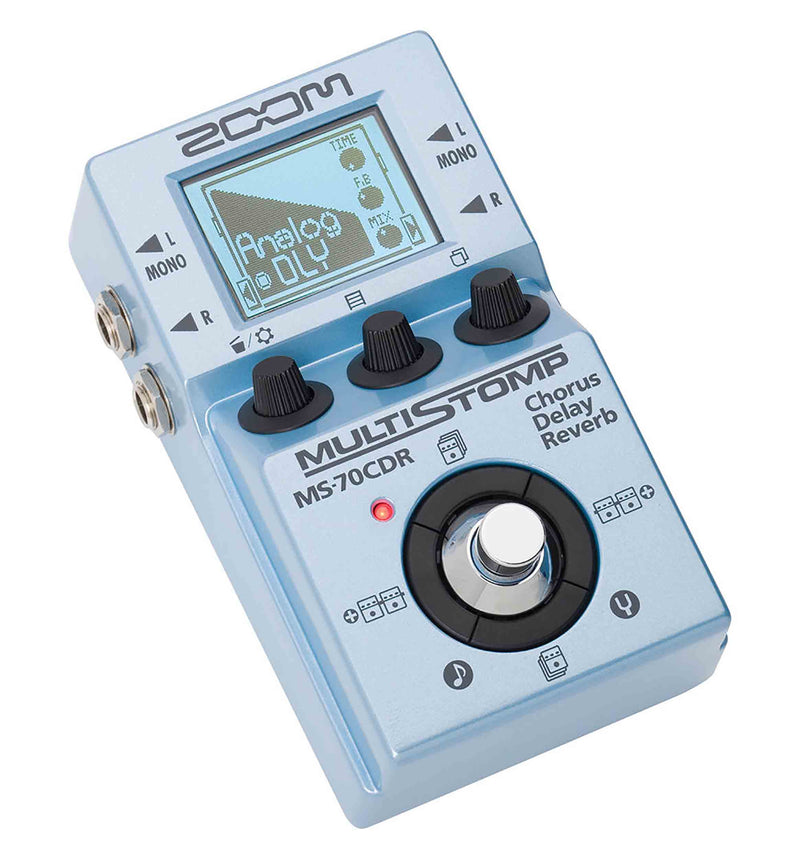

Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal

The Zoom MS-70CDR is a stompbox sporting delay, chorus, reverb, and more. It features 86 custom effects, allowing you to combine six of them at once, and sports terminals that can handle the signals of guitars, basses—both active and passive—as well as line-level keyboards. Its LCD screen is designed to be visible in low-light situations. Up to six effects can be instantiated in tandem, arranged in whatever order you desire. To store your custom-tailored effects, there are 50 on-board patch-memory slots. Furthermore, an Auto Save function will make sure that any edit you make to any preset you've created will, as the name suggests, be saved automatically.

You can cycle through 26 patches in any order you choose, thus satisfying your inevitable wish—if you've ever interfaced with a giant pedal board—to simply single-stomp your way through an entire set-list. If recording is on the agenda, the MS-70CDR offers dual line-output jacks, and thus, allows you to route the byzantine effects of your own creation in stereo. An on-board chromatic tuner and tap-tempo feature are also provided.

Product Specifications:

Effects: 86

Simultaneous Effects: 6 maximum

Patch Memory Banks: 50

Sampling Frequency: 44.1 kHz

AD/DA Conversion: 24-bit, 128x over-sampling

Signal Processing: 32-bit floating point and 32-bit fixed point

Frequency Response: 20 Hz to 20 kHz (+1 dB / -3 dB into 10 kOhms load)

Display: LCD

Input: 2 x 1/4" mono jacks

Rated Input: -20 dBm

Input Impedance: 1 MOhm

Output: 2 x 1/4" mono jacks

Maximum Output Level: +5 dBm

Output Impedance: 10 kOhms or more

Battery Type: 2 x AA (LR6), alkaline

Continuous Battery Life : 7 hours typical, 5 hours in stereo operations

Power Supply: 9 VDC, 500 mA with center-pin negative

USB: 1 x mini-USB Type-B, firmware updates and bus-powering

Dimensions: 5.1 x 3.1 x 2.3" / 13.0 x 7.8 x 5.9 cm

Weight: 12.3 oz / 350.0 g (without batteries)
