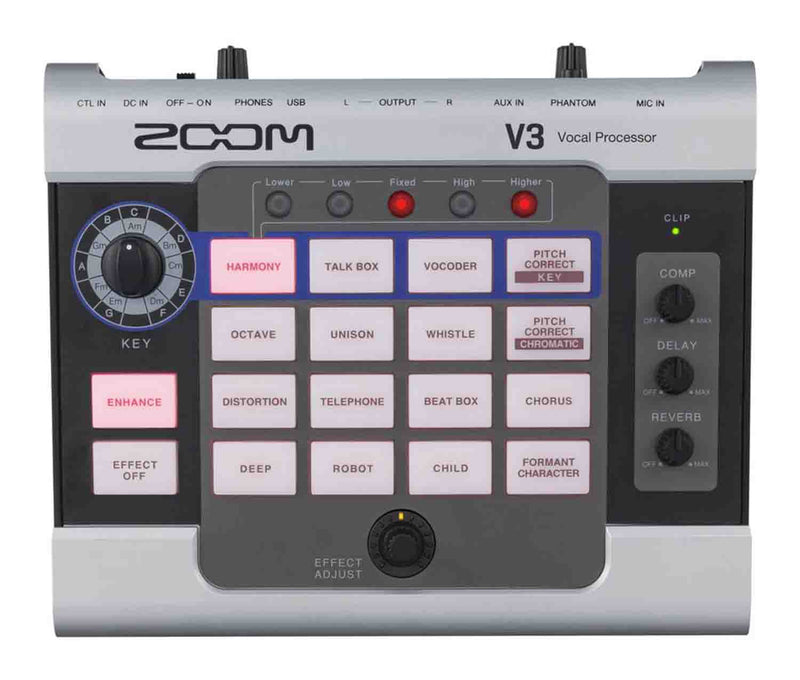

Zoom V3 Multi Effects Vocal Processor

The Zoom V3 is packed with effects, harmonizing options, pitch correction, and more. Your voice will sound amazing - from home, or anywhere else.

Back Yourself up

Create and arrange your own backup vocals. Add up to two voices to create your 3-part harmonies in both major and minor keys.

Creative Voice Effects

Choose from 16 voice-changing effects like Unison and Vocoder to enhance your performance. V3’s parameter knob allows you to fine-tune your sound. The special effects enable you to alter your voice for video game streaming, podcasts, and YouTube videos.

All the Essentials

In addition to advanced effects, the V3 lets you dial in reverb, delay, and compression using a dedicated control knob.

Moment of Clarity

The V3 provides a professional quality pre-amp so you can sound your best. The Enhance function automatically optimizes the performance of any mic.

Add More Flavor

Press the Formant Character button and use the parameter knob to alter your vocal characteristics without changing the pitch.

The Zoom SVG-6 Mic

The optional Zoom SVG-6 microphone is designed to isolate your voice by suppressing ambient noise. The mic’s vocal isolation enables the V3 to process your voice with unmatched accuracy.

USB Audio Interface

The V3 connects to your computer or mobile device via USB to become an audio interface for recording and streaming.

Hands-Free Control

Toggle effects precisely on beat with the ZOOM FS01 footswitch, or freely modulate effect parameters with the ZOOM FP02M expression pedal.

Easy Access

The V3 can be used on a tabletop or can be attached to a mic stand using the Zoom HRM-7 (7 inches) or HRM-11 (11inch) Handy Recorder Mount.

Product Specifications:

Effects: 16 types

Concurrent Effects: 5

Sampling Frequency:      44.1 kHz

A/D Conversion: 24-bit 128× oversampling

D/A Conversion: 24-bit 128× oversampling

Signal Processing: 32-bit

Frequency Response: 20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load)

Inputs:

Mic In:  XLR jack

Input Gain: +3 – +40 dB

Maximum Input Level: +4 dBu

Input Impedance: 3 kΩ or higher (1 kHz)

Phantom Power: +48 V

Aux In: Stereo mini-jack

Rated Input Level: −10 dBu

Input Impedance (Line): 22 kΩ

Outputs:

L/R Out: Unbalanced TS jacks

Maximum Output Level: +6 dBu

Output Impedance: 100 Ω

Phones: Stereo mini-jack

Maximum Output Level: 20 mW + 20 mW (into 32 Ω load)

Equivalent Input Noise (When Phantom Power Off): –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain)

Noise Floor (Residual Noise): –75 dBu

Control Input: FS01/FP02M input

Power:

Power: AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)

USB: Connector: Micro USB

Audio Interface Operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit

External Dimensions: 5.90” (D) × 7.48” (W) × 1.96” (H)

Weight: 1.30 lbs
