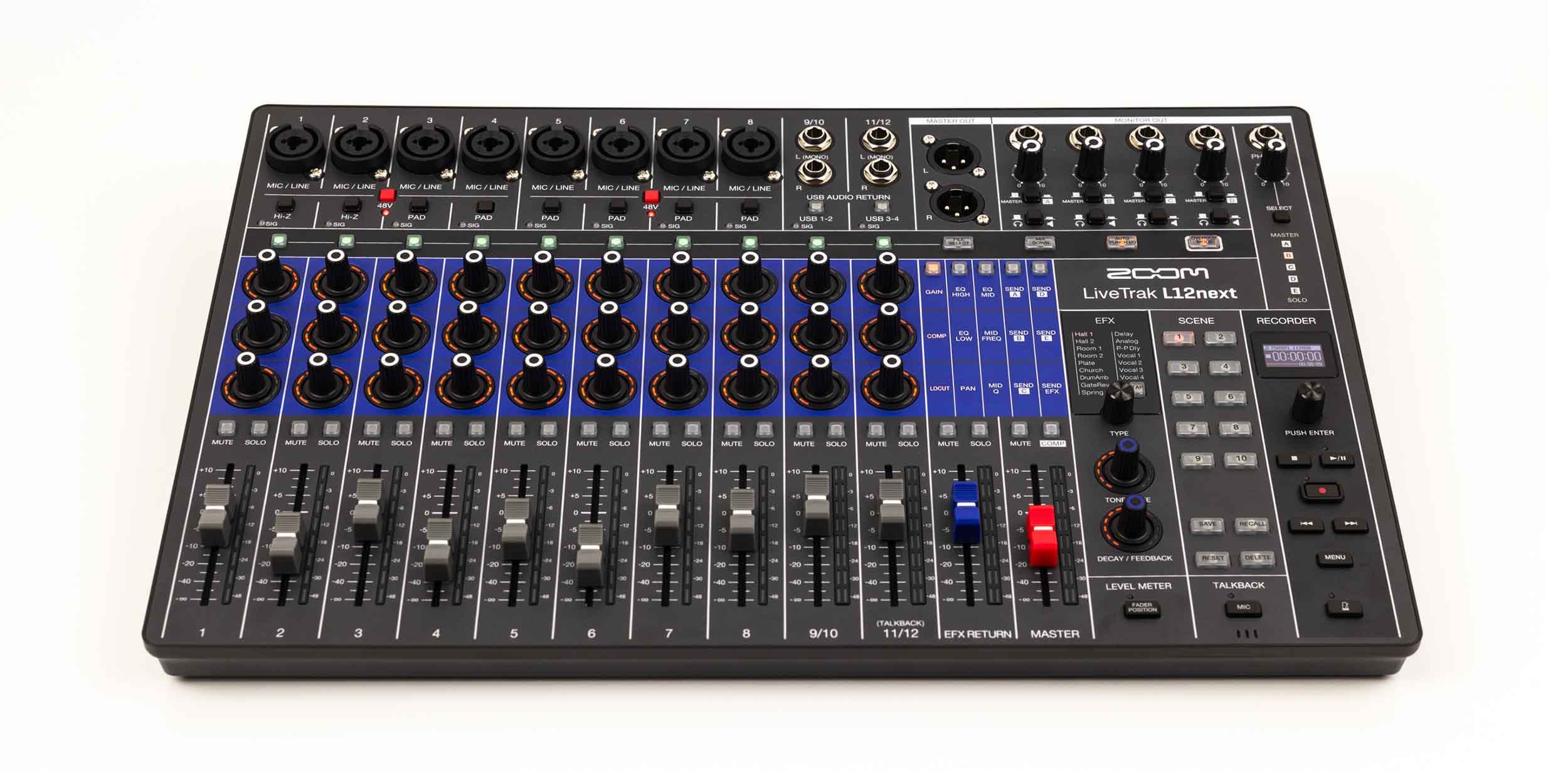

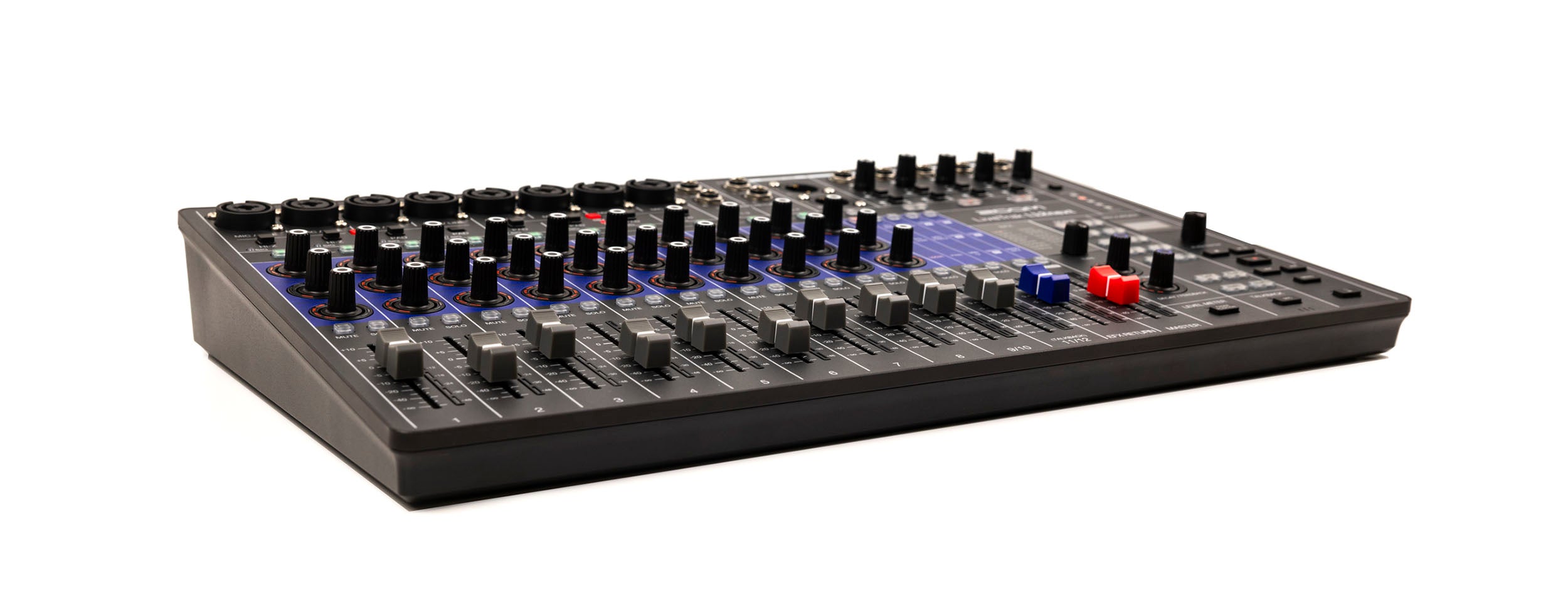

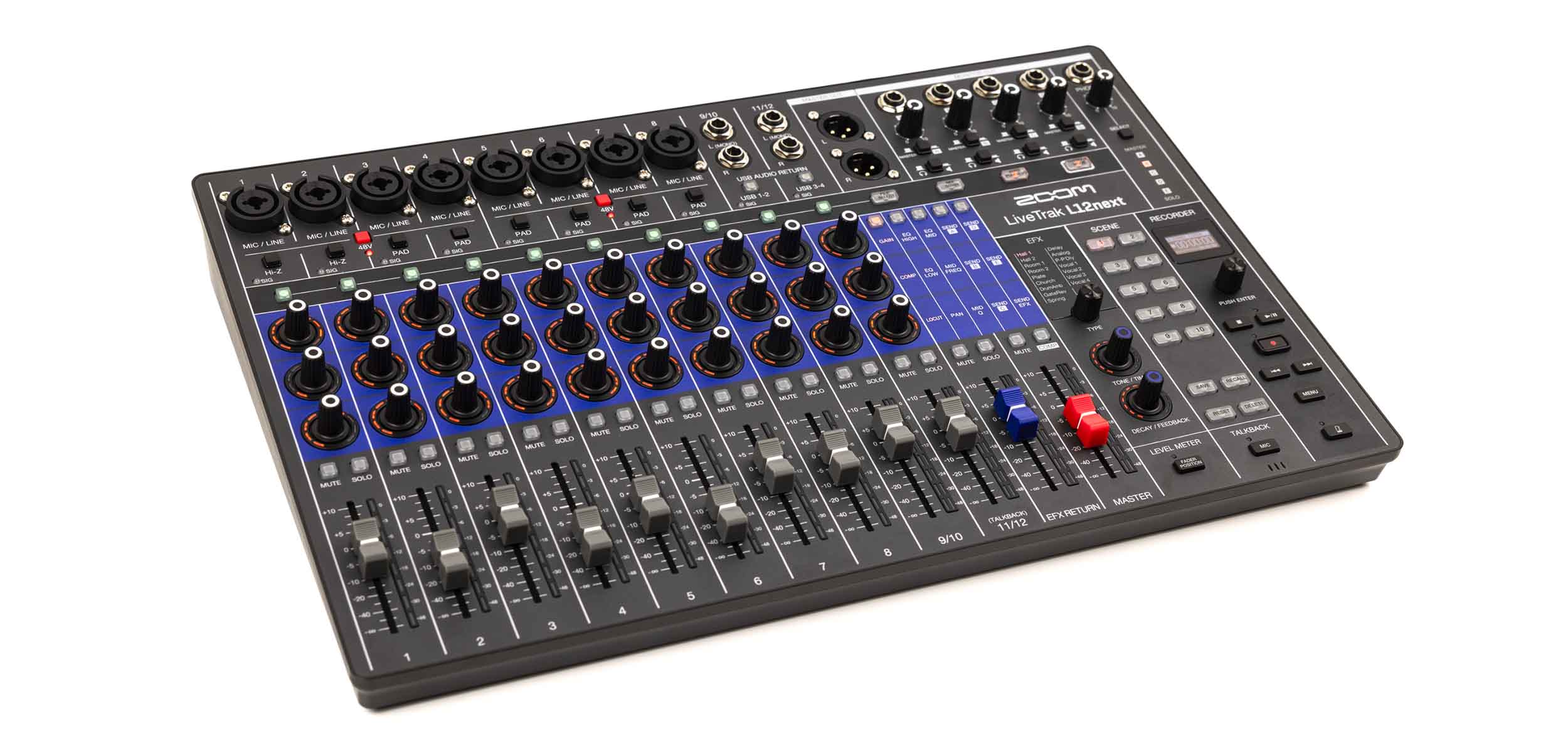

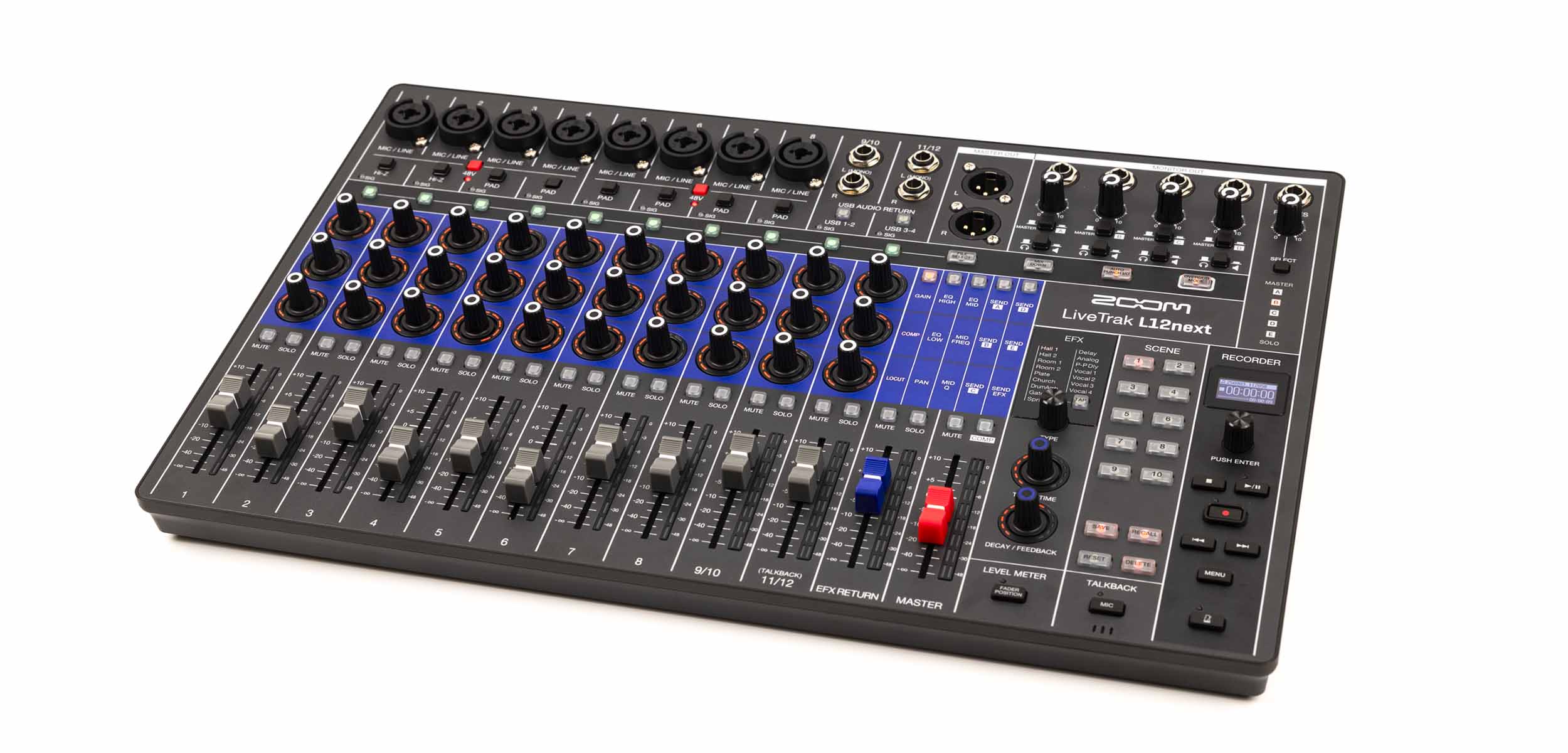

Zoom ZL12NEXT Pro Analog-Style Digital Audio Mixer Monitor Outputs

The Zoom ZL12NEXT delivers the speed and feel of an analog console with the flexibility of a modern digital mixer. Each channel features three dedicated knobs for High/Mid/Low EQ, and with a simple switch, the same knobs control gain, pan, sends, and compression—no menu diving required. Its intuitive, hands-on layout makes mixing fast, natural, and creator-friendly.

Enhanced Performance and Precision:

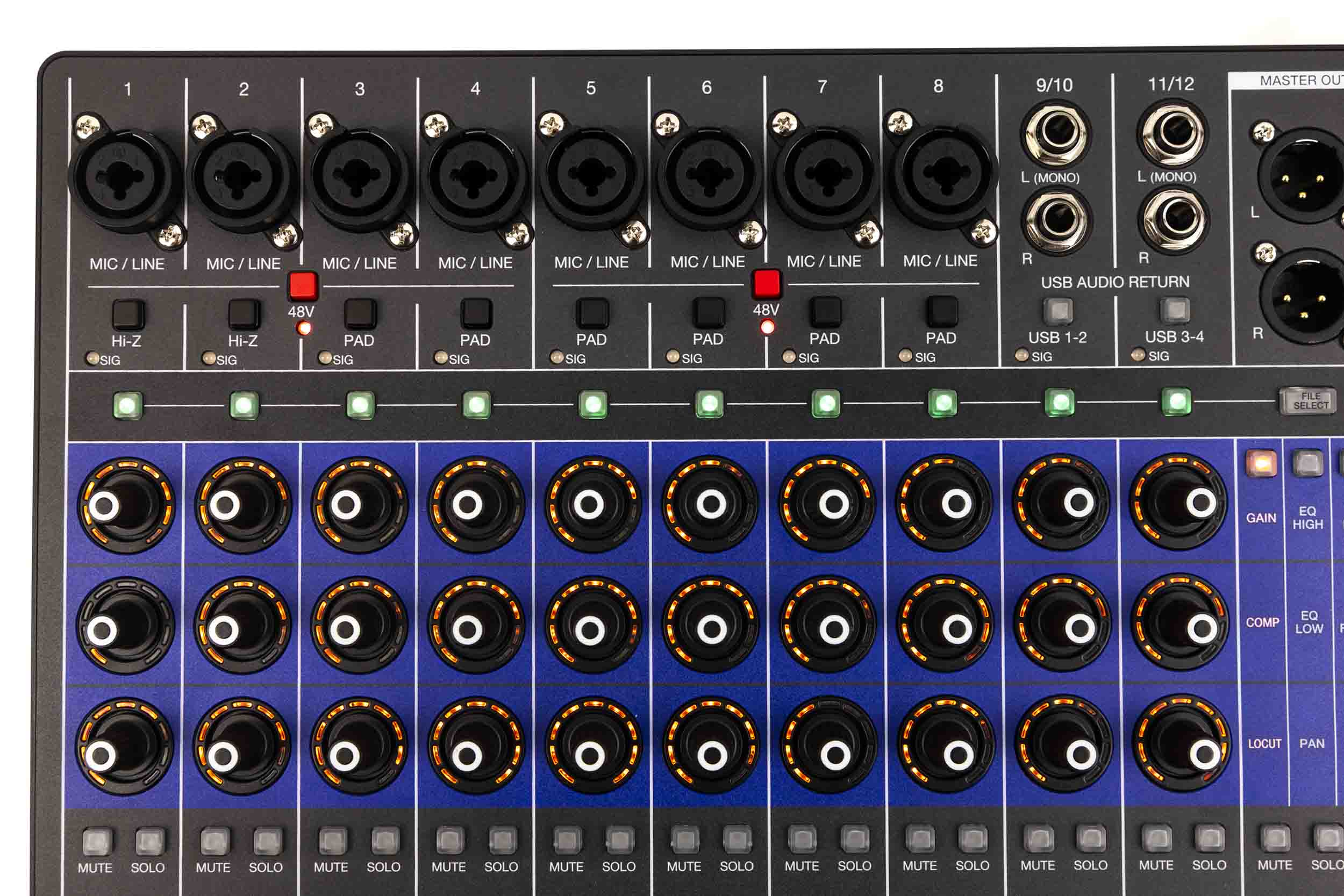

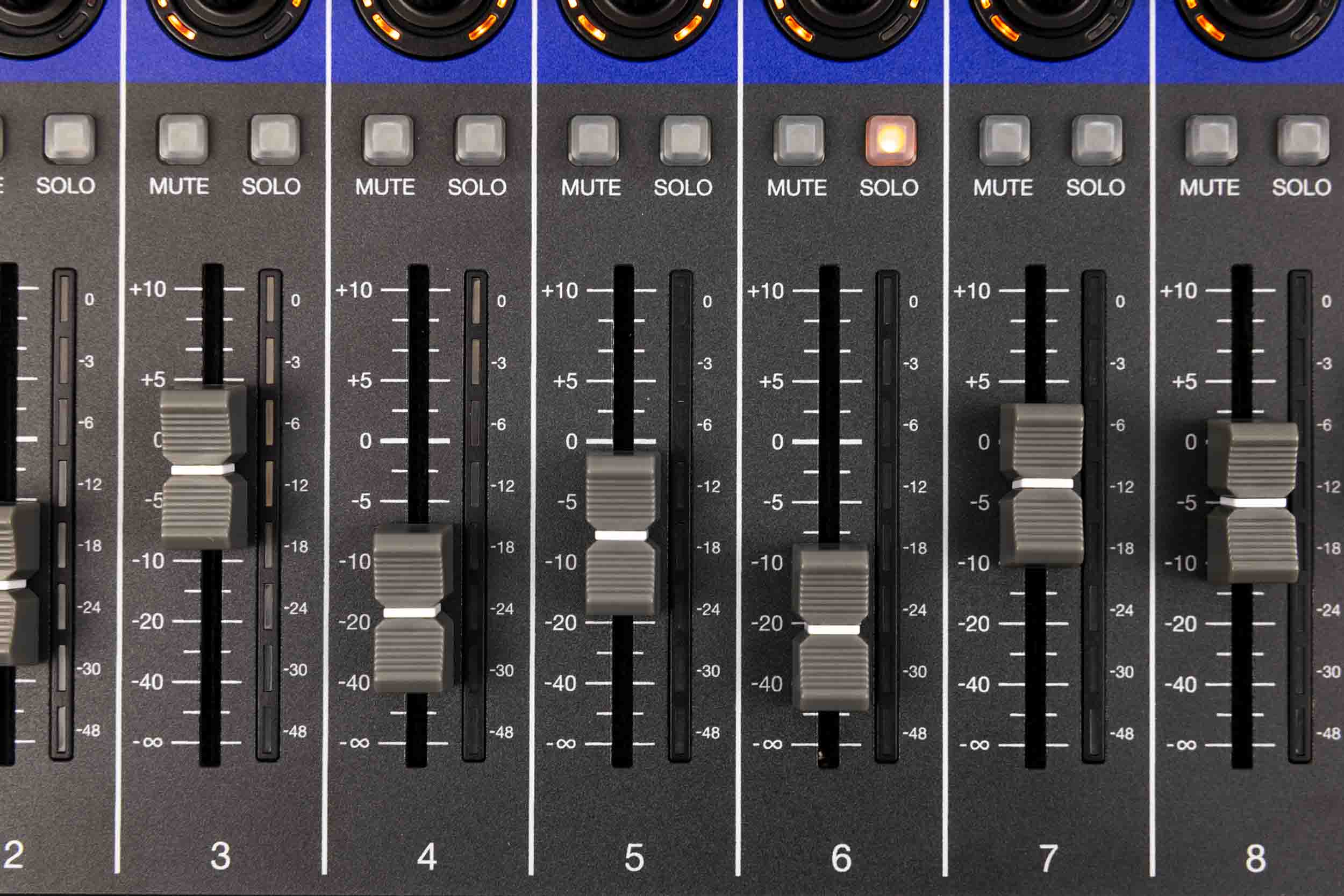

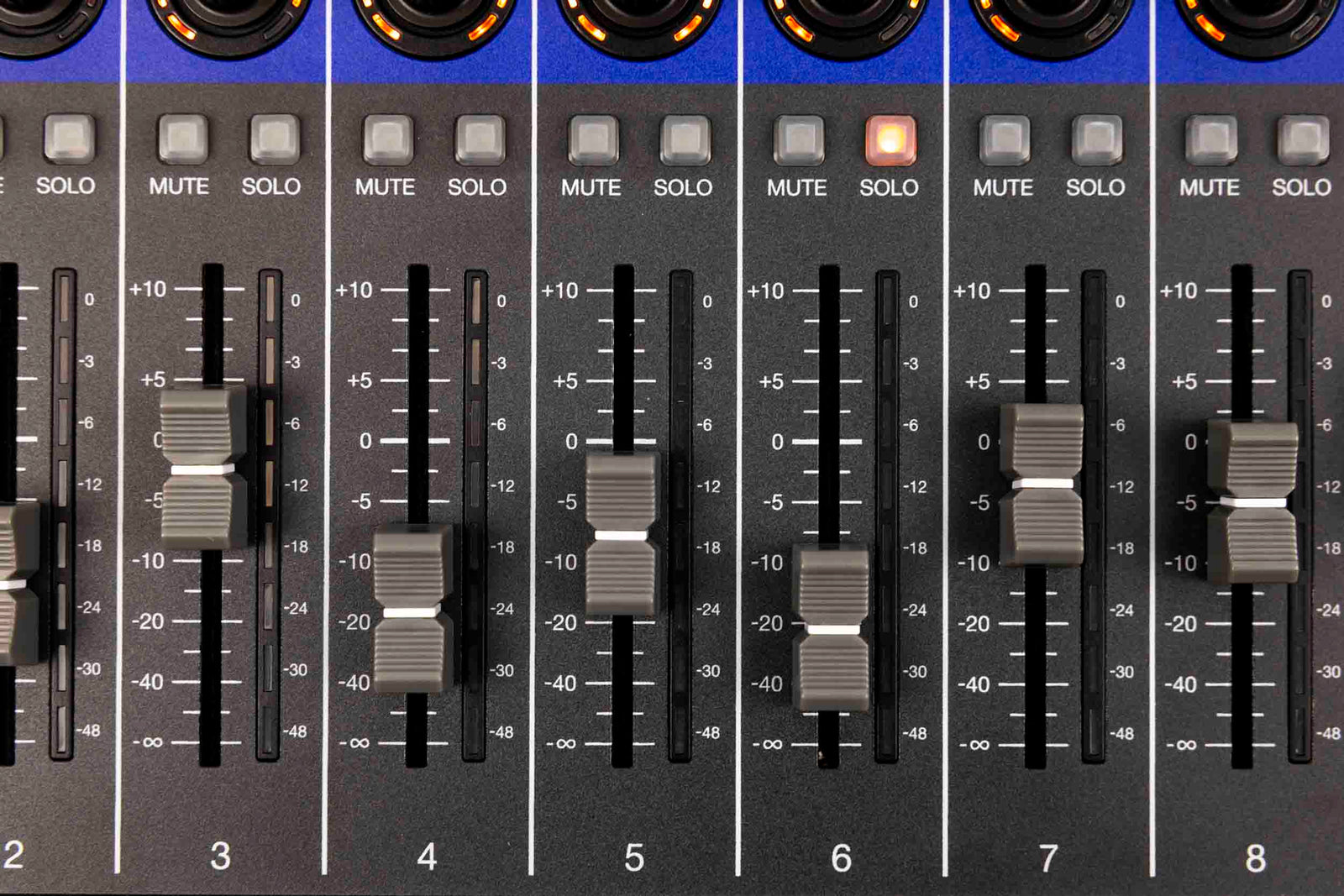

Designed for live environments and rehearsals, the L12next offers instant, confident control. Every channel includes 60mm faders and multi-function encoders, giving you everything you need at your fingertips. Newly upgraded preamps deliver clean +70 dB of gain, ultra-low noise performance (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.

Advanced Recording Made Easy:

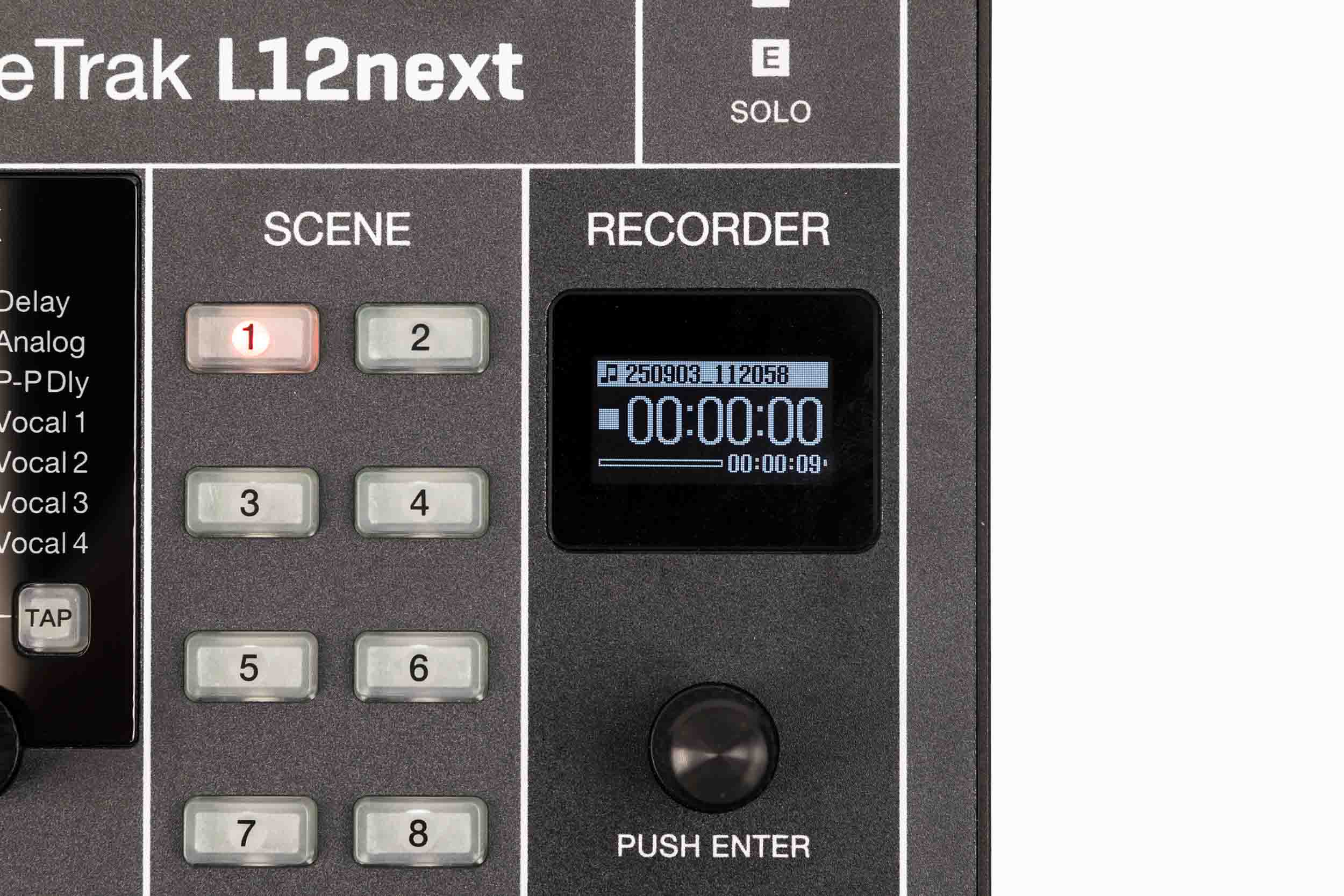

Whether tracking a band or producing alone, the L12next captures up to 14 tracks at 24-bit/96 kHz plus a stereo mix. The enhanced OLED screen simplifies setup and navigation, while tools like Overdub Mode, Auto Punch In/Out, and a dedicated File Select button support precise takes and seamless session expansion. The master channel records in 32-bit float, ensuring a pristine, clip-free final mix enriched by a warm, natural master compressor.

Monitor, Customize, and Control:

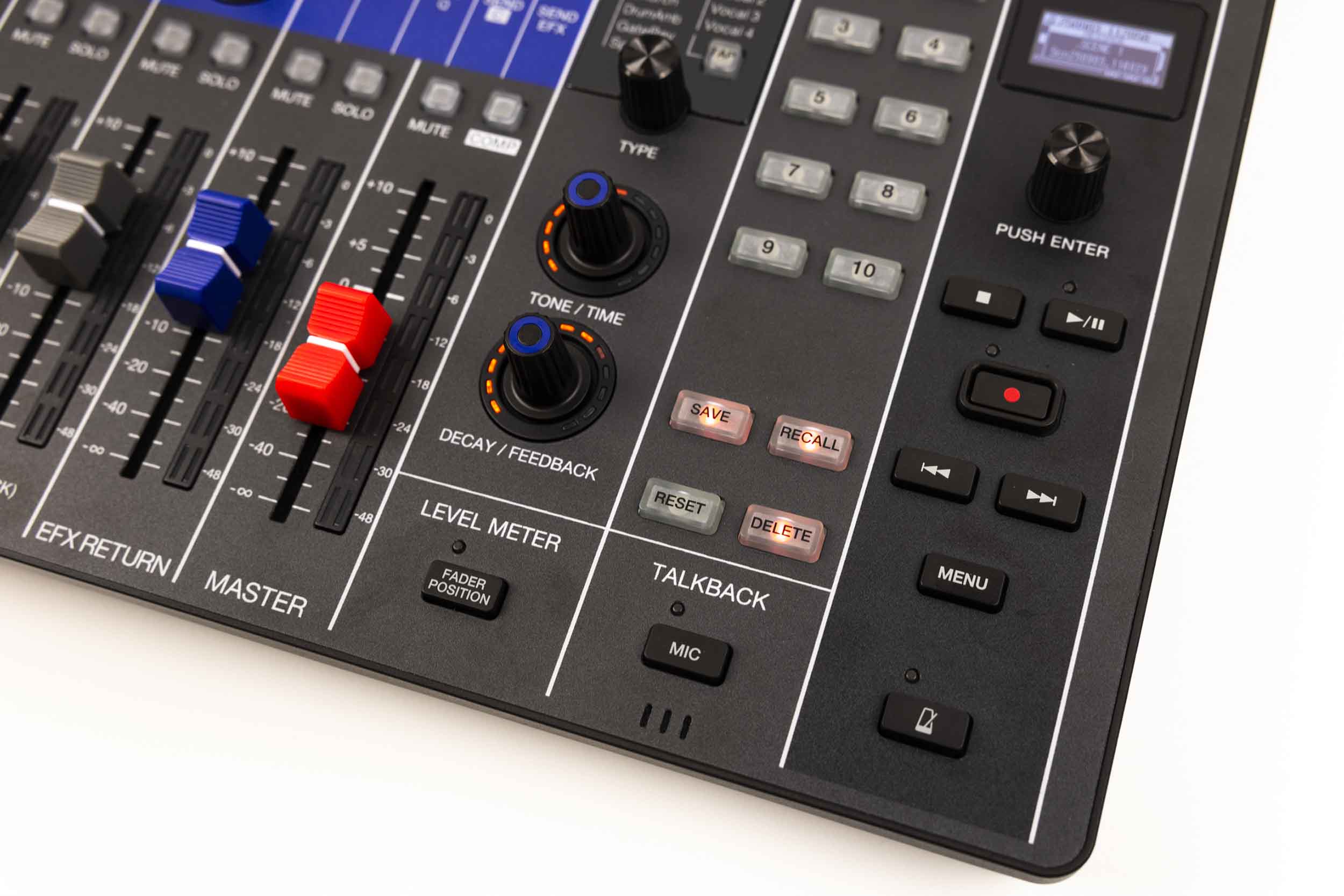

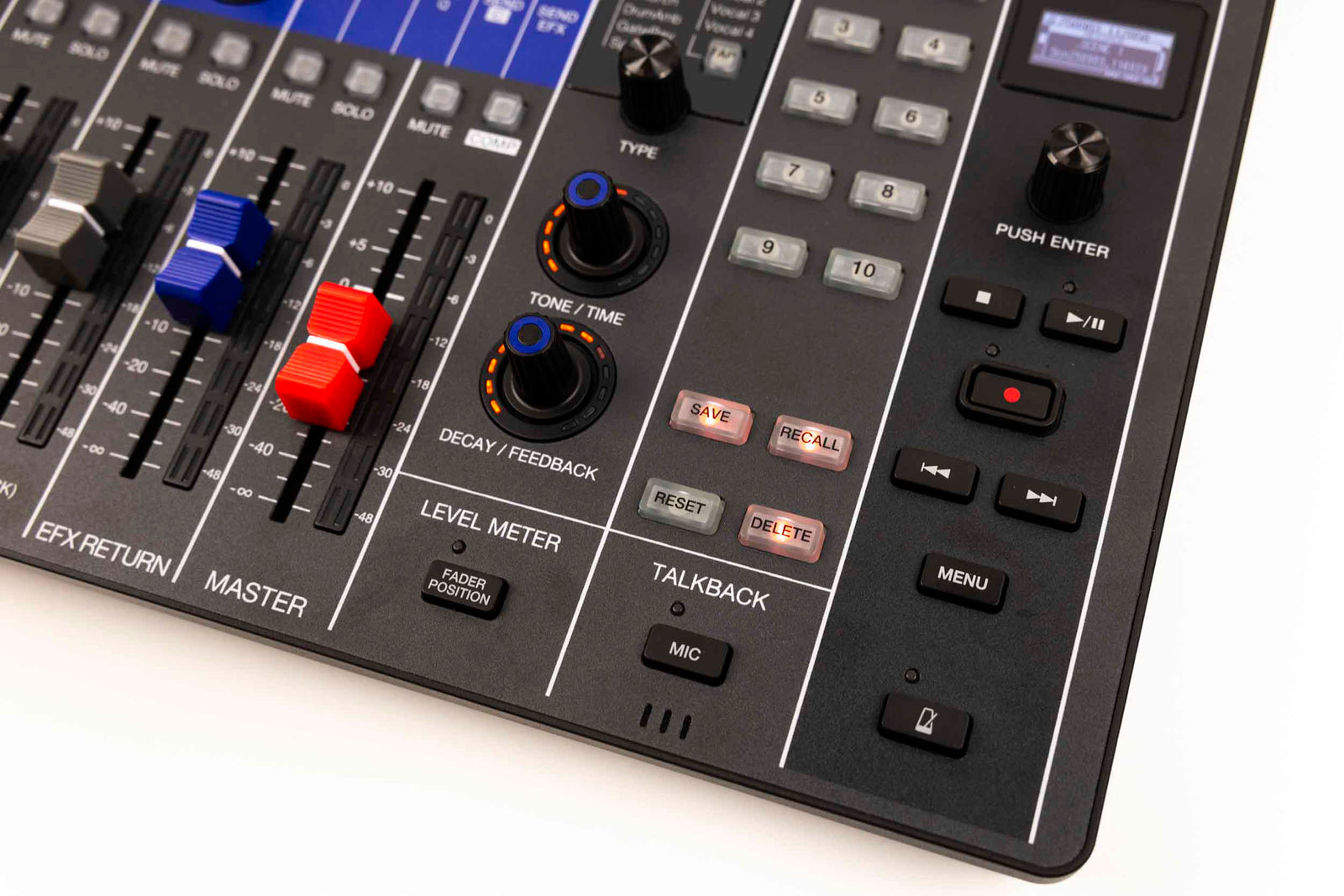

Creatives get unmatched monitoring flexibility with five independent personal monitor outputs, supporting both stereo and mono configurations for headphones, in-ears, or stage monitors. Engineers can monitor any mix from a dedicated output and communicate easily via built-in Talkback. With 10 scene memories, LED meters, fader-position recall, 16 onboard effects, and optional hands-free control via the Zoom FS01 footswitch, the L12next adapts to any workflow. Wireless remote control is available through the L12next Control app for iPad when paired with the optional BTA-1 adapter.

The Creative Hub for Studio, Live, and Streaming:

Acting as a 14-in/4-out USB audio interface, the L12next supports 24-bit/96 kHz computer recording, simultaneous SD card capture, DAW control surface functionality, and easy stream integration—ideal for podcasts, performances, and broadcasts. An optional RKL-12 rackmount adapter allows seamless integration into any standard rack, making the L12next a powerful all-in-one center for your creative production environment.

Built for Modern Workflows:

From live shows to studio sessions and hybrid creator setups, the L12next brings together hands-on operation, digital precision, and flexible connectivity. Whether you're managing multiple performers, capturing layered recordings, or producing content for online audiences, the L12next ensures a smooth, efficient workflow that adapts to the way you create.

Product Specifications:

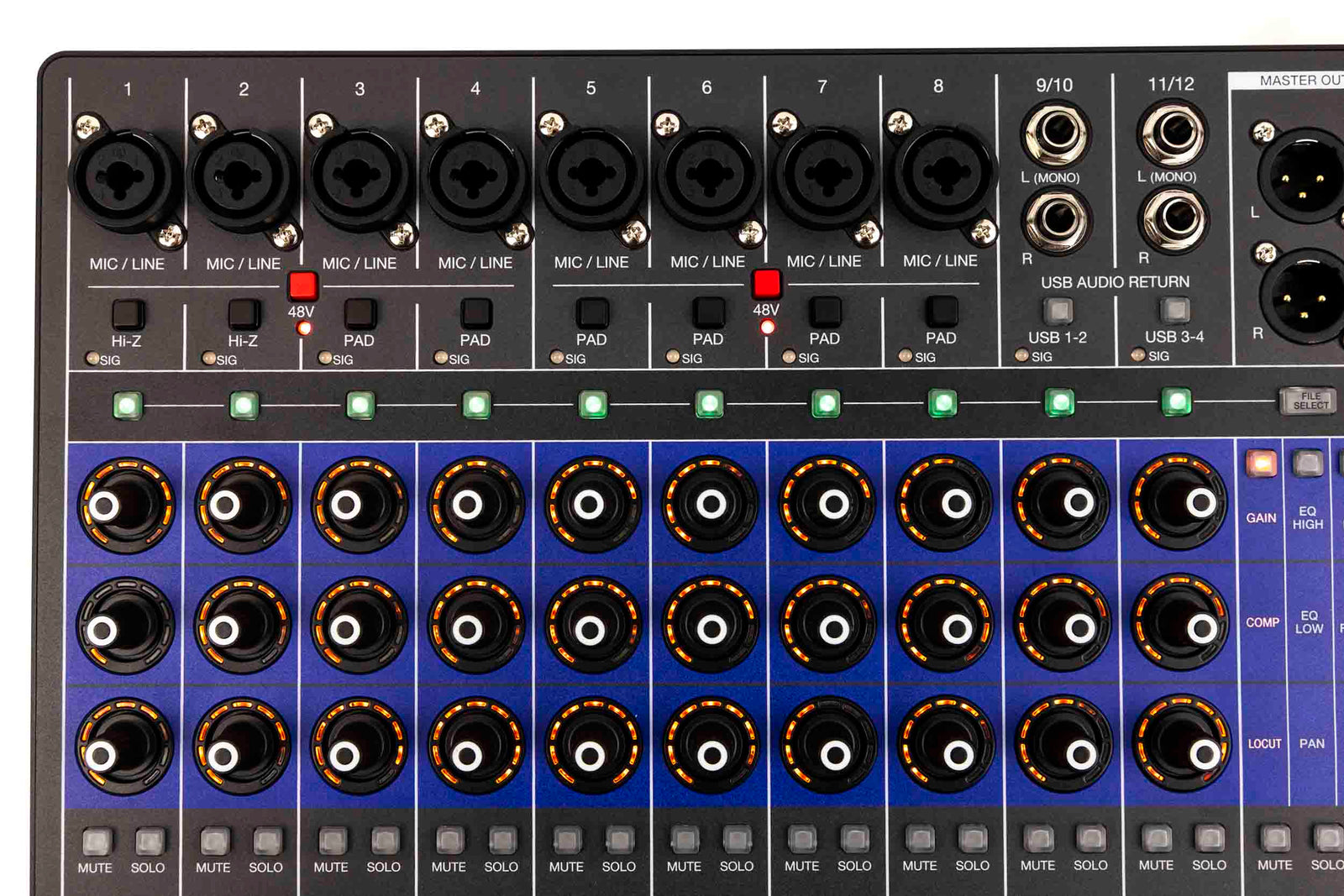

Inputs:

Mono (MIC/LINE): 8 channels

Stereo (LINE): 2 channels

MASTER OUT: 1 channel

Input/Output Channels:

MONITOR OUT: 5 channels

Input Types:

XLR/TRS Combo Jacks:

XLR: 2 HOT

TRS: TIP HOT

Input Gain:

PAD off: +16 – +60 dB

PAD on: −10 – +34 dB

Hi-Z on: 0 – +44 dB (when gain boost off)

Input Impedance:

XLR: ≥ 4.6 kΩ

TRS: 4.6 kΩ / 1 MΩ (Hi-Z on)

Maximum Input Level:

PAD off: −2 dBu (at 0 dBFS)

PAD on: +24 dBu (at 0 dBFS)

Phantom Power: +48 V

Stereo (LINE):

Input Type: TS phone jacks (unbalanced)

Maximum Input Level: +14 dBu

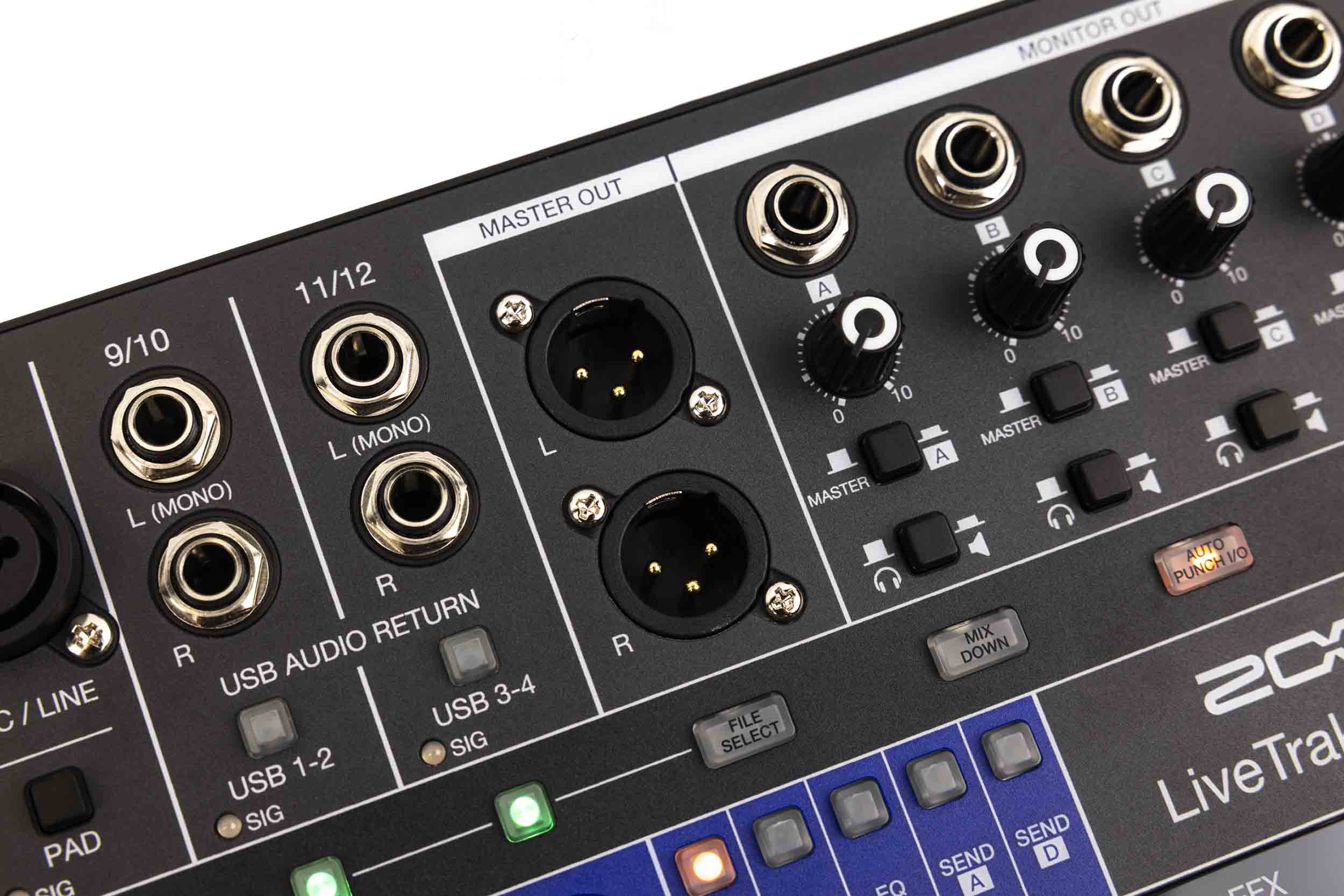

MASTER OUT:

Output Type: XLR jacks (balanced)

Maximum Output Level: +14.5 dBu

Output Impedance: 200 Ω

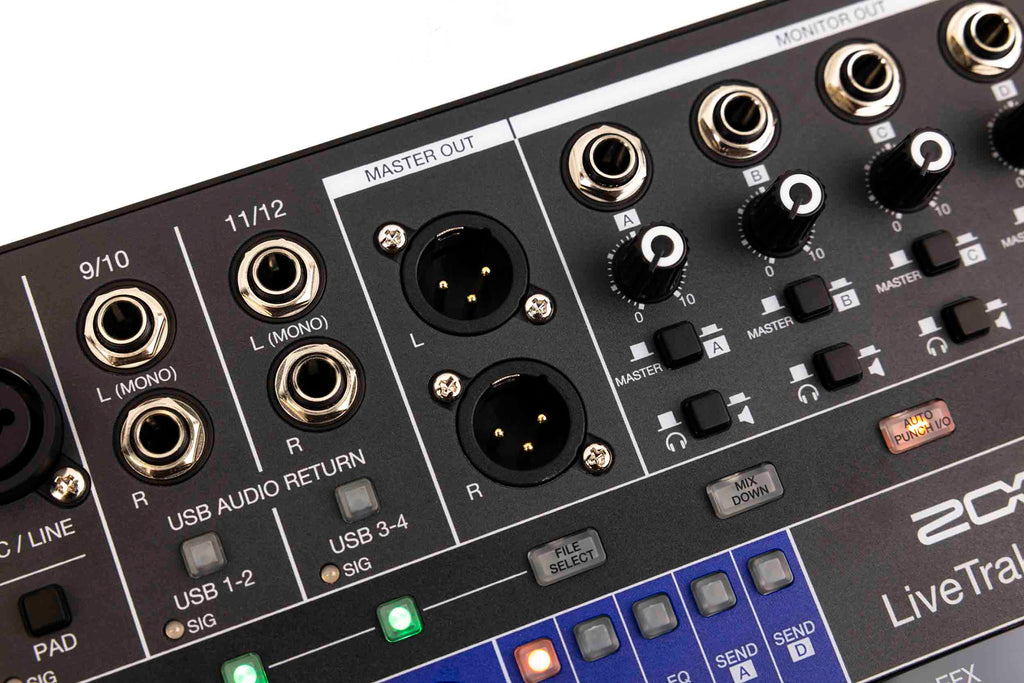

MONITOR OUT:

Output Type: Standard stereo phone jacks

Maximum Output Level: 42 mW + 42 mW at 60 Ω

Output Impedance: 55 Ω

Buses:

MASTER: 1

MONITOR: 5

SEND EFX: 1

Channel Strip / EQ:

COMP / LOCUT: 40–600 Hz, 12 dB/OCT

HIGH: 10 kHz, ±15 dB, shelving

MID: 100 Hz – 8 kHz, ±15 dB, peaking

LOW: 100 Hz, ±15 dB, shelving

PHASE Invert: Yes

Level Meters: 8-segment LED

Send Effects: 16 types

Recording:

Maximum Simultaneous Recording Tracks: 14

Maximum Simultaneous Playback Tracks: 12

Recording Formats:

Individual Tracks: 44.1 / 48 / 96 kHz, 16 / 24-bit, mono/stereo WAV

Master Tracks: 44.1 / 48 / 96 kHz, 16 / 24-bit or 32-bit float, mono/stereo WAV

Recording Media: SDHC Cards (4–32 GB, Class 10 or higher) / SDXC Cards (64 GB – 1 TB, Class 10 or higher)

Recording Channels: 14

Playback Channels: 4

Sampling Frequencies: 44.1 / 48 / 96 kHz

Bit Depths: 24-bit, 32-bit float

Audio Interface:

Interface: USB 2.0

Card Reader Class: Mass Storage Class, USB 2.0 High Speed

Sample Rates: 44.1 / 48 / 96 kHz

Frequency Response: 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz / 96 kHz: −3.0 dB, 20 Hz – 40 kHz

Equivalent Input Noise: −128 dB EIN (IHF-A) at +60 dB / 150 Ω input

Display: 128 × 64 OLED

Note: 0 dBu = 0.775 Vrms

Power:

AC Adapter: ZOOM AD-19, DC 5V / 1A

Power Consumption: 16 W maximum

Physical Specifications:

Product Weight (Main Unit Only): 2.40 kg

Product Dimensions (L × W × H): 11.22 in × 17.52 in × 2.87 in
