Description

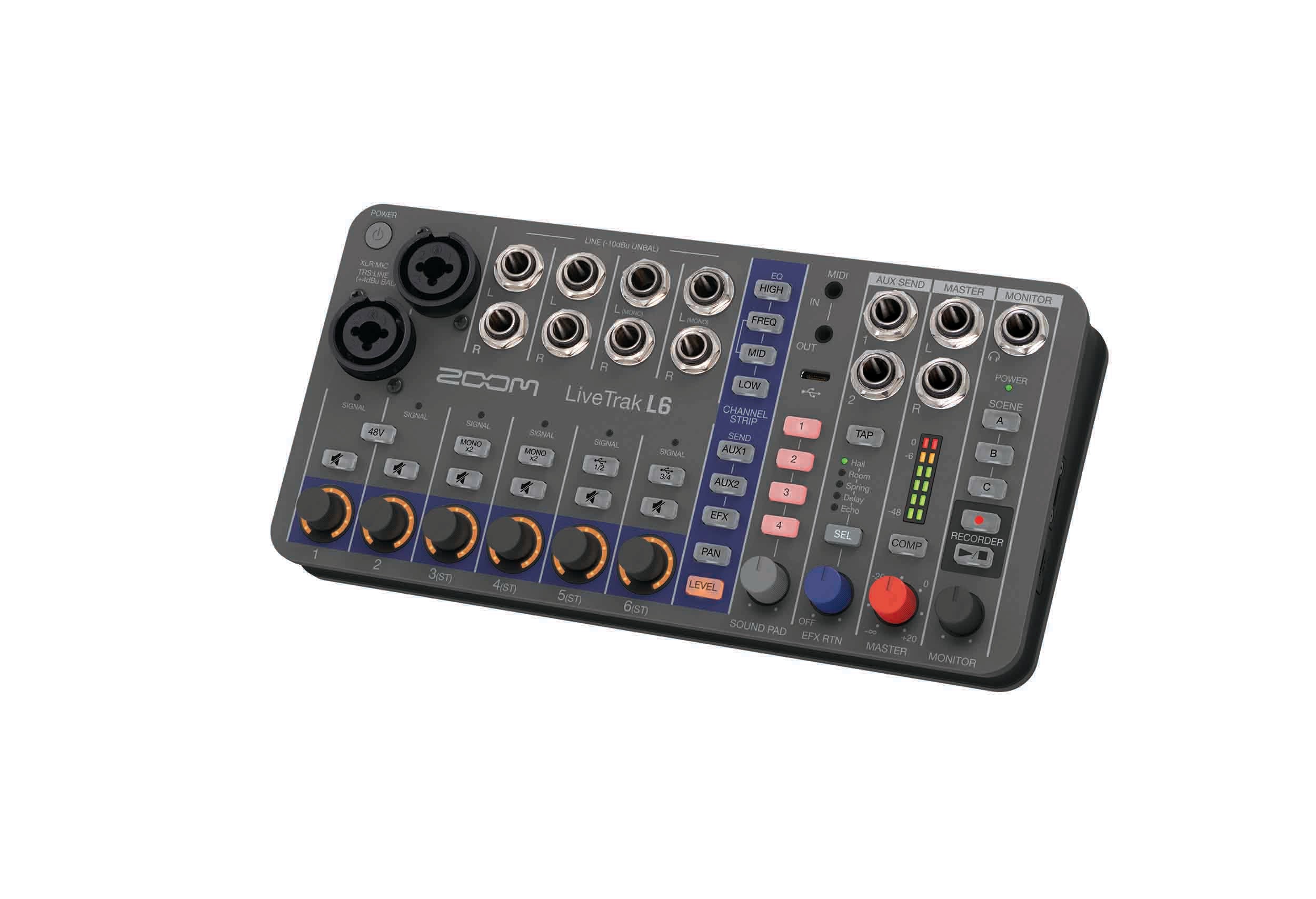

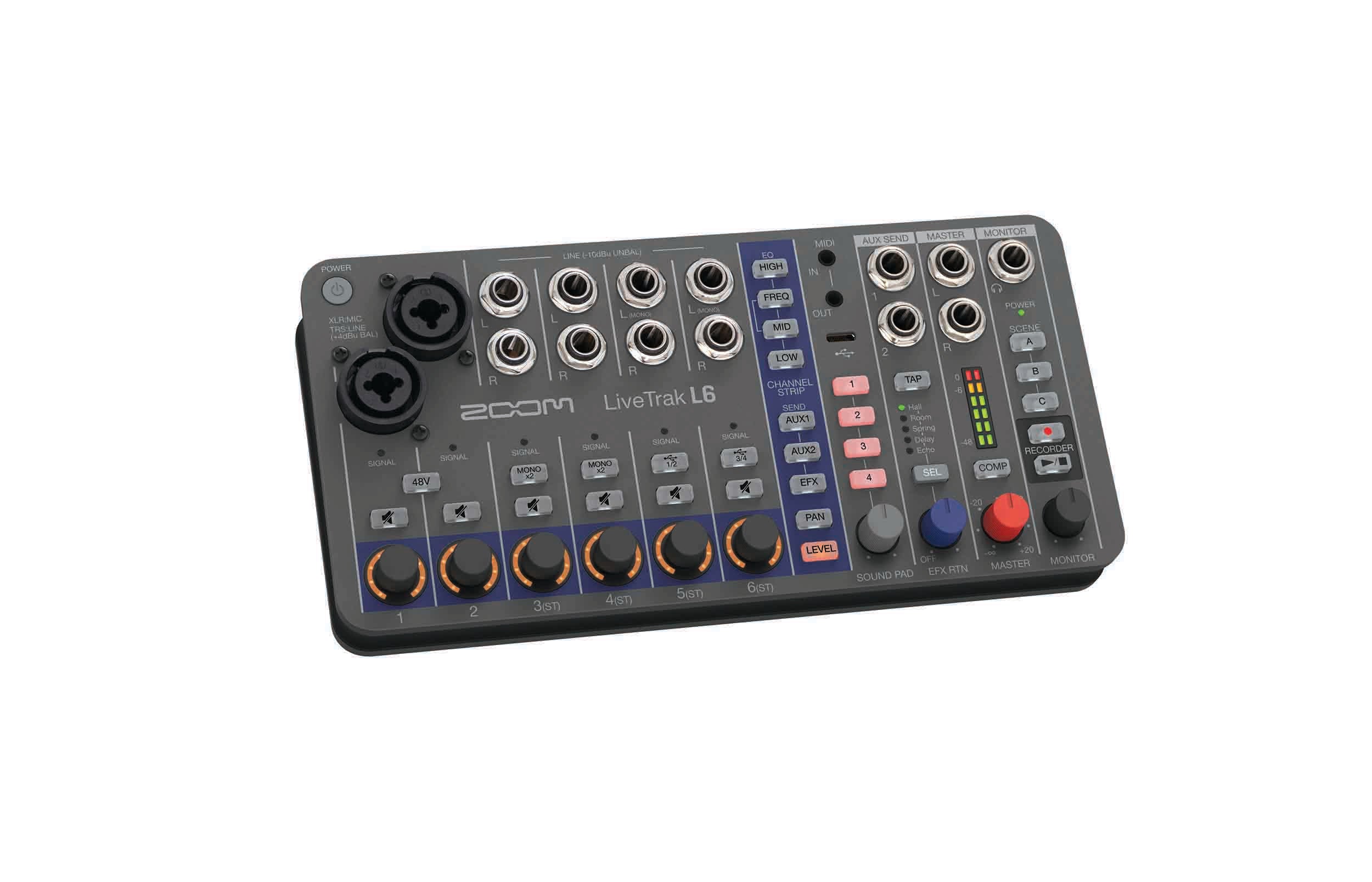

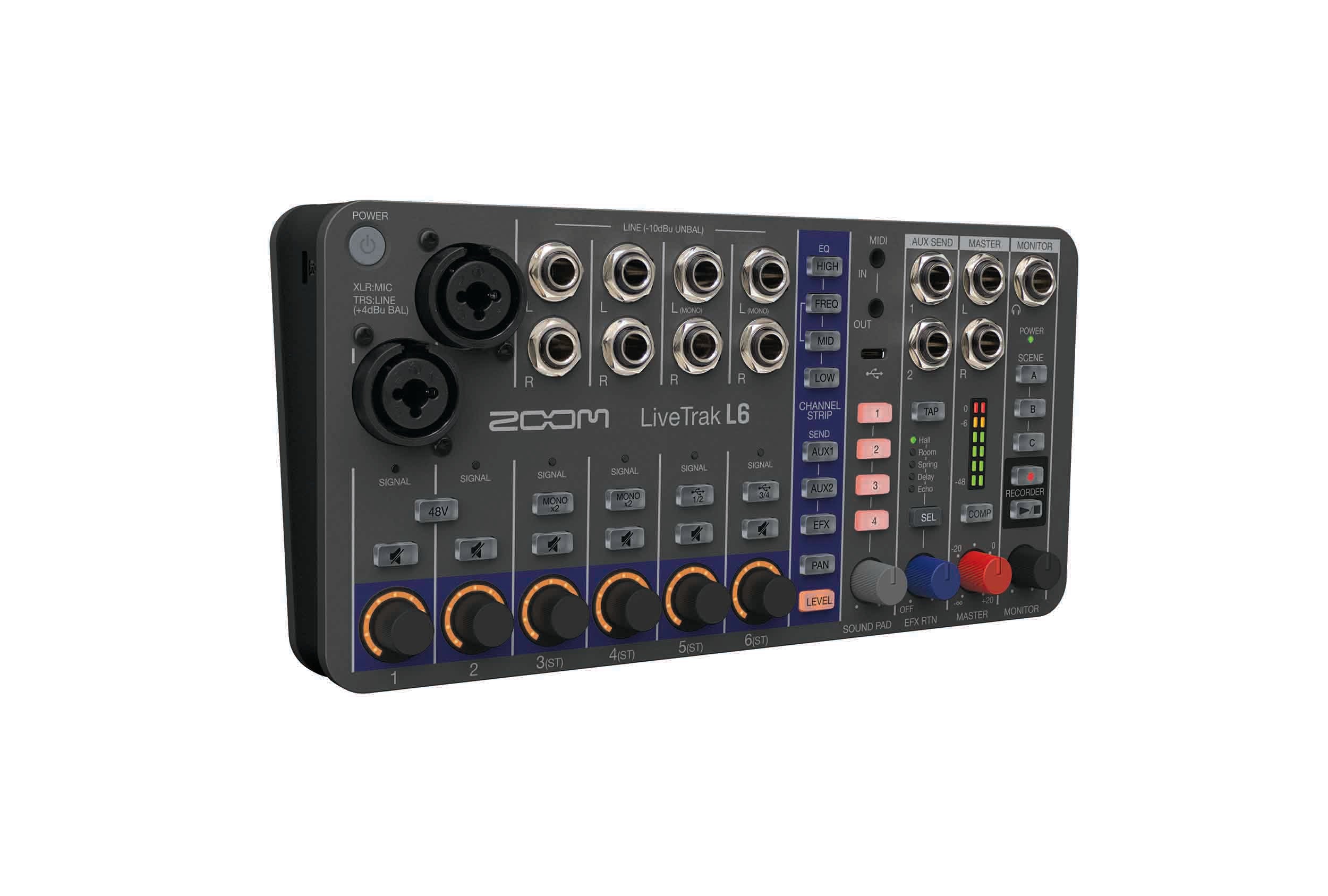

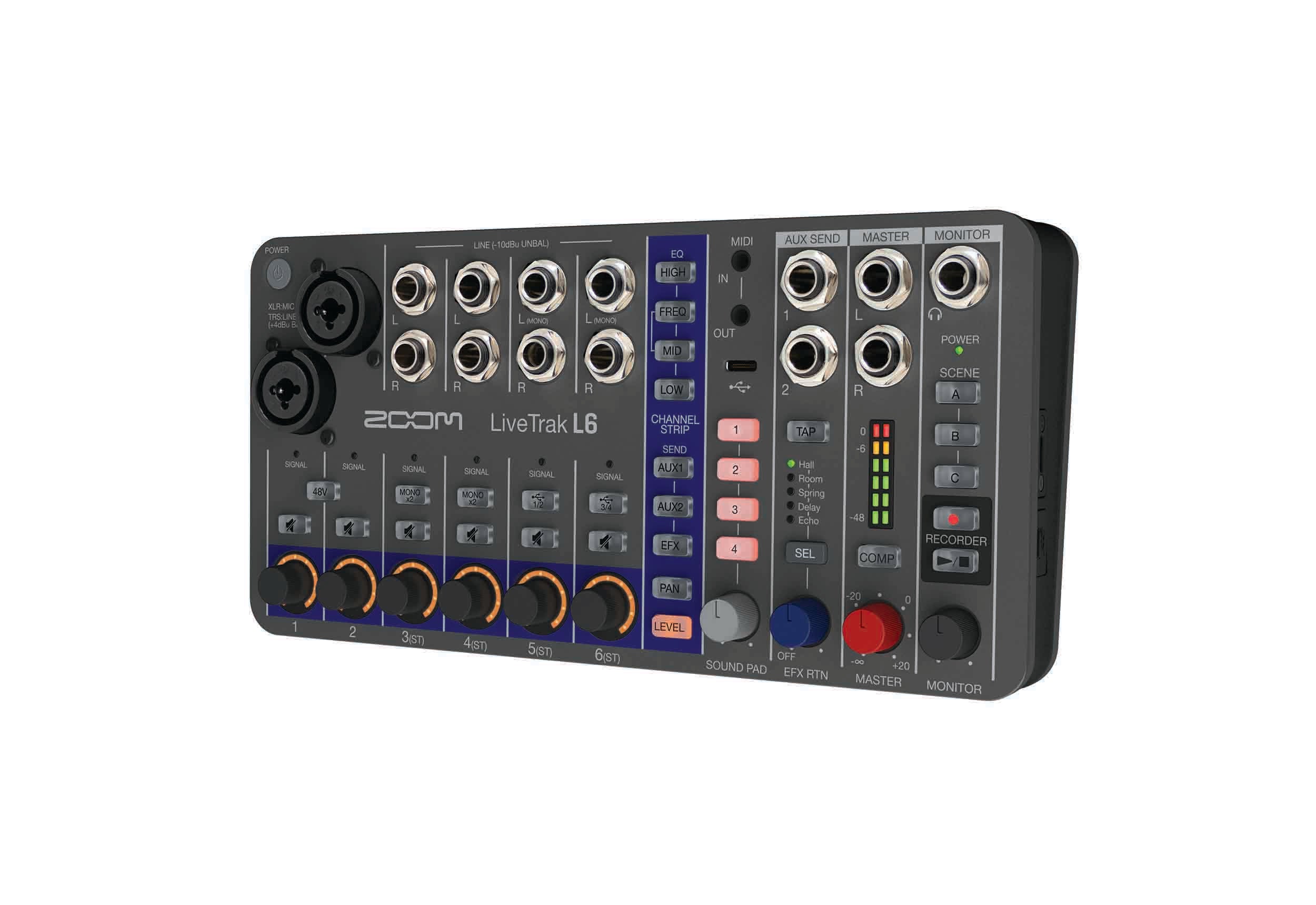

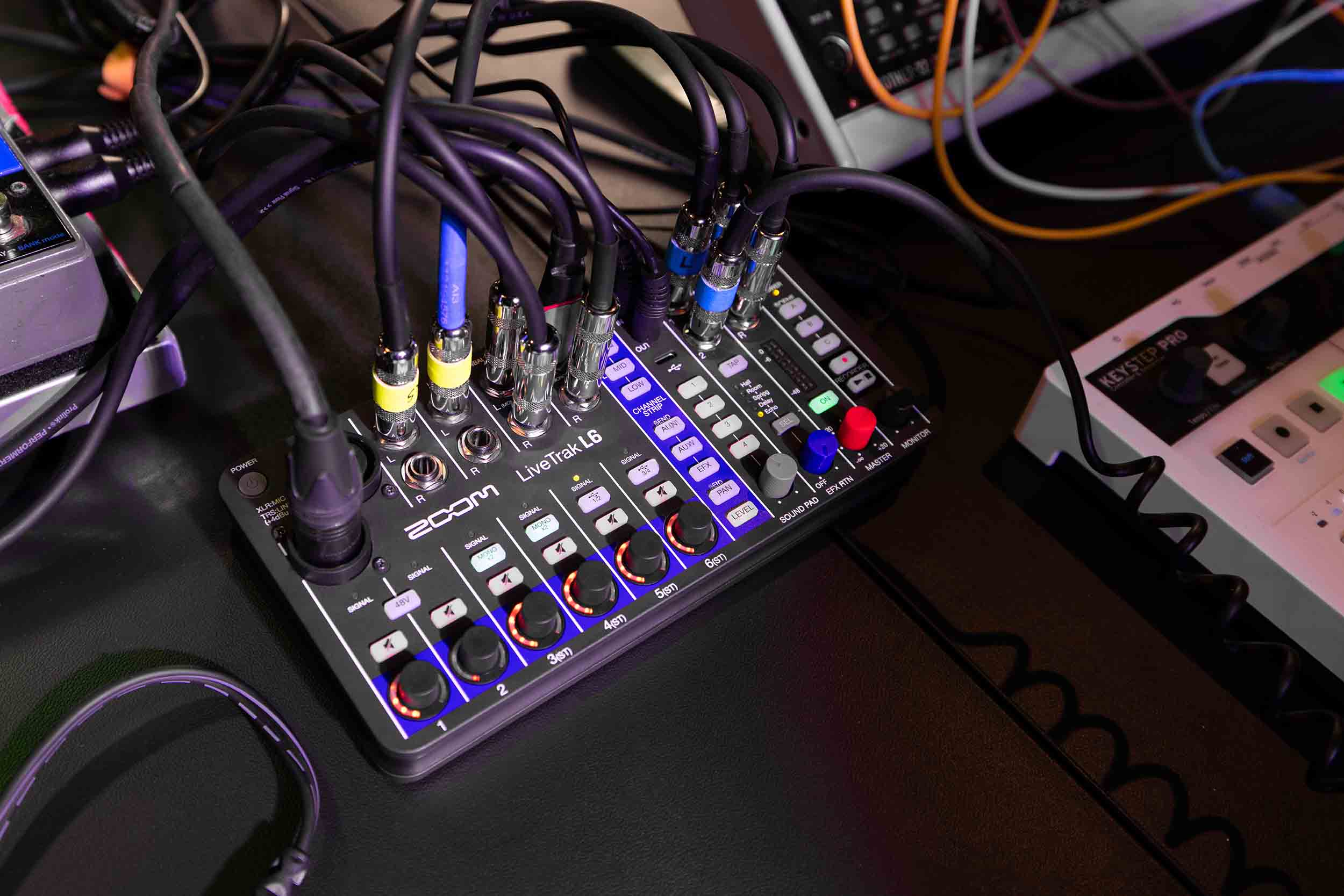

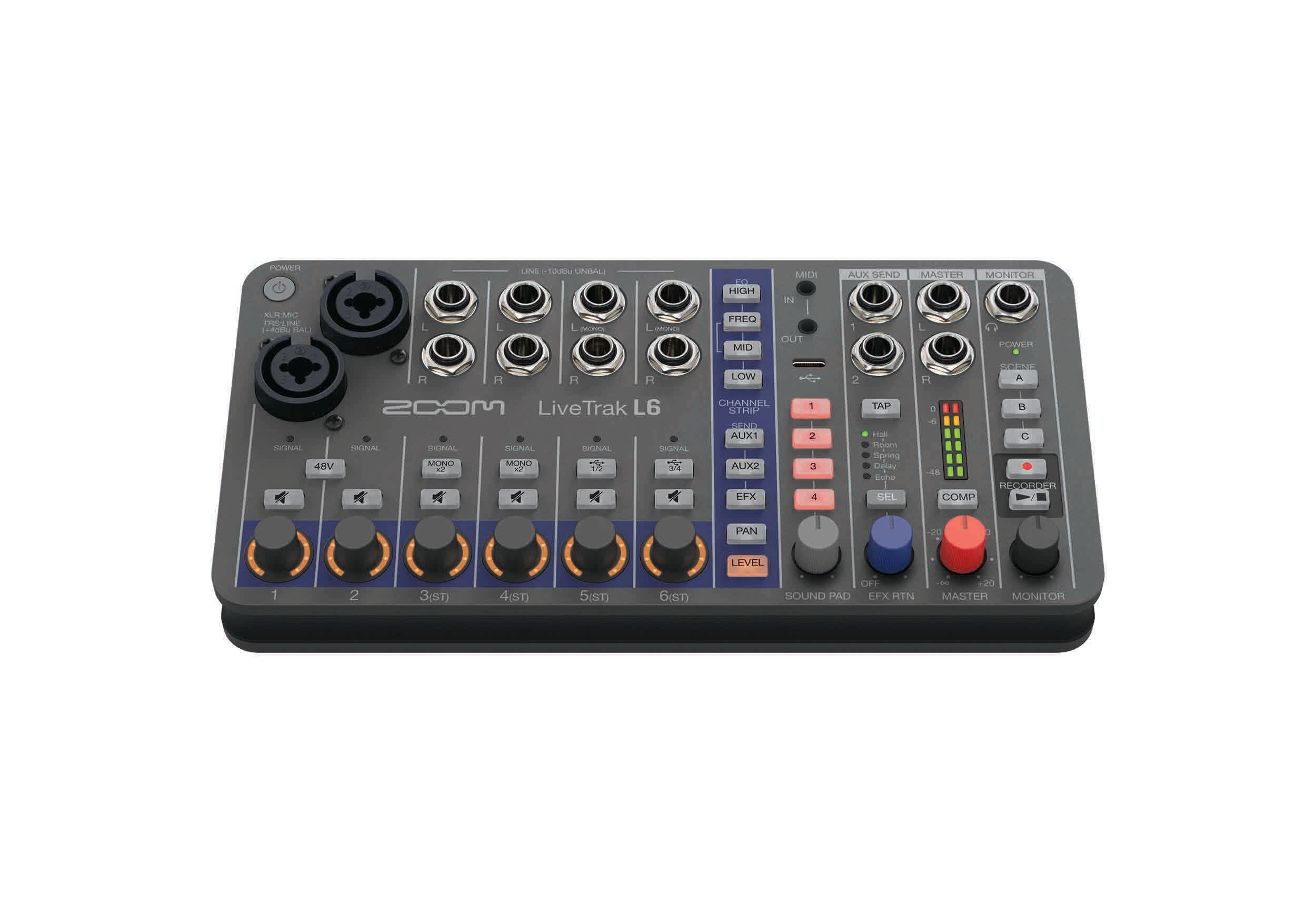

The ZOOM LiveTrak L6 is a powerful and portable digital mixer/recorder, perfect for musicians, streamers, and content creators. Despite its compact size, it offers a full range of professional features, including multi-track recording, built-in effects, 32-bit float technology, and MIDI/USB connectivity. Whether you're performing live, recording in the studio, or streaming, the L6 delivers high-quality audio and versatile control.
Small Just Got Very Big:
The LiveTrak L6 is our most compact and portable digital mixer/recorder. With 10 tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.
Full Featured Mixer:
Don’t let its size fool you. The L6 is designed with big mixer capabilities; full channel strip controls for each track including 3-band mid-sweepable EQ, aux sends, pan, and effects.
Powerful Multi-Track Recording:
The L6 records 10 discrete tracks plus the full stereo mix on an SD card up to 1TB. Share the live mix, or transfer your multi-track audio files to your favorite DAW for editing and mixing.
32-Bit Float Technology:
With 32-bit float and pristine sounding preamps, you will get clip-free audio every time, without the need to set gain. Learn more about 32-bit float technology here.
Battery Power:
Use four AA’s for up to 3 hours of power or an external USB battery for extended use.

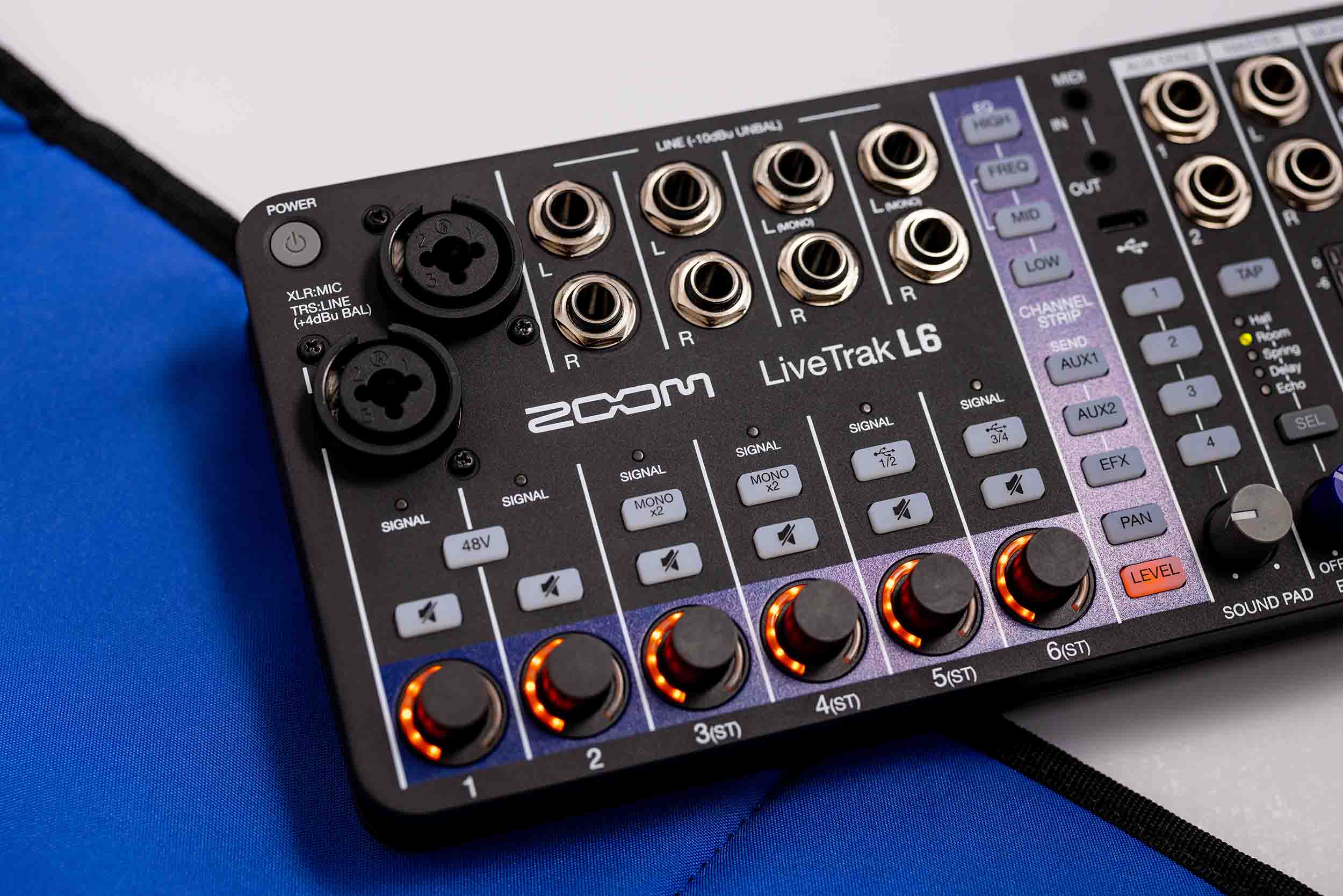

Tons of I/O:
INPUTS: 2 XLR/TRS combo inputs plus 4-stereo ¼” inputs. Get two additional mono inputs instead of a stereo input. USB Audio Return for backing tracks and other audio from a laptop.
AUX OUTPUTS: Send custom mixes to monitors, effects, or external devices.
MAIN OUTPUTS: Connect to studio monitors or live speakers.
HEADPHONE OUTPUT: Headphone output with volume control.

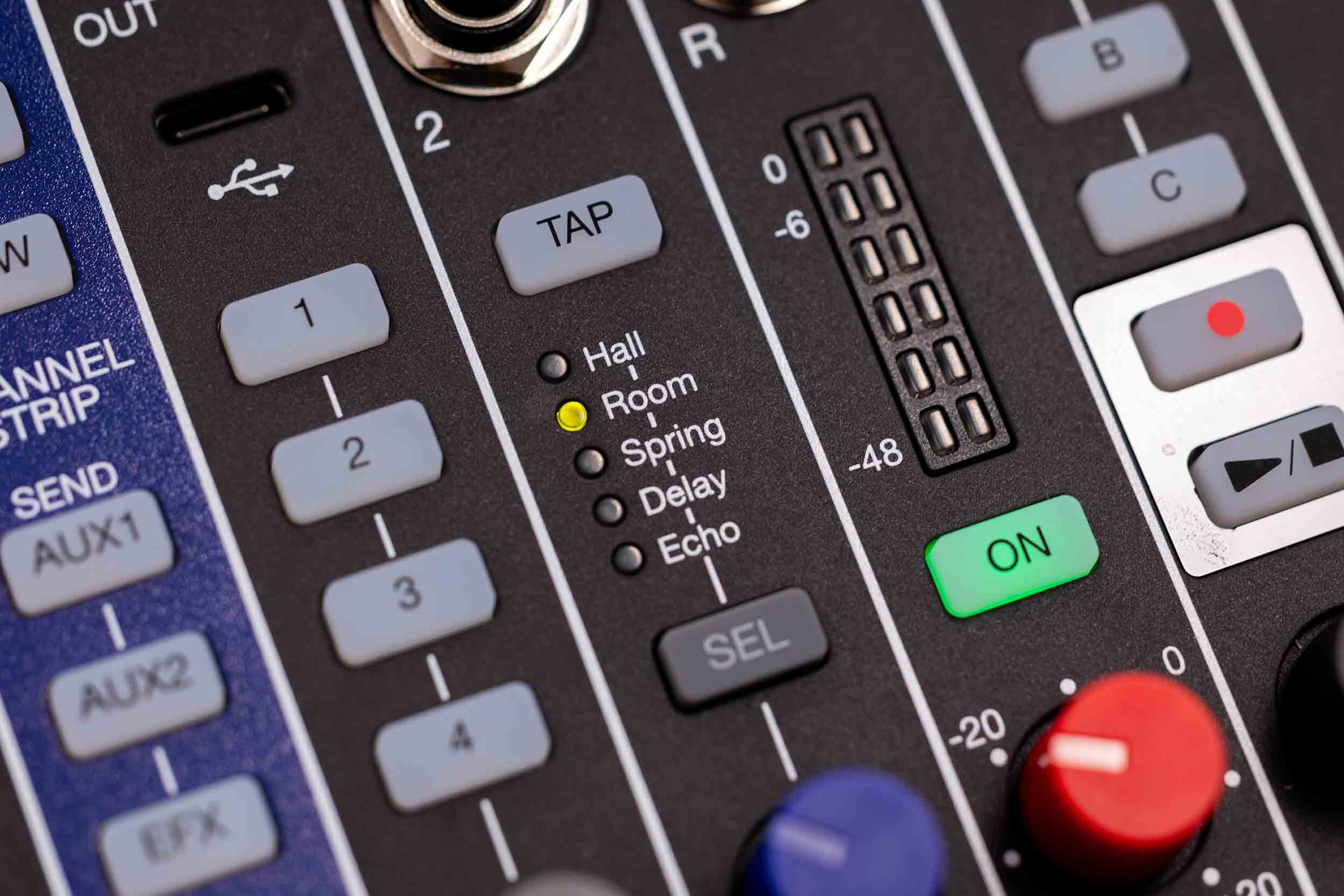

Loaded with Effects
Enhance your mix with effects including Delay, Echo, and Spring, Room, and Hall reverbs. The L6’s main output compressor increases loudness while adding natural saturation. With 32-bit float, the audio will never clip, even at high volume.

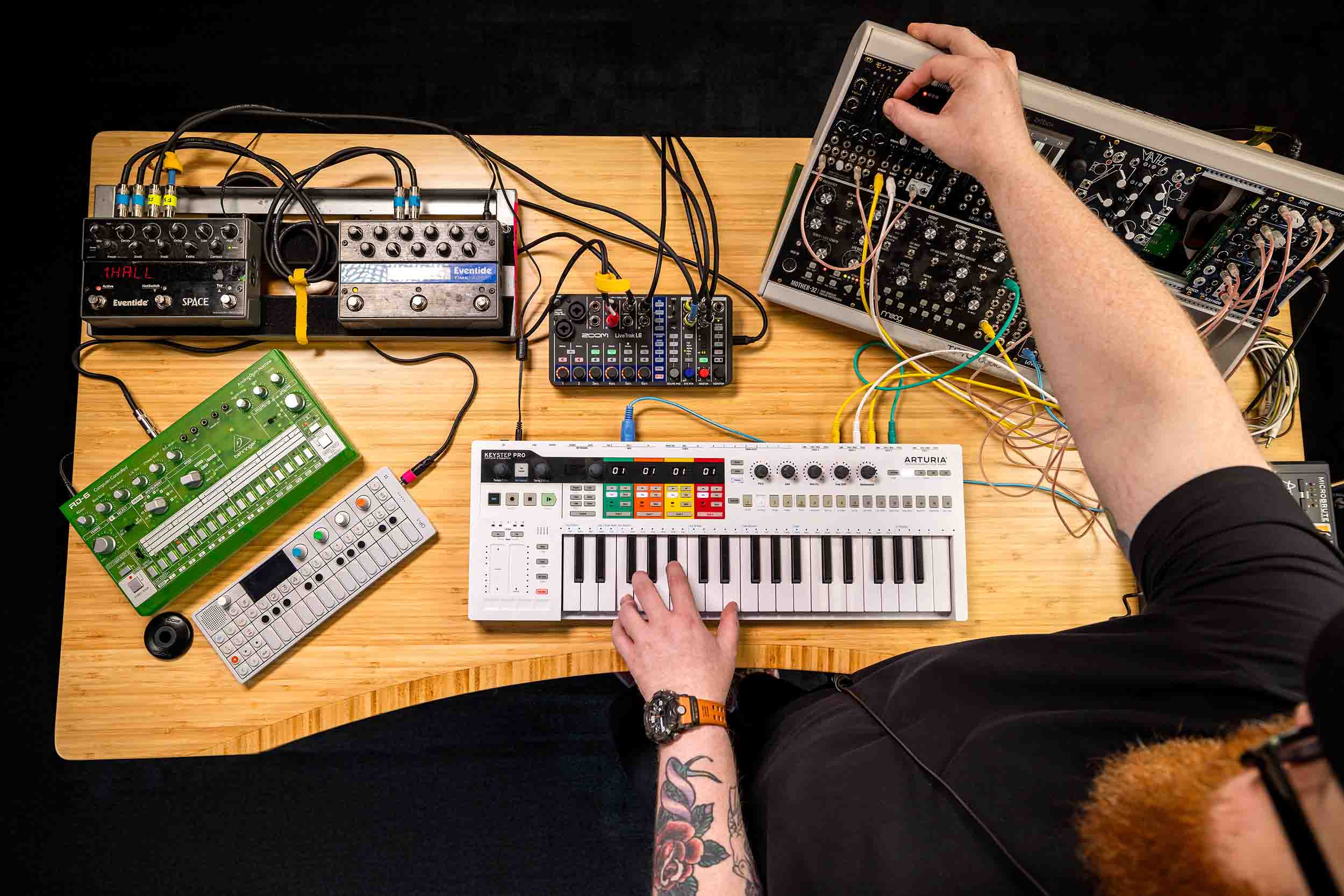

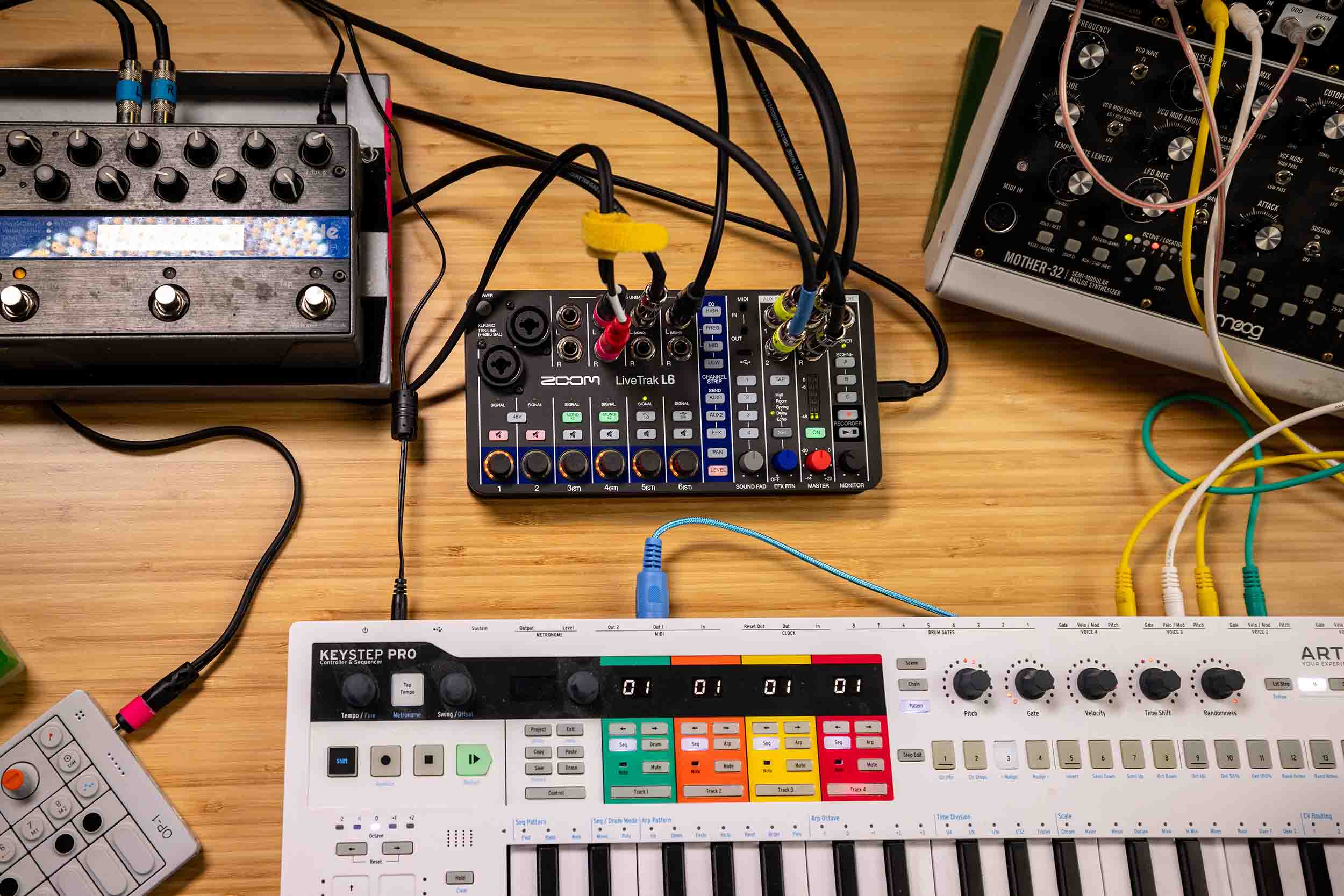

MIDI Connectivity
Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.
- Connect outboard gear like drum machines and synths.
- Map parameter controls such as volume, pan, and EQ to outboard gear.
- Tempo synchronization with effects like delay.
- Learn more about all the MIDI connectivity here.
- USB Connectivity
Record & Control:
The L6 can be used as a 32-bit float 10-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the SD card. It’s also a control surface for your favorite DAW.
Broadcast & Stream: The L6 is the perfect companion for video streams that need broadcast quality audio no matter the location. Connect to your favorite streaming software on PC, Mac, iOS devices.
LED Control Knobs
Adjust levels and parameters quickly and precisely with the LED control knobs.
Sound Pads:
Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.
L6 Editor Software:
The L6 Editor gives you access to settings and MIDI programming. Customize effect parameters, AUX send points, sound pad settings and more.
Scene Saving:
Once you’ve dialed in your mix, save it to one of the three Scene memories for instant recall.
Eurorack:
The L6 is mountable to a standard Eurorack case using the optional ERL-6 rack ears and power supply.
Package Includes:
LiveTrak L6
AD-17 USB AC Adapter
USB-C Cable
Product Specifications:
Inputs:
MIC/LINE (mono): 2
LINE (stereo): 4
AUX SEND (mono): 2
MASTER (stereo): 1
Input and Output Channels:
Outputs:
MONITOR (stereo): 1
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOTS, TRS: TIP HOT)
Input Gain:
Adjustment unnecessary (dual A/D converter circuits used)
Input Impedance:
XLR: 3.8 kΩ or more
TRS: 39 kΩ or more
Maximum Input Level:
XLR: +4 dBu
TRS: +24 dBu
MIC/LINE Phantom Power:
+48 V
Channel total of 10 mA or less
Inputs - LINE:
Connectors: 8 TS phone jacks (balanced)
Input Impedance: 10 kΩ
Maximum Input Level: +9 dBu
Outputs - AUX SEND:
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum Output Level: +9.5 dBu
MASTER Output:
Connectors:
2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 Ω
MONITOR Output:
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 Ω load)
Output impedance: 14.7 Ω
Buses:
MASTER: 1
AUX SEND: 2
SEND EFX: 1
Channel Strip EQ:
HIGH: 10 kHz, ±15 dB, shelving
MID: 100 Hz – 8 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
Level Meters: 6 segments
Send Effects: 5 types
Recorder:
Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)
See the ZOOM website (zoomcorp.com/help/l6) for information about microSD cards that have been confirmed to work with this unit.
Audio Interface:
Input and output channels: Input: 12 channels / Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
USB Interface:
USB 2.0
Card reader class: Mass storage class USB 2.0 High Speed
Frequency Response: 20 Hz – 20 kHz / -1.0 dB
Equivalent Input Noise: -120 dBu or less (IHF-A) at 150 Ω input
Power:
4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power is supported
Estimated Continuous Recording Time Using Batteries:
12-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections:
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 7 hours
Power Consumption: 5 W maximum
Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight:
Main unit only: 526 g
Including batteries: 618 g
