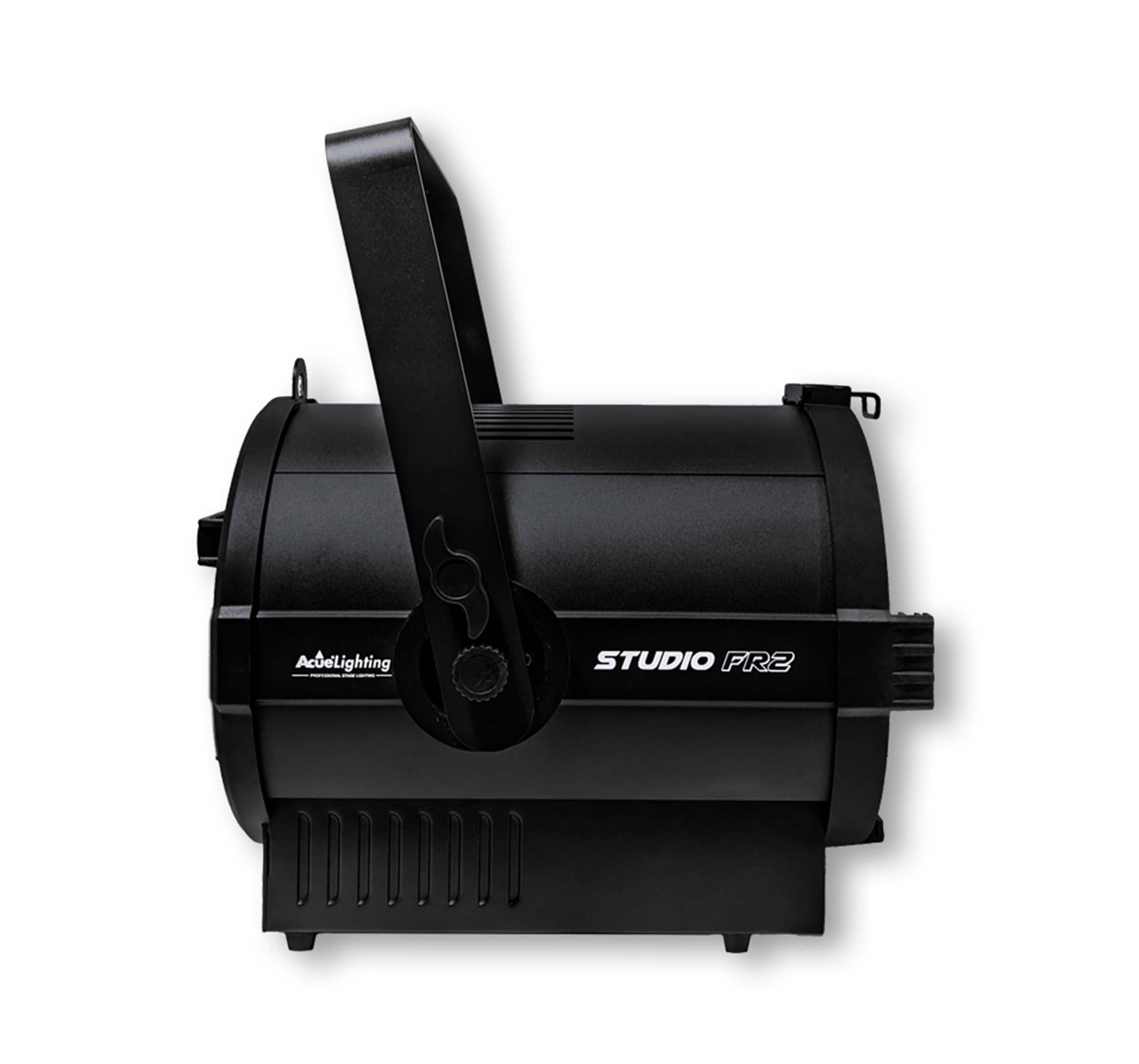

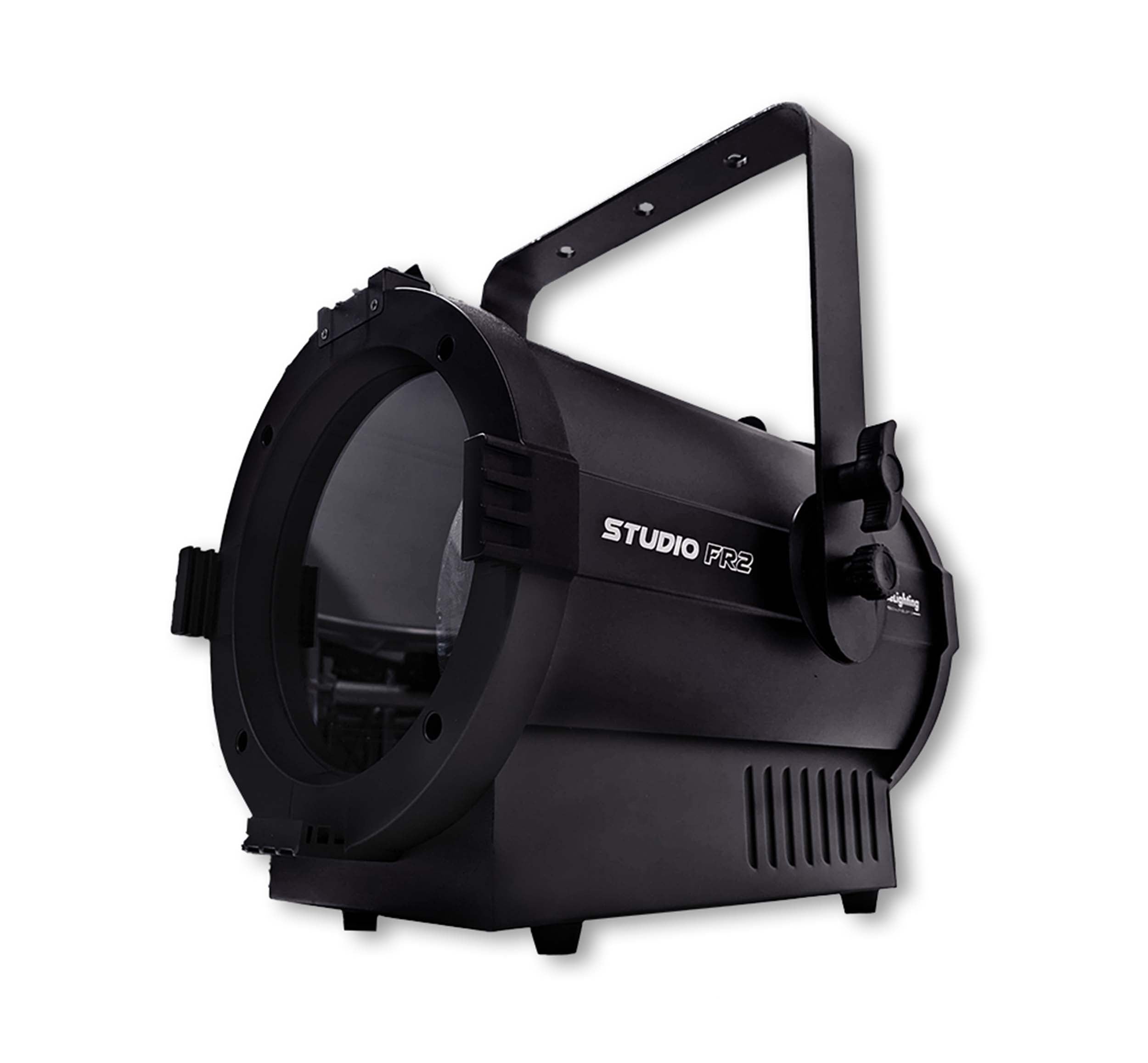

Acue Lighting Studio FR2, 200W COB LED Fresnel Light with Manual and DMX Control

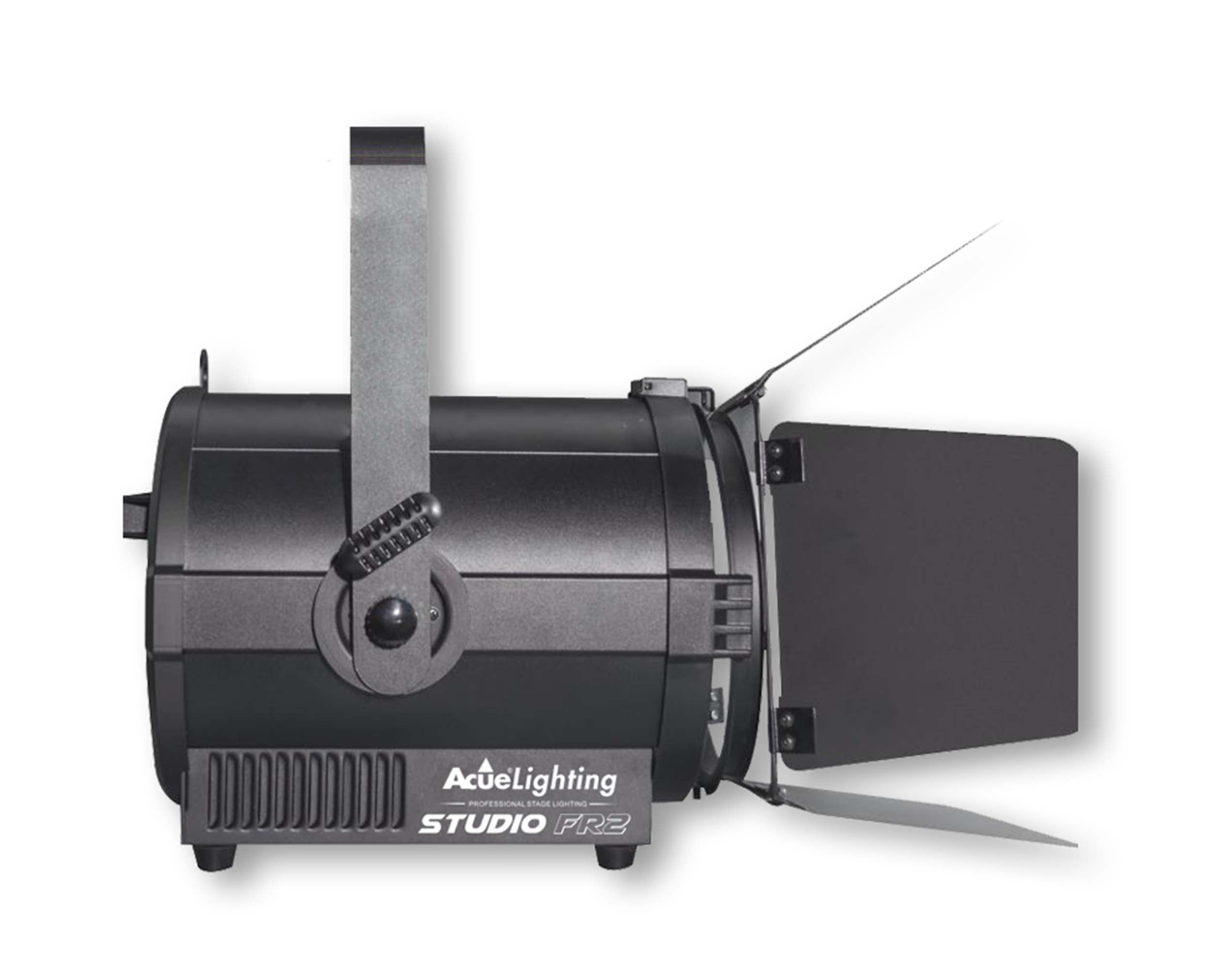

The Studio FR2 Fresnel is a 200W COB LED on par with tungsten halogen models.  Some included features are manual & DMX control capability.  The FR2 has the ability to control the dimmer function, shutter, as well as the 15° – 60° motorized zoom. This unit has a 3 pin DMX in/out for easy connectivity. The Studio FR2 is also equipped with an LED refresh rate frequency adjustment for flicker free operation for use in FILM and TELEVISION. The Studio FR2 also comes with a removable barn door attachment which allows you to further control the light output of the fixture.

The Studio FR2 has a 3-clamp position adjustable mounting yoke.  The Studio FR2 zoom luminaire operates on 110 to 240 volts AC (+/- 10%, auto-ranging). This luminaire contains an auto-switching power supply and also has the ability of linking multiple fixtures. The FR2 is equipped with an LED menu display accompanied by a 4-button control panel for user ease.  The FR2 is a perfect solution for any studio or film environment requiring controlled light output. This fixture is great for Television & and Studios, as well as churches, or any large stages as front light staging.

Product Specifications:

Light Source: 200W COB LED

IP Rating: IP 20 (Rated for indoor use only)

Total Power Draw: 220W

Input Voltage: 110-220V AC 50/60hz

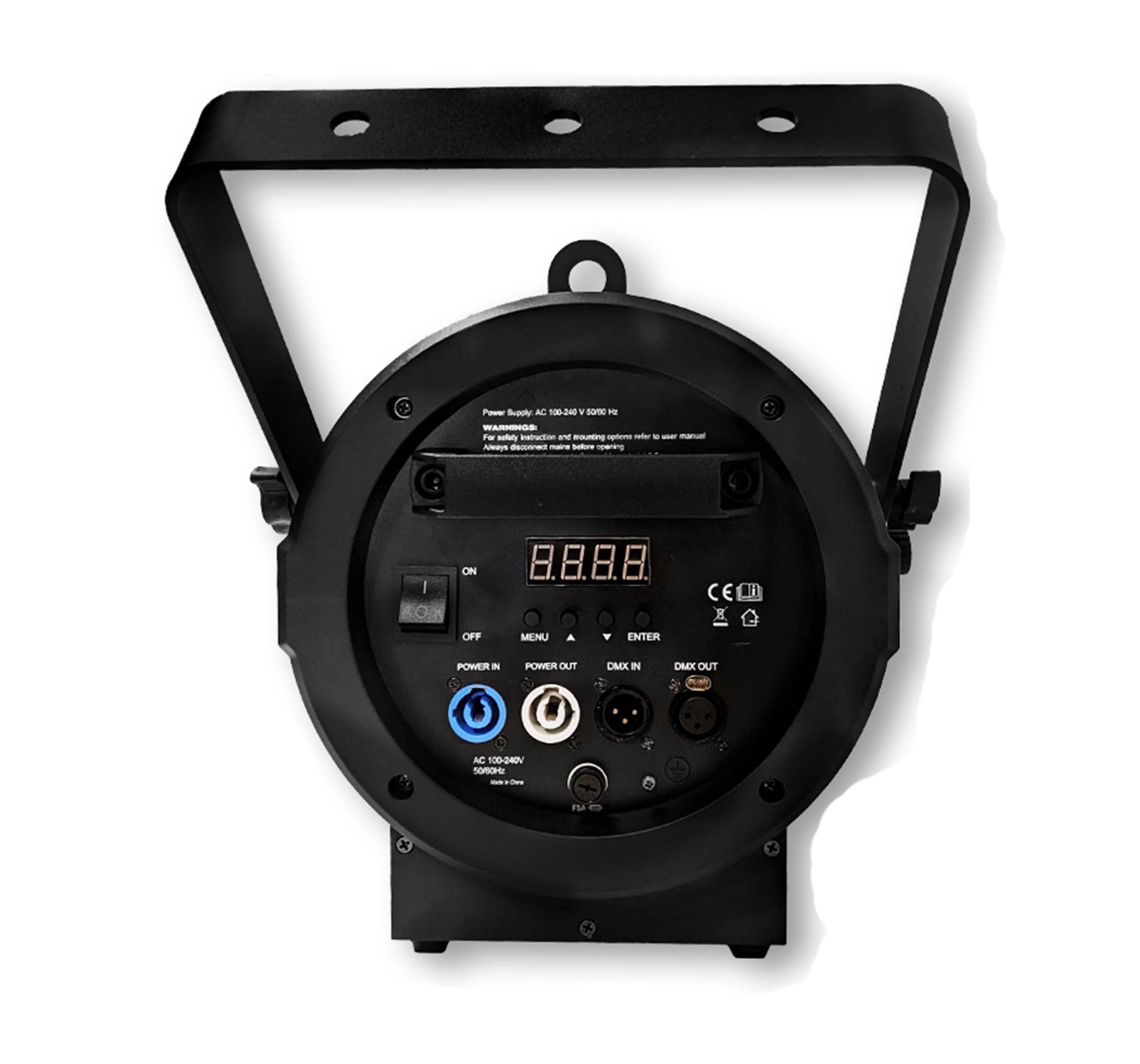

Power I/O: PowerCON in/Out, Linkable

Operating Modes: DMX, Auto, Manually through built-in display

DMX Channels: 1/2/3/4/5 Channels via 3-pin XLR connectors in/Out (5 pin optional)

Dimmer: 0-100% Electronic Dimming control by DMX or Manually through built-in display

Shutter: Shutter strobe adjustment by DMX control

Focus: Manual

Zoom Range: 15˚-60˚
