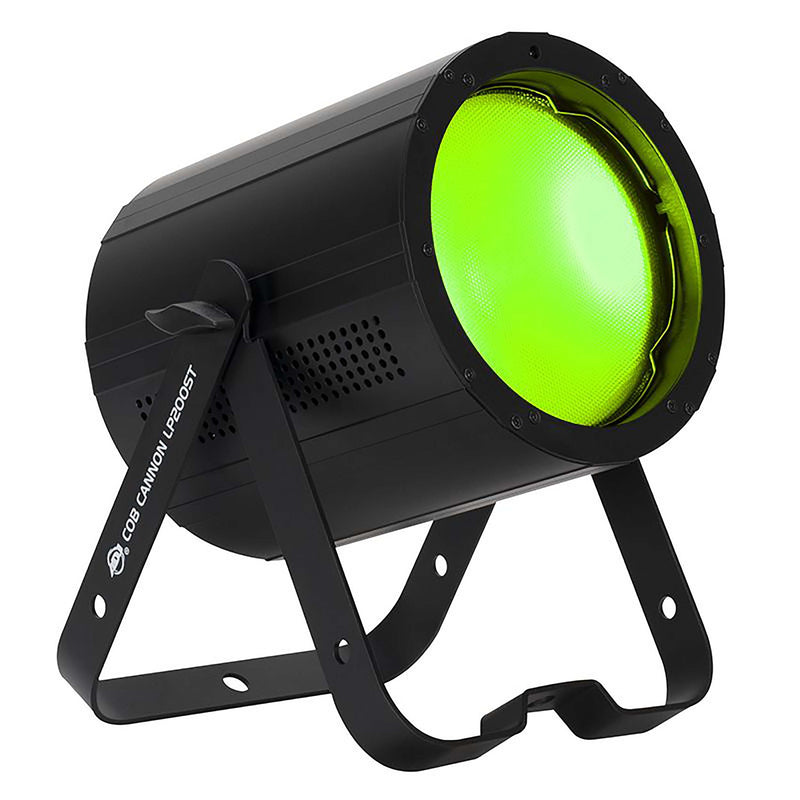

ADJ COB Cannon LP200ST, Potent Color Mixing Wash Lighting Fixture - 200 Watt

The ADJ COB Cannon LP200ST, Potent Color Mixing Wash Lighting Fixture can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a tunable white color temperature between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90.

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory. An Omega Bracket is included so that this fixture can be hung vertically as a pendant light.

Product Specifications:

Optical:

Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine

LED Engine Life Rating: Approximately 50,000 hrs.

CRI: >90

Tunable White Color Temperature: 2300~9900K

80-degree beam angle

Includes lens kit to change to 40-degrees or 50-degrees beam angle

Features:

Primary / Secondary Mode

Flicker Free operation (No flickering on camera)

Produces powerful, smooth RGBAL color mixing with

rich palettes of color

Scissor yoke allows fixture to be mounted on truss or

set on the ground

Optional Barn Doors (BAR001) sold separately

Control:

10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)

Linear color temperature control via DMX

Built-in color temperature presets accessible via DMX

64 built-in color macros

4-button OLED digital DMX display on rear panel

Compatible with the ADJ UC IR remote control (included)

LED pulse and strobe effect

6 selectable Dim Modes (Standard, Stage, TV,

Architectural, Stage 2 & Theatre)

4 selectable Dim Curves (Square, Linear, Inv. Squa & S. Curve)

Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

Electronic Dimming: 0 - 100%

Connections:

5-pin XLR connectors for DMX data linking (5-Pin DMX only as of June 2023)

Indoor locking power In & Out connections to daisy chain power

USB Service Port

Electrical:

Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

Power Draw: 175W max

Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum

Dimensions (LxWxH):

(With bracket): 13” x 10.3” x 7.5” / 330x261x190mm

(Without bracket): 8.6” x 7.5” x 7.5” / 218.5x190x190mm

Weight: 9.45 lbs. / 4.30 kg.

What’s Included:

(1) 50-degree lens

(1) 40-degree lens

UC IR Wireless Remote

Power Cord

Scissor Yoke

Omega Bracket (Included as of June 2023)

Accessories: BAR001 - COB Cannon Wash Barn Doors

Rating / Approvals:

cETLus Approved (#4002034)

FCC Approved
