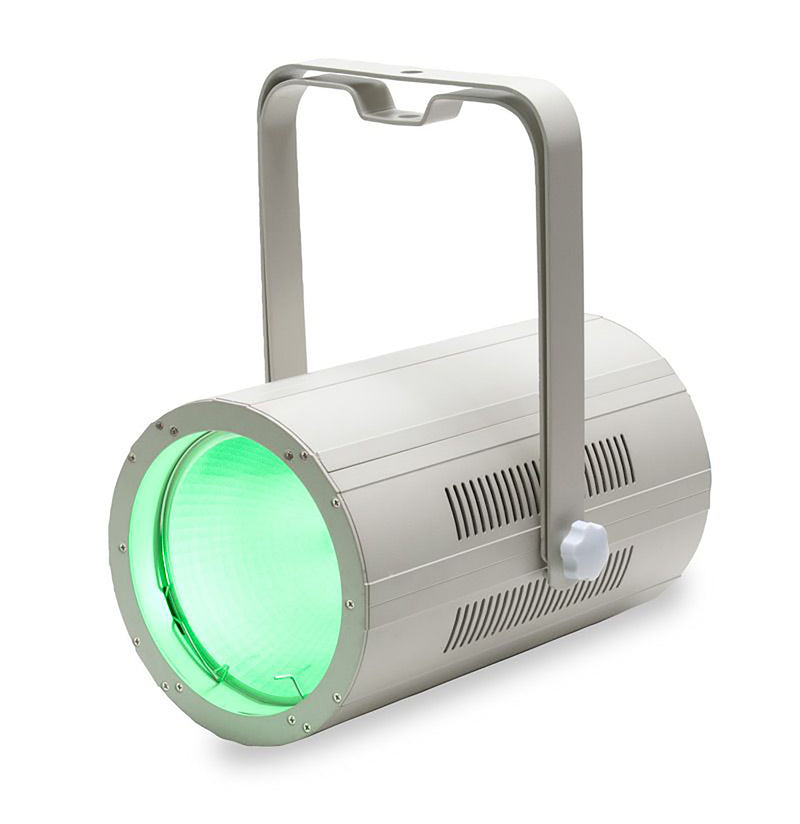

ADJ Cob Cannon Wash Pearl, LED PAR Can Fixture

The ADJ COB Cannon Wash Pearl, LED Par Can fixture uses advanced RGBA COB (Chip on Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash Pearl is a QUAD RGBA 4-In-1). It also doubles as an up light with its dual yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash Pearl comes in an off-white casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

It has 7 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and locking power In/Out to daisy-chain power, and a 4-button DMX display. COB Cannon Wash Pearl may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.

Product Specifications:

Fixture Type: PAR

Light Source: 1x Color LED (COB) - 150 W

Expected Lamp Life: 50,000 Hours

Colors: Red, Green, Blue, Amber

Photometrics:

40°:

183 fc / 1970 Lux at 78.7" / 2 m

44 fc / 474 Lux at 157.5" / 4 m

50°:

137 fc / 1472 Lux at 78.7" / 2 m

35 fc / 373 Lux at 13.1' / 4 m

80°:

93 fc / 996 Lux at 6.6' / 2 m

22 fc / 238 Lux at 13.1' / 4 m

Beam Angle:

80° (with Installed Lens)

40° (with Included Lens)

50° (with Included Lens)

Shutter / Strobe: Electronic

Iris: No

Focus: Manual

Zoom Adjustment: No

Dimming: Electronic, 0 to 100% with 5 Dimmer Modes

Operating Modes: Automatic, Color Dimmer, DMX, Primary/Secondary, Move-in-Black, Program, Sound-Active, Standalone, Static Color

Macros / Programs: 64x Color Macro

Effects: Strobe

Gobos: No

Control Protocols: DMX512, Internal

DMX Channel Modes:

7 Mode(s):

3 / 4 / 5 / 6 / 7 / 9 / 10-Channel

Display / Controls: LED / 4-Button

Remote Control: RF Remote (with Optional Equipment)

Inputs/Outputs:

1 x XLR 3-Pin DMX Input

1 x XLR 3-Pin DMX Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless Range:

Remote,

150' / 45.7 m (with Optional Equipment)

AC Input Power : 100 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON

Output: 1x powerCON

Fuse: 3 A

Power / Current Consumption: 132 W

Power Linking: 5 Units

Environmental Protection: No

Mounting: Dual/Scissor Yoke

Duty Cycle: No

Exterior Color: White

Certifications: CE

Shipping Dimensions: 1.4 x 0.8 x 0.6' / 415 x 245 x 192 mm

Shipping Weight: 9 lb. / 4.1 kg
