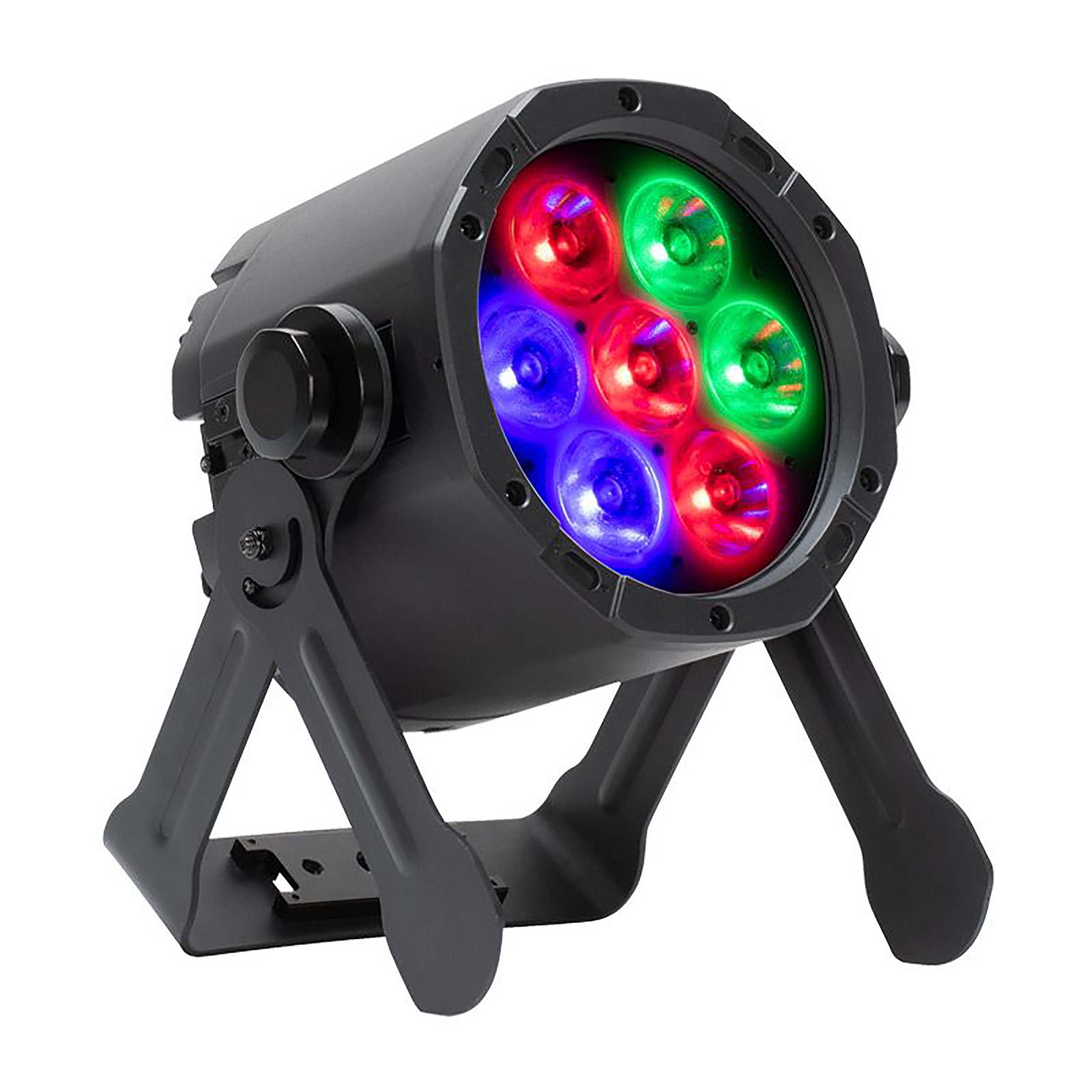

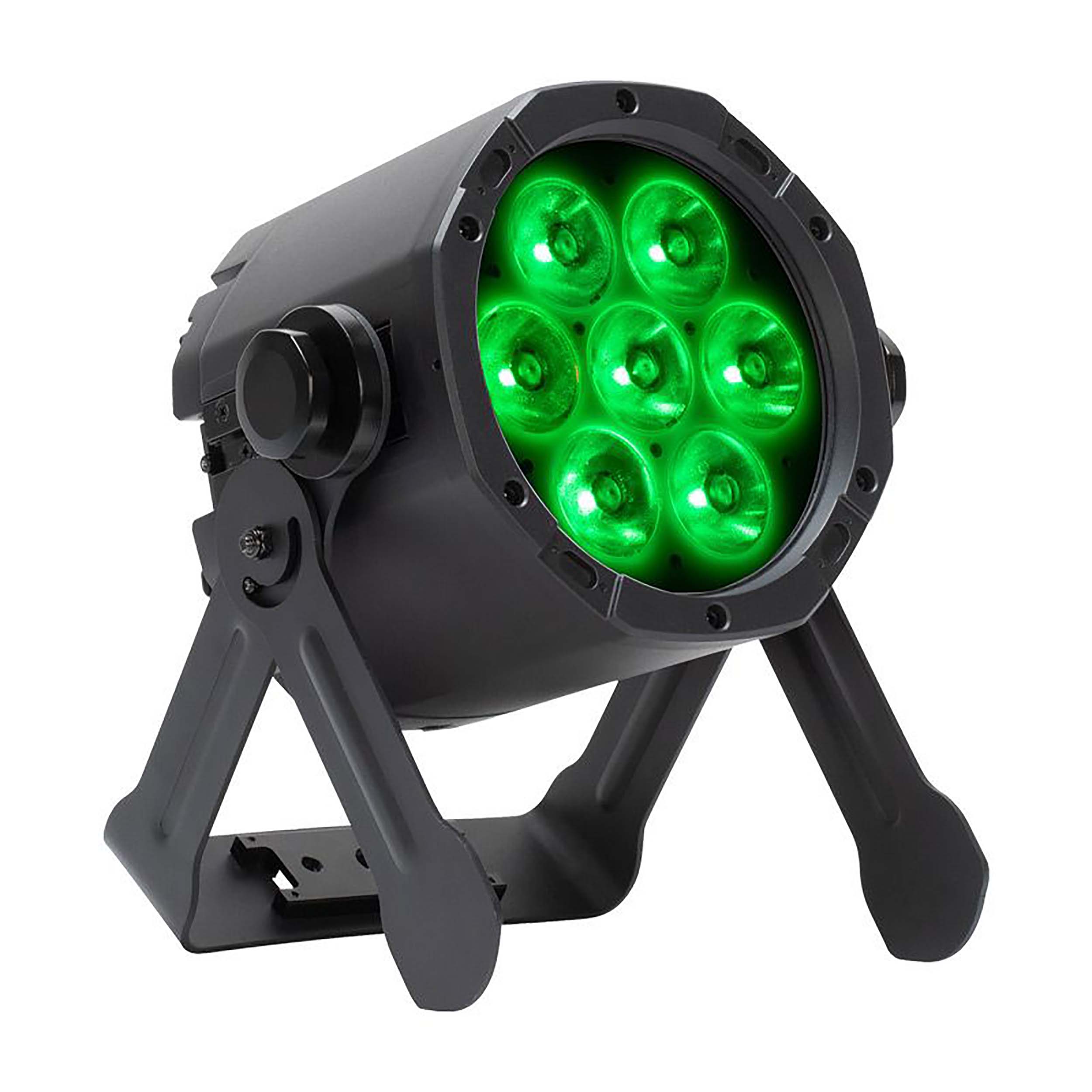

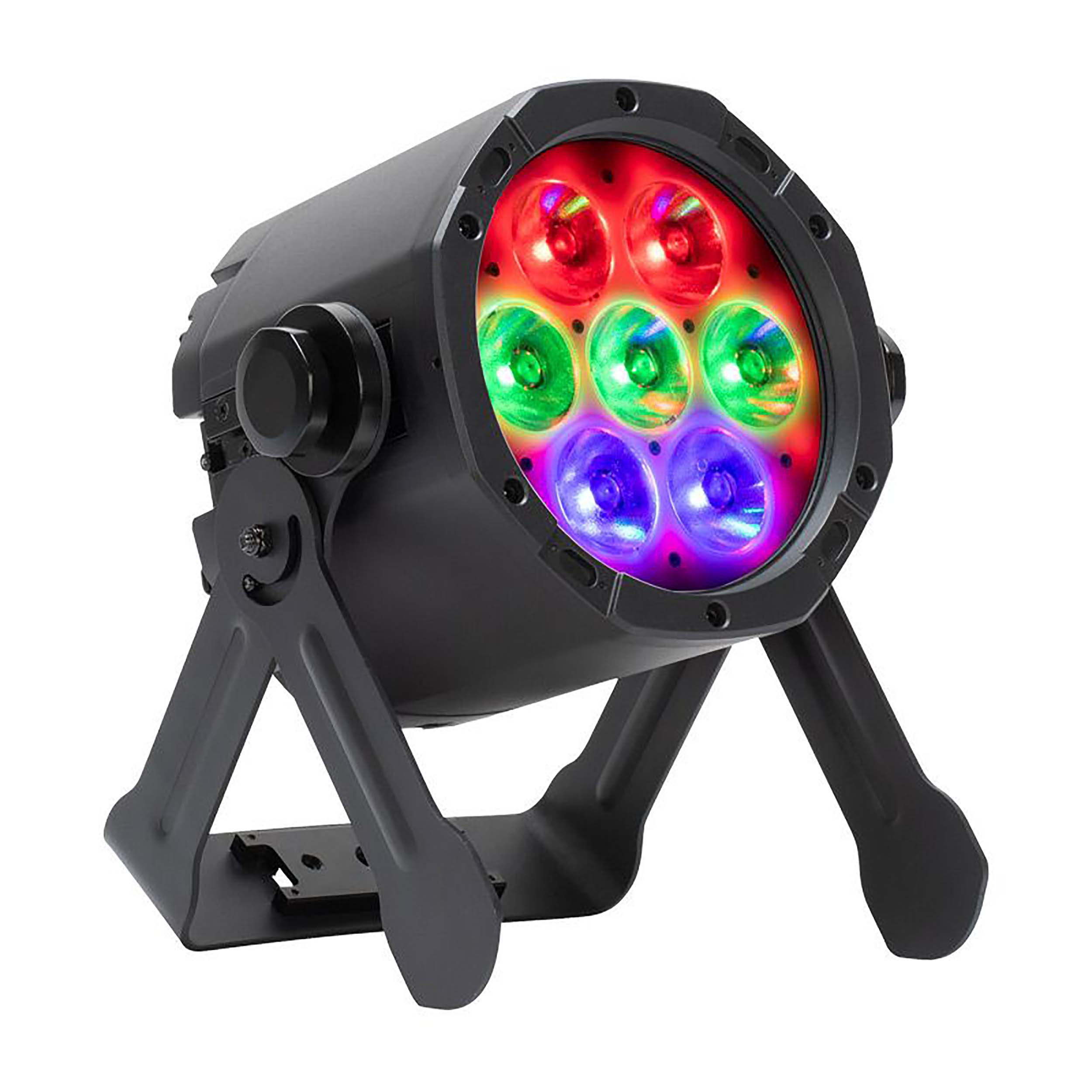

ADJ ElectraPix Par 7, IP65 Outdoor-Rated Battery Powered LED PAR - RGBAL+UV

The ADJ ElectraPix Par 7, IP65 Outdoor-Rated Battery Powered LED PAR - RGBAL+UV is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.

Product Specifications:

Source:

(7) 20W Hex Color RGBAL+UV Foreground LED's

(29) 0.2W RGB Background LED's

50,000 Hour Average Life

May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

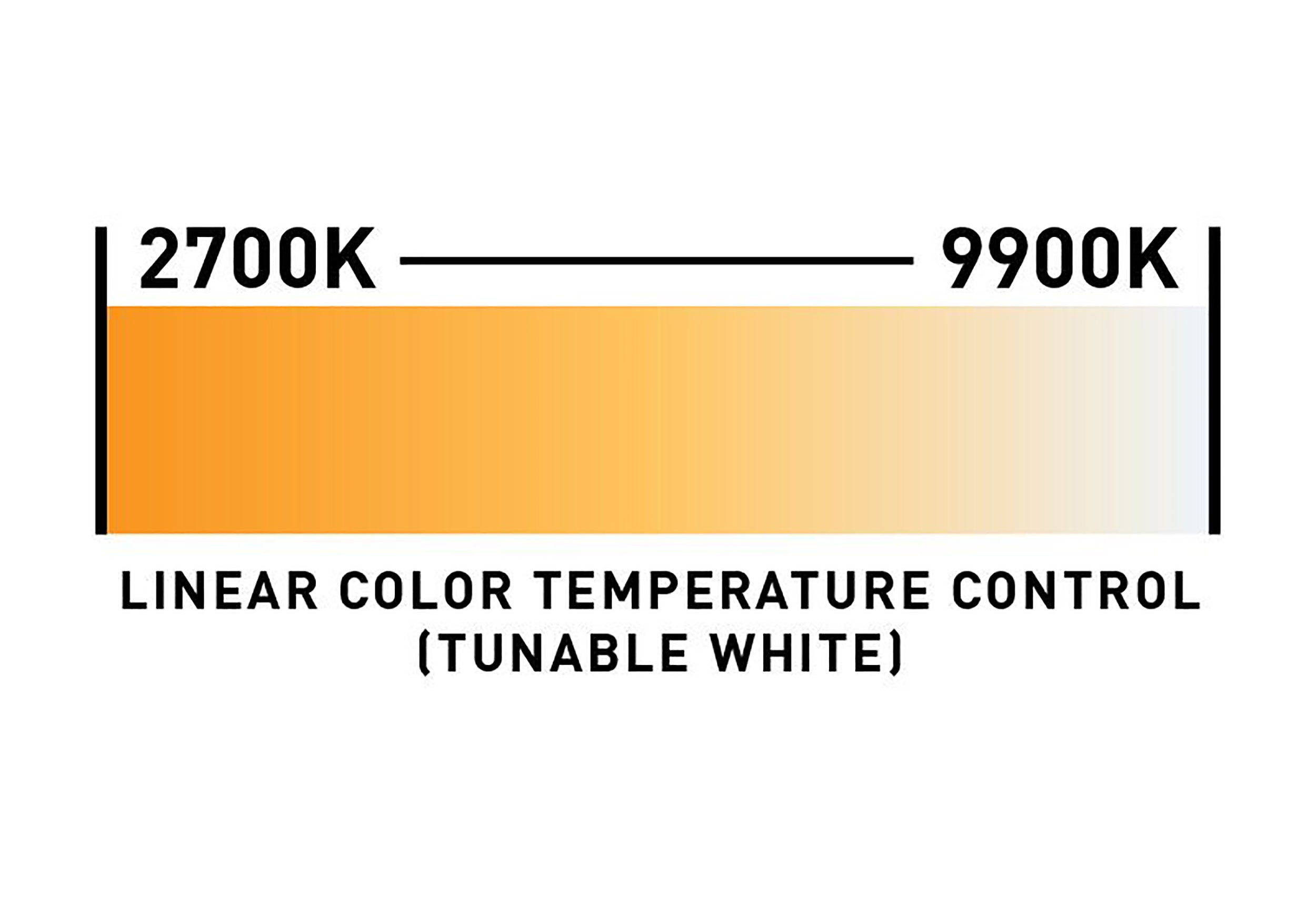

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

Physical:

IP65 Housing

OLED Digital display

L Track system for locking accessories / rigging

Gel Frame Holder

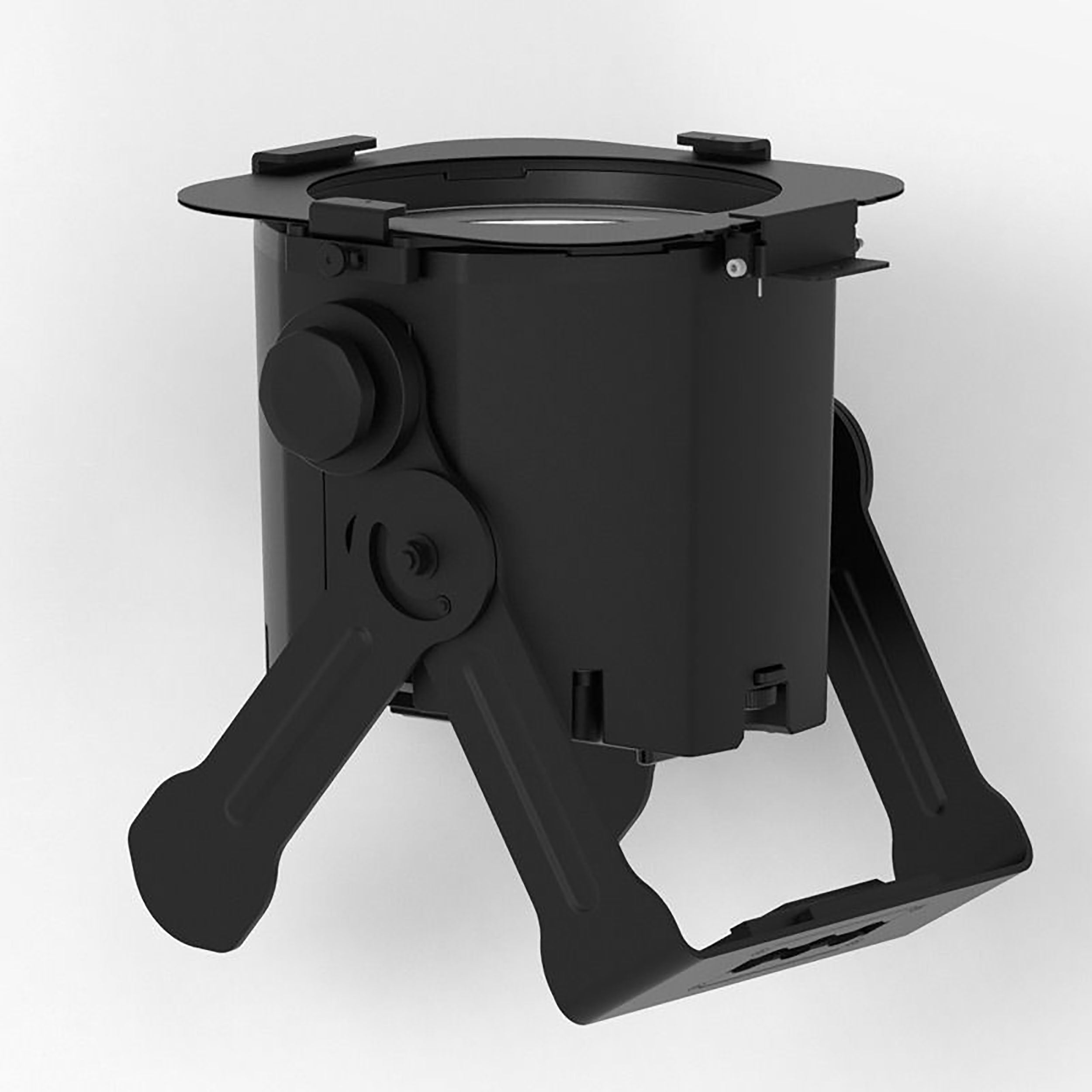

Adjustable, hanging / kick stand bracket

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

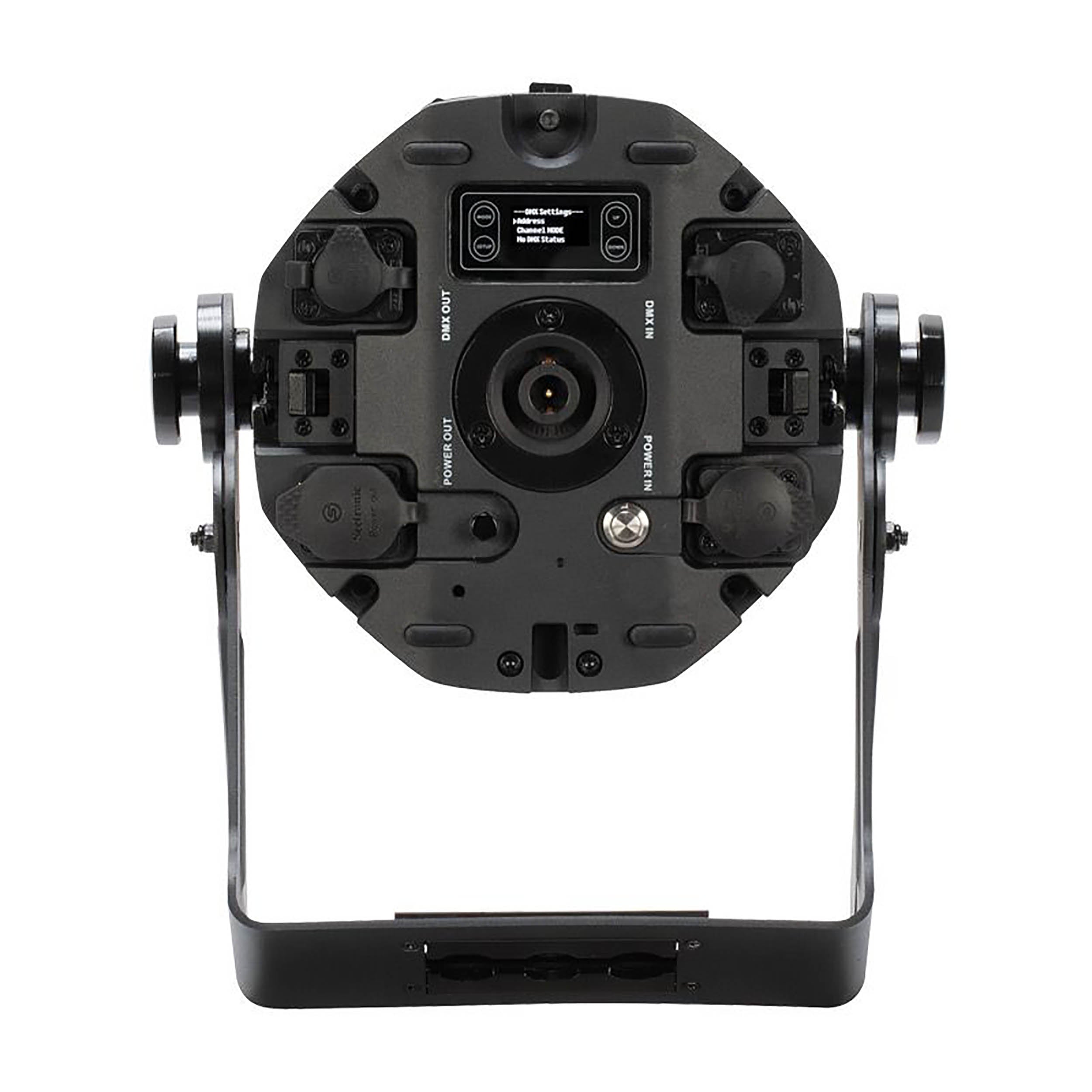

Connections:

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

Battery Charging Socket

Dimensions & Weight:

Length:11.11” (282.1mm) Width: 9.77” (590.3mm) Height: 7.46” (189.5mm)

Weight:15.4 lbs. (7 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium ion

Battery Capacity:7,000mAh

Battery Voltage:22.2V

Charge Time:6 Hours (To Full)

Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

Battery Cycles:500

Thermal:

Ambient Operational Temperature:-4°F to 113°F (-20°C to 45°C)

Storage Temperature:-22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) Floor / Mounting Bracket

(1) UCIR24 Remote

(1) Gel Frame

(1) 20° Diffusion Filter

Optional Accessories:

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

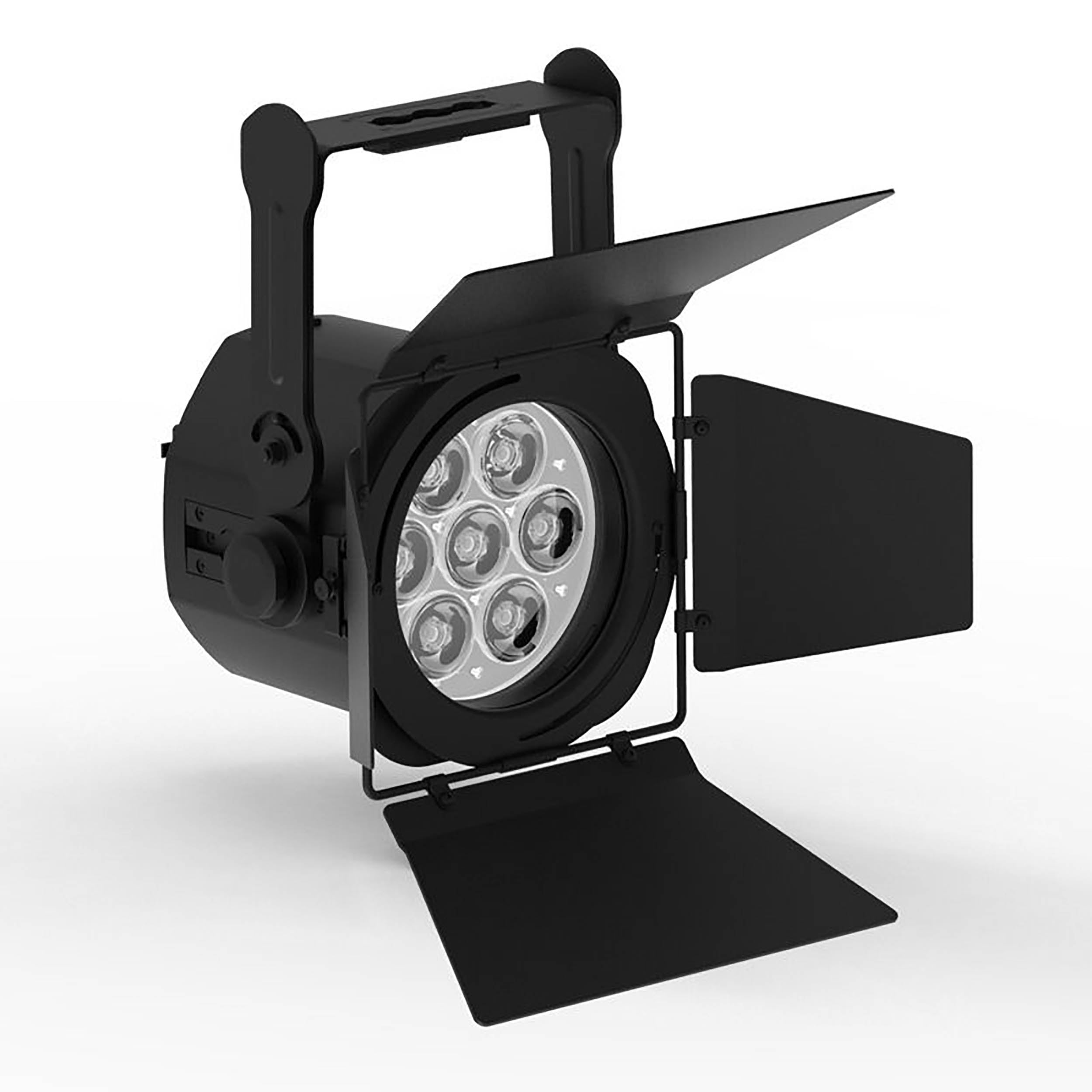

ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)

ELPIX7L55:55° diffusion filter for the ElectraPix Par 7

ELPIX7L40:40° diffusion filter for the ElectraPix Par 7

ELPIX7L30:30° diffusion filter for the ElectraPix Par 7

ELPIX7L20:20° diffusion filter for the ElectraPix Par 7

ELPIX7L30X60:30x60° linear filter for the ElectraPix Par 7

ELPIX7L15X60:15x60° linear filter for the ElectraPix Par 7

ELPIX7L10X60:10x60° linear filter for the ElectraPix Par 7

ELPIX7L10X40:10x40° linear filter for the ElectraPix Par 7

EPIX P7 IPCB:replacement charging base and power supply
