ADJ Jolt Bar FX, RGBW LED Linear Fixture

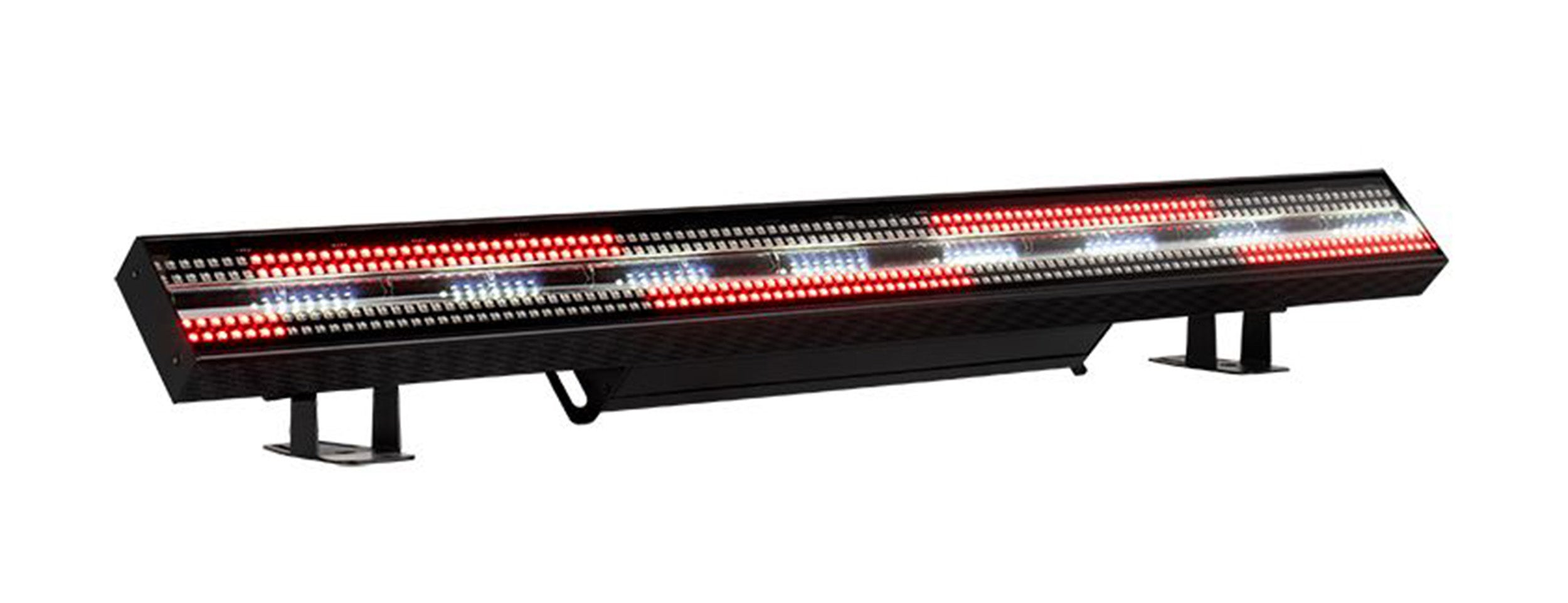

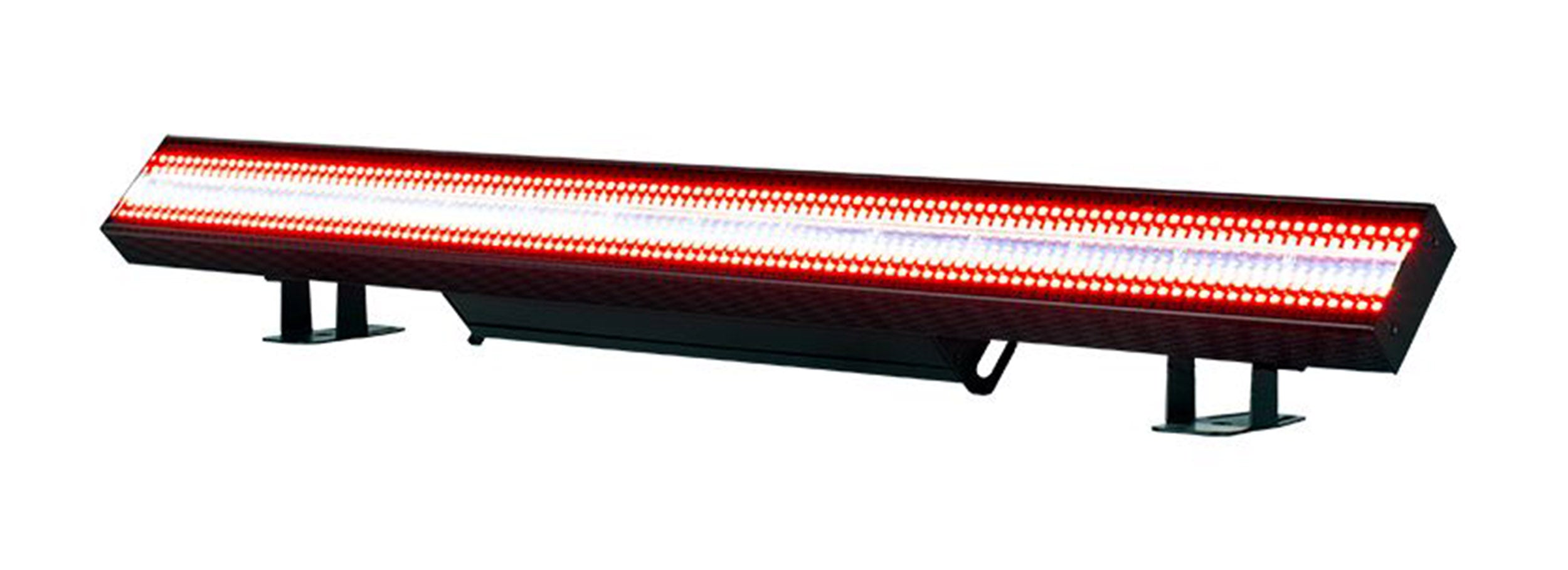

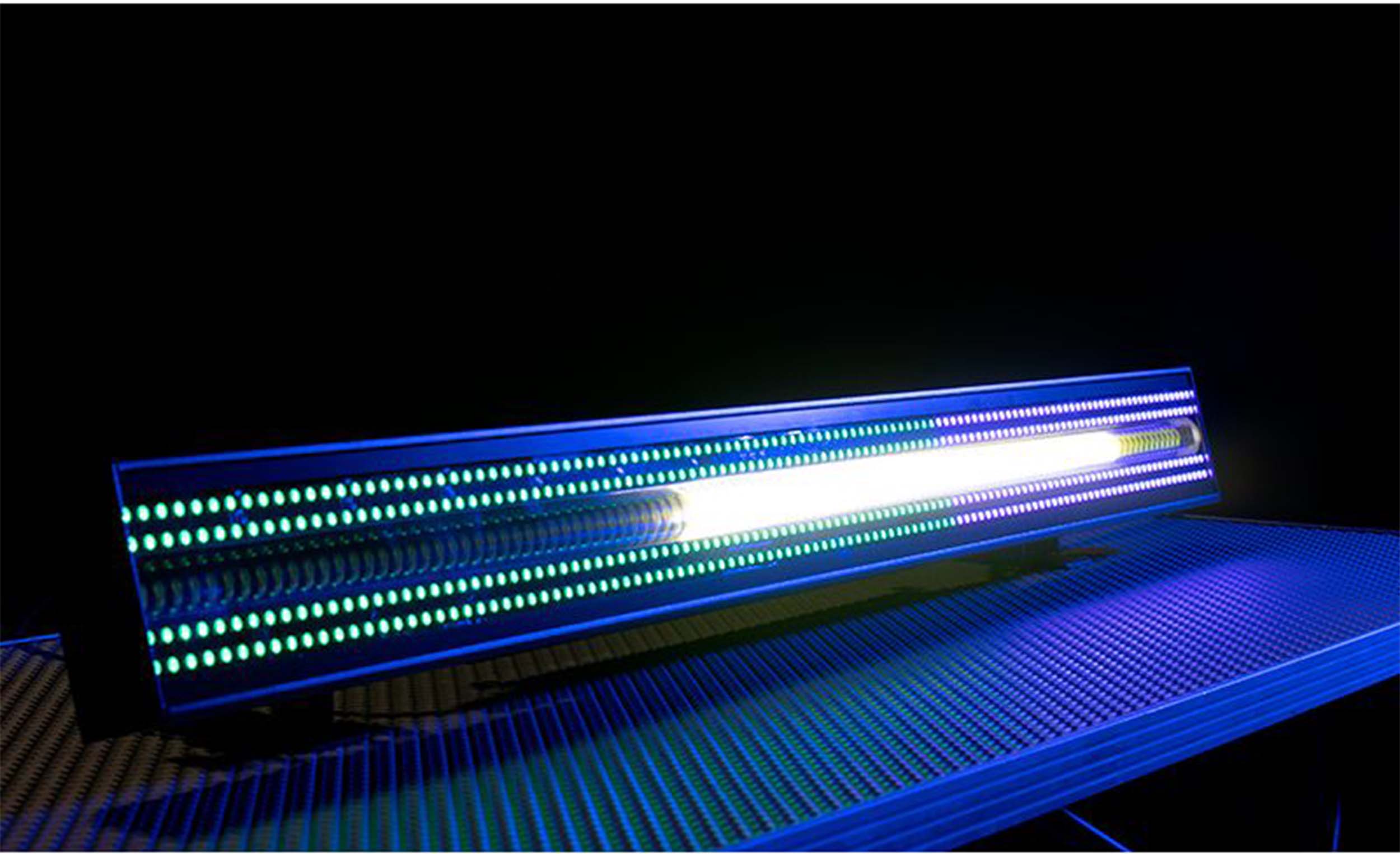

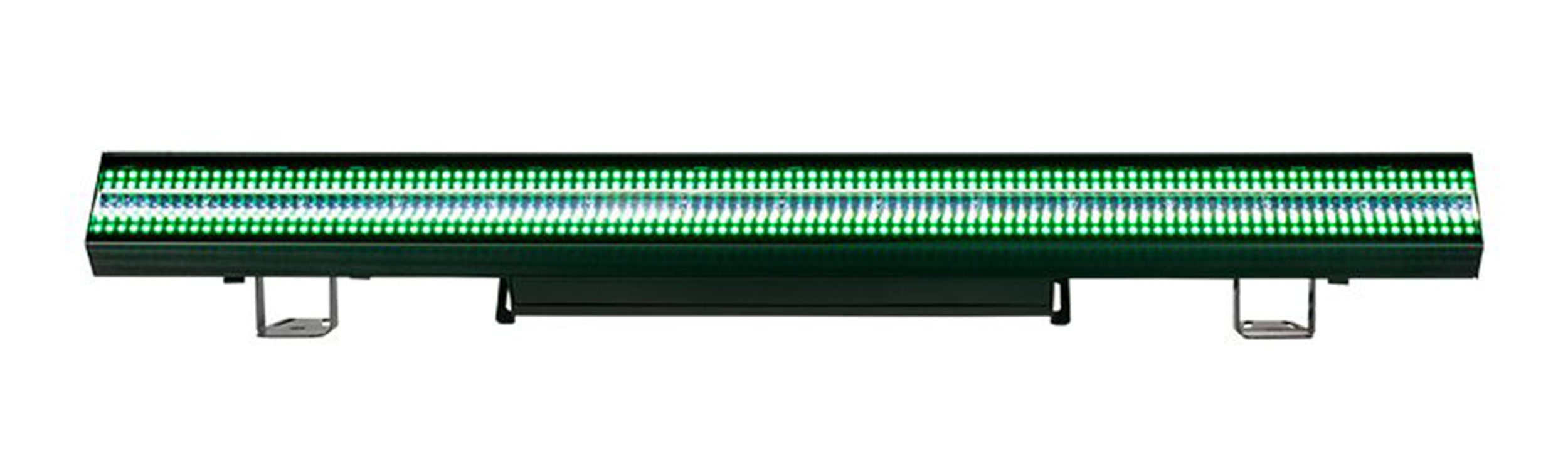

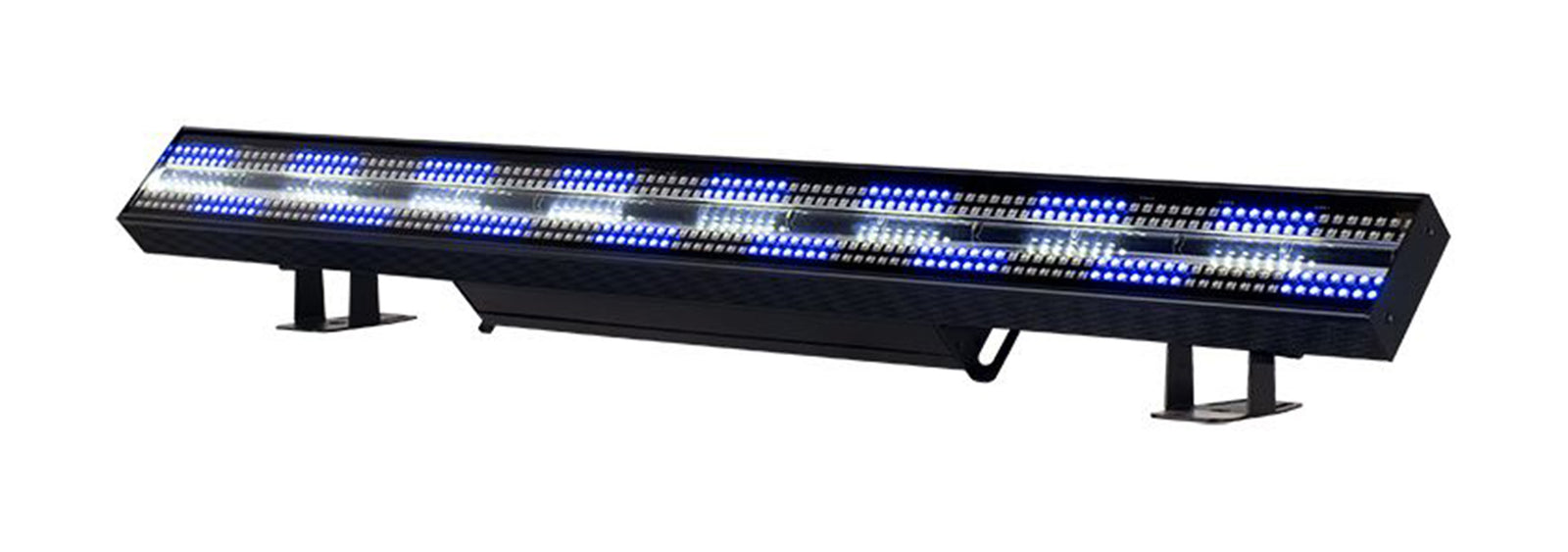

The ADJ Jolt Bar FX features a central strip of 112 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 448 x 0.3W RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing and multi-colored chase effects. Both types of LED are also grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other ‘eye candy’ effects.

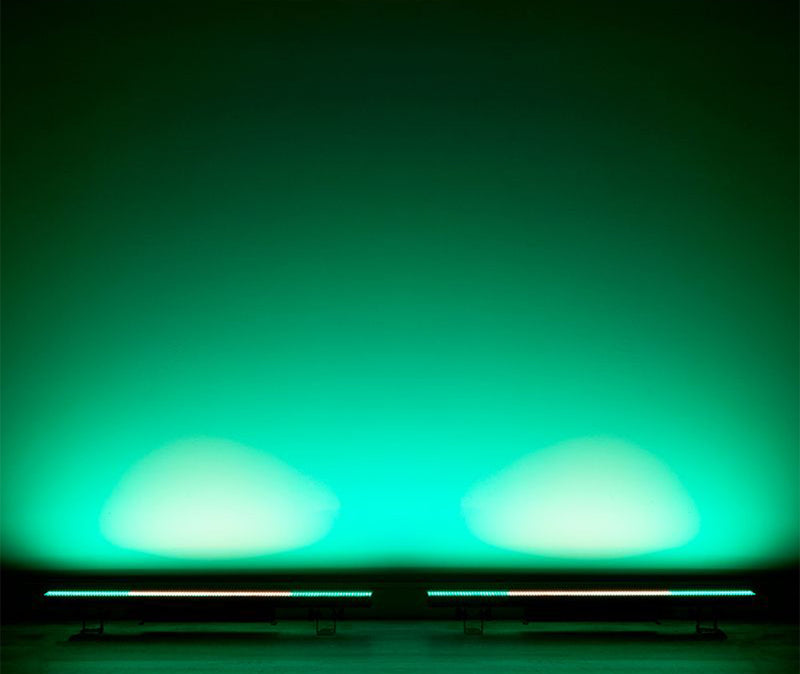

With a wide 116-degree beam angle and immense light output, the Jolt Bar FX is ideally suited to large concert and festival stages, as well as dance events and big nightclub installations. It is supplied with a pair of versatile 180-degree hanging brackets, which can also be used as floor stands, and is designed such that multiple units can be positioned side by side to create continuous zone chase effects. For strobe effects, the unit offers variable speed between 0.35Hz and 25Hz and its LED refresh rate can also be adjusted between 900 and 25kHz.

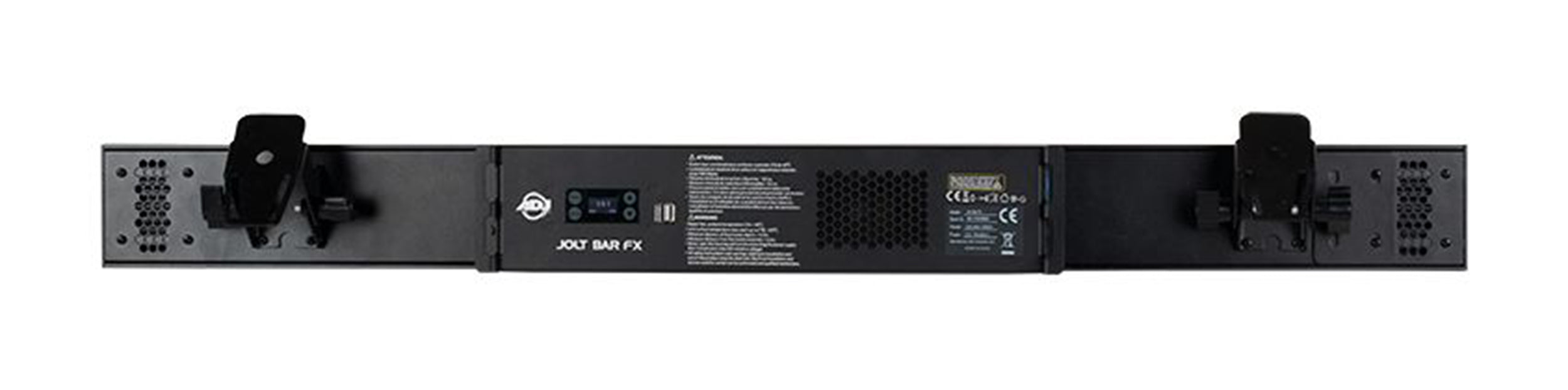

The fixture offers a choice of 11 different DMX modes (6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels), allowing flexibility depending on the level of control required and the number of channels available. To aid with quick and eye-catching programming, the unit is also supplied with 25 built-in RGB LED program macros and 9 built-in white LED program macros. An intuitive 4 touch button LCD menu display on the rear of the unit facilitates easy DMX addressing as well as configuration of the various operating modes.

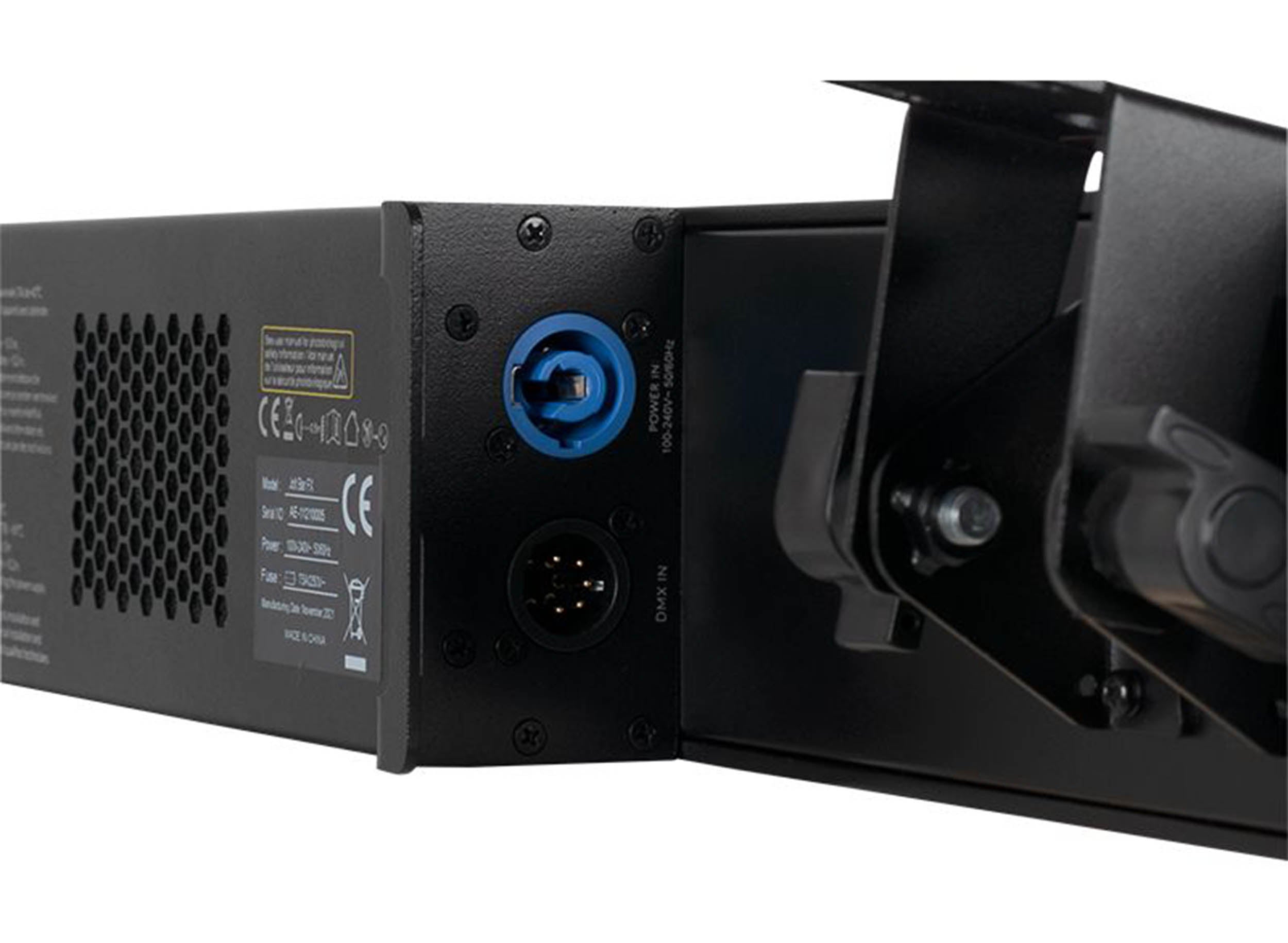

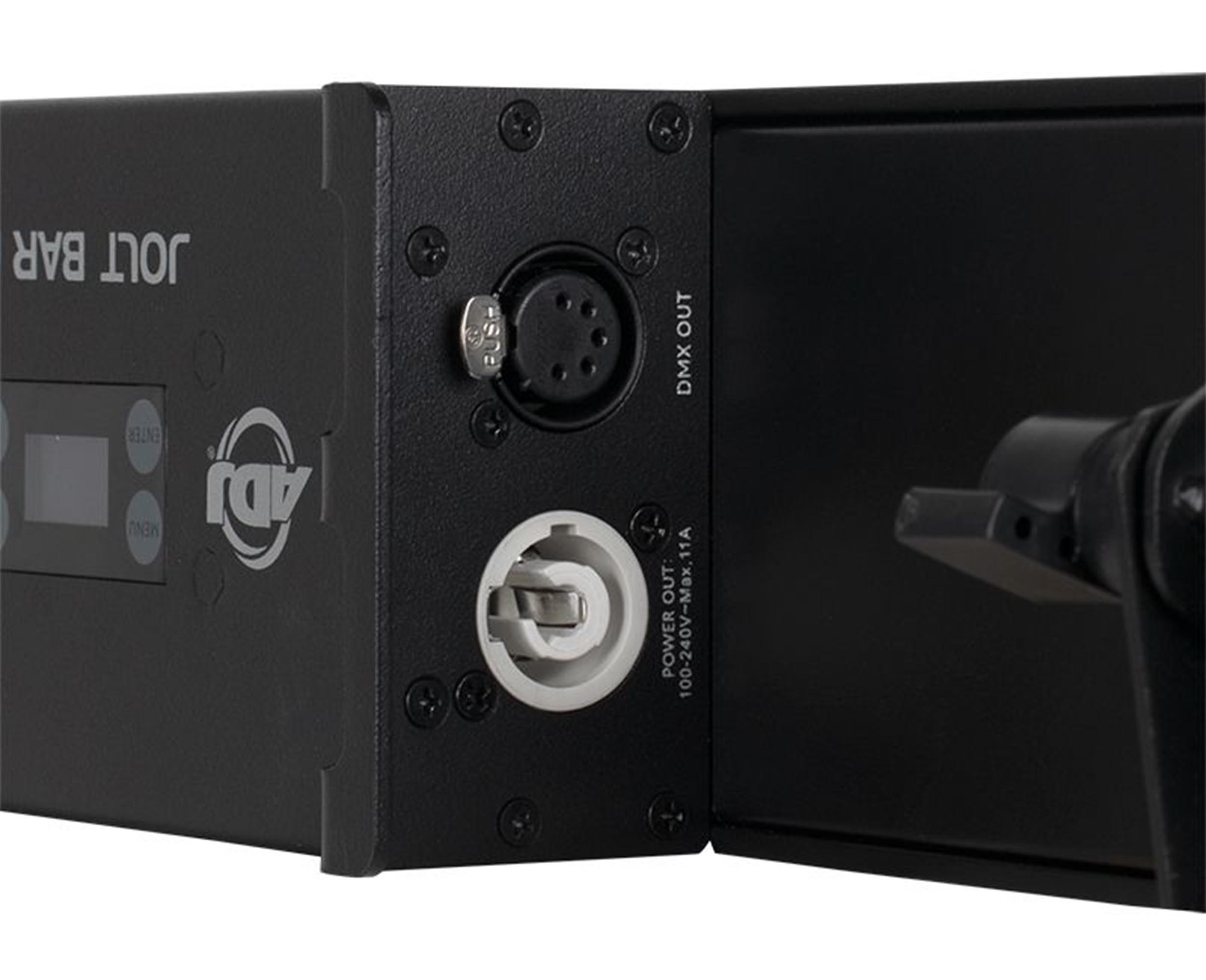

Measuring 1m in length (39.4”), the fixture is compact in its other dimensions (4.2”/107mm and 4.8”/123mm). It has a robust metal construction yet has been carefully engineered to keep its weight to a minimum (16.5lbs. / 7.5kg.), making it ideal for concert touring and event production applications. It is fitted with locking power input and output sockets, allowing multiple fixtures to be connected from a single power outlet, which are positioned on either side of the fixture together with the 5-pin DMX input and output sockets to allow convenient setup and neat cable runs.

Product Specifications:

Light Source:

448 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs

116 Degree Beam Angle

Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm.  / Cool White: 5000-6500K

50,000 Hour Average LED Life

Control:

Control Protocol: DMX

13 DMX Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64,78, 112 and 126 channels

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)

0-100% Smooth Dimming

Strobe, shutter & pulse control

Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.

With Wired Digital Communication Network

Display: OLED display with 4-button touch menu

Connections:

Data: 5-pin DMX in/Out

180-degree mounting bracket system

Power locking power in/out

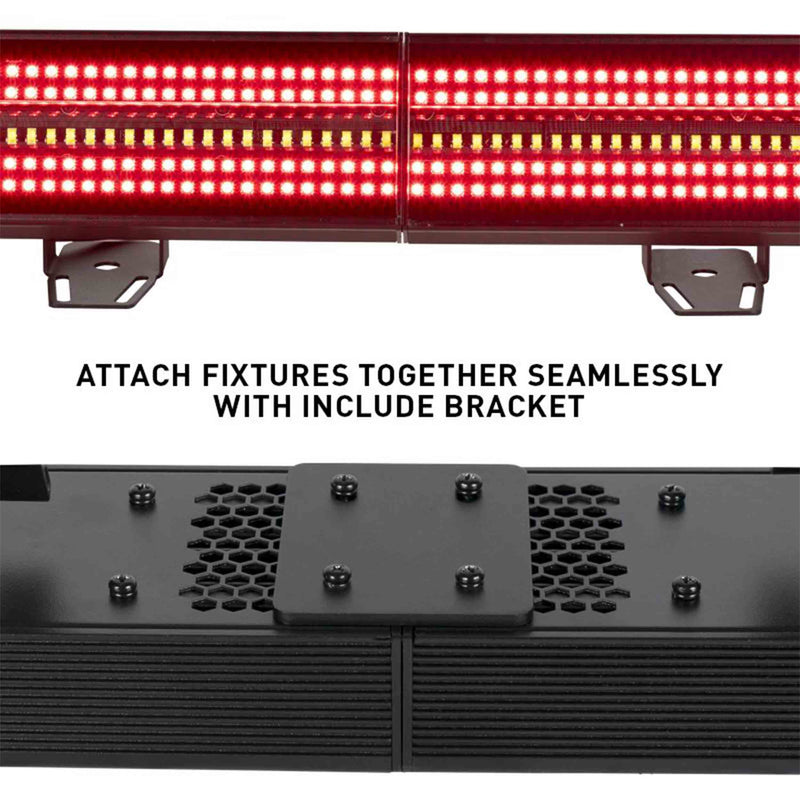

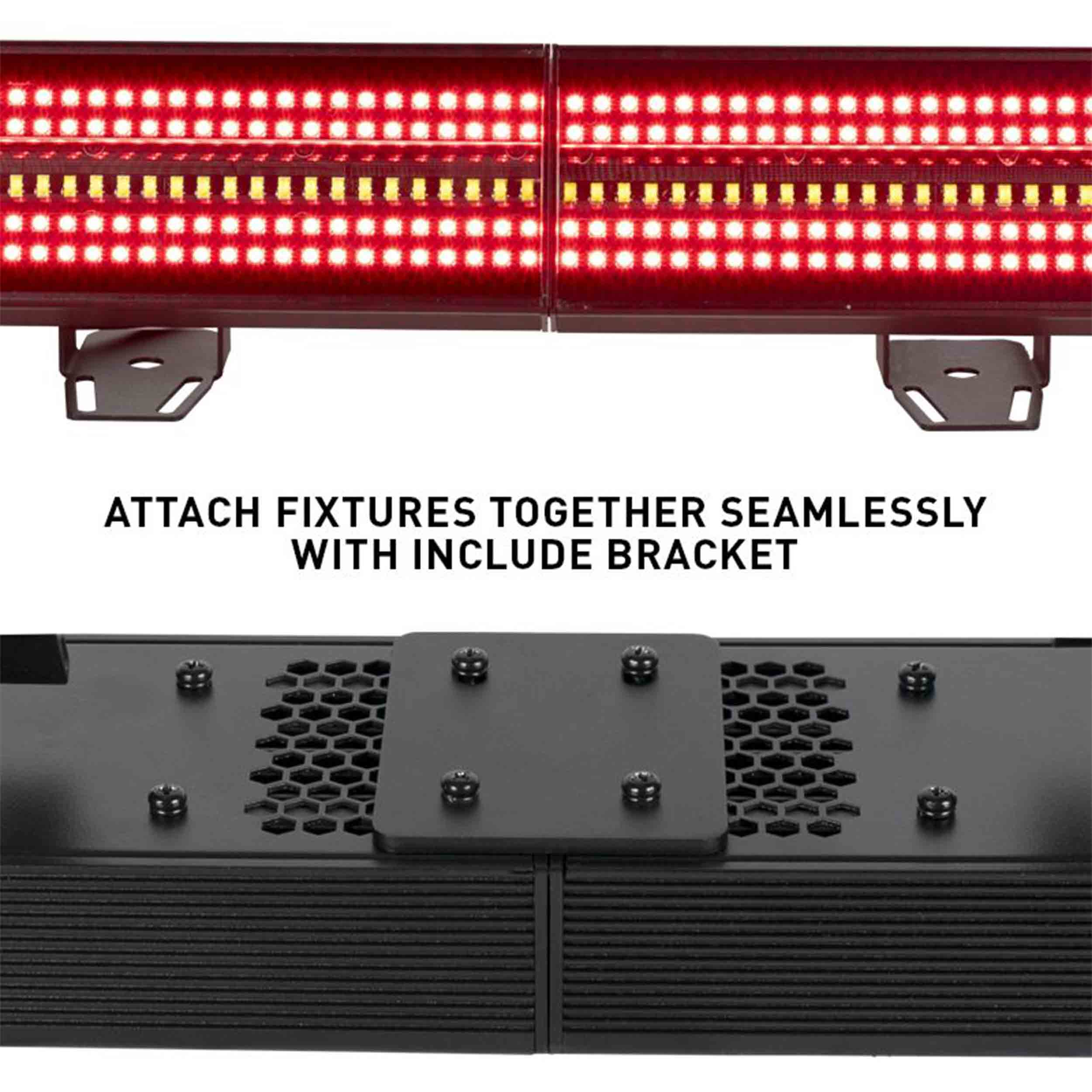

Connect fixtures seamlessly using included metal bracket attachment

Electrical:

100-240V 50Hz/60Hz (Auto Sensing)

Max Power Consumption: 430W

Dimensions / Weight:

Length: 39.4” (1000mm)

Width: 4.2” (107mm)

Height: 4.8” (123mm)

Weight: 16.5 lbs. (7.5kg)

What’s Included:

1x power locking to Edison power cable (U.S.)

Approvals:

cETLus approved (Control # 4000358)
