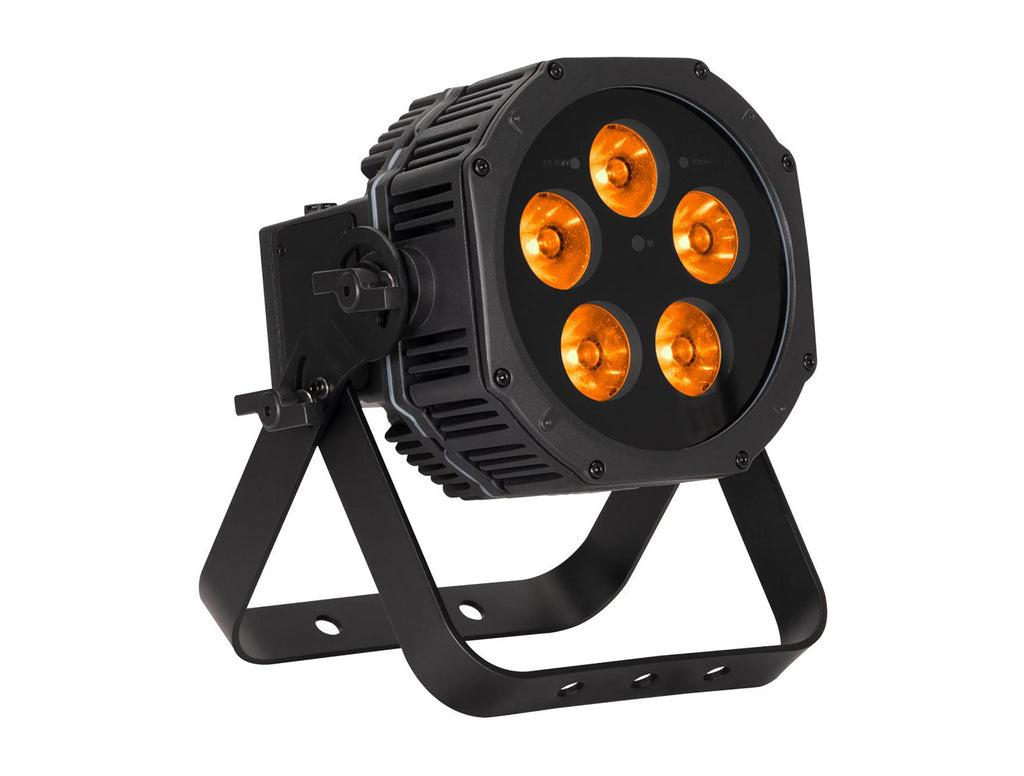

ADJ Lighting Mirage Par H IP & 20W RGBAL+UV LED IP65 w/ Wired Digital

The ADJ Lighting Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,700K to 9,900K, the Mirage Par H IP allows access to massive gamut of colors.

This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.

Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.

Product Specifications:

Source:

(5) 20W Hex Color RGBAL+UV LEDs

50,000-hour average lifespan (varies by environmental conditions, power, and usage).

Optical:

White color temperature range: 2,300K – 9,900K

Beam angle: 17°

Physical:

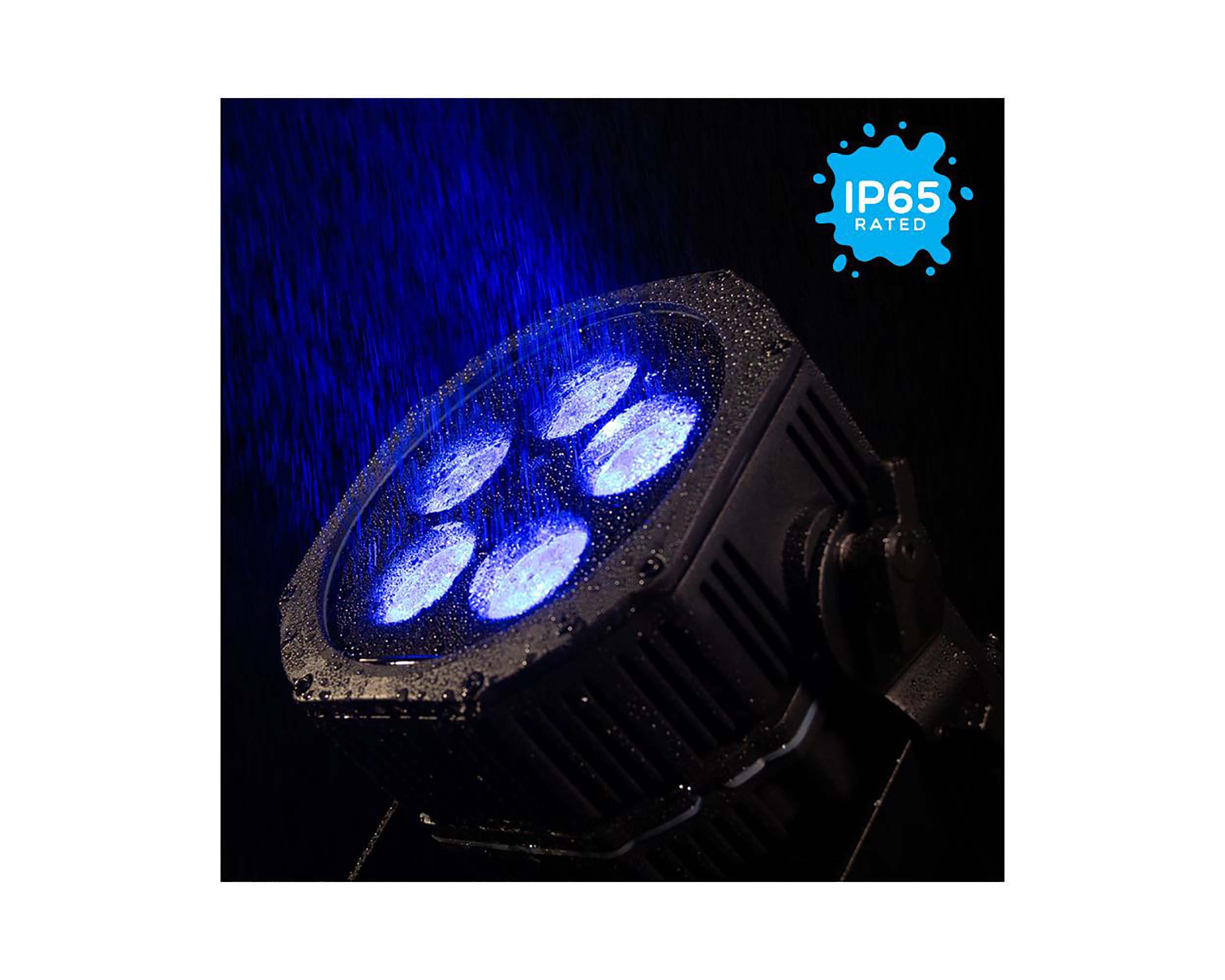

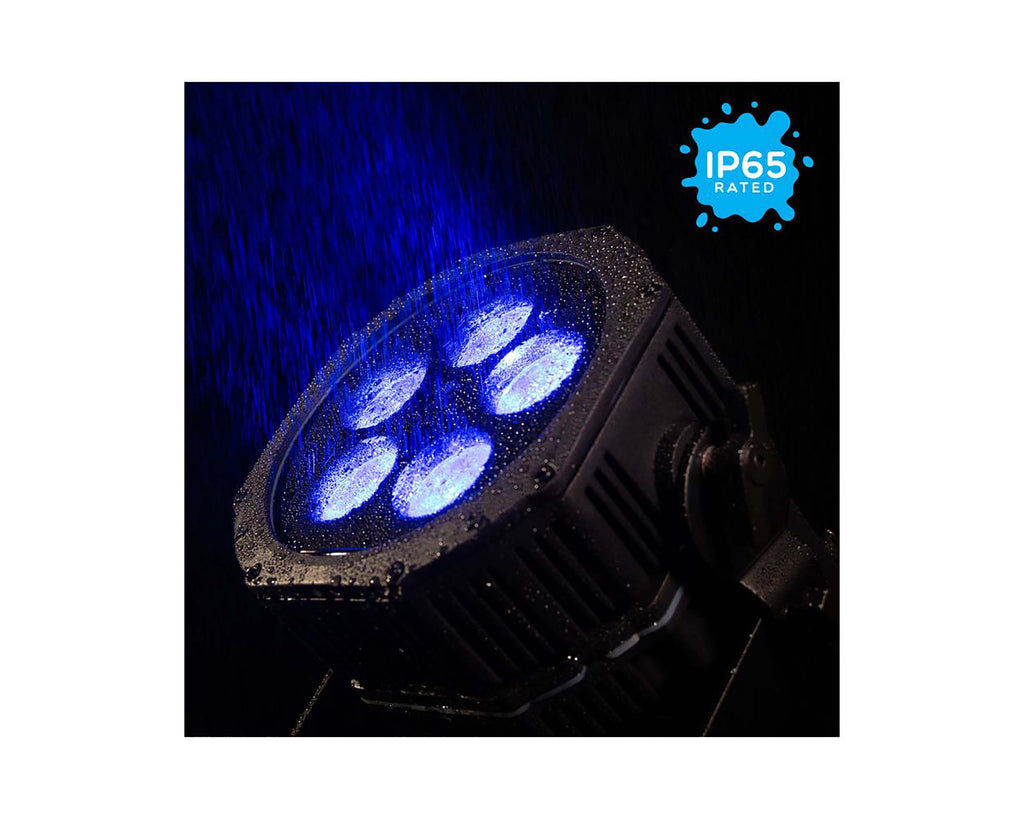

IP65-rated housing for indoor/outdoor use

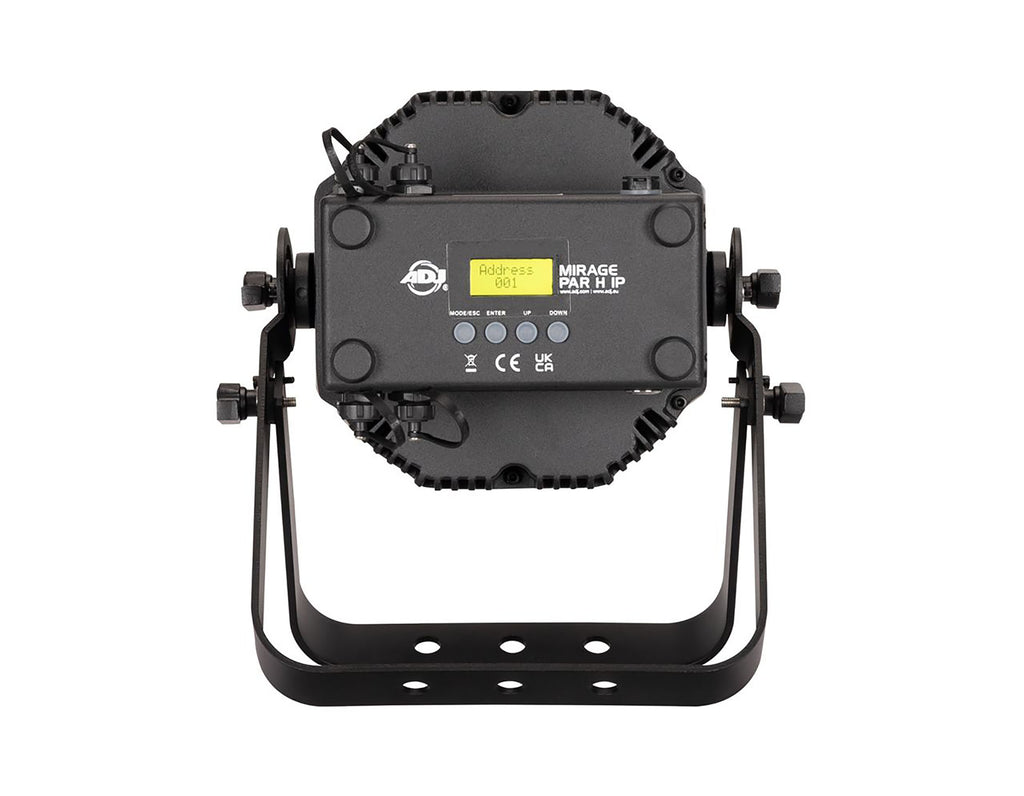

Digital display

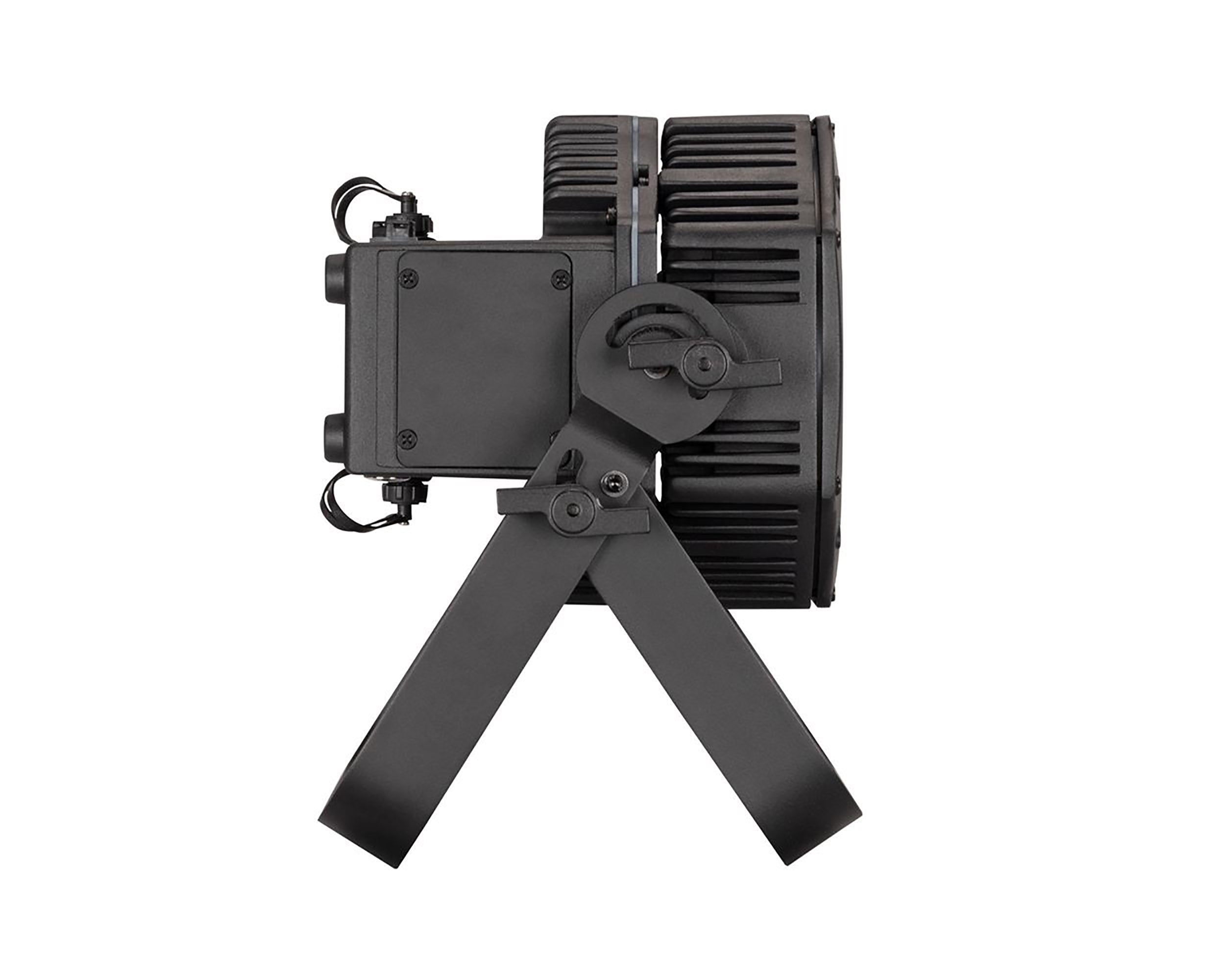

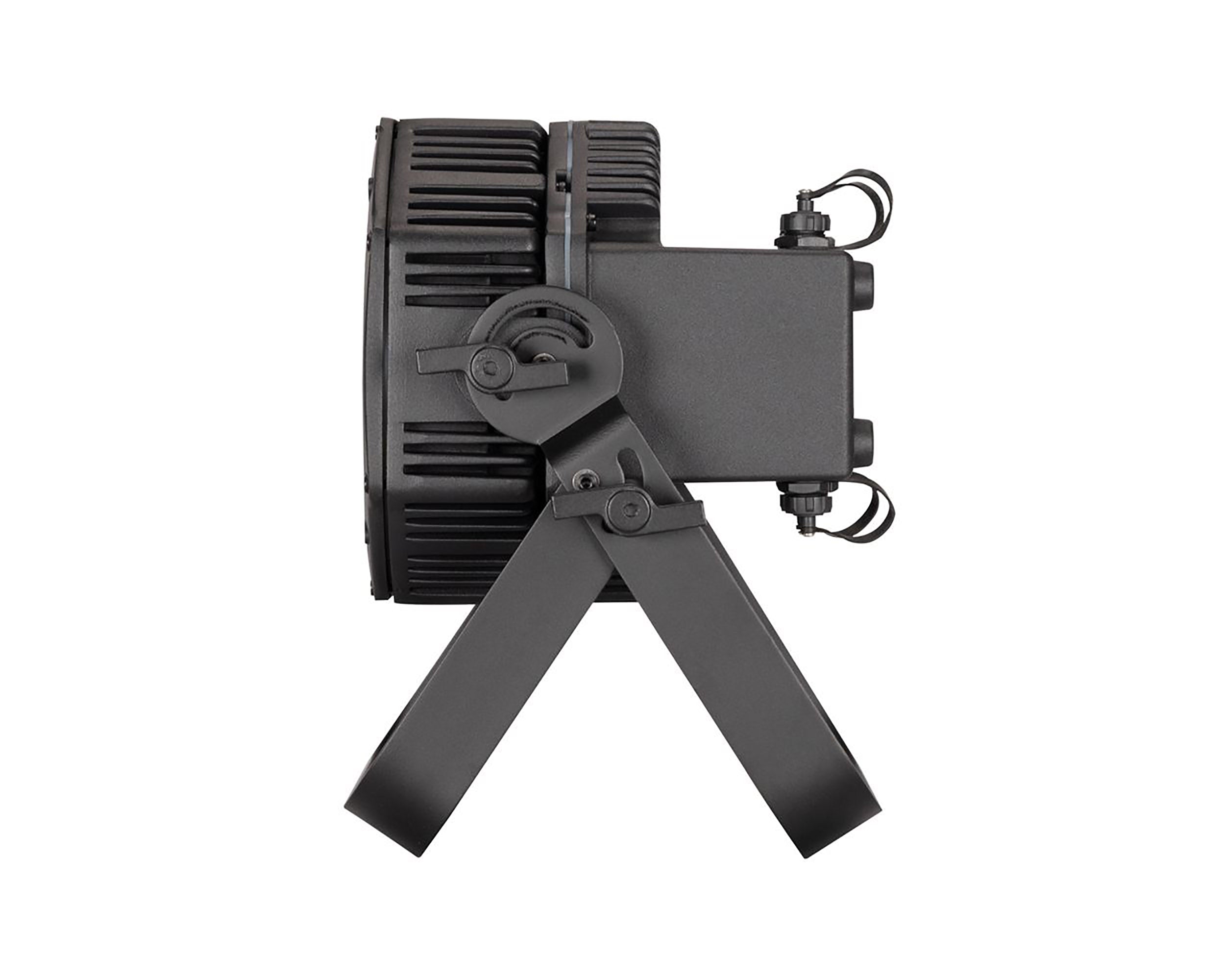

Adjustable hanging/kickstand bracket

Control:

DMX512 with (6) channel modes: 5CH, 6CH, 9A, 9B, 15CH, 17CH

Aria X2 Wireless Management / DMX System

Bluetooth and IR control (includes UCIR24 wireless remote)

RDM and RDM-Net compatible

On-board manual control mode

Primary/secondary mode

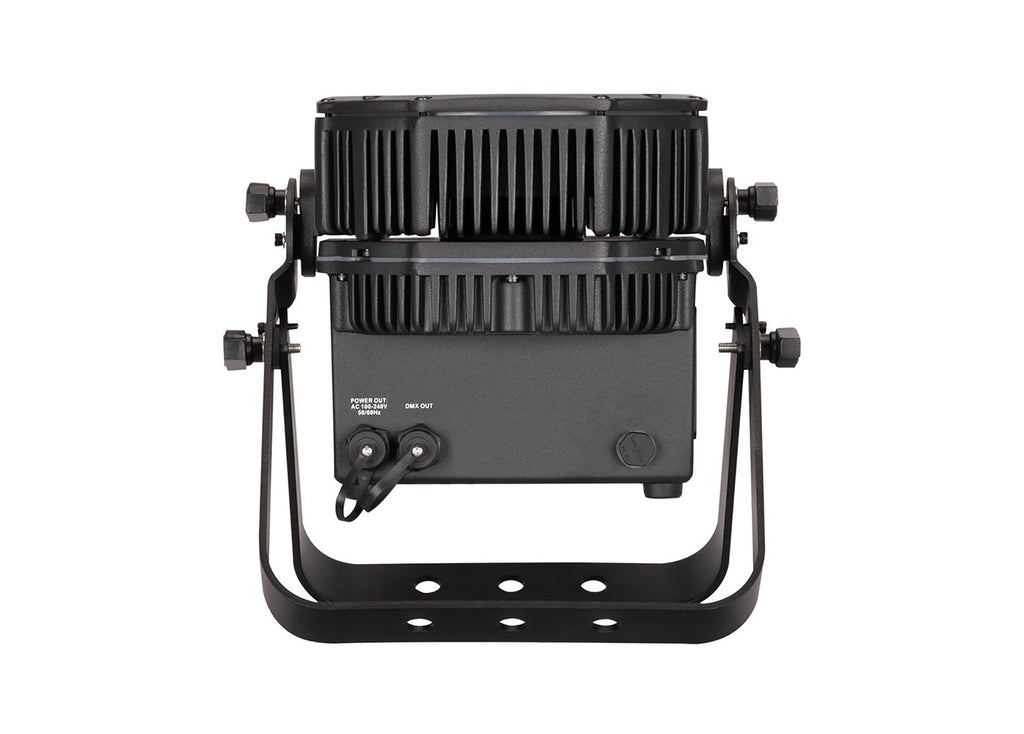

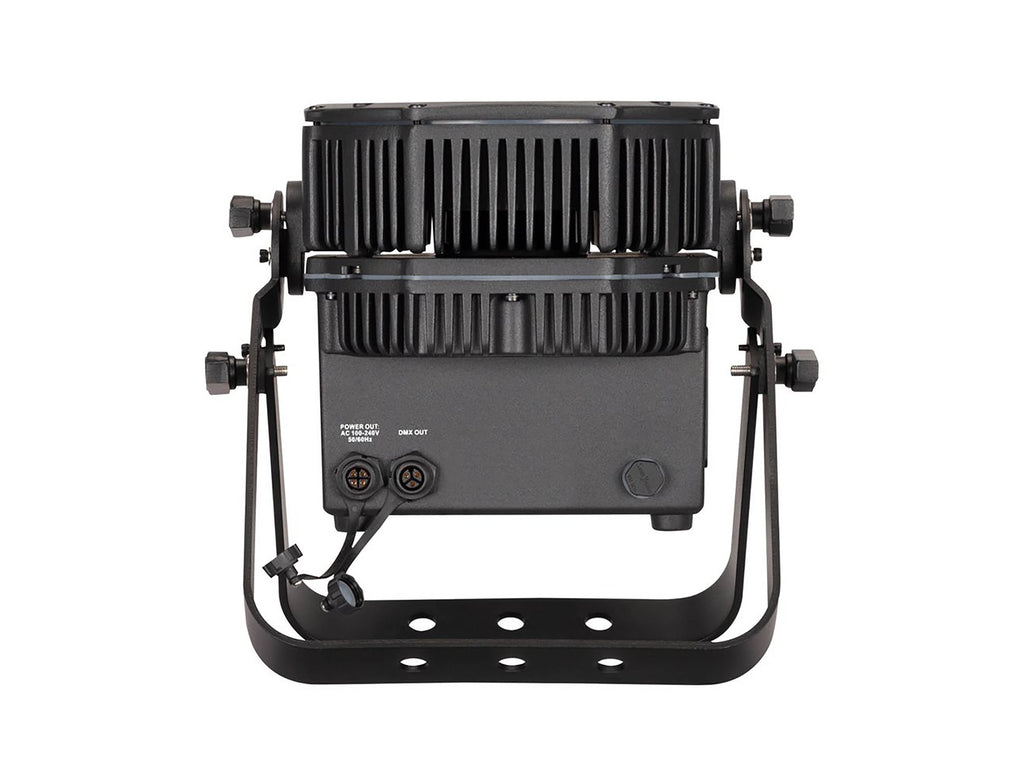

Connections:

Chogori IP65 data locking connectors

Chogori IP65 power connectors

Power:

AC100-240V/50Hz-60Hz input

60W power consumption

Link 14 units @120VAC or 28 units @230VAC

Battery:

Rechargeable lithium-ion, 6,600mAh capacity

Battery voltage: 22.2V

Charge time: 5 hours (to full charge)

User-selectable operation durations: 5–20 hours (5 hours at full output)

500 charge cycles

Thermal:

Operational temperature: -4°F to 113°F (-20°C to 45°C)

Storage temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE, FCC, cETLus (pending)

IP65

Included Accessories:

WIF901-POWER CABLE: IP65 Chogori to Edison locking power cable

CHS5INDMX: 20” Chogori locking output to Seetronic 5-pin XLR male input adapter

CHS5OUTDMX: 20” Chogori locking input to Seetronic 5-pin XLR female output adapter

Floor/mounting bracket

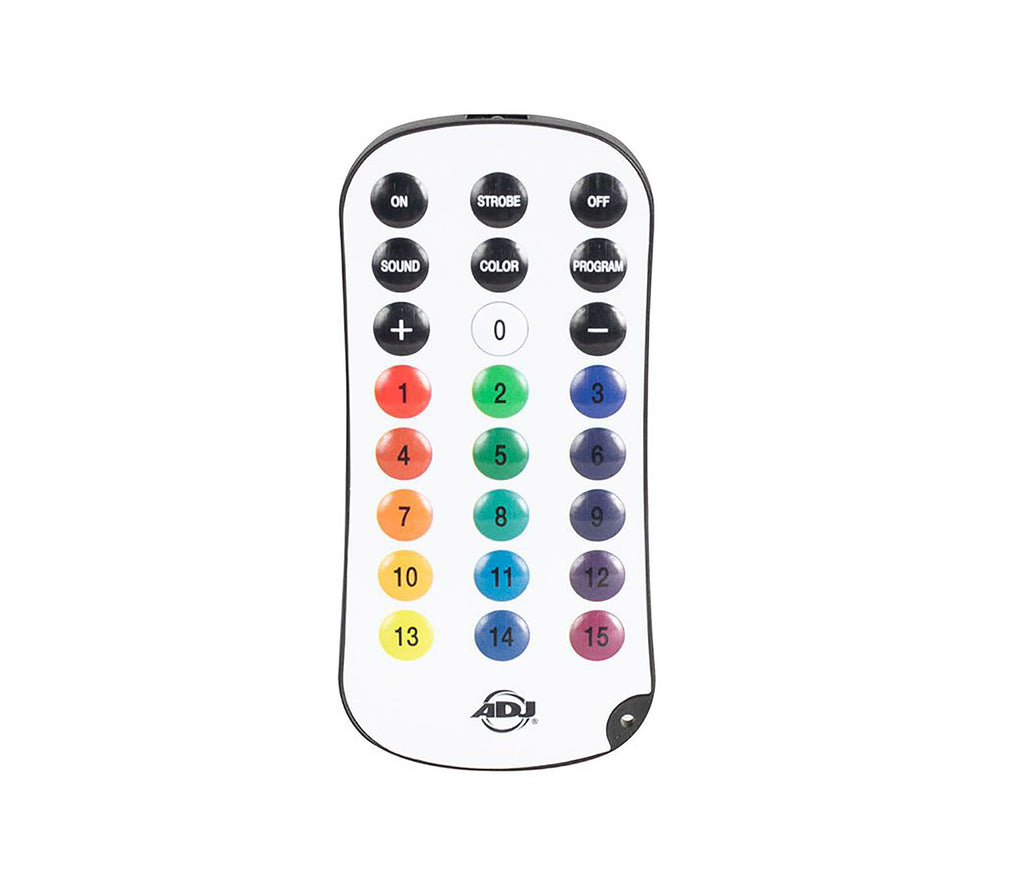

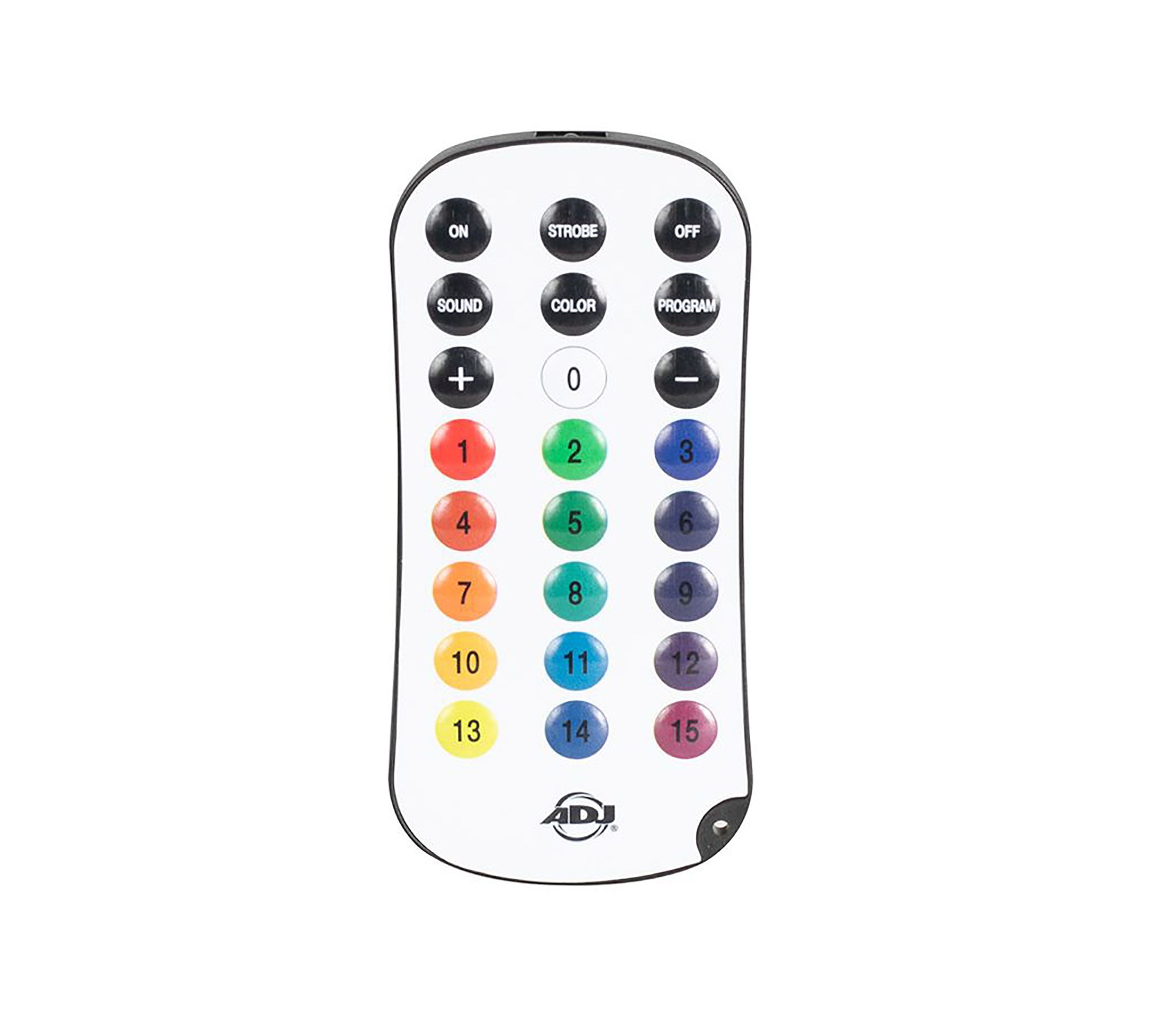

UCIR24 remote

Dimensions & Weight:

Length: 11.1” (282mm)

Width: 10.6” (269mm)

Height: 10.4” (265mm)

Weight: 11.9 lbs. (5.4 kg)
