Description

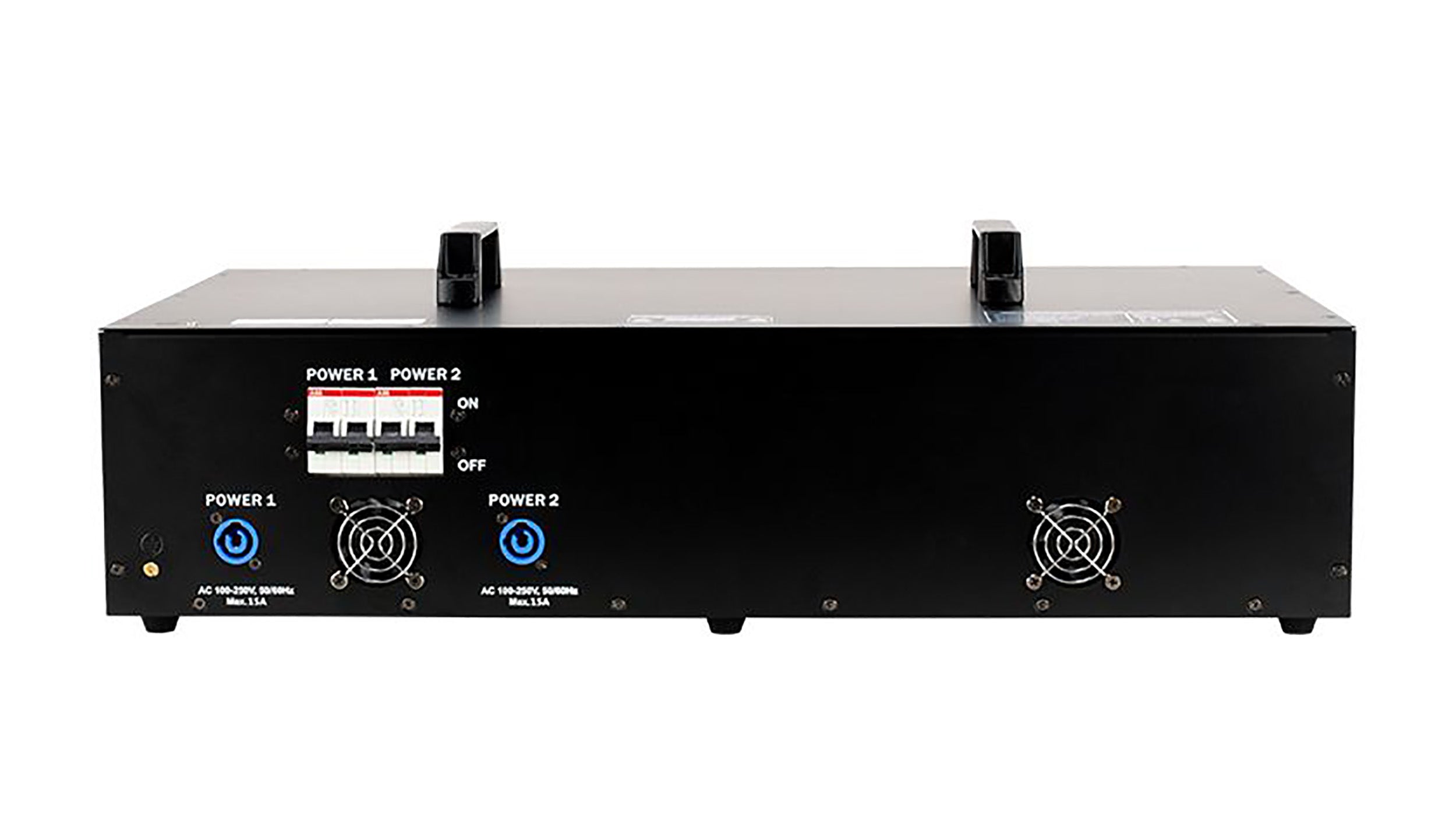

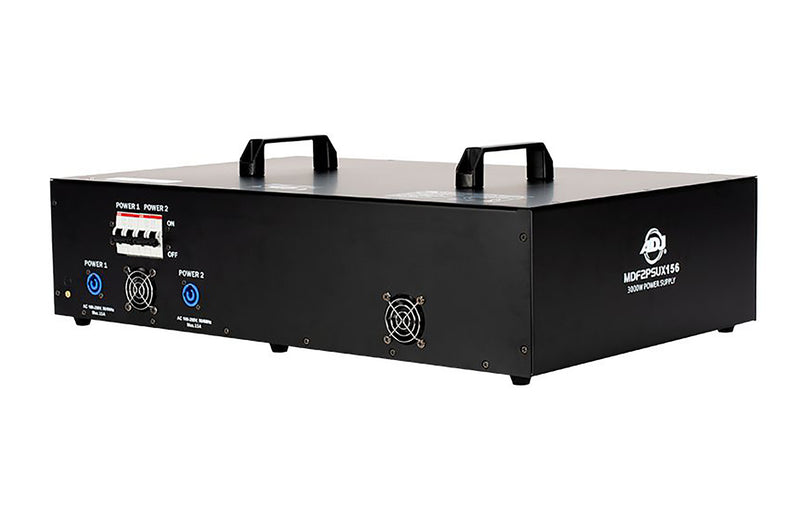

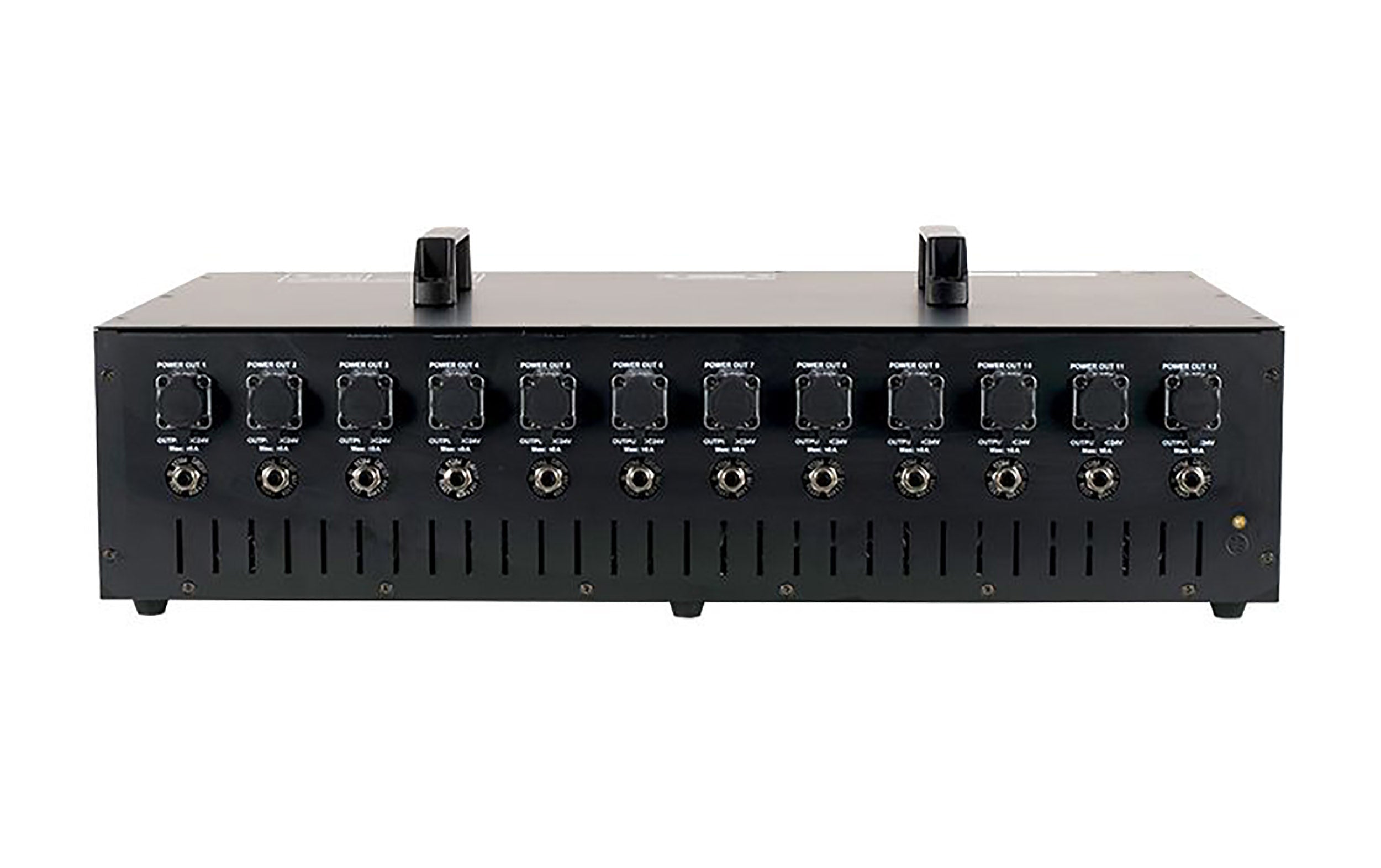

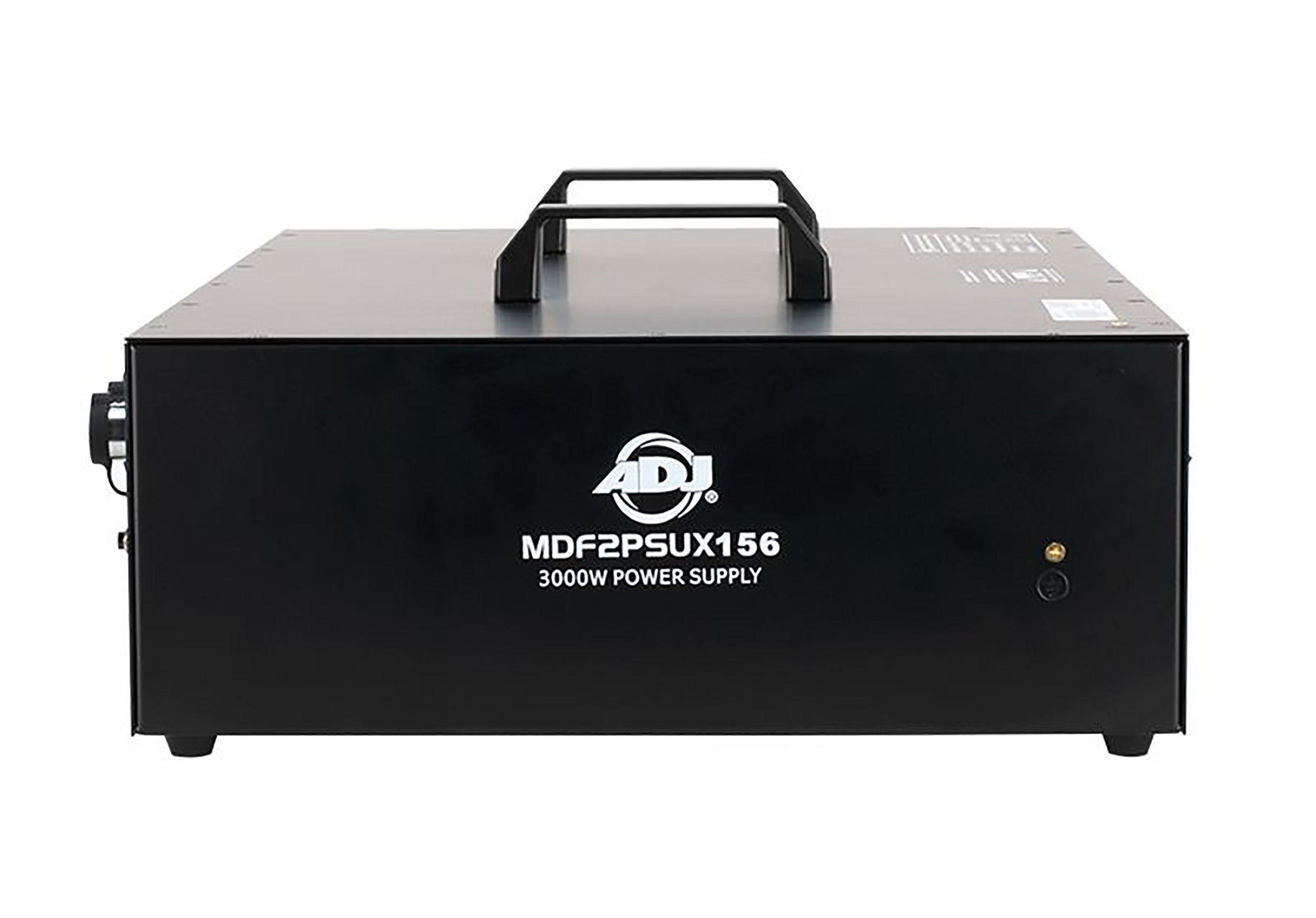

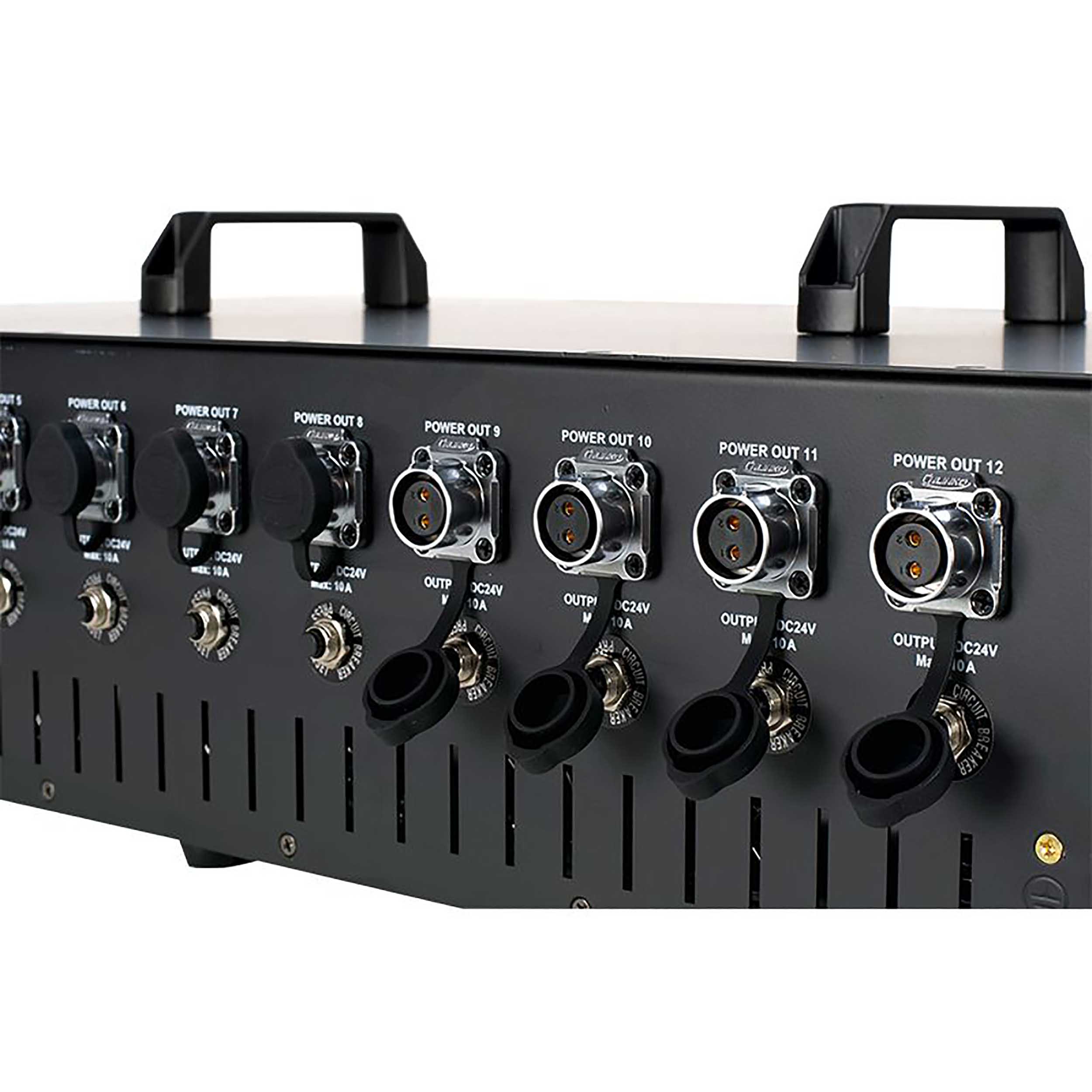

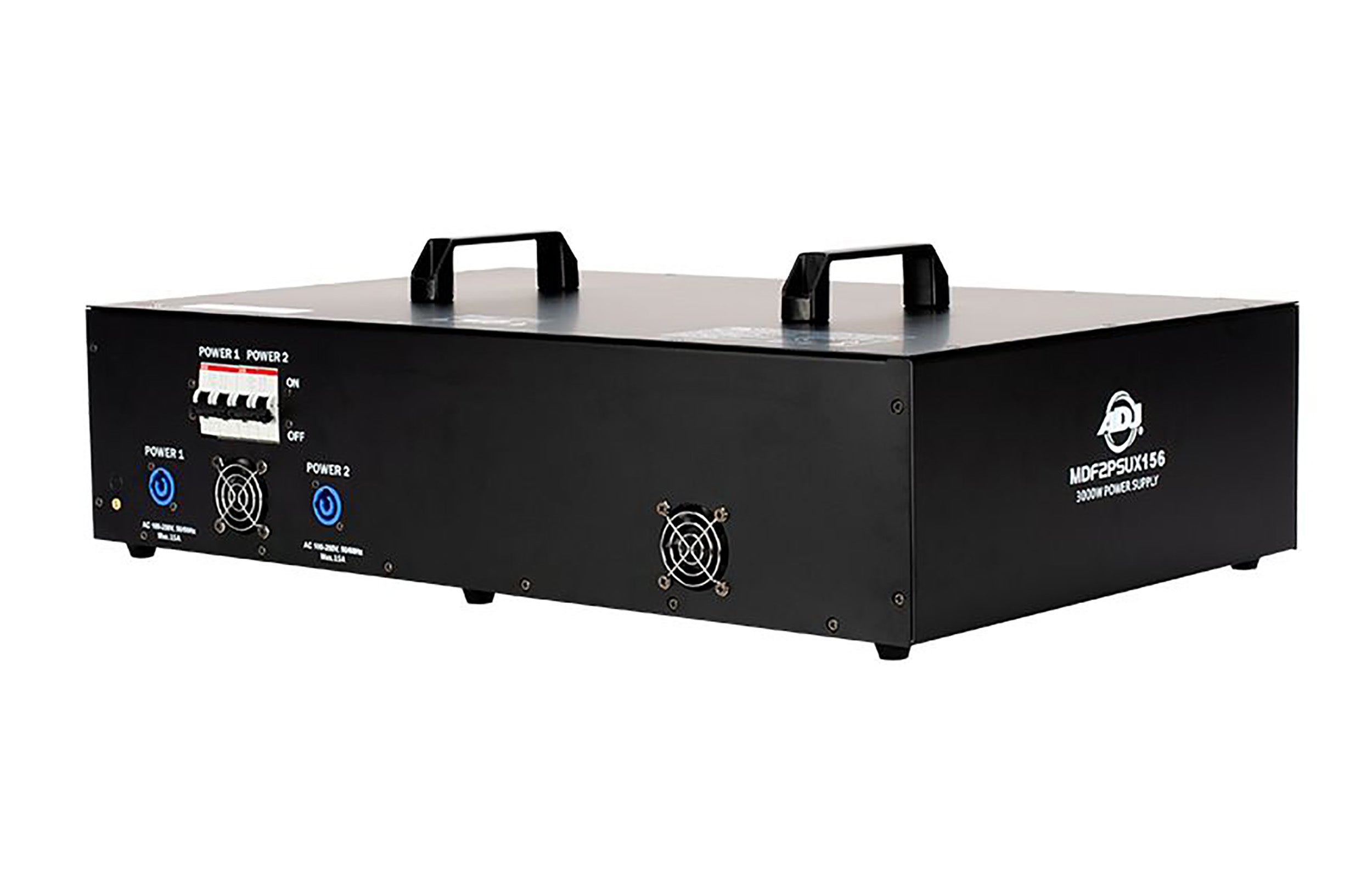

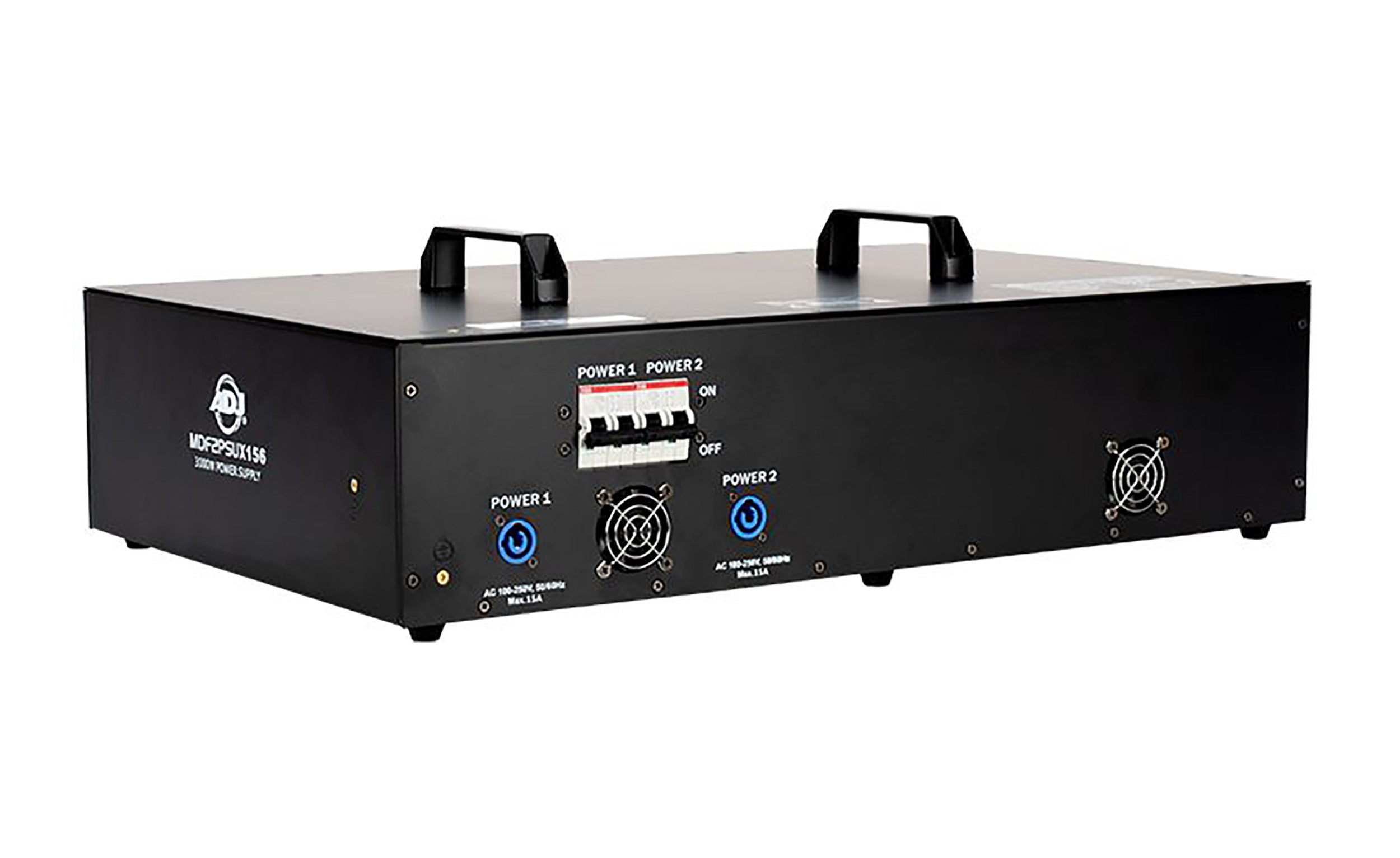

The ADJ MDF2PSUX156, External Power Supply for Up To 156 ADJ MDF2 Dance Floor Panels have two power locking inputs and two power breakers that each control 6 outputs. There are 12 power outputs with rubber protectors and 12 resettable breakers. There are two carrying hands on the top of the power supply, with rubber feet on the bottom. The MDF2PSUX156 has two fans to keep the unit cool.

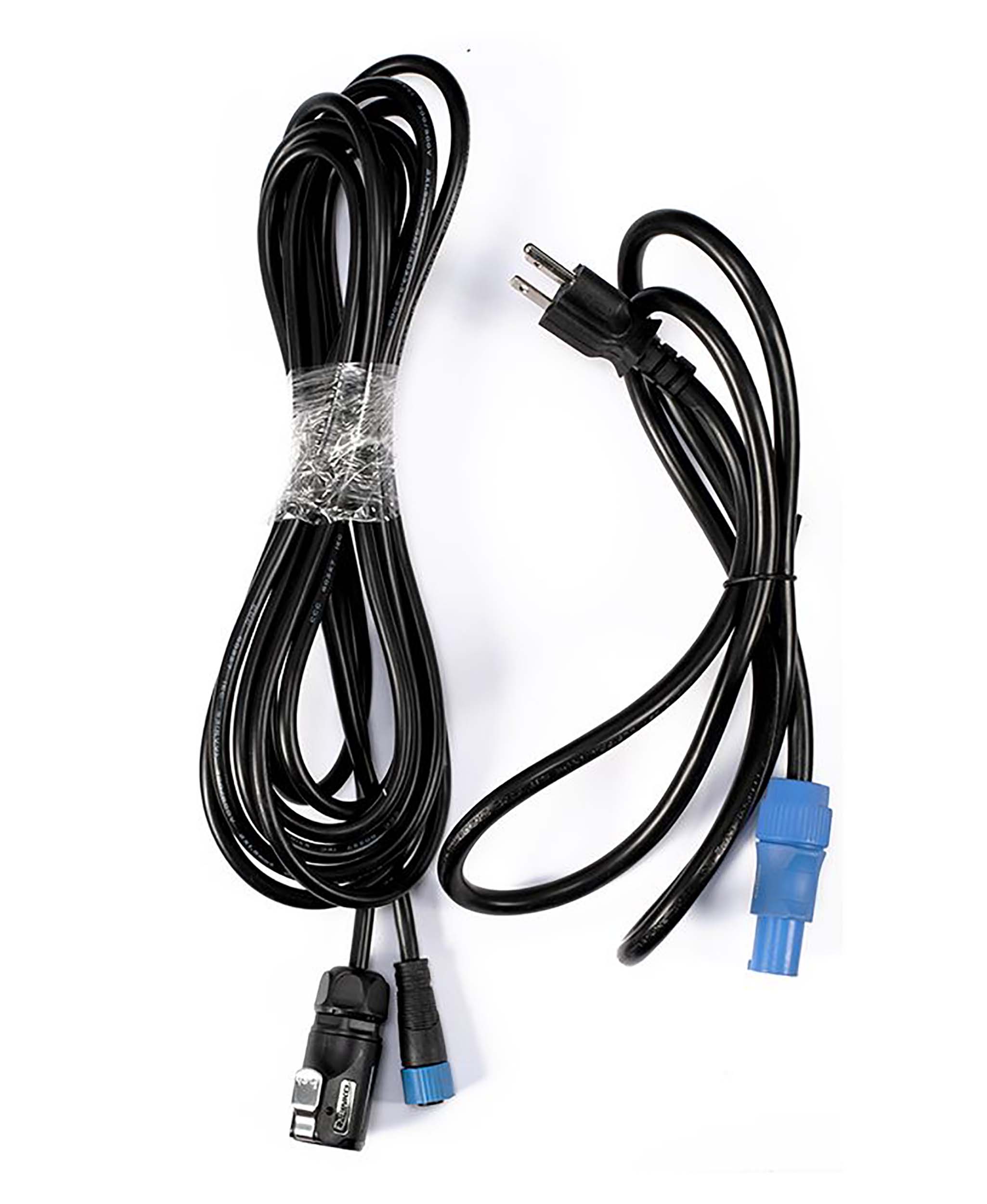

There are two locking input power cables and twelve 2-pin power output cables included in the box.
Product Specifications:
What’s Included:
Includes two (2) 3-foot locking power cables

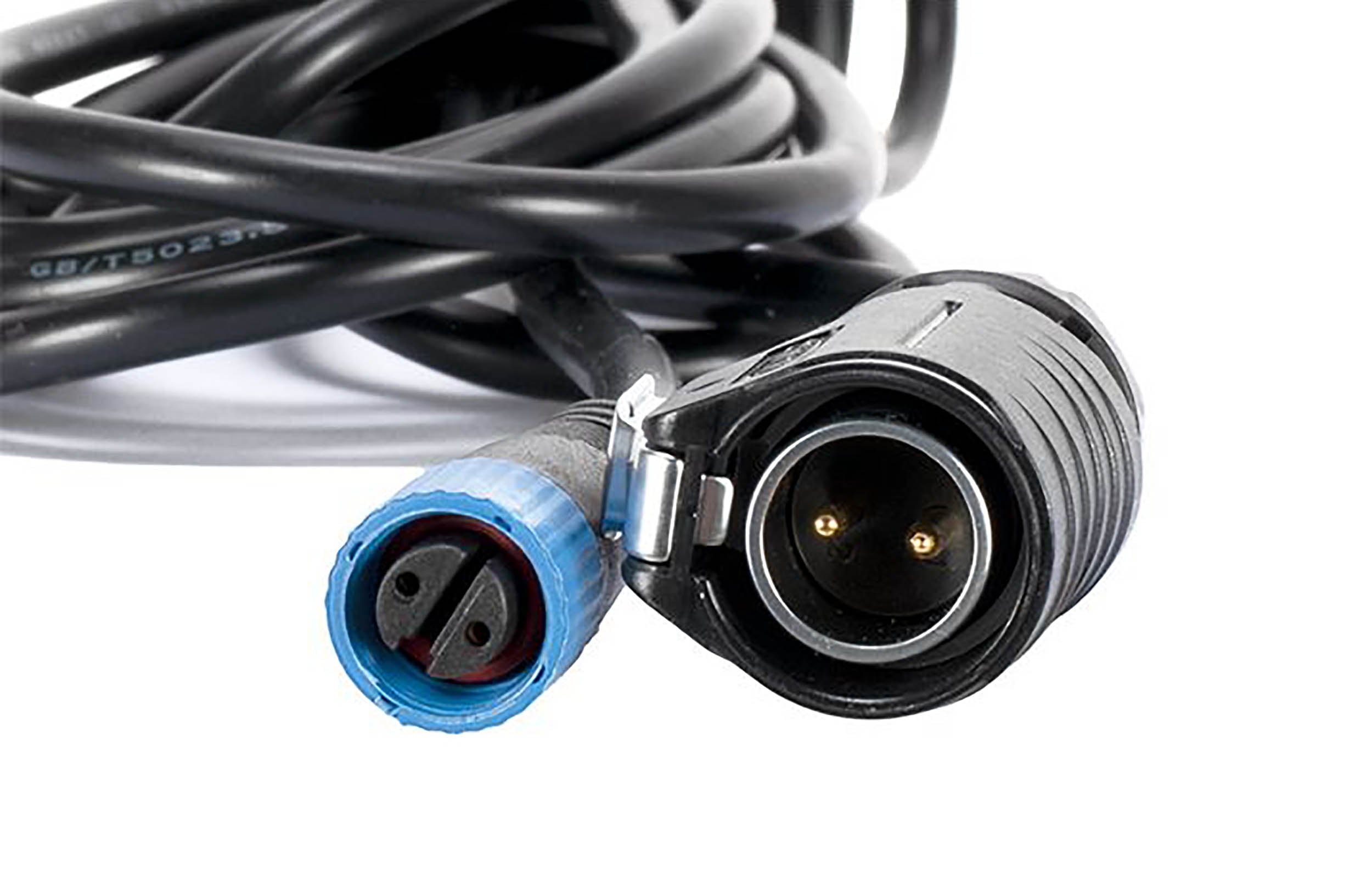

Includes twelve (12) 15-foot 2-pin power output cables to connect to MDF2 panels
Electrical:
Input Voltage: AC 100-240V, 50/60 Hz
Output Voltage: DC 24V
Maximum Load Power: 3000 W
Load Current: 120 A
Current Overload Protector Trip Time:
Within 10A of max load: no trip;
10-15A over max load: trip within 1 hour;
15-20A over max load: trips in 5.2 to 30 second;
20-30A over max load: trips in 1.5 to 5.5 seconds
Fan cooled
Dimensions / Weight:
Dimensions (LxWxH): 25.6” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
Weight: 37.9 lbs. (17.2 kg)
Ambient Operating Conditions:
IP Rating: IP20
Ambient Operating Temperature: -4˚F to 158˚F (-20˚C to 70˚C)
