Description

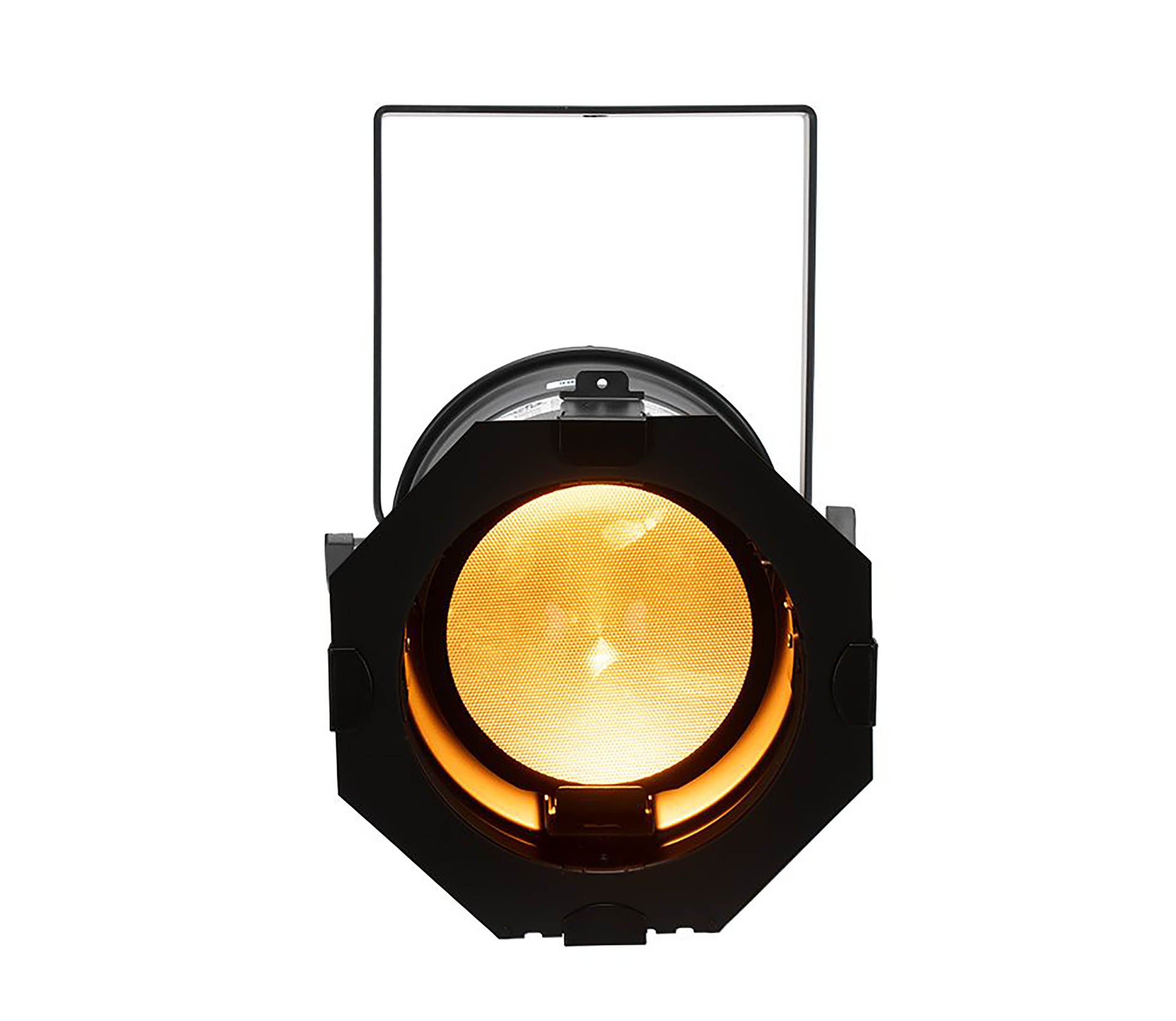

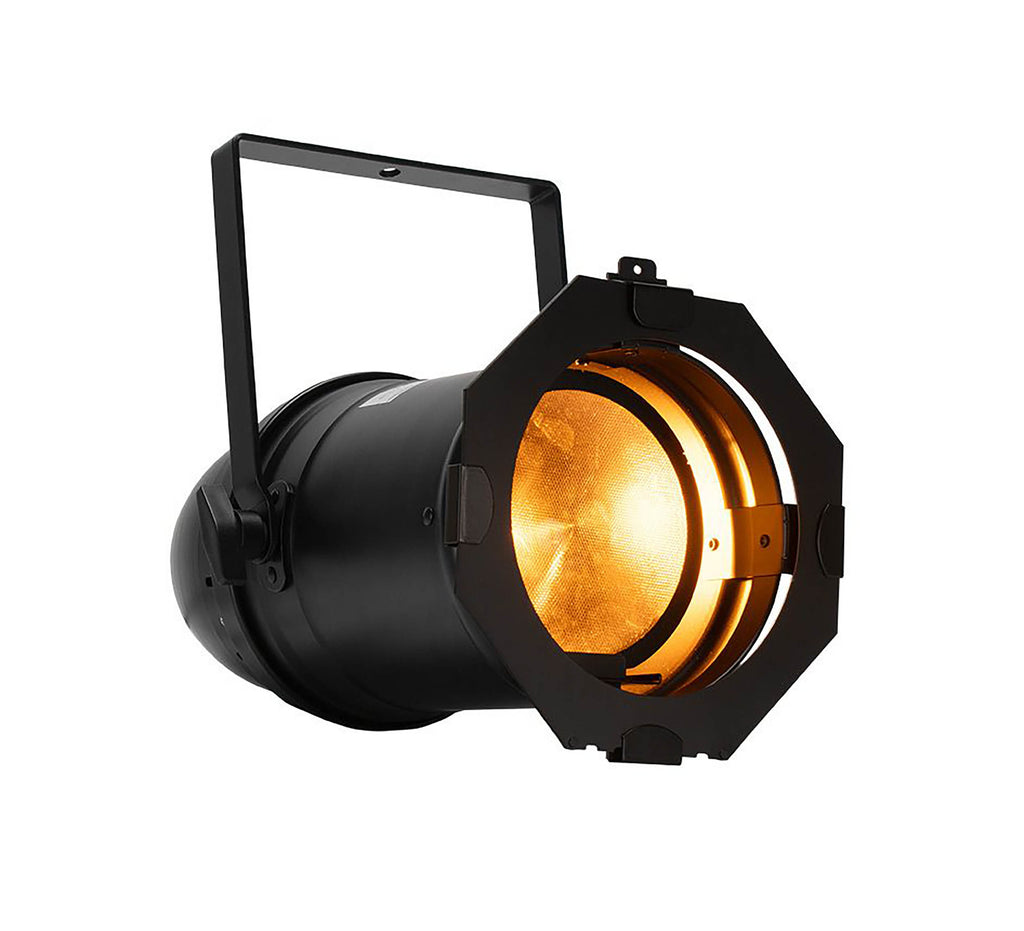

Blending the classic look of the traditional Par Can with the efficiency of modern LED technology, ADJ’s Par Z Series offers versatile wash lighting for a wide range of applications. The Par Z300 RGBA features a robust 300-watt quad-color (red, green, blue, and amber) COB LED engine, providing a wide array of color options, including adjustable white light with color temperatures from 2300K to 9900K. It also includes the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.
Its COB (Chip on Board) technology ensures consistent output without color shadows, while a high CRI of over 90 offers accurate color rendering, ideal for illuminating scenery, décor, or performers with natural skin tones and enhanced depth. With 64 color macros and additional white-light temperature macros, programming is quick and efficient. The fixture also includes six dimming modes, four dimming curves, and an onboard color balance feature, allowing for customization across various applications and preferences.

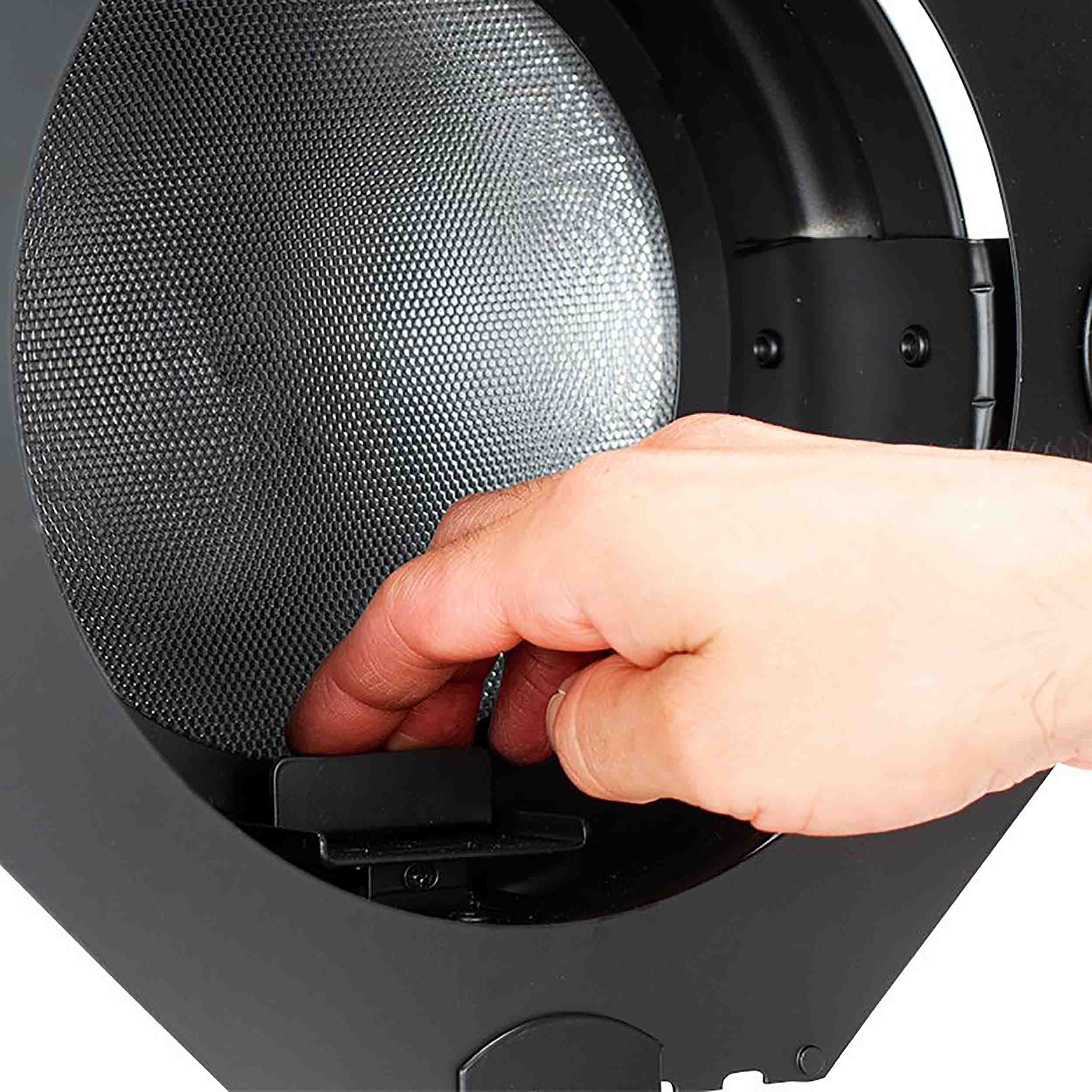

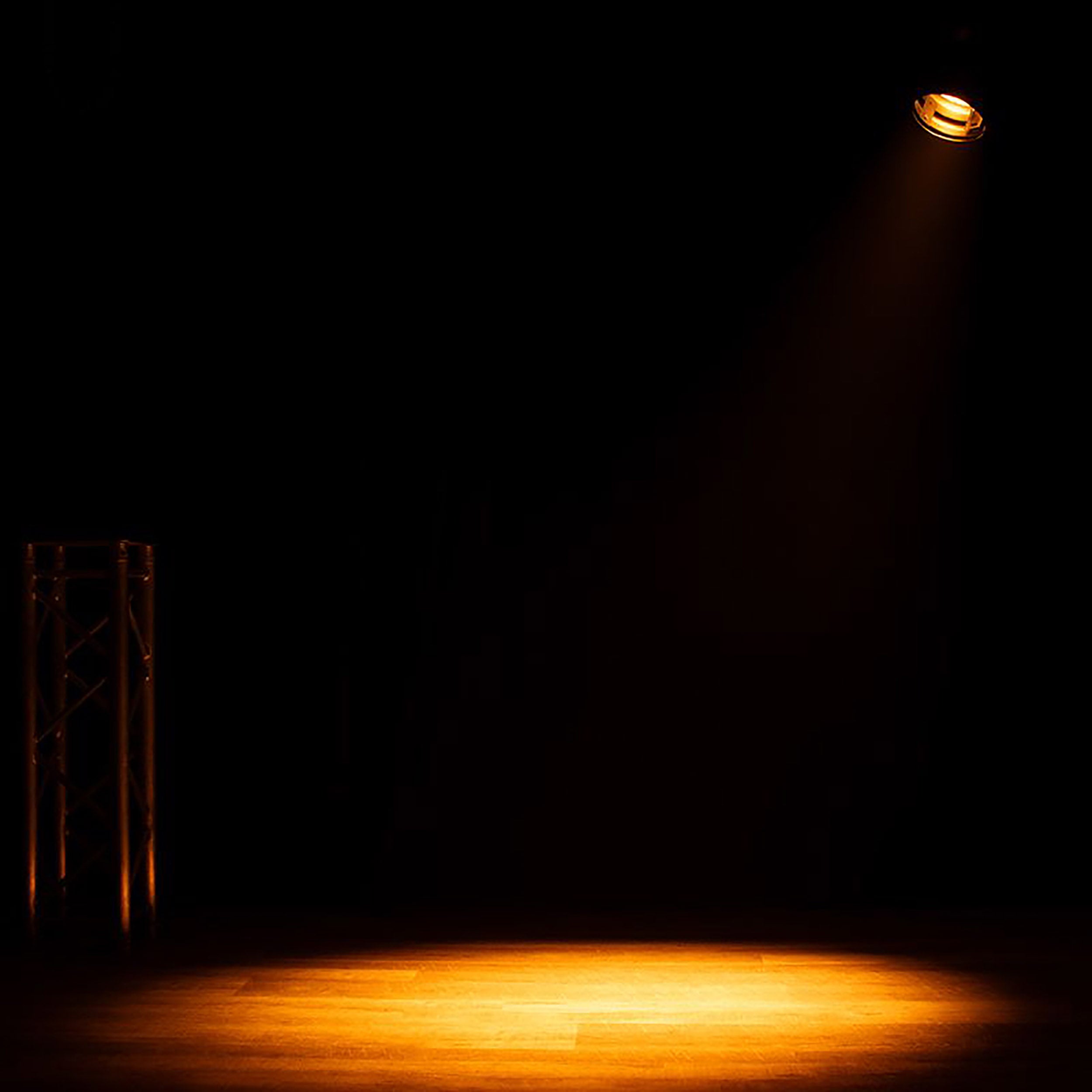

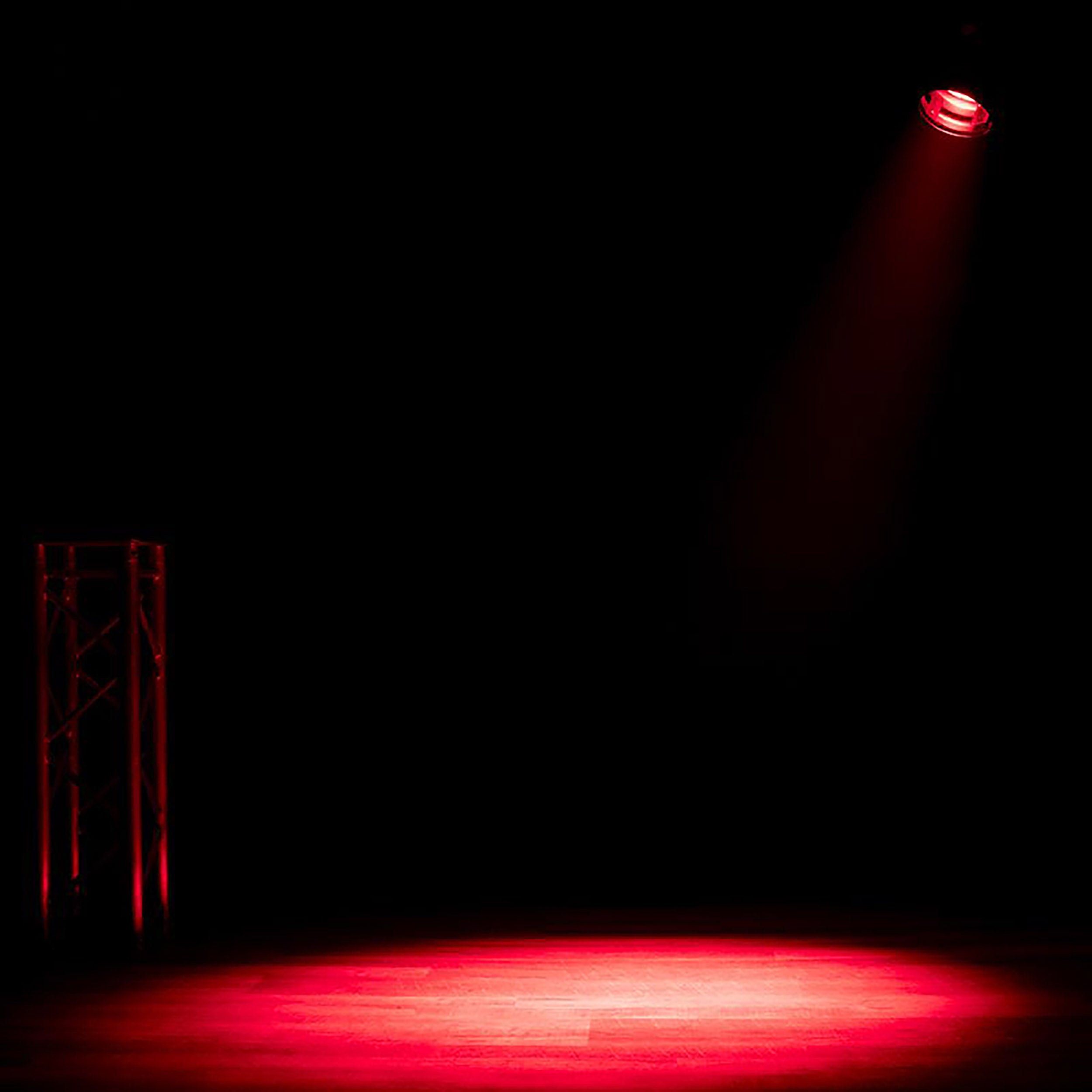

The unit offers seven manually adjustable beam angles (9°, 15°, 20°, 25°, 30°, 35°, or 40°) and comes with a gel frame for optional diffusion filters (sold separately) to expand the light spread. The LED engine also provides smooth dimming, variable-speed strobing, and adjustable refresh rates. With a lifespan of 50,000 hours, the LED light source minimizes the need for frequent replacements.

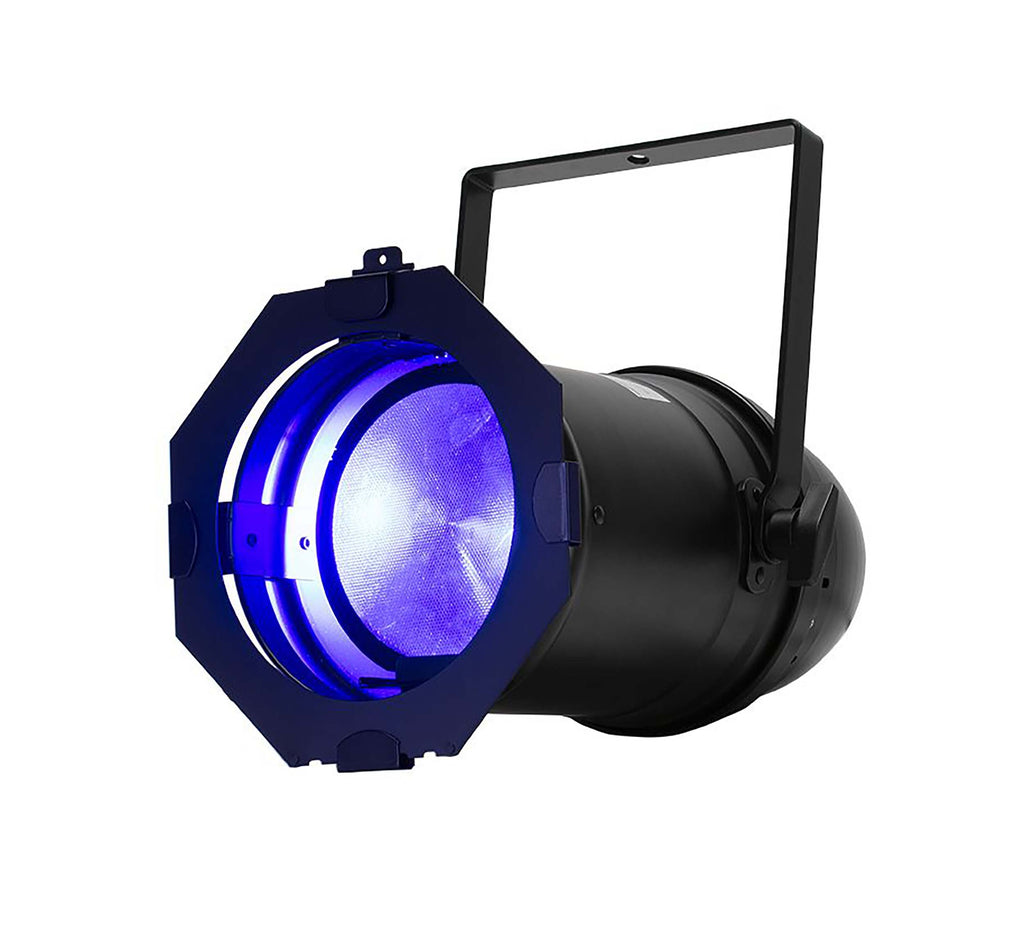

An adjustable yoke, secured with large thumb screws, allows flexible positioning on trusses or stands. The rear panel includes 5-pin DMX input and output, locking power sockets for daisy-chaining multiple units, an LED display, and four push buttons for mode selection and DMX addressing. The fixture is also RDM-compatible for remote addressing.
Product Specifications:
Optical:
300-Watt Quad RGBA C.O.B. LED (Chip on Board - Red, Green, Blue & Amber)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 9, 15, 20, 25, 30, 35 or 40-degrees
Zoom Ration: 4.4:1
Photometrics:
5230 Lux (Zoomed In to 9°)
597 Lux (Zoomed Out to 40°)
CRI: >90
Connections:
DMX: 5-pin DMX in/Out
With Wired Digital Communication Network
Locking power in/Out connections
Control:
DMX-512 and Aria X2 Wireless DMX / APP
9 DMX control modes: (4/5/9A/9B/13 & 15 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Electrical:
Power Draw Total (All LEDs @ Full On): 320W
Power Consumption: 2.7A @ 120V/60Hz; 1.5A @ 220V/50Hz
Multi-Voltage Operation: AC 100-240V, 50/60Hz
Daisy Chain: 2 fixtures @ 120V; 4 fixtures @ 230V
Fuse Protected: 8A/250V
Ambient Temperature Range (For Use):-4° ~ 104°F (-20°C ~ 40°C)
Storage Temperature Range:-22° ~ 113°F (-30°C ~ 45°C)
Dimensions (LxWxH): 20.08” x 15.33” x 10.14” / 510 x 389.3 x 257.5mm
Weight: 13.23 lbs. / 6kg.
IP Rating / Approvals:
IP20
CE & FC
ETL (Pending)
Included Accessories:
Gel Frame

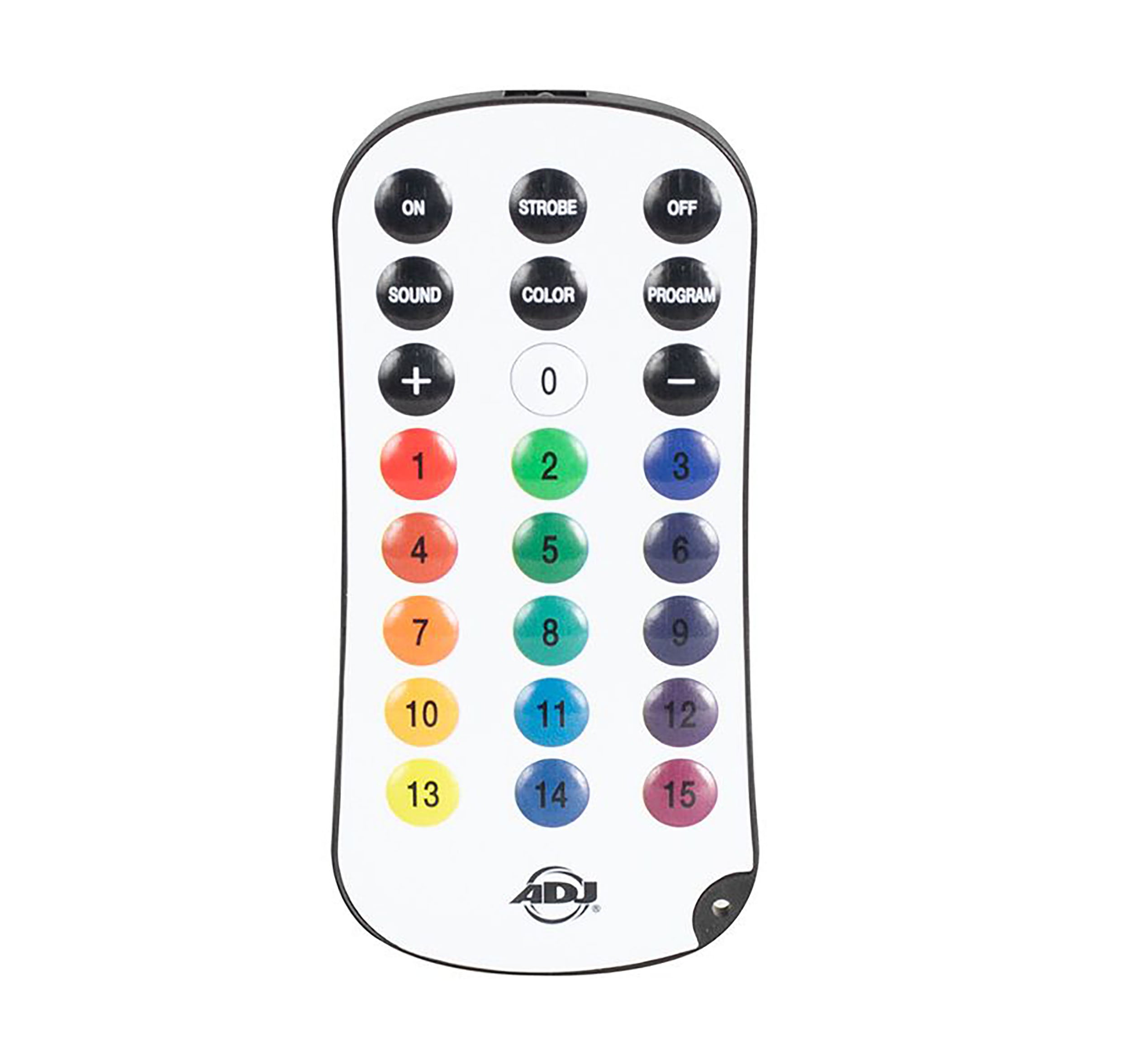

UCIR24 Wireless Remote
Power Cord
Shipping Weight: 15 lbs.
Shipping Dimensions:20 x 15 x 10 inches
