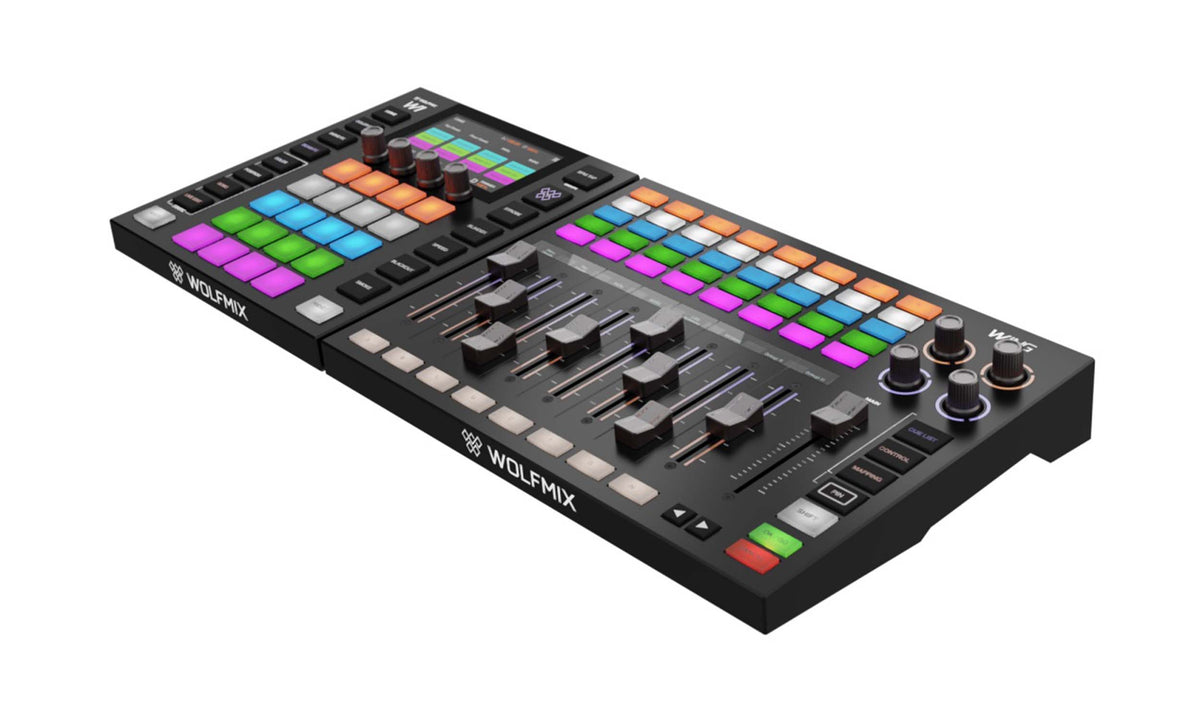

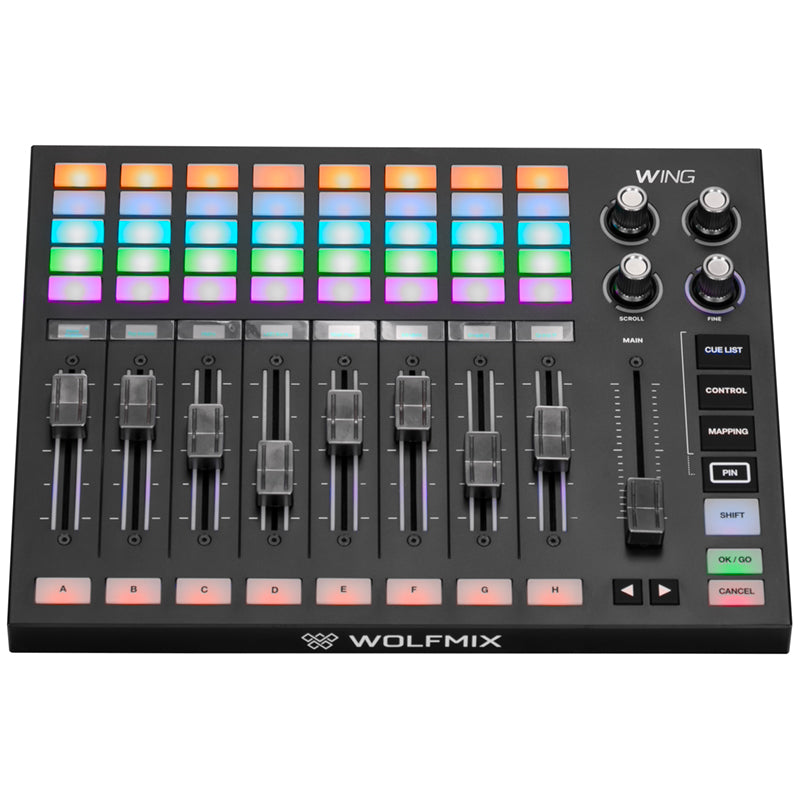

The ADJ WMX1 WING is a professional lighting controller extension powered by WOLFMIX, designed to expand the hands-on control capabilities of compatible ADJ WMX1 lighting controllers. Featuring eight motorized, touch-sensitive faders, eight OLED displays, and a large RGB-backlit button matrix.

Designed for fast programming and real-time operation, the WMX1 WING includes dedicated group selection buttons, four rotary encoders, and physical OK/GO, CANCEL, SHIFT, and PIN controls. Its Cue List mode supports structured show sequences, preset stacking.

The WMX1 WING also expands connectivity and programming capacity with four assignable DMX outputs, including two 3-pin and two 5-pin XLR connectors.

Key Features

• Eight motorized, touch-sensitive faders with automatic synchronization.
• Eight OLED displays with 64 × 32-pixel resolution.
• Eight RGB fader lightguides with four RGB LEDs per fader.

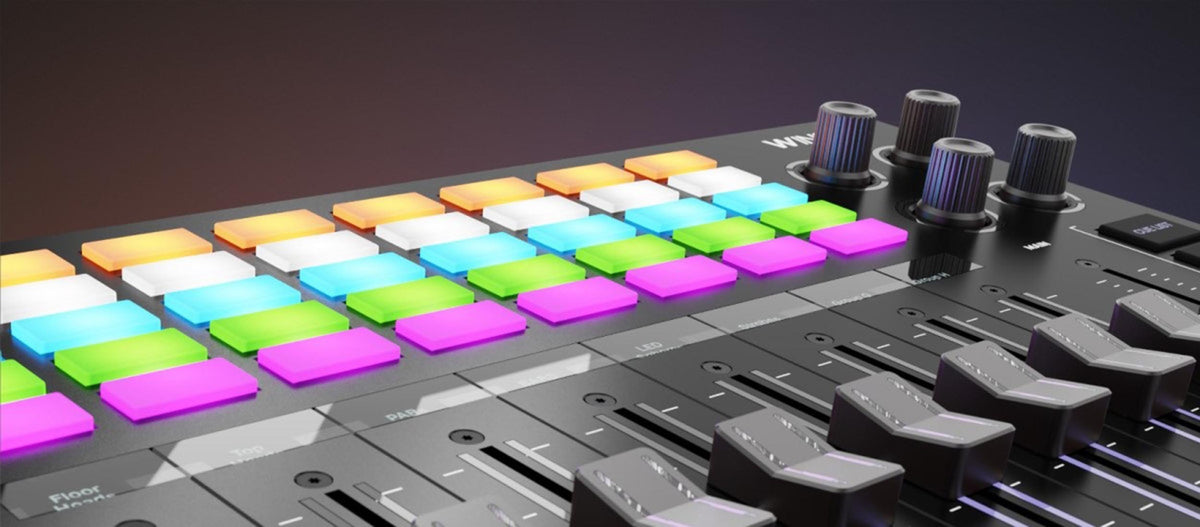

• 57 RGB-backlit silicone buttons.

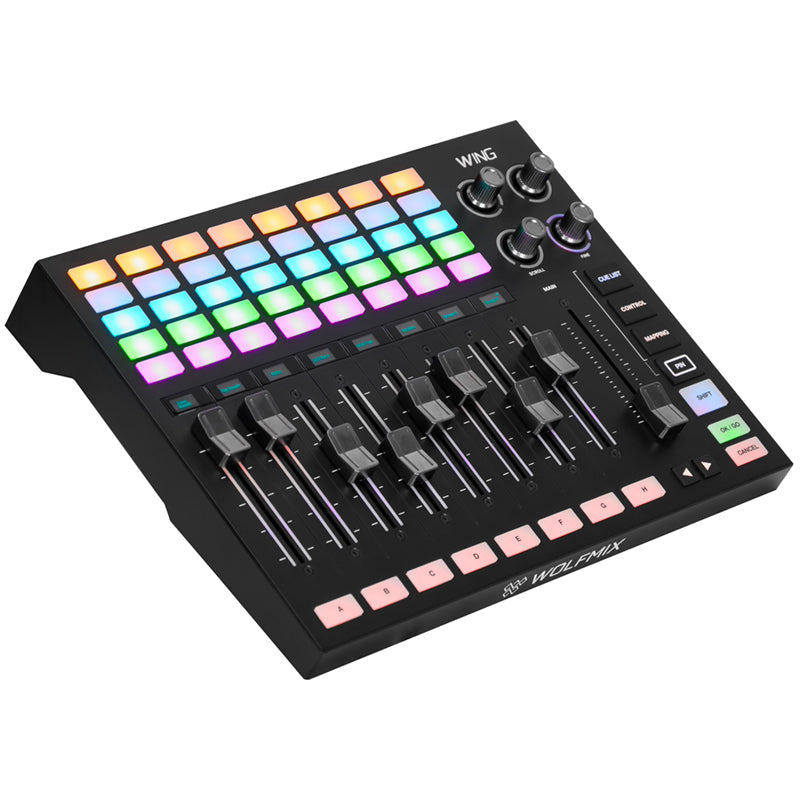

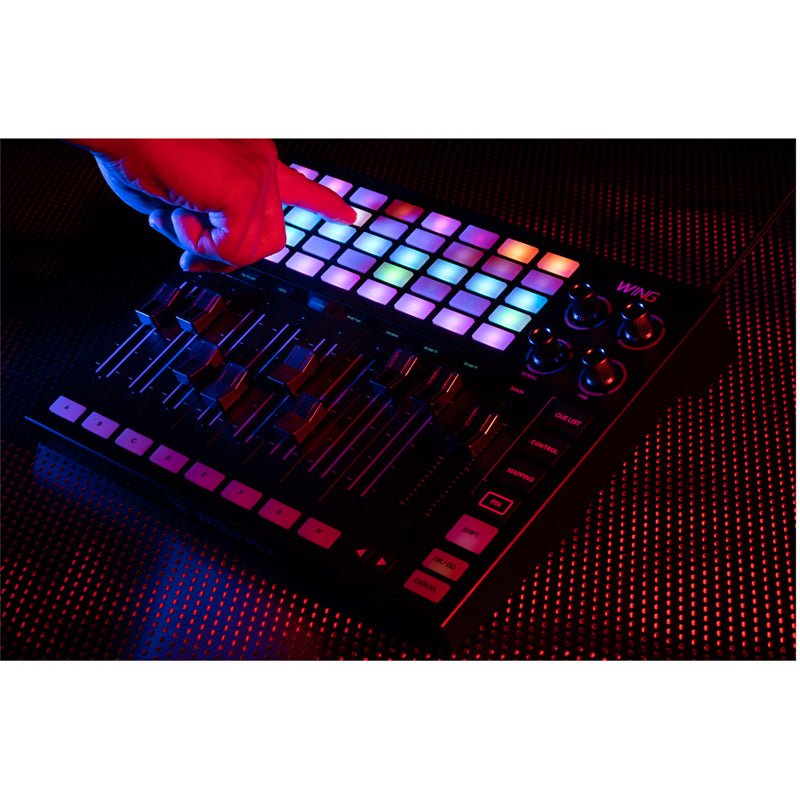

• 8 × 5 RGB button matrix and eight fixture group buttons.
• Four rotary encoders, including one detented and three non-detented encoders.
• Dedicated OK/GO, CANCEL, SHIFT, and PIN controls.
• Cue List, Control, and Mapping operating modes.
• Four assignable DMX outputs: two 3-pin and two 5-pin XLR.

Ideal For

• Professional DJs and mobile entertainers.
• Lighting operators and programmers.
• Concerts and live music performances.
• Nightclubs and entertainment venues.
• Touring and stage productions.
• Corporate events and presentations.
• Theaters and performance spaces.
• Complex lighting shows requiring direct parameter control.
• Productions using compatible ADJ WMX1 controllers.

What’s in the Box

• ADJ WMX1 WING lighting controller extension.

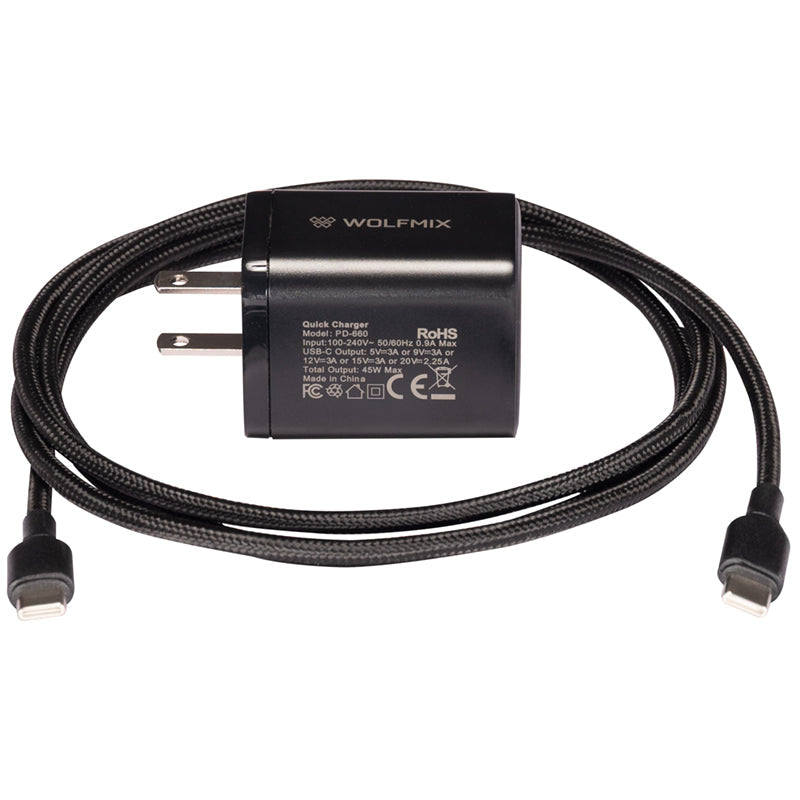

• Additional accessories and cables: Not specified in the supplied product information.

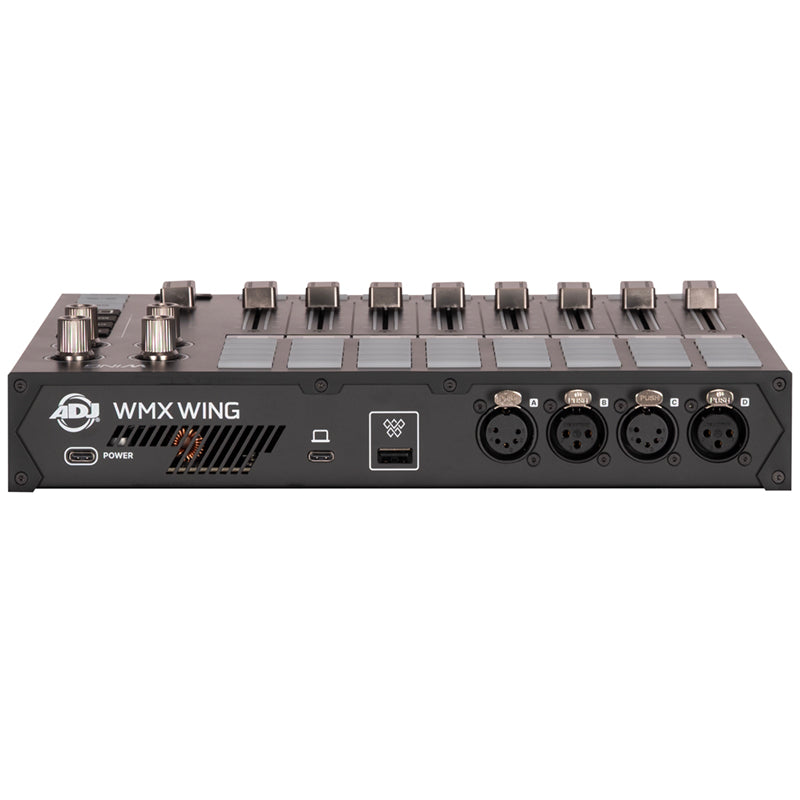

Inputs & Outputs

• DMX Outputs: 4 assignable outputs.
• 3-Pin DMX OUT: 2 × 3-pin XLR.
• 5-Pin DMX OUT: 2 × 5-pin XLR.
• USB-C Power: 15 V, 3 A.
• USB-C Data: Supported.
• USB-A: Connects to and powers a compatible WMX1 controller.
• DMX Universe Assignment: Each output can be assigned to an available universe.

Frequently Asked Questions

What is the ADJ WMX1 WING?

The ADJ WMX1 WING is a dedicated control extension for compatible ADJ WMX1 lighting controllers. It adds motorized faders, OLED displays, physical buttons, rotary encoders, and additional DMX connectivity for more hands-on lighting control.

Which controllers are compatible with the WMX1 WING?

It is compatible with the ADJ WMX1, WMX1 MK2, and WMX1 MK3 controllers, corresponding to the Wolfmix W1 MK1, MK2, and MK3 generations.

Can the WMX1 WING operate as a standalone lighting controller?

It is primarily designed as an expansion for compatible WMX1 controllers. With no project loaded, it can also operate as a generic MIDI control device.

How many motorized faders does it have?

The WMX1 WING features eight motorized, touch-sensitive faders with automatic position synchronization and individual OLED strip displays.

What are the three operating modes?

Cue List mode manages show sequences and playback; Control mode provides direct access to fixture parameters; and Mapping mode lets users assign physical controls to lighting functions, presets, effects, macros, and other commands.

Full Technical Specifications

Control Surface Specifications

Motorized Faders	8
Fader Type	Electroplated capacitive touch
Fader Lightguides	8
LEDs per Fader Lightguide	4 RGB LEDs
LED Operation	Single- or dual-color
Main Fader	1
OLED Displays	8
OLED Resolution	64 × 32 pixels each

DMX Specifications

Included DMX Universes	2
Maximum Universes with Add-On	4

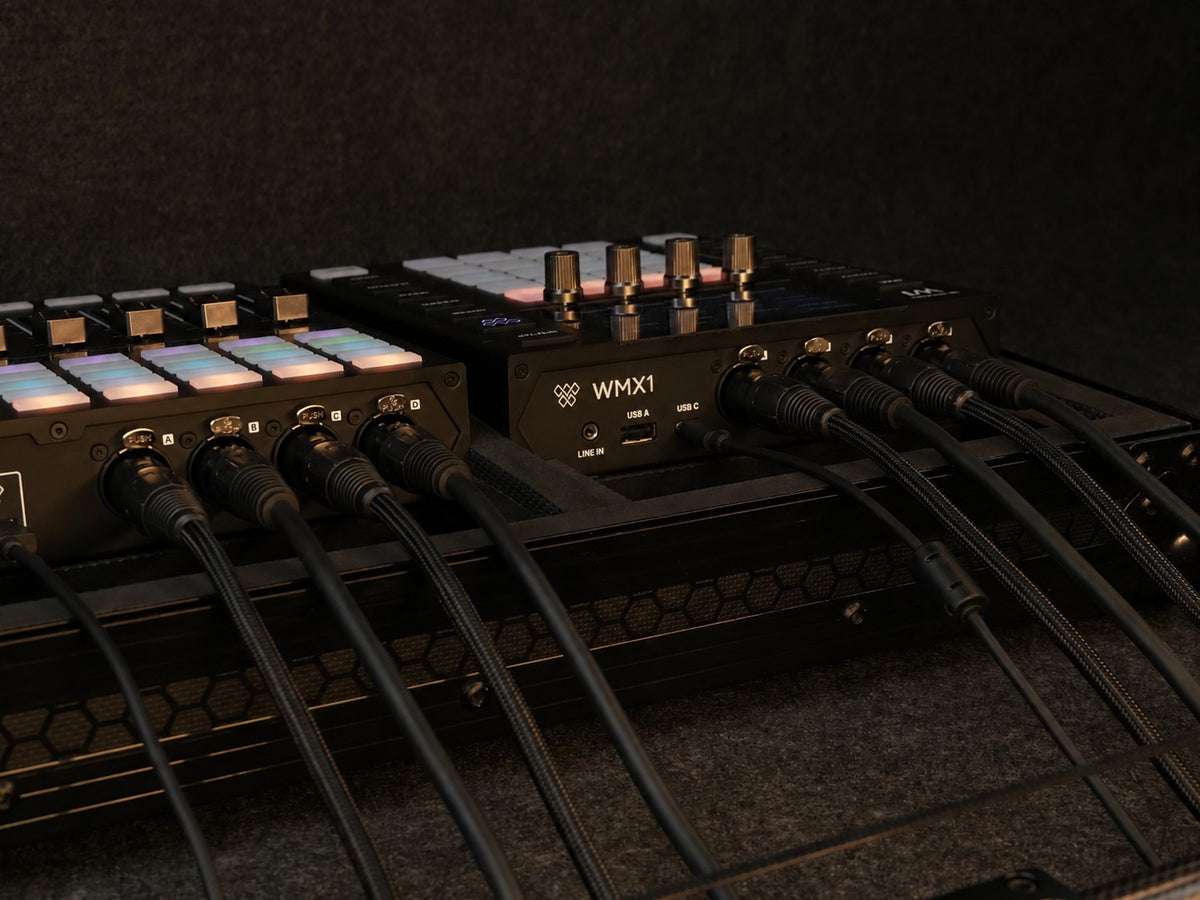

Maximum Fused System Universes	Up to 8 with WMX1
Maximum Fused DMX Channels	4,096
DMX Outputs	4
3-Pin DMX Outputs	2
5-Pin DMX Outputs	2

Fixture & Project Capacity

Maximum Fixtures	Up to 680
Maximum Beams	Up to 1,500
Maximum Fixture Types	Up to 50
Maximum Fixture Features	Up to 5,000
Fixture Groups	8
Subgroups	8 per group
Projects	Up to 100 or 3.5 MB of project data, whichever is reached first
Fixture Library	30,000+ available fixtures

Cue List Specifications

Maximum Cues	5,000
Maximum Cues per Cue List	1,000
Maximum Cue Lists	100
Preset Stacking	Up to 5 presets per cue when controlling different parts
Hold Time	Supported
Fade Time	Supported
Automatic Cue Jump	Supported
Manual Cue Jump	Dedicated OK/GO button
Manual Cue Fade	Motorized faders
Pause/Resume Running Fade	CANCEL button or by grabbing the active cue fader
Cue List Looping	Supported
MIDI Time Code (MTC)	Supported

Control Mode Specifications

Fixture Selection	Up to 680 fixtures across the matrix
Selection Macros	All, None, Evens, Group, Subgroup, Invert
Group Filtering	Dedicated group buttons
Dimmer Control	Direct fader control
Color Control	Red, Green, Blue, White, Amber, UV, Lime
Pan/Tilt Control	16-bit control

Connectivity Specifications

USB-C Power	15 V, 3 A
USB-C Data	Supported
USB-A	Connects to and powers WMX1
3-Pin DMX	2 × XLR outputs
5-Pin DMX	2 × XLR outputs
Wireless Connectivity	Not specified in the supplied specifications

Physical Specifications

Product Weight	3.4 lbs

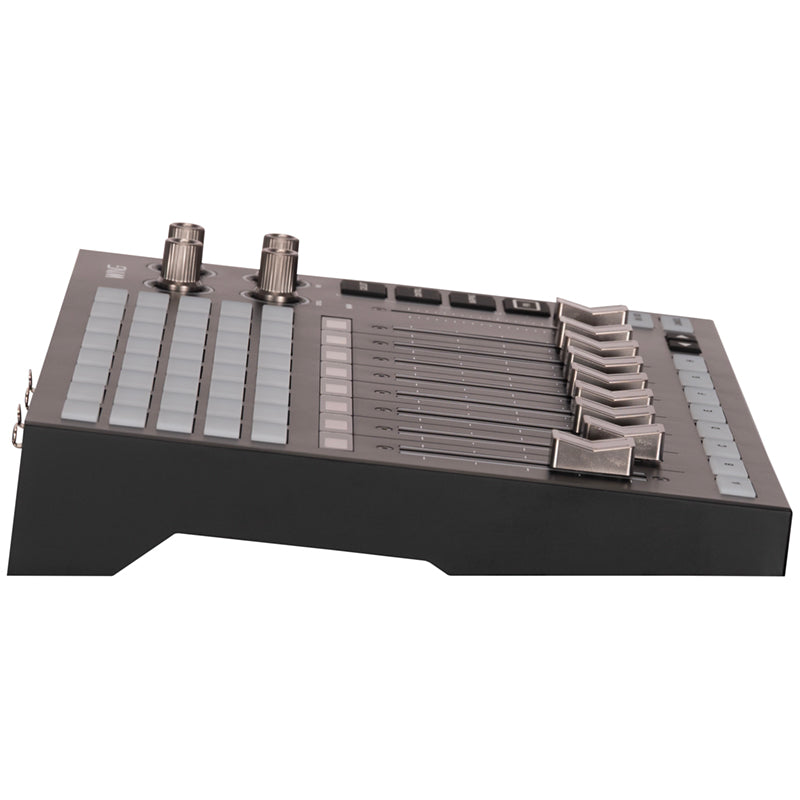

Product Dimensions	2.25" H × 11.4" W × 8.7" L
Shipping Weight	4.39 lbs
Shipping Dimensions	3.60" H × 9.85" W × 12.90" L
