Description

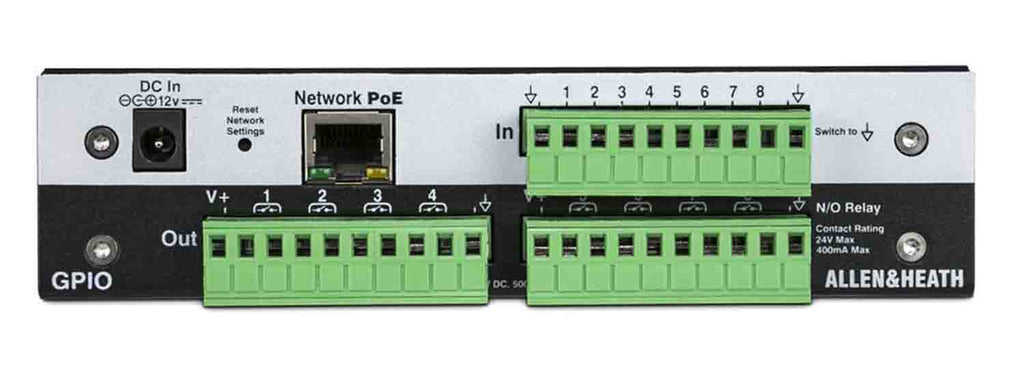

The Allen & Heath GPIO General Purpose I/O Interface for Remote Control. GPIO is a general-purpose IO switching interface for control integration of an AHM matrix processor or dLive/Avantis mixing system and 3rd party hardware, offering 8 opto-isolated inputs and 8 normally open (N/O) relay outputs on Phoenix connectors in addition to 2x +10V DC outputs.

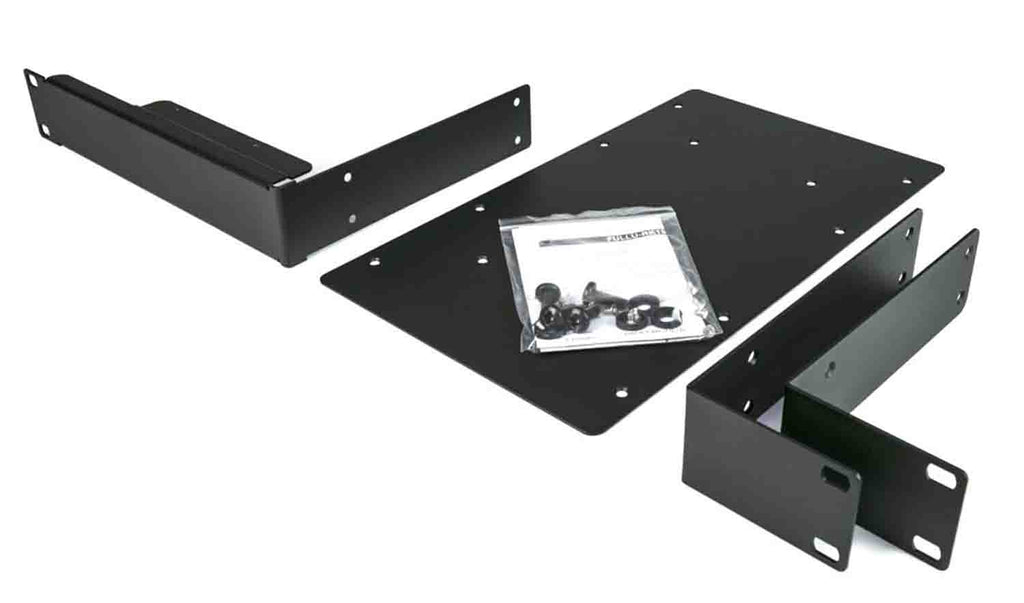

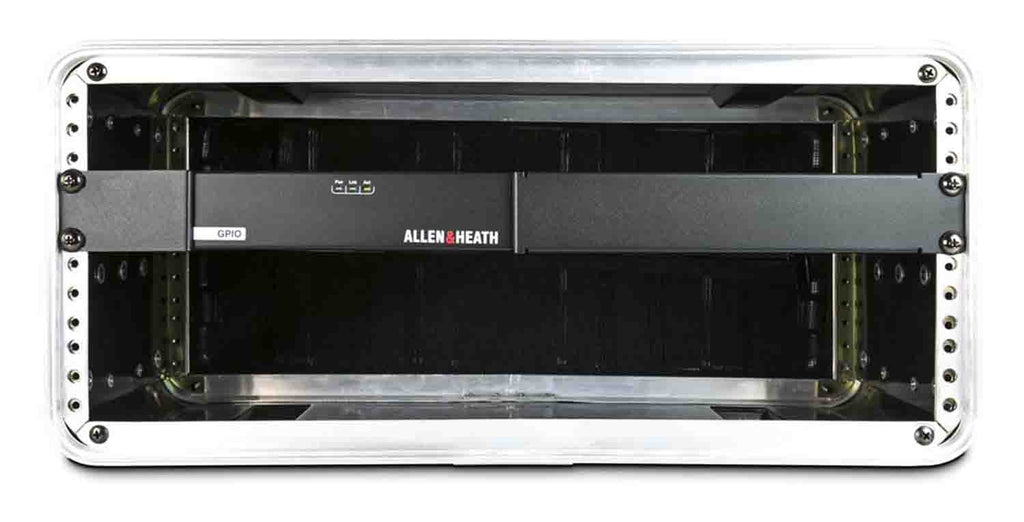

The unit can be installed in a 19” rack (1u / ½ width) or can be operated freestanding, and up to 8 GPIO modules can be connected to a dLive system – directly or via a 100Mb/s network switch – using Cat5 cable. GPIO functions are programmed using AHM System Manager or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface, and can suit a number of applications including EVAC (alarm / system mute), broadcast (on air lights, fader start logic) and theatre automation (curtains, lights).
Product Specifications:
Relay Output Max Voltage: 24V
Relay Output Max Current: 400mA
Input: Switched to ground
External Power Output: +10VDC / 500mA max
Operating Temperature Range: 32°F to 95°F
Weight: 2.7lbs
Boxed Dimensions: 6.75" x 8" x 1.7"
Boxed Weight: 6.6lbs
