American Audio WM-419 4-Channel Wireless UHF Handheld Mic System

The American Audio WM-419, 4-Channel wireless UHF handheld microphone system includes four wireless microphones, a wireless receiver with individual volume control and XLR audio output for each microphone, batteries and four mic clips. The WM-419 features American Audio’s Intelligent frequency Autoscan with IR synchronization with 50 channels per receiver (200 total), as well as, 16-Bit Pilot Technology to assist with eliminating frequency interface.

The WM-219 is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10-hour battery life.

Product Specifications:

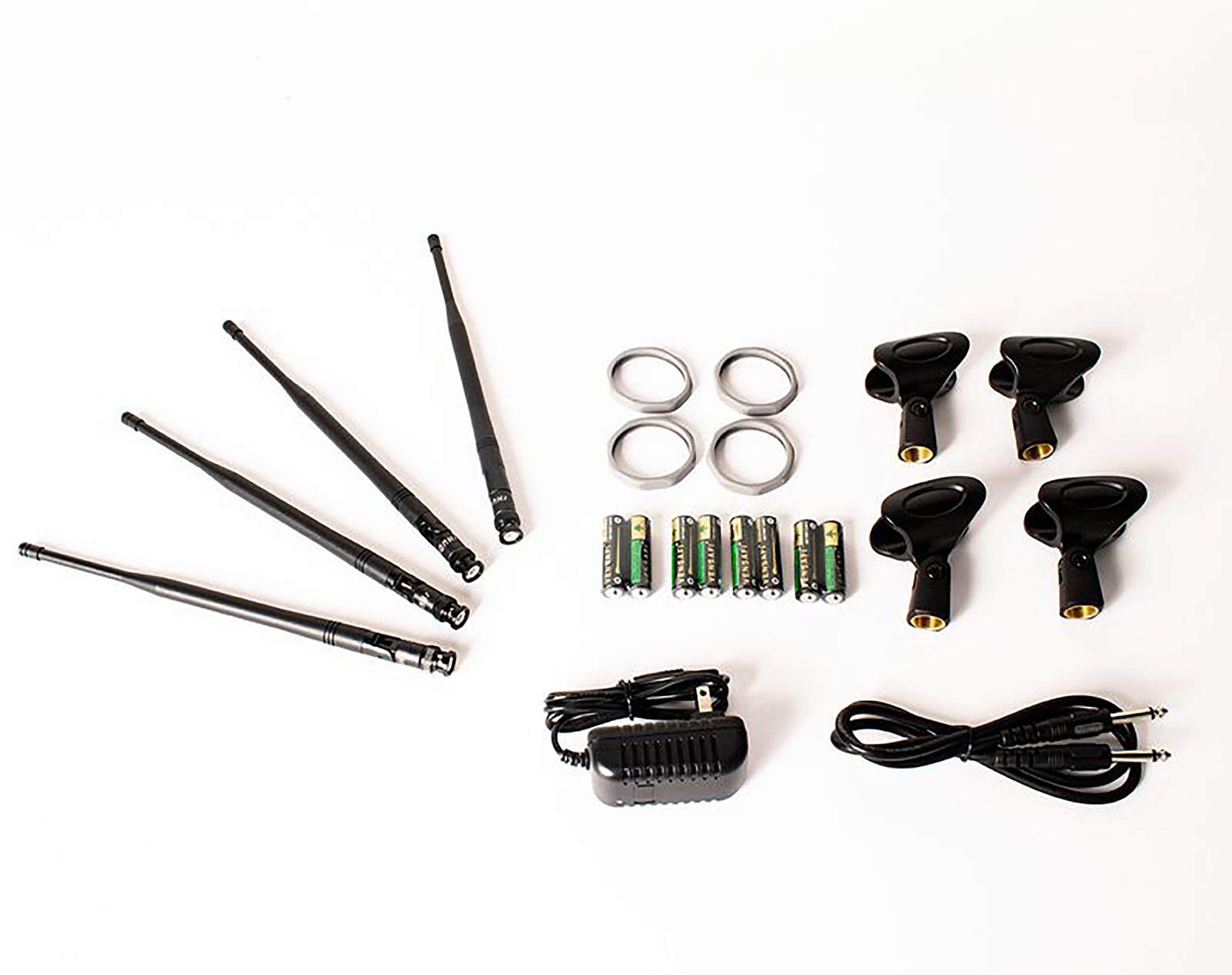

What’s Inside:

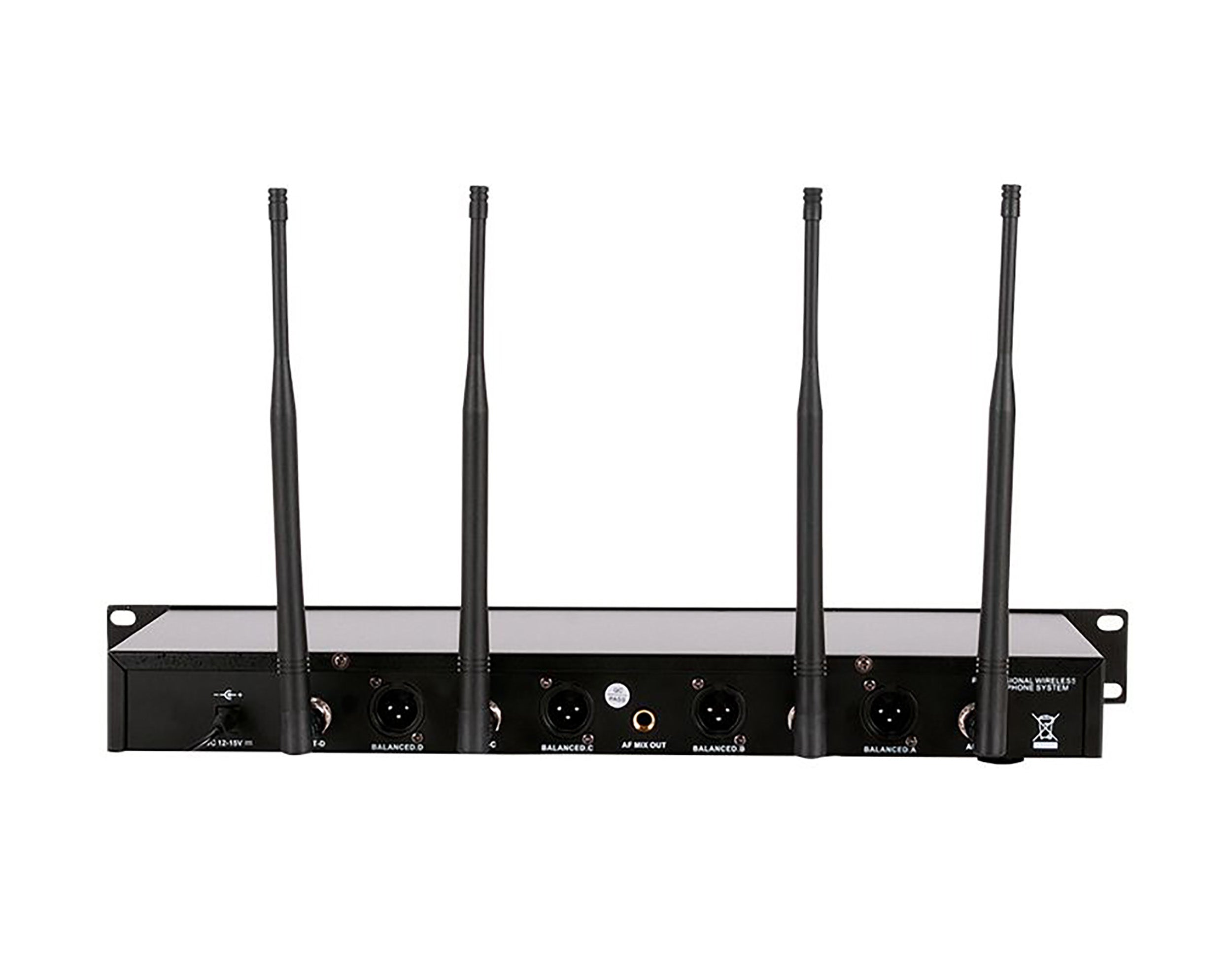

1x 4-Channel UHF Wireless Receiver

4x Detachable UHF Antennas

1x Power Supply

1x ¼” to ¼” stereo cable

4x Microphone clips

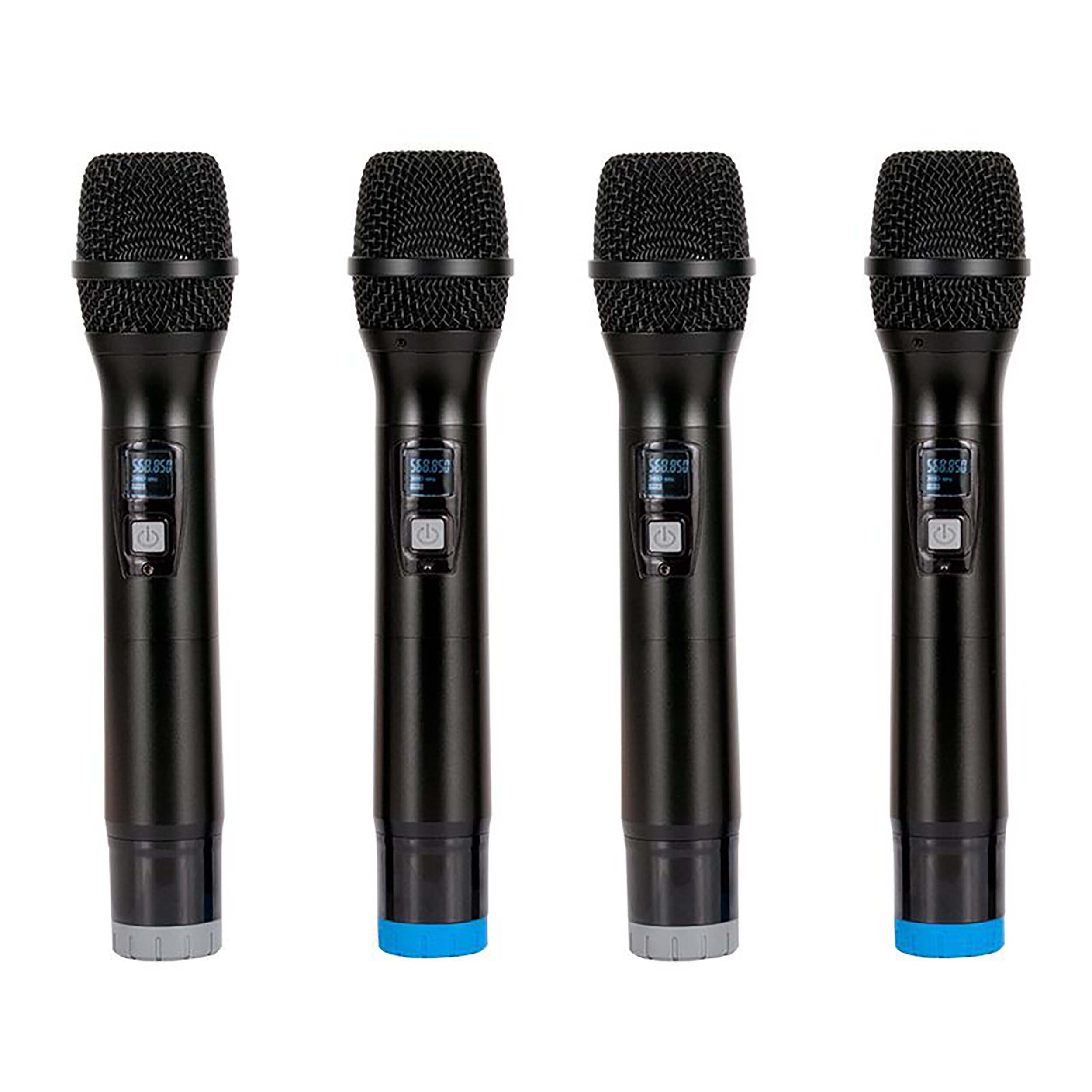

4x Hand Held Wireless Microphones (AA batteries included)

Performance:

Wireless Range: 300 ft. (90M) line of site*

Battery life with full charge: 6-10 hours

Operating Frequency Range: UHF 540-590MHz

Dynamic Range: >98dB

Total Harmonic Distortion: <1%

Frequency Response: 50HZ ~ 14KHz 3dB

Signal to Noise Ratio: >85dB

Audio Output Level: 0-300mV (Balanced: 0-2V)

Transmitting Power: +10sBM

Actual wireless range will depend on RF signal absorption

and interference

Dimensions / Weight:

Receiver Dimensions (LxWxH): 18.9”x5.9”x1.7” / 480x155x45mm (one rack mount unit)

Receiver Weight: 3.5 lbs. / 1.6kg.
