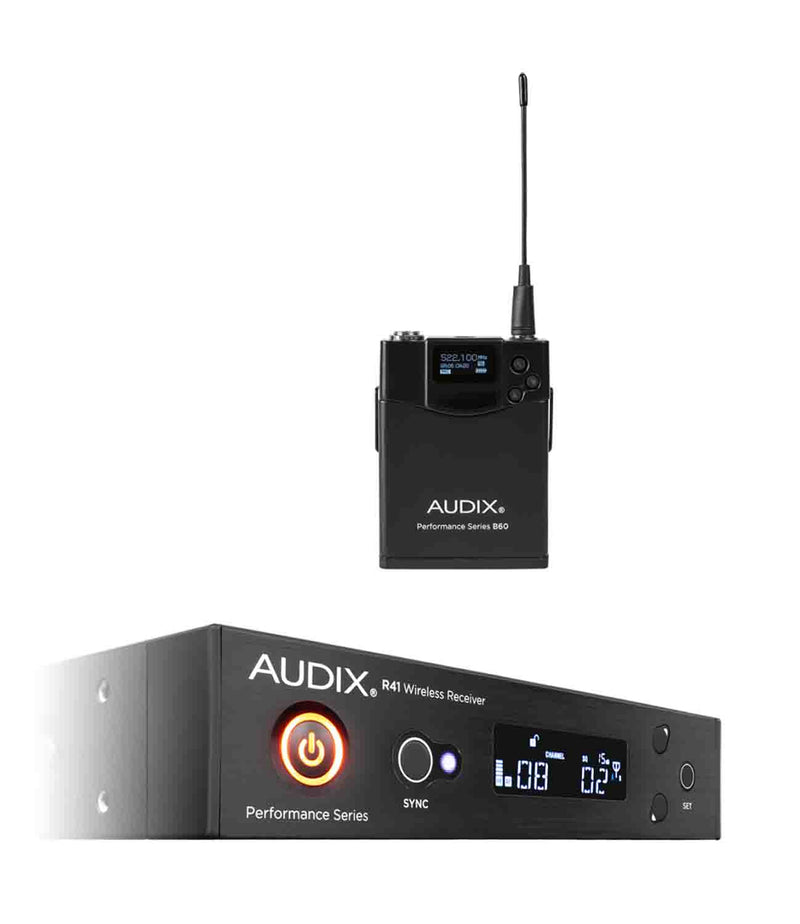

The Audix AP41 BP is a Single-Channel Bodypack Wireless System 554 to 586 MHz. A professional diversity wireless system featuring the B60 bodypack transmitter. This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass. Optional accessories include a single space rack mount kit with BNC cables for front mounting antennas, a rackmount kit for mounting two systems in one rack space, active directional antennas, and an antenna distribution system for up to four systems (4 channels).
Includes
1x R41 32 MHz Diversity Receiver
1x B60 Bodypack Transmitter
2x Antennas
1x Audio Cable
2x AA Batteries
1x Carrying Case
1x Power Supply
1x User Guide
1x Rackmount Hardware
Product Specifications:
Receiver
Frequency Band: 554 to 586 MHz
Bandwidth: 32 MHz
# Of Simultaneous Systems: Up to 16
Switchable Frequencies: 106 pre-coordinated frequencies
Wireless Range: Up to 300' / 91 m
Antenna Connector: 2 x BNC (8 VDC, 150 mA)
Outputs:
1 x XLR 3-pin balanced
1 x 1/4" TS unbalanced
Audio Output Level:
XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
Audio Level Control: -12 to +9 dB in 3 dB steps
Frequency Response: 45 Hz to 18 kHz
Compander: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, antenna diversity
Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
Dimensions: 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm
Weight: 1.9 lb / 0.9 kg
Transmitter
RF Power Output: 10/30 mW
Bandwidth: 64 MHz
Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
Inputs: 1 x mini-XLR 3-pin
Input Impedance:
Mic: 10 kOhms
Line: 1 MOhm
Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
Battery Life: Approximately 14 hours
Current Consumption: 110 mA typical
Power Requirement: 2 x AA 1.5 V batteries
Dimensions: 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
Weight: 3 oz / 85 g without batteries
