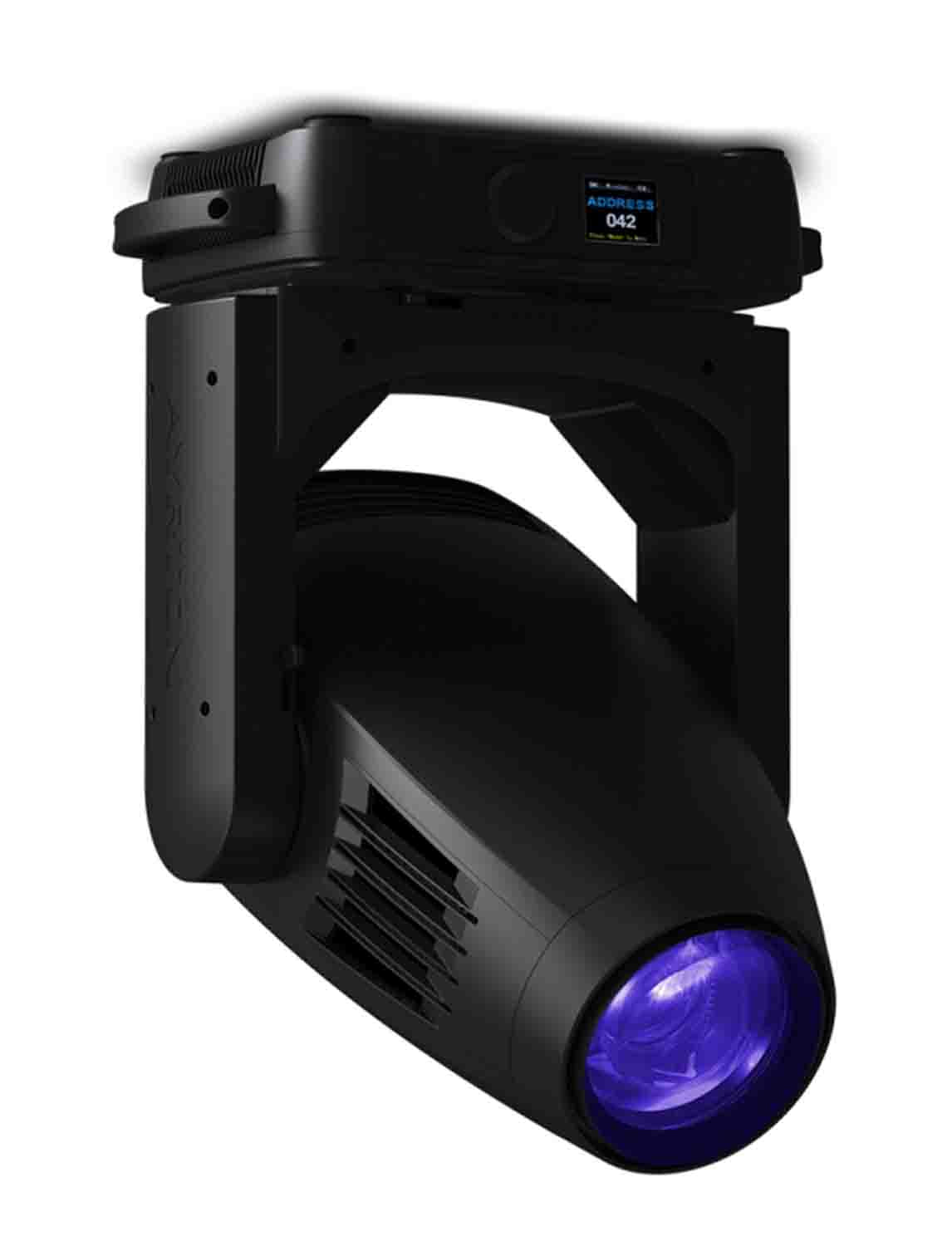

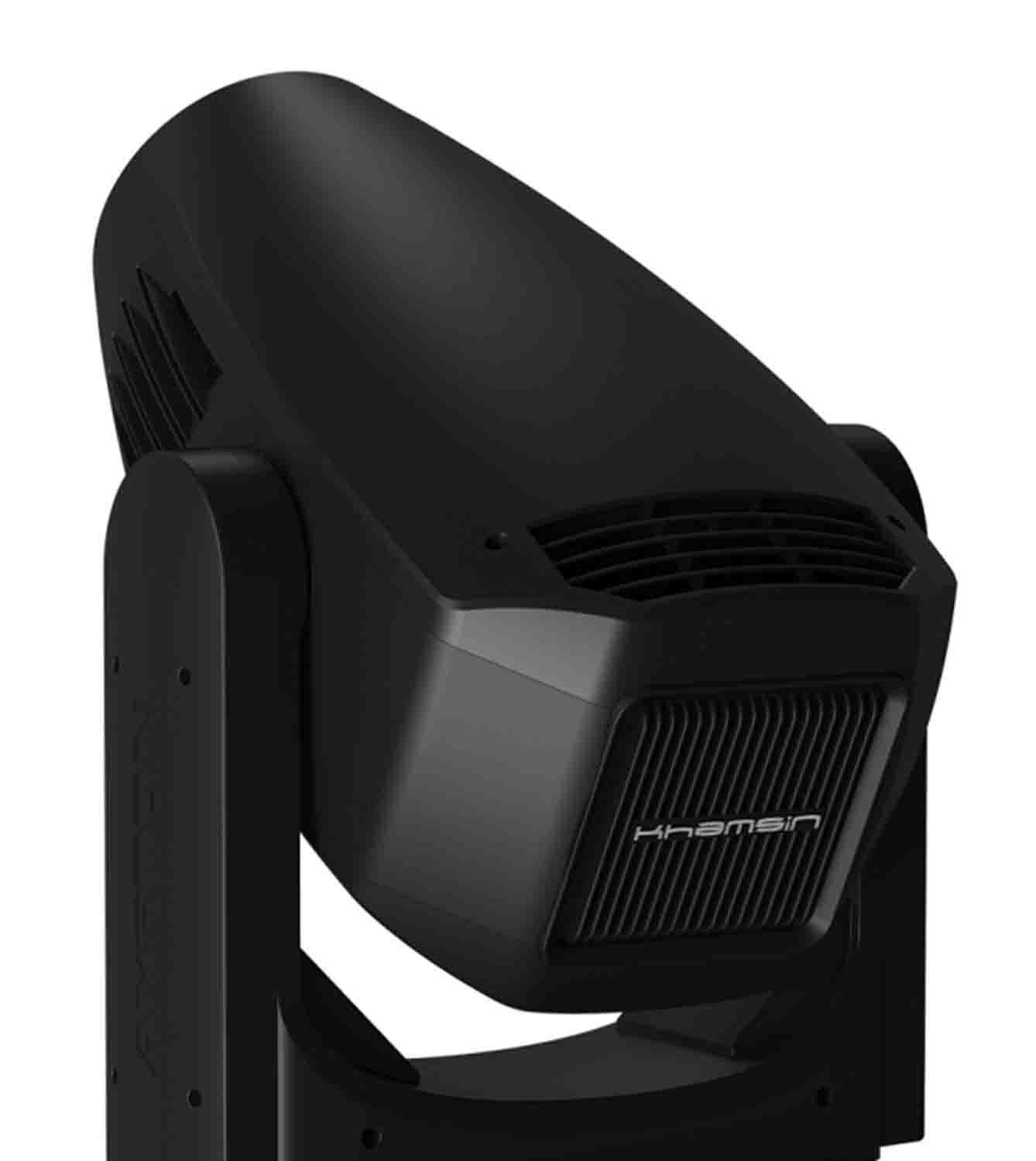

Ayrton Khamsin-S 750W LED Moving Head Profile

The AYRTON AY011640 Khamsin 750W LED Moving head Profile has completely redesigned its internal structure by using cast aluminum sides. The size of the cooling system also had to be dramatically reduced and made even more efficient. This high-end luminaire also features a double rotating gobo wheel on a single axis that will allow you to achieve astonishing high-definition morphing effects.

Like all luminaires in the Ayrton product line, KHAMSIN is available in two versions: KHAMSIN-S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a color temperature of 6800 K. Devised specifically for applications that require perfect color reproduction, KHAMSIN-TC is equipped with an entirely new LED module using a monochromatic light source with a native color rendering index greater than 90, extremely high TM30 readings and a color temperature of 6000 K.

Product Specification:

Fixture Class (LED / Arc): 750 - 1000 W / 1700 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 158 mm front lens

Optic Efficiency: 0.63

Beam Aperture: 7° to 58°

Zoom Elements / Range: 13 Elements / 8:1

Light Source:

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Colour Temperature Correction: Yes / Variable

Fixed Colours (number/wheel): 6 colours / 1 Wheel

Gobos/Effects:

Fixed Gobos (number/wheel): No

Rotating Gobos (number/wheel): 6 Gobos / 2 WheelS

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic

Software Features:

Menu Buttons for Setting Functions: Clicking Jog Wheel

Integrated Wireless Receiver: LumenRadio CRMX TiMo

Input/Output Power Connector: PowerCON TRUE1 In

Control:

Data Protocol: DMX 512 - RDM

Channel Control: 40 to 64

Electronic Power Supply:

Range: 100 to 240 Volts

Frequency Range: 50-60Hz

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: ABS PC (V0 class)

Front Window: No

Protection Rating: IP20

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Dimensions & Weight:

Dimensions (mm): 494 X 778 X 280

Flight-case Foam Dimensions (mm): 655 X 590 X 555

Weight (Kg): 39.8

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes

SIP included: Yes
