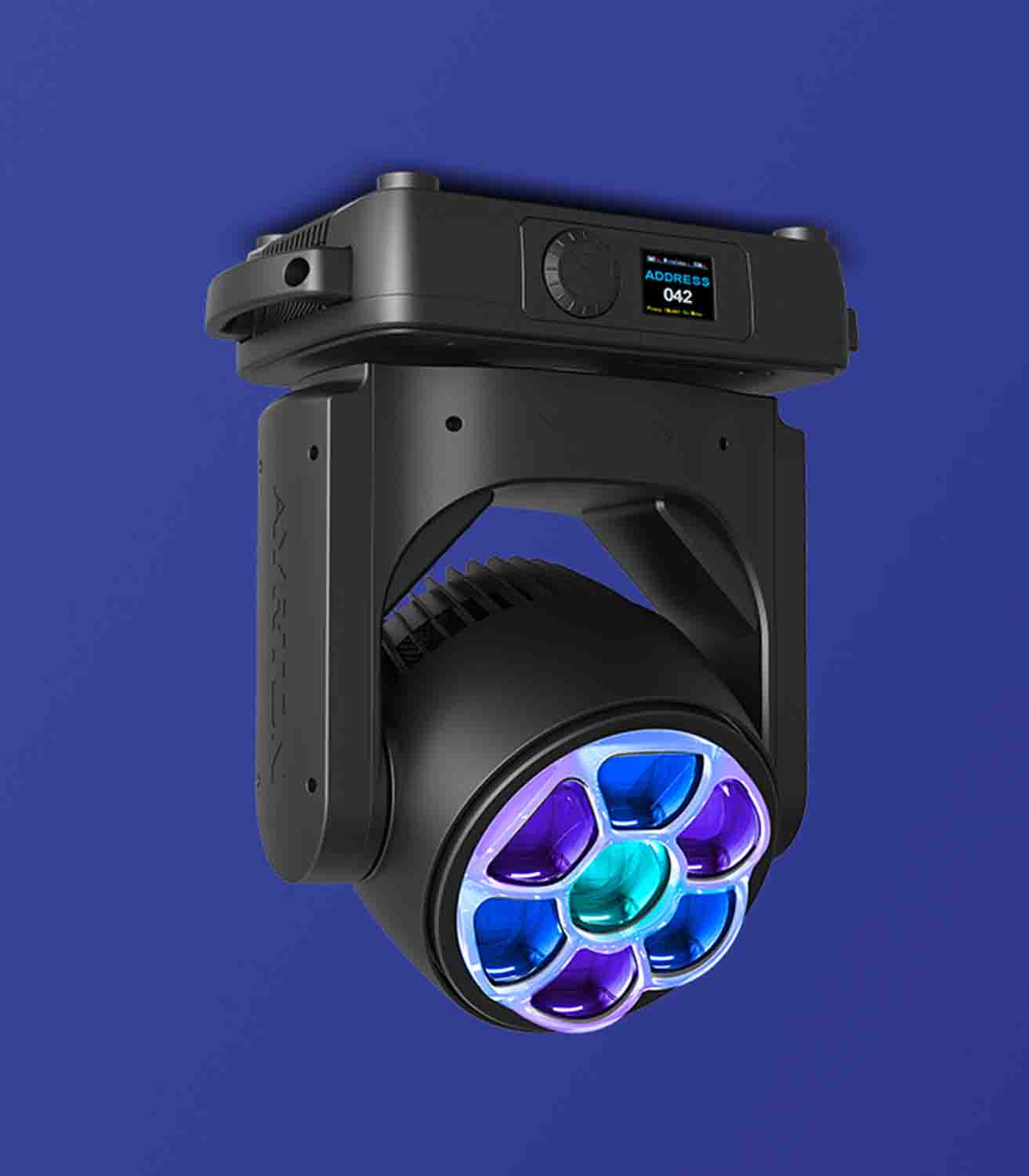

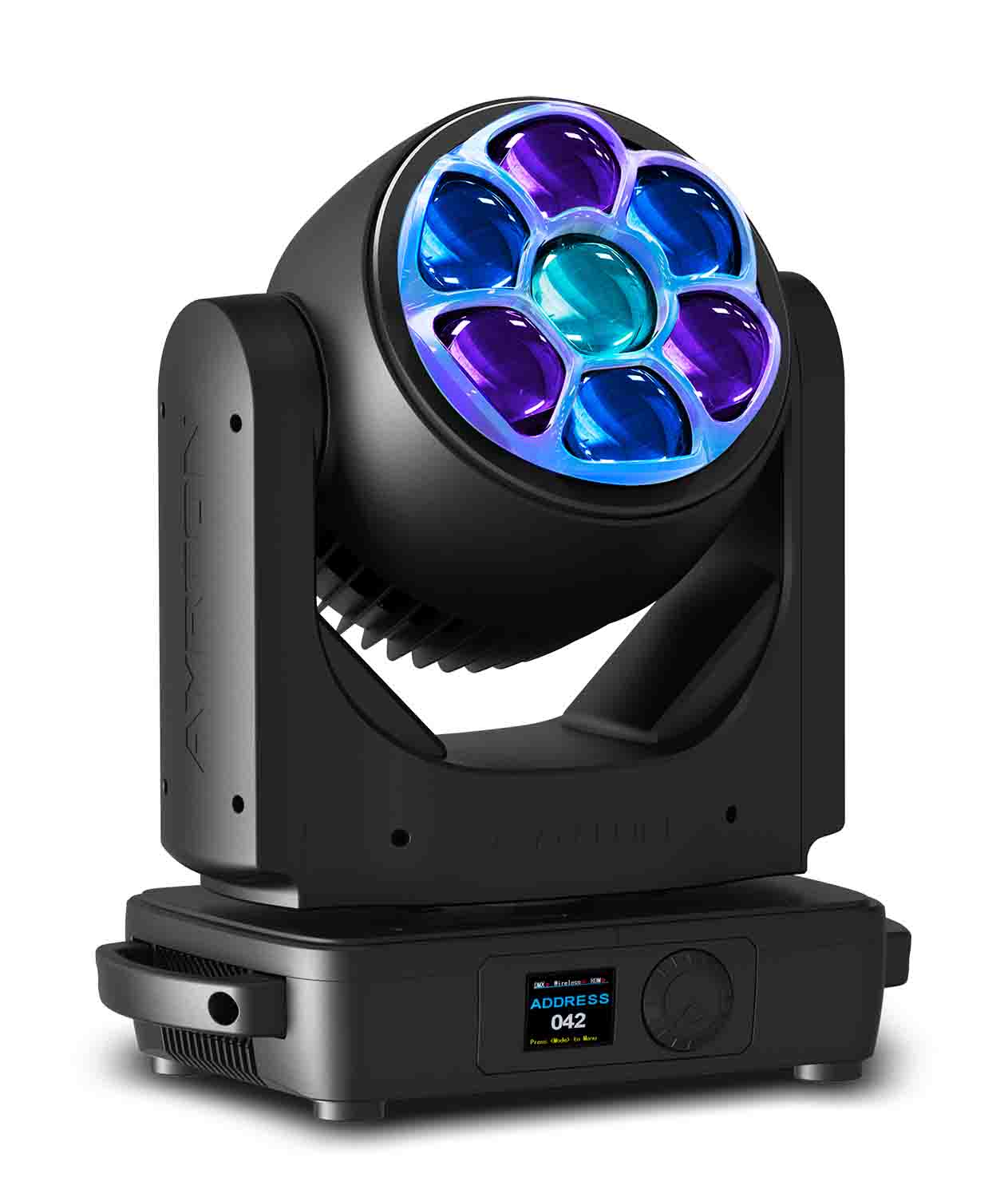

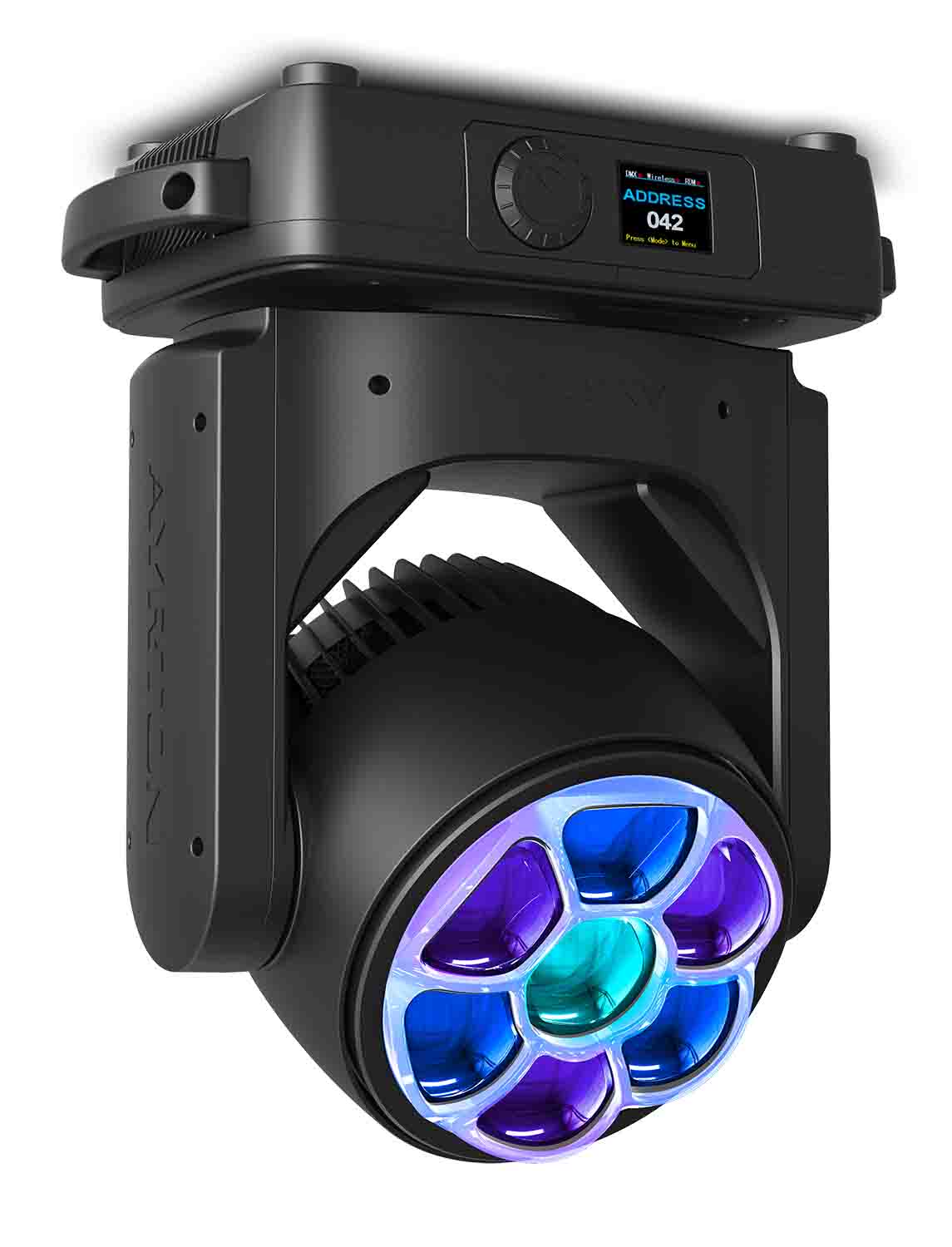

AYRTON ZONDA 3 FX, 350 Watt Led Moving Head Beam

The AYRTON ZONDA 3 FX, 350 Watt Led Moving Head Beam is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colors regardless of the color combination chosen.

It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid Effect TM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimized cooling system, simplified lens guidance systems, and an ever-smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.

Product Specifications:

Fixture Class (LED / Arc): 7 RGBW LED

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 7 x 50mm

Optic Efficiency:

Beam Aperture: 4° to 56°

Zoom Elements / Range: 2 Elements / 14:1

Light Source:

Architecture: 7 x RGBW

Power Source / Number: 30W / 7

Light Engine Output (lm): 1,000 lm

Colour Rendering Index: Up to 86

Luminaire Light Output (lm), (Sphere): 5,200 lm

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan (endless) - Tilt (endless)

Colours:

Colour Mixing: Homogonized 4-color Mix

Colour Depth: 4.29 billion

Colour Temperature Correction: Virtual CTO Wheel

Fixed Colours (number/wheel): N/A

Gobos/Effects:

Fixed Gobos (number/wheel): N/A

Rotating Gobos (number/wheel): N/A

Iris Diaphragm: N/A

Dimmer: Electronic

Dynamic LED FX: Liquid Bezel Effect

Strobe: Electronic (1-25 fps)

Software Features:

Information Menu: Yes

Back-lit LCD Display Functions: Yes

Menu Buttons for Setting Functions: 5 menu buttons

Integrated Wireless Receiver: LumenRadio CRMX TiMo

Input/Output Data Connector: XLR 5 In / Out

Input/Output Ethernet Connector: RJ45 In / Out

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 26 to 79

Electronic Power Supply:

Range: 100 to 240 Volts

Frequency Range: 50-60Hz

Power Consumption Maximum: 350 W

Cooling System:

Type: Forced ventilation

System:

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: Die-Cast Aluminum

Front Window: No

Protection Rating: IP20

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -20 to 45°C

Maximum Ambient Humidity: 75% at 25°C

Dimensions & Weight:

Dimensions (mm) : 365 x 404 x 233

Flight-case Foam Dimensions (mm) : 420 x 438 x 280

Weight (Kg): 11.1

Others:

Warranty in years (Fixture / Source): 2

Variable PWM Control: Yes

SIP included: Yes
