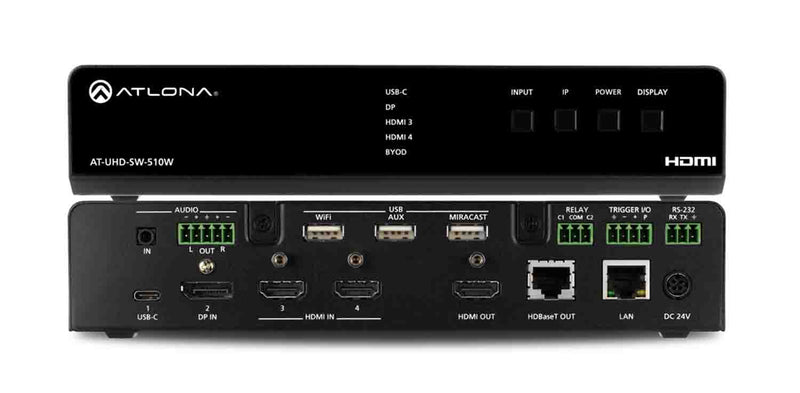

The Atlona AT-UHD-SW-510W is a 5×2 Matrix Switcher with Wireless Link is a multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant and features matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output is ideal for use with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver, or the AT-HDVS-SC-RX scaling HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format matrix switcher and wireless gateway provide a universal connectivity solution for presentation devices in a wide range of professional AV applications.
The USB-C port on the SW-510W is ideal for Mac, Chromebook, and Windows PCs. All inputs and the local HDMI output are compatible with video signals up to 4K/UHD @ 60 Hz with 4:4:4 chroma sampling, as well as data rates up to 18 Gbps. For integration convenience and flexibility, simultaneous 18 Gbps HDMI and 10 Gbps HDBaseT outputs make the SW-510W ideal for various presentation scenarios such as primary and confidence displays in a corporate auditorium or lecture hall. The HDBaseT output extends to video, audio, control, and Ethernet up to 100 meters. (For AV signals exceeding 10 Gbps, 4K/UHD video will be subsampled to 4:2:0, or HDR metadata removed for HDBaseT transmission.
B-stock may have minor cosmetic scratches or dents and furthermore, B-Stock is not covered by a full manufacturer warranty. Please call for details.
Product Specifications:
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, non-condensing (RH)
Certification: CE, FCC, UL
Power Consumption: Full Load: 121 W 35 to 40 W (Idle)
Power Supply: Input 100-240 VAC, 50/60 Hz
Output: 5 VDC
Dimensions with Feet: 1.8 x 8.5 x 10.2" (4.8 x 21.5 x 25.9 cm)
Without Feet: 1.7 x 8.5 x 10" (4.4 x 21.5 x 25.4 cm)
Weight: 3.7 lb (1.7 kg)
