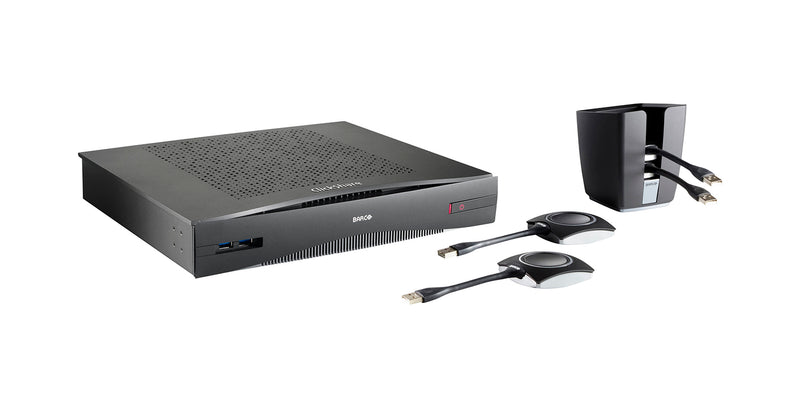

B-Stock: Barco ClickShare R9861580NA, CSE-800 Wireless Presentation System

The Barco ClickShare R9861580NA is a CSE-800 Wireless Presentation System. The CSE-800 was designed to bring the ClickShare experience to boardrooms, high-end meeting rooms, and conference rooms. Introducing a number of unique features, including simultaneous sharing of up to 8 people, automatic & manual moderation, and blackboarding & annotation, the CSE-800 is the most powerful system in the ClickShare family today. The CSE-800 was designed for enterprise rollouts and offers enhanced security features, a wider range of connectivity options including AirPlay and Google Cast support for non-HDCP content and central management. Users simply plug a USB-powered device the ClickShare Button into their PC or Mac and click the Button to get the content from their laptop on the large meeting room screen.

The Power of Interactive Collaboration

The CSE-800 features two HDMI inputs and outputs. There is a direct connection with legacy equipment and easy integration with conferencing systems, and two 4K DCI displays can be driven by a single base unit. Allowing up to 8 persons to share content simultaneously, the CSE-800 ensures connectivity to the central screen and encourages collaboration.

The moderation functionality was specifically designed for use in larger rooms, with multiple people sharing at the same time. To prevent the rapid switching of screens, making the content difficult to follow, a moderator can manually select which content appears on screen and when to ensure a great experience for all attendees.

Perfect Fit with Barco Unisee

The CSE-800 is also one of the building blocks of the Barco Ideation Wall for interactive and collaborative meetings. By simply combining a Barco UniSee LCD video wall, a specifically designed Touch frame for Barco UniSee and a ClickShare CSE-800 which supports annotation, blackboarding, and touchback support out of the box, you create a single, unified experience in your meeting room allowing you to enjoy both the interactivity features that our wireless collaboration solution ClickShare offers and the seamless viewing experience of Barco UniSee, never seen on LCD video walls before.

B-stock may have minor cosmetic scratches or dents and furthermore, B-Stock is not covered by full manufacturer warranty. Please call for details.

Product Specifications:

Video Outputs: 2x HDMI 1.4b

Video Inputs: 2x HDMI 1.4b

Output Resolution: 4K DCI (4096x2160) @ 60Hz

Input Resolutions: 4K DCI (4096x2160) @ 60Hz

Audio: Via HDMI, analog via Audio Jack 3.5mm, S/PDIF

Airplay Support: iOS 11, 12 & 13 / macOS 10.14, 10.15

Google Cast Support: Android 9, 10

Anti-Theft System: Kensington lock

Certifications: FCC/CE

Dimensions: 46.2mm x 282.3mm x 206.5mm (excl. antennas) / 1.8" x 11.1" x 8.1"

146.4Mm X 282.3Mm X 206.5Mm (Incl. Antennas) / 5.8"X 11.1" X 8.1"

Power Supply: Standard 110/220 V AC plug

Weight: 2.2kg / 4.85lbs
