Description

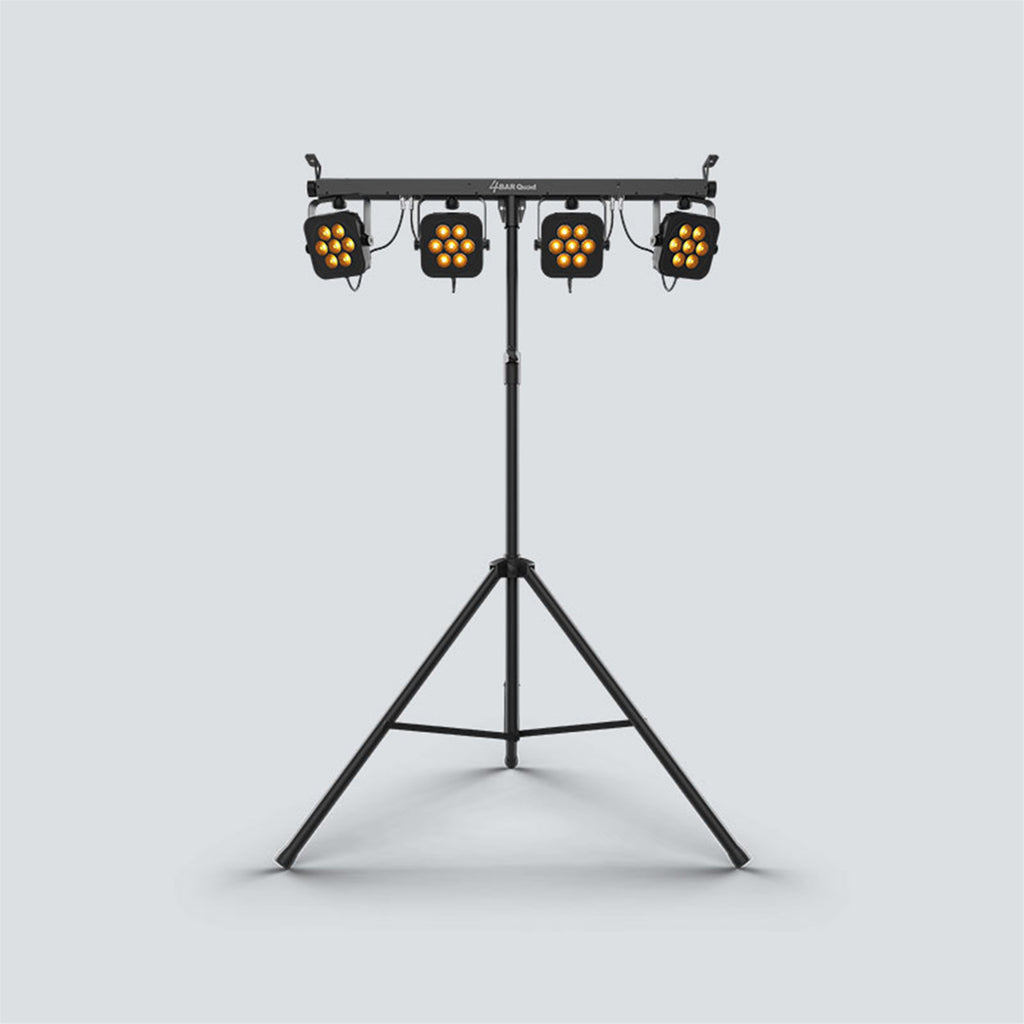

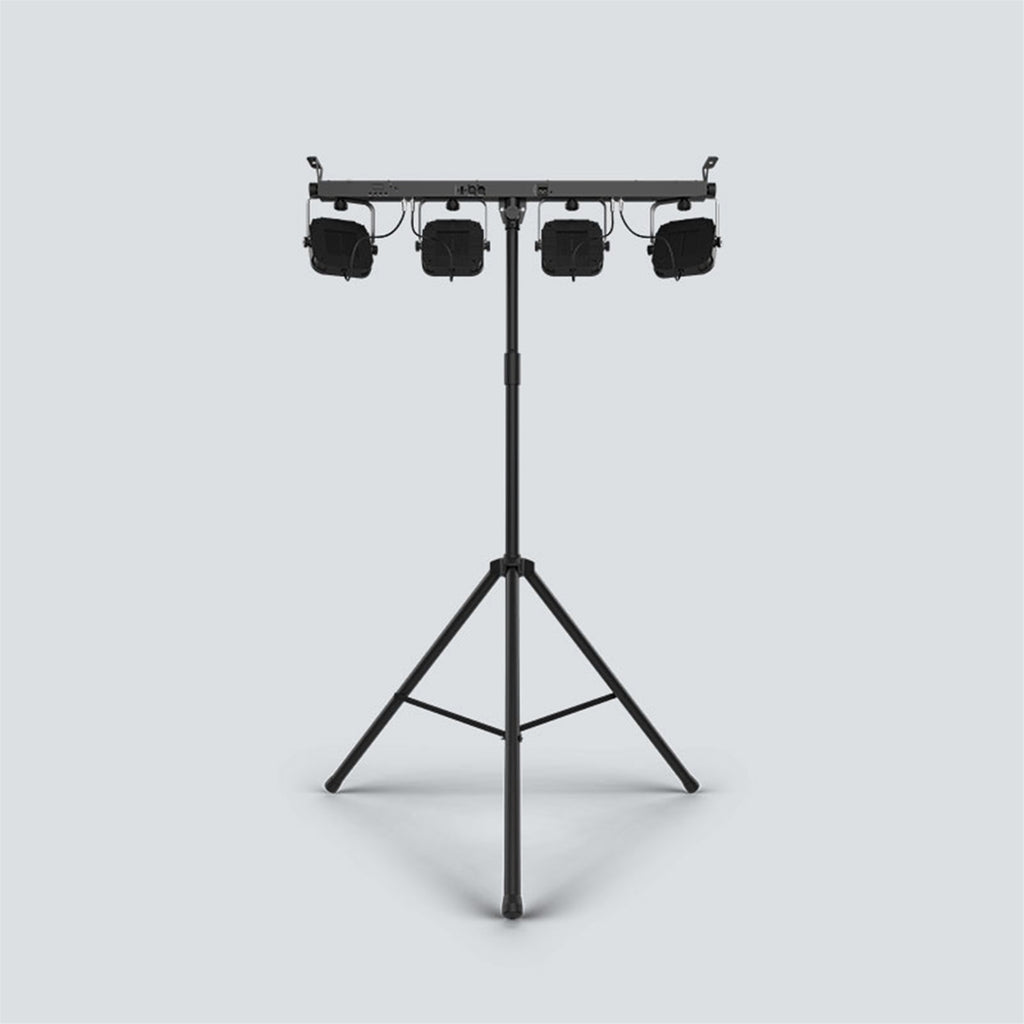

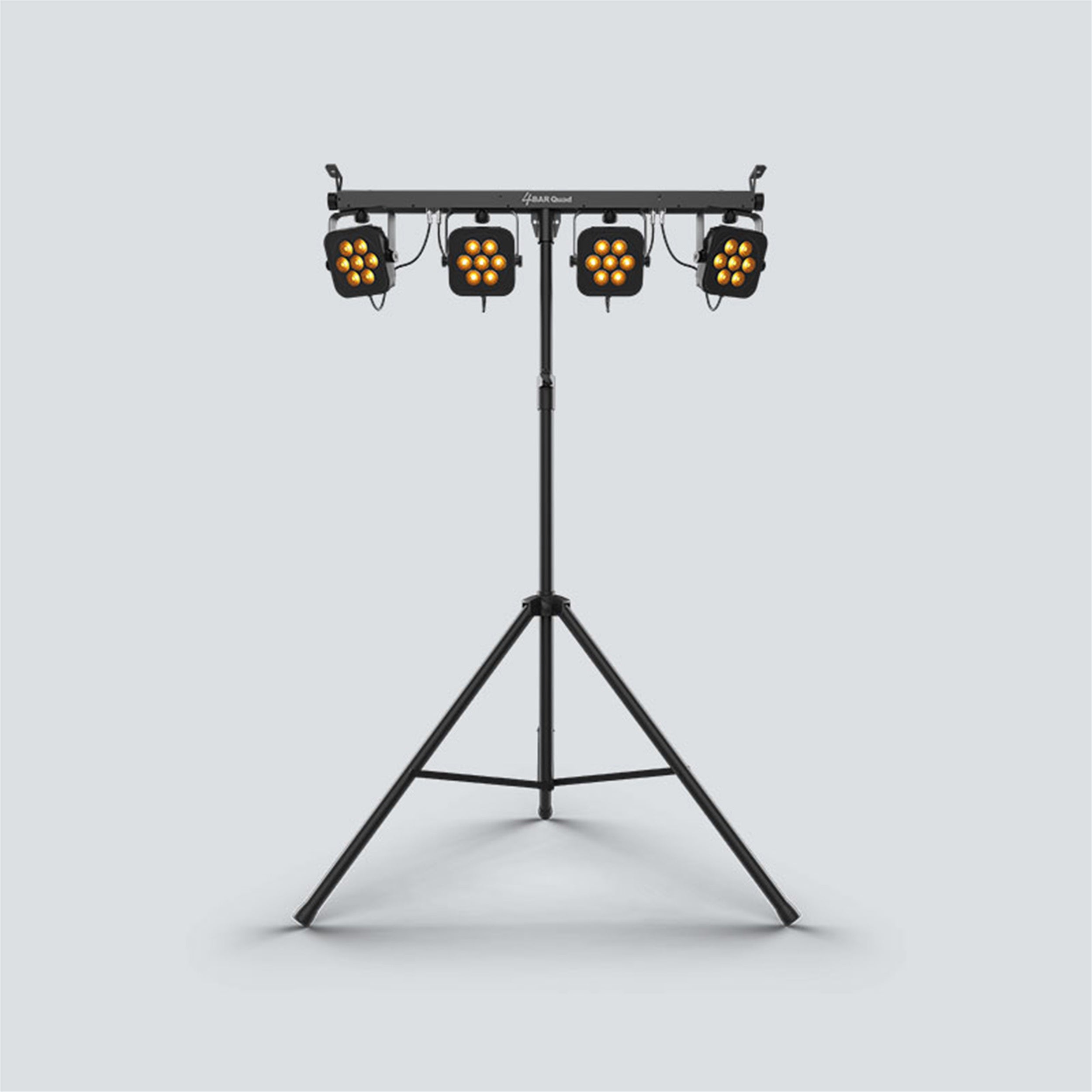

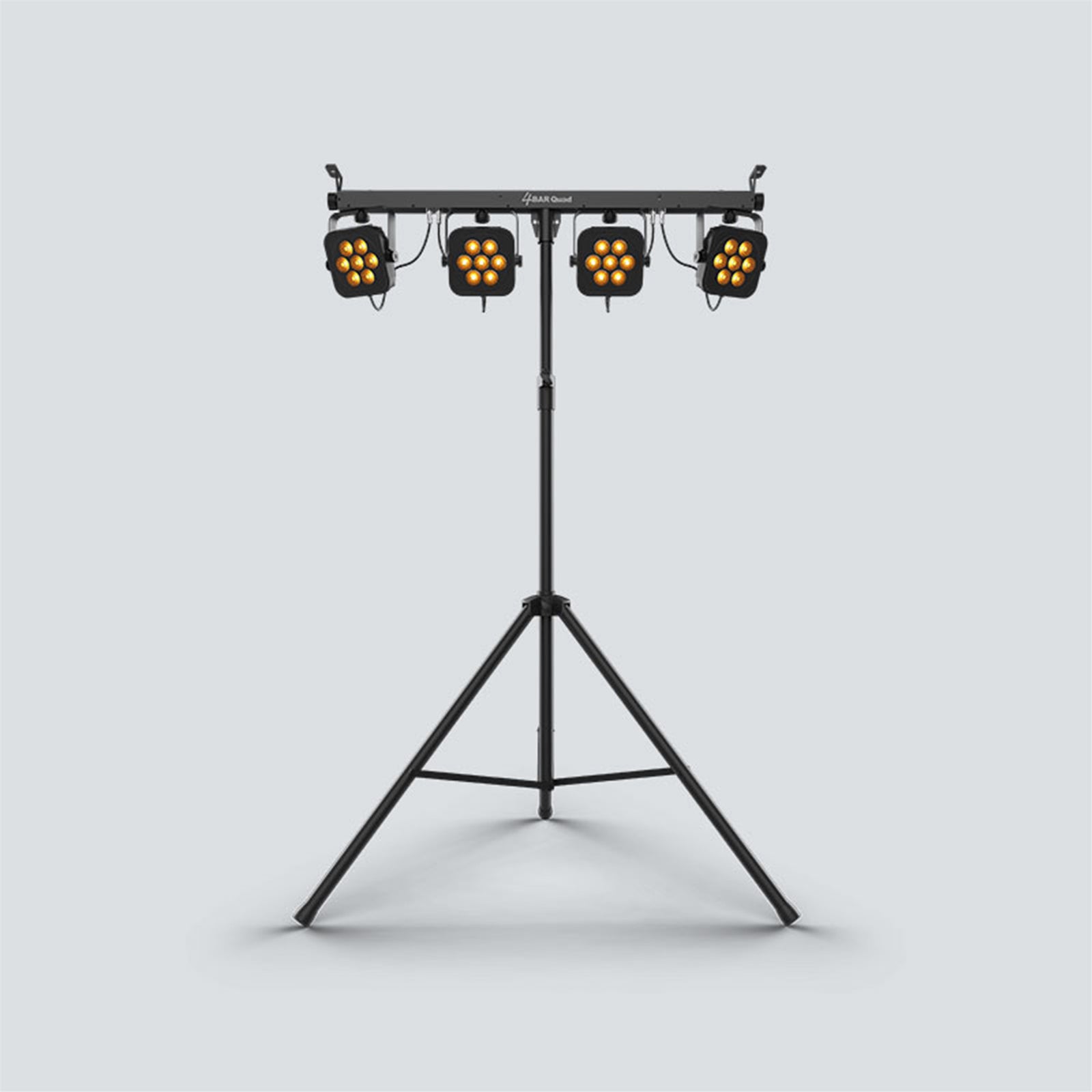

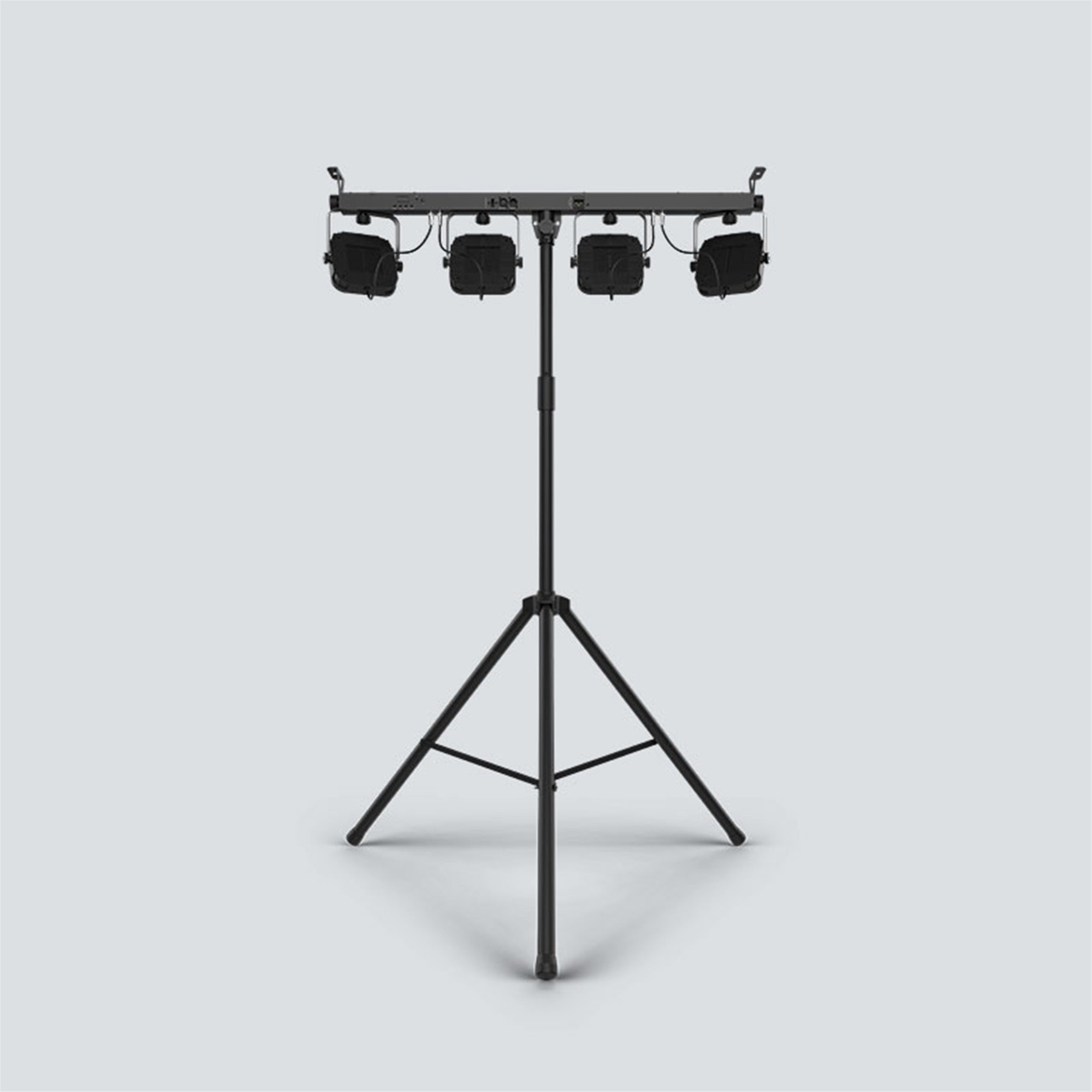

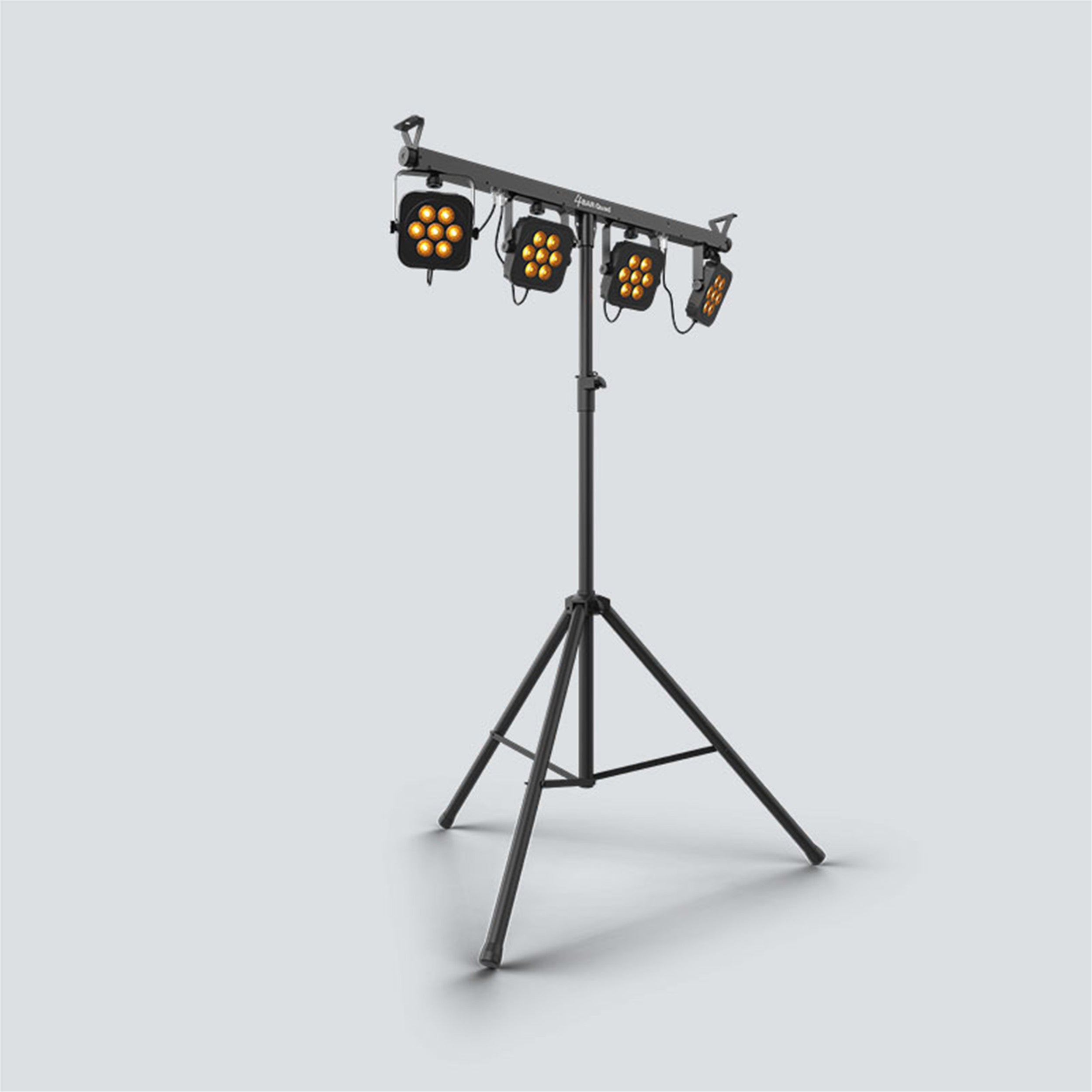

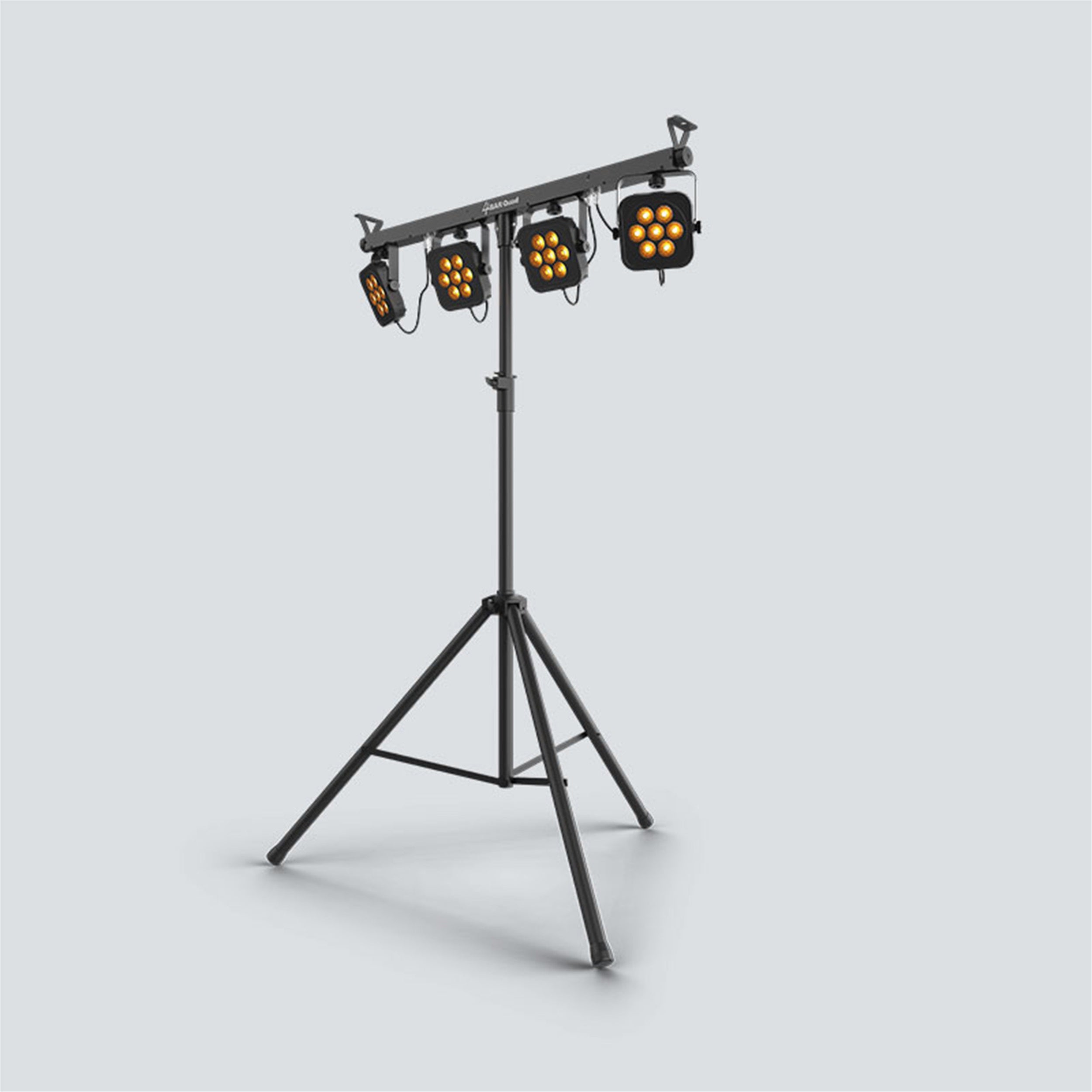

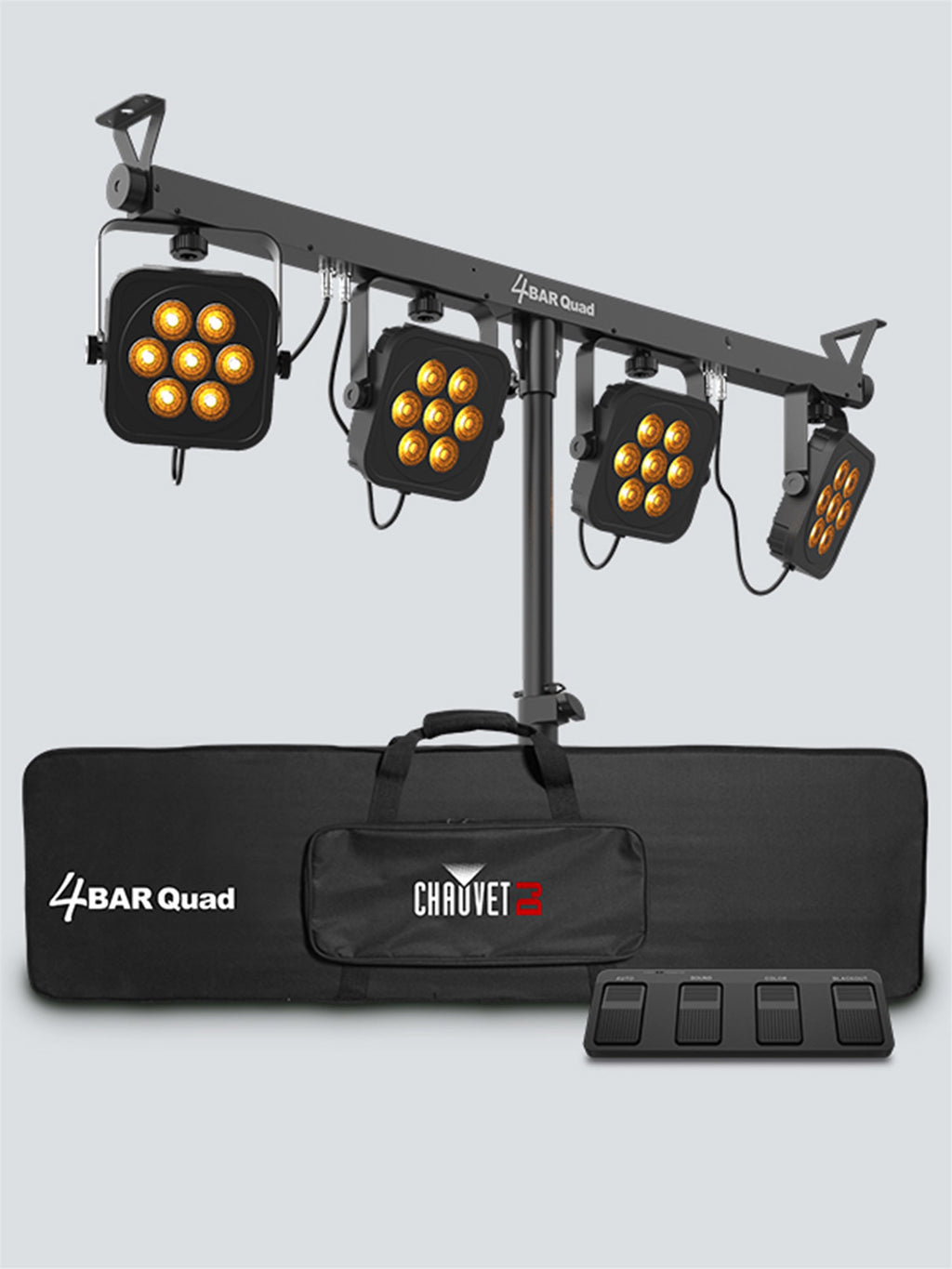

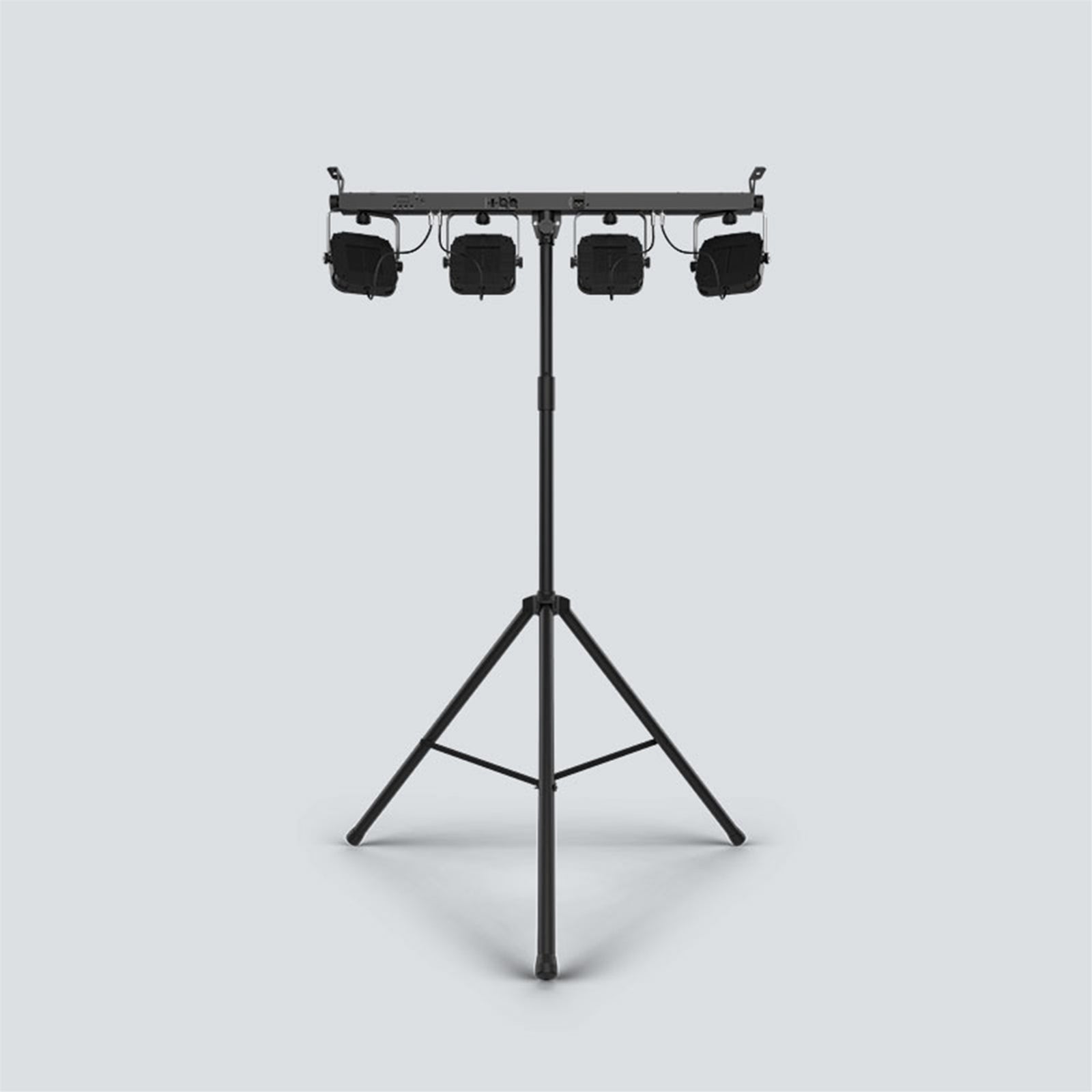

4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.
B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty. Please call for details.
Product Specifications:
DMX Channels: 4, 6 or 19.
DMX Connectors: 3-pin XLR.
Max Unobstructed Distance: (foot switch): 100 ft (30.5 m).
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 20 Hz.
PWM Frequency: 1310 Hz.
Beam Angle: 14°.
Field Angle: 23°.
Operating Frequency: (D-Fi): 2.412 to 2.484 GHz (foot switch): 433 MHz.
Fits Tripod Size: 1.5 in (36.80 mm).
Illuminance: 2,353 lux @ 2 m (per pod).
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging).
Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz78 W, 0.6 A @ 230 V, 50 Hz.
Weight: 12.2 lb (5.5 kg(Controller): 1.2 lb (0.6 kg).
Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)(Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm).
Approvals: CE, FCC.
Footswitch battery: 9 V.
Stand Height: 7 ft 4 in (2.2 m).
Bracket Mounting Hole: M10 (1.5 mm pitch).
Optional Controllers: IRC-6, D-Fi USB.
Included:

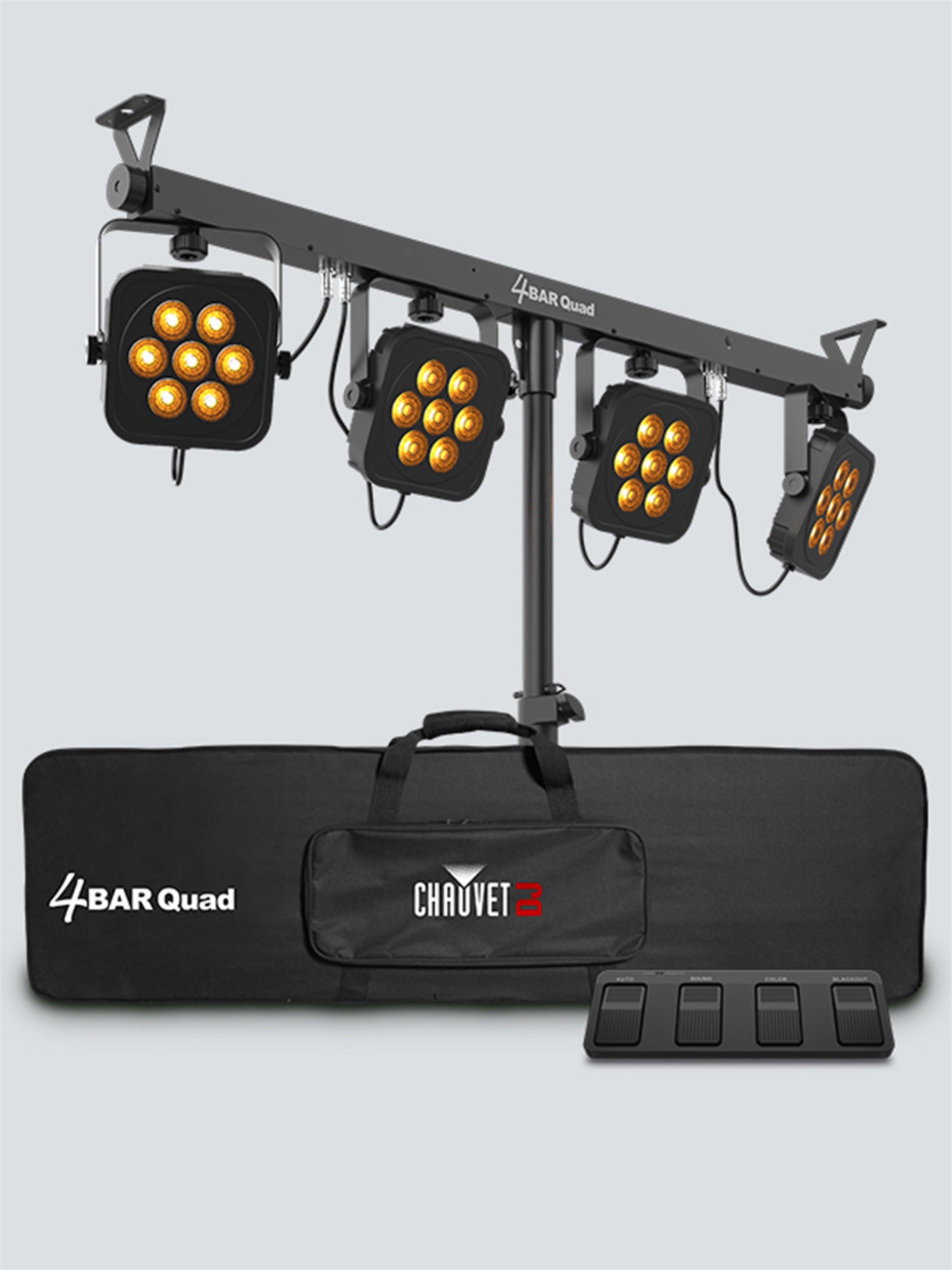

4Bar Quad, Power cord, Carrying bag, Tripod, Tripod Carry bag, Wireless Footswitch,Quick Reference Guide.
