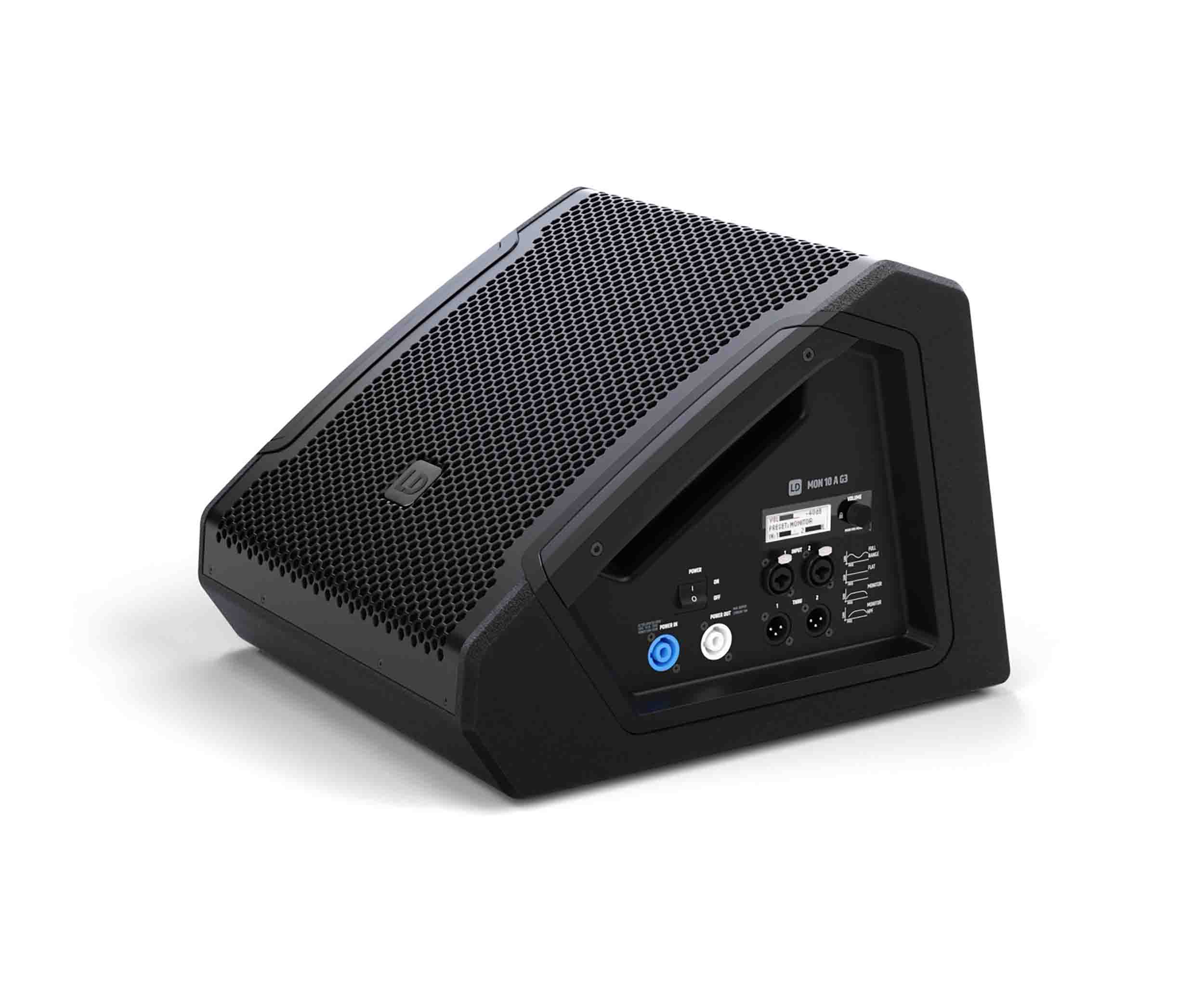

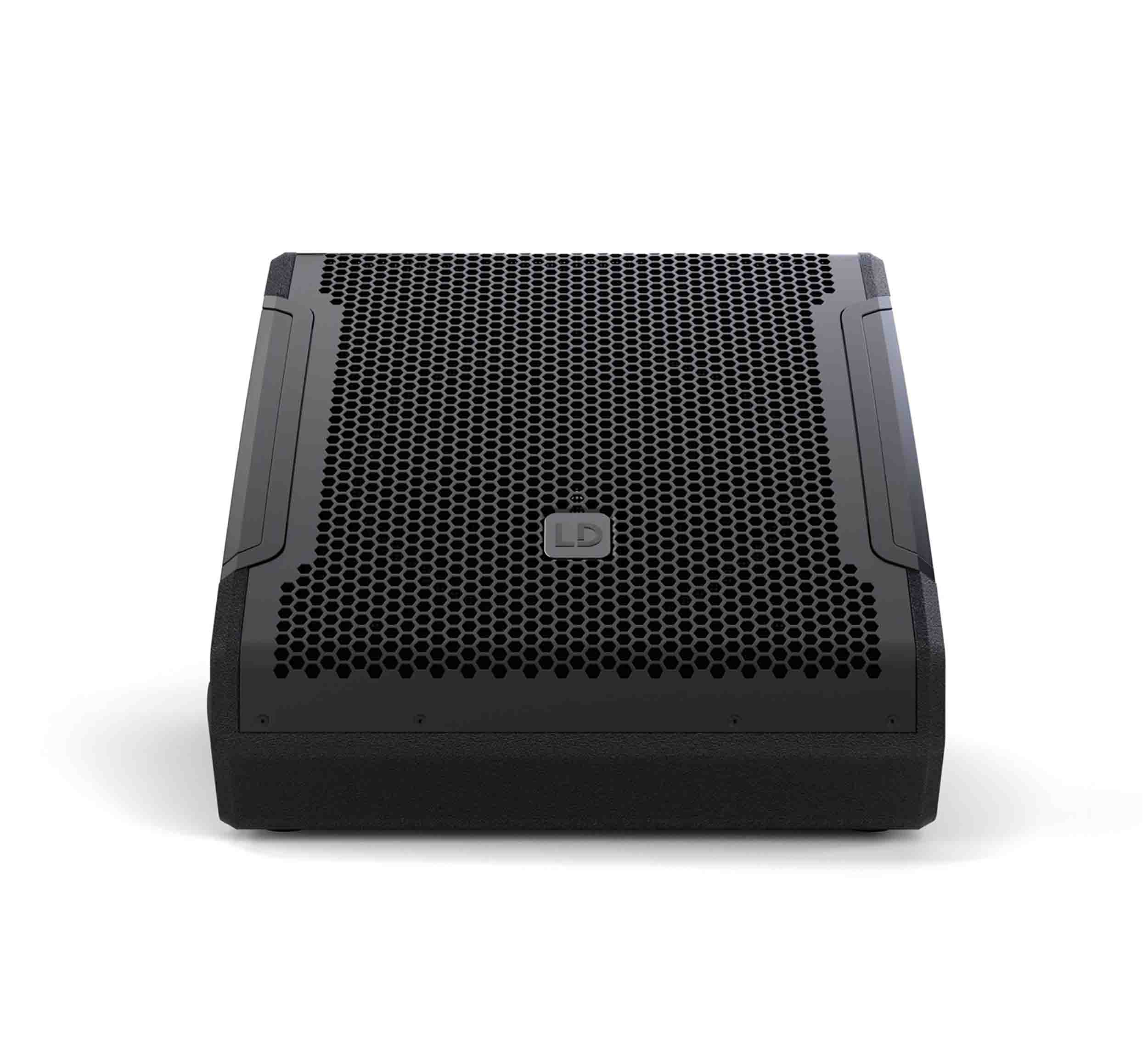

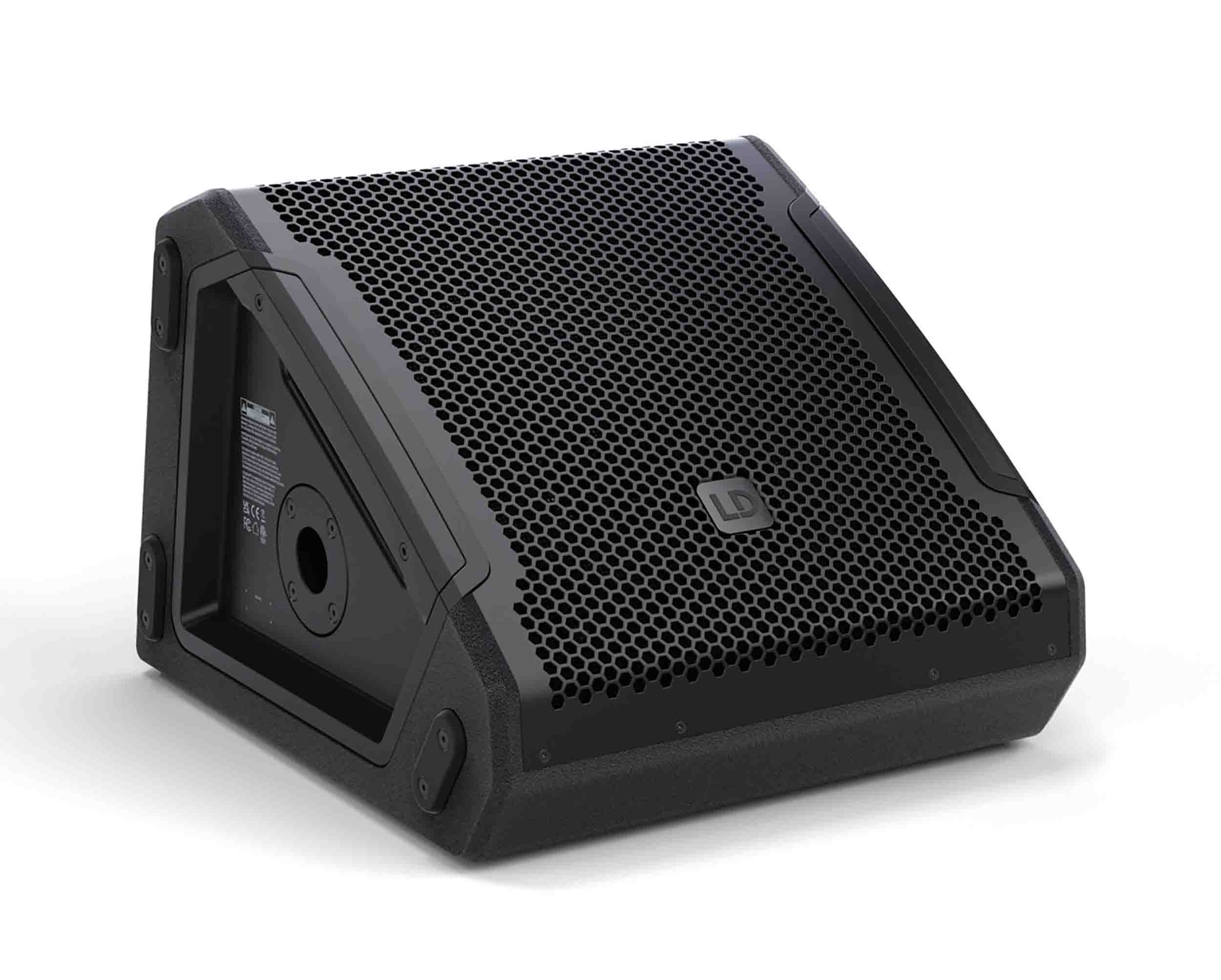

B-Stock: LD System MON 10 A G3, 10" Powered Coaxial Stage Monitor

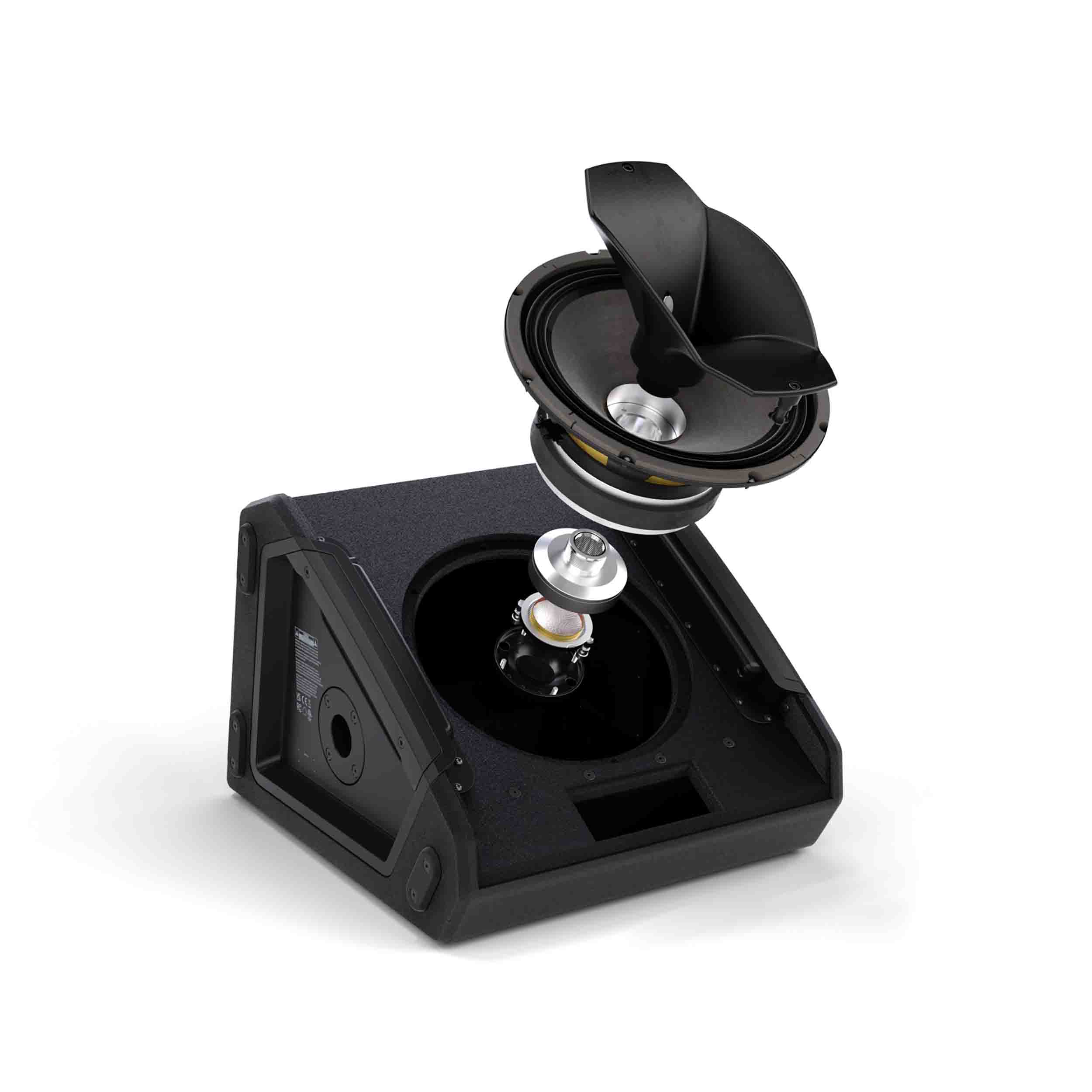

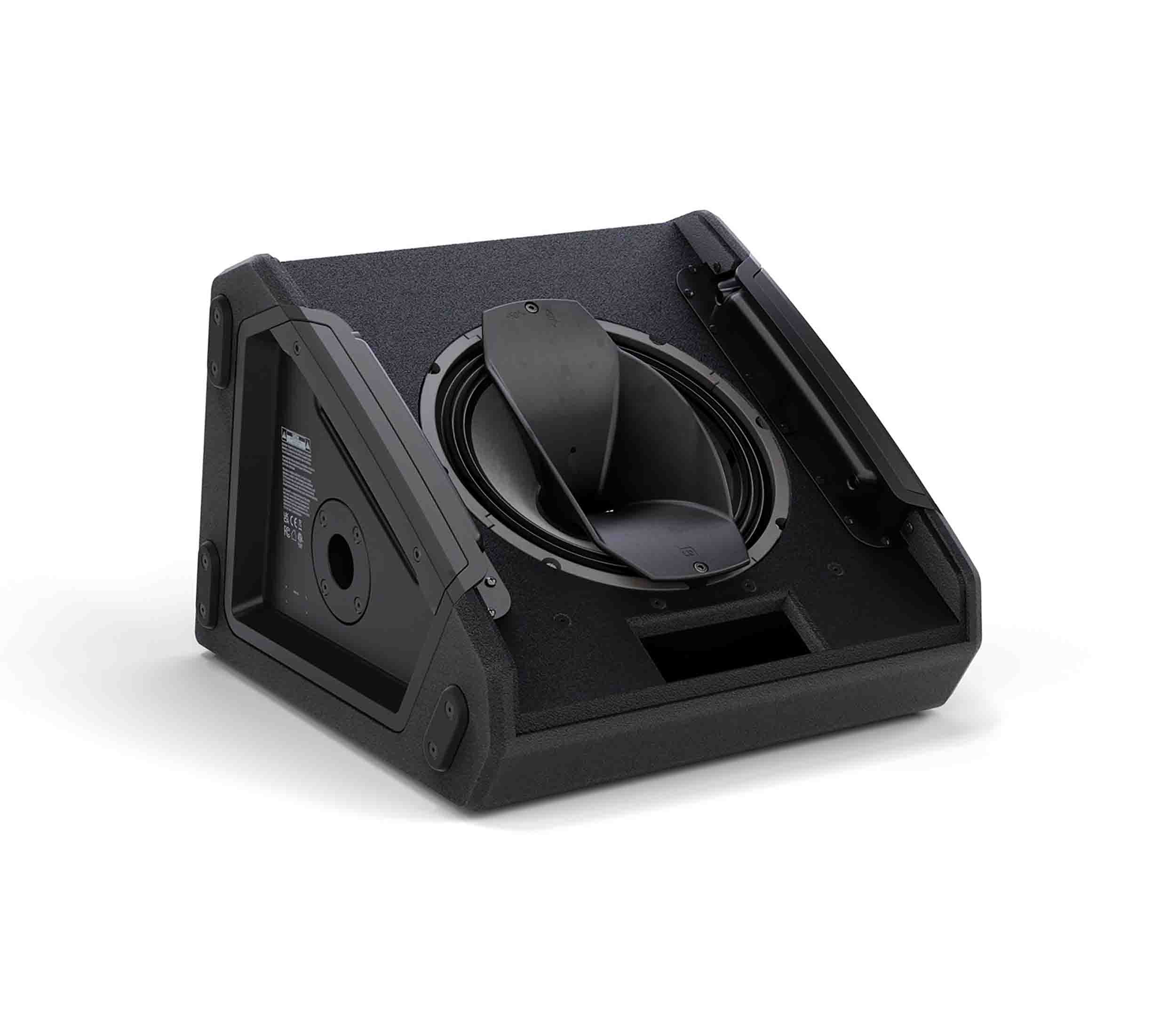

The LD System MON 10 A G3, 10" Powered Coaxial Stage Monitor. The MON 10 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

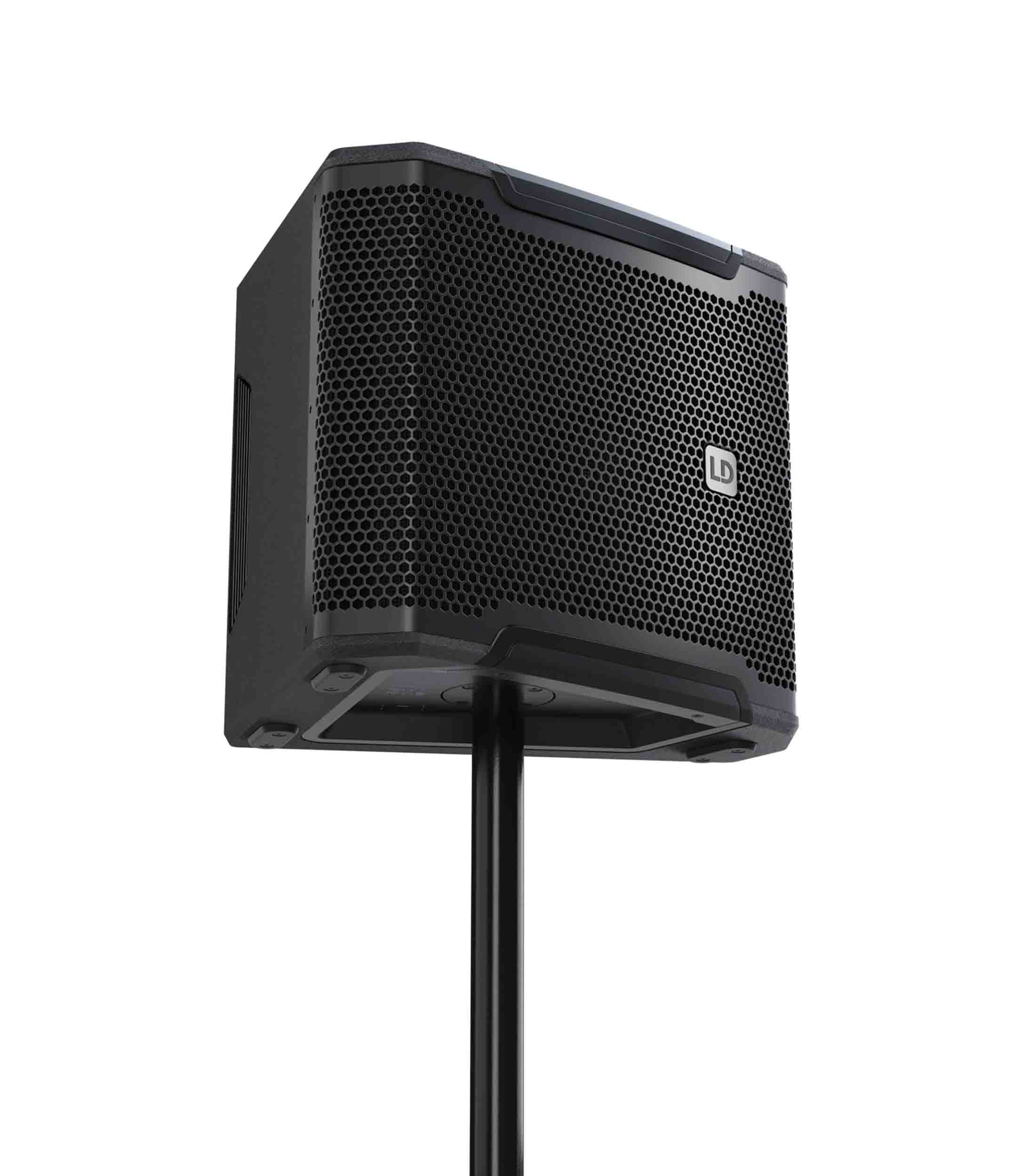

Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

High-Efficiency Power Amplifier

The highly effi cient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.

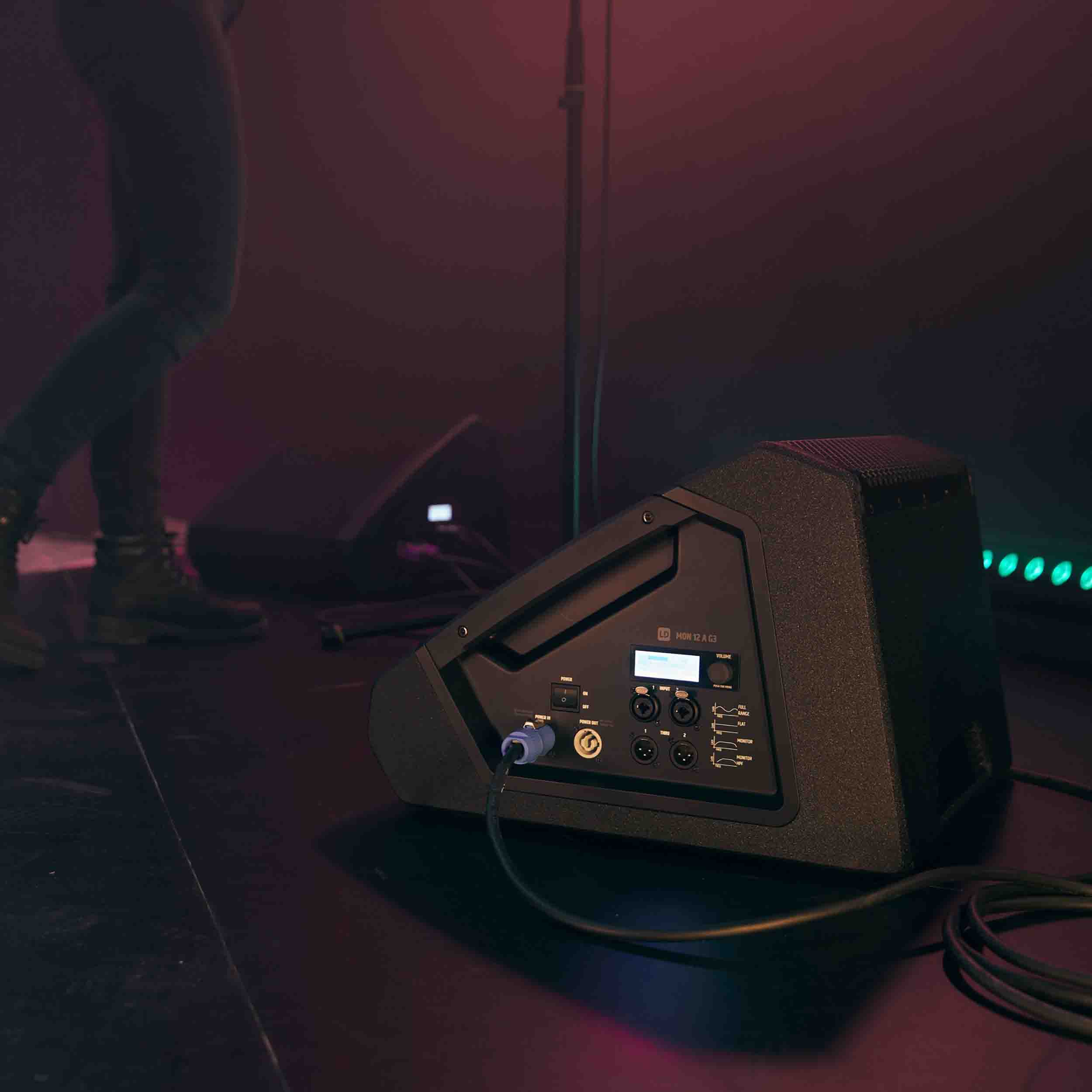

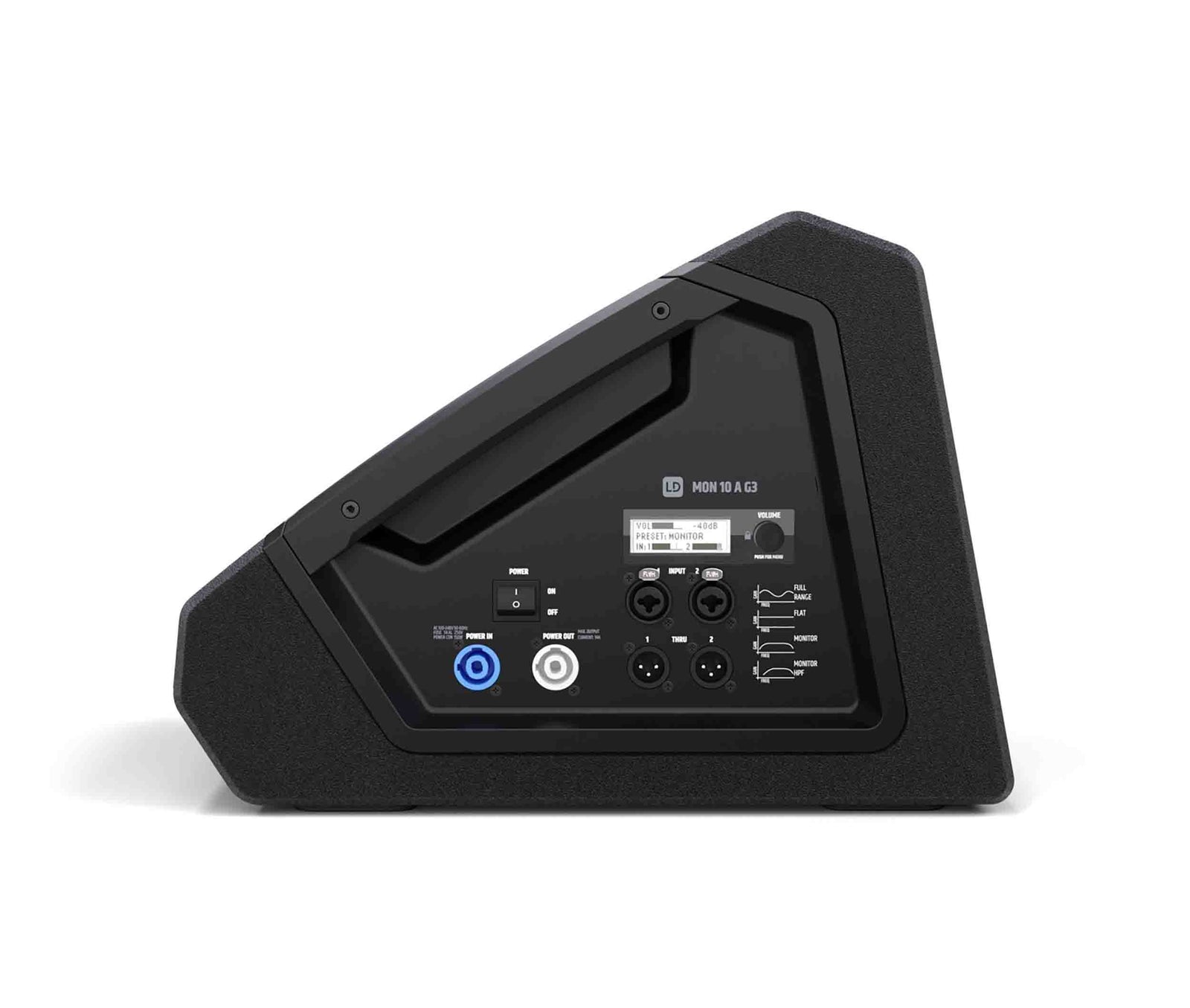

Professional Connectors

Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

Easy Daisy Chaining

The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.

B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty.  Please call for details.

Product Specifications:

Product type: Stage monitors

Type: Powered

Color: Black

System output (RMS): 300 W

System output (Peak): 1200 W

Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)

Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD)

Frequency response (-3 dB): 72 - 18000 HZ

Frequency response (-10 dB): 58 - 20000 Hz

Crossover frequency: 1700 Hz

Monitor angle: 33°

Dispersion (H x V): 50° x 90°

Width: 380 mm

Depth: 426 mm

Height: 305 mm

Weight: 15,21 kg
