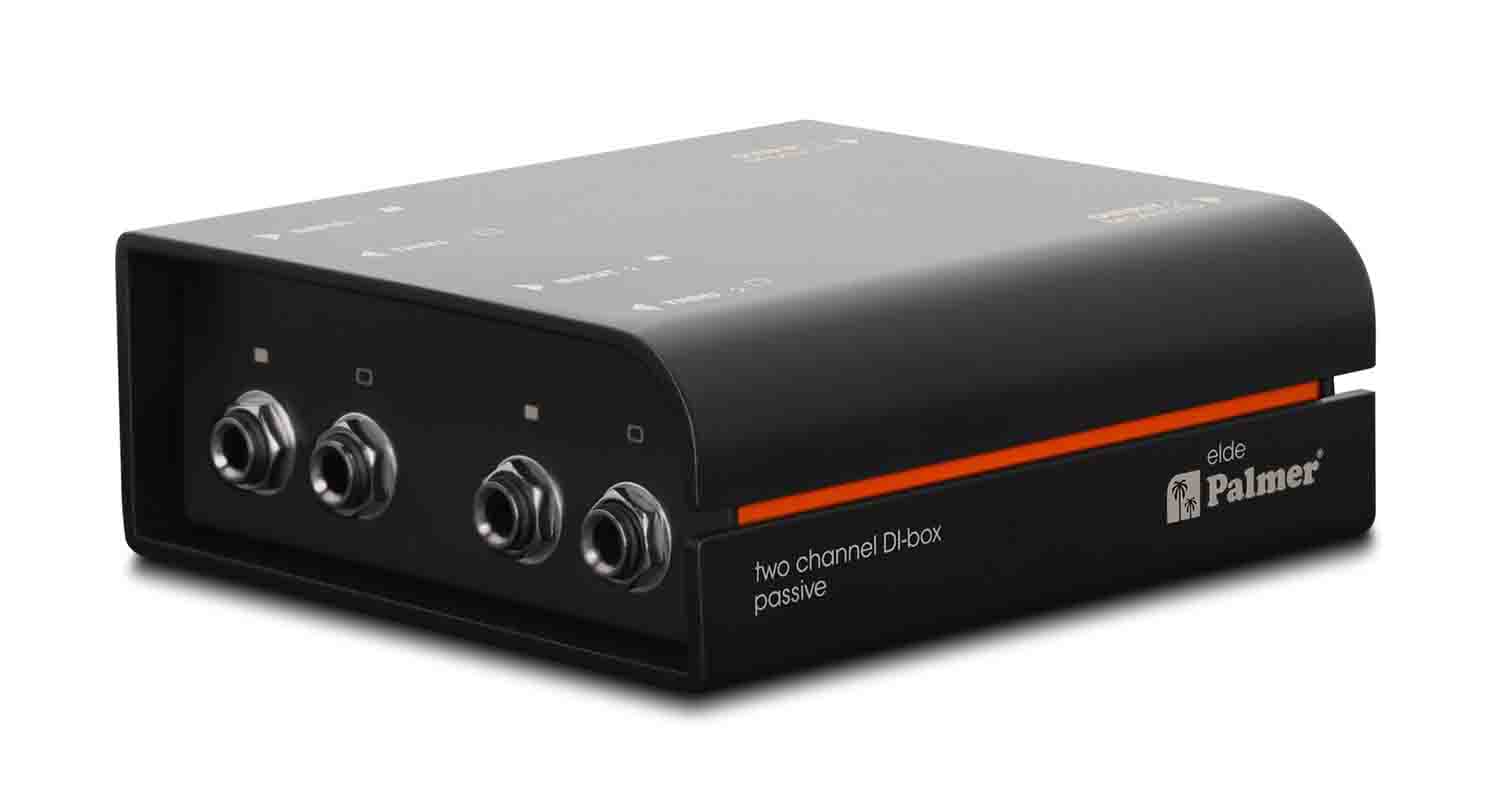

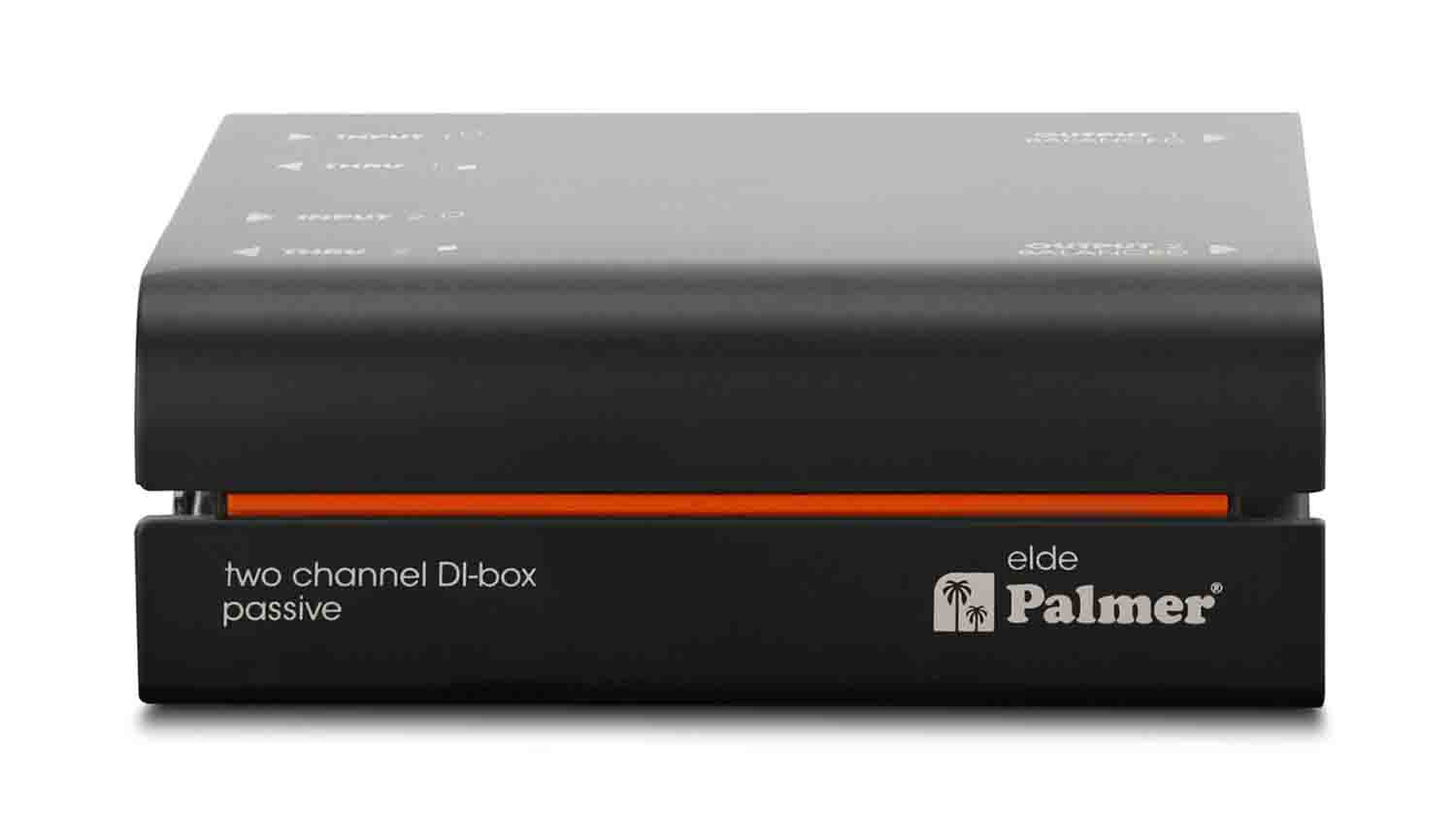

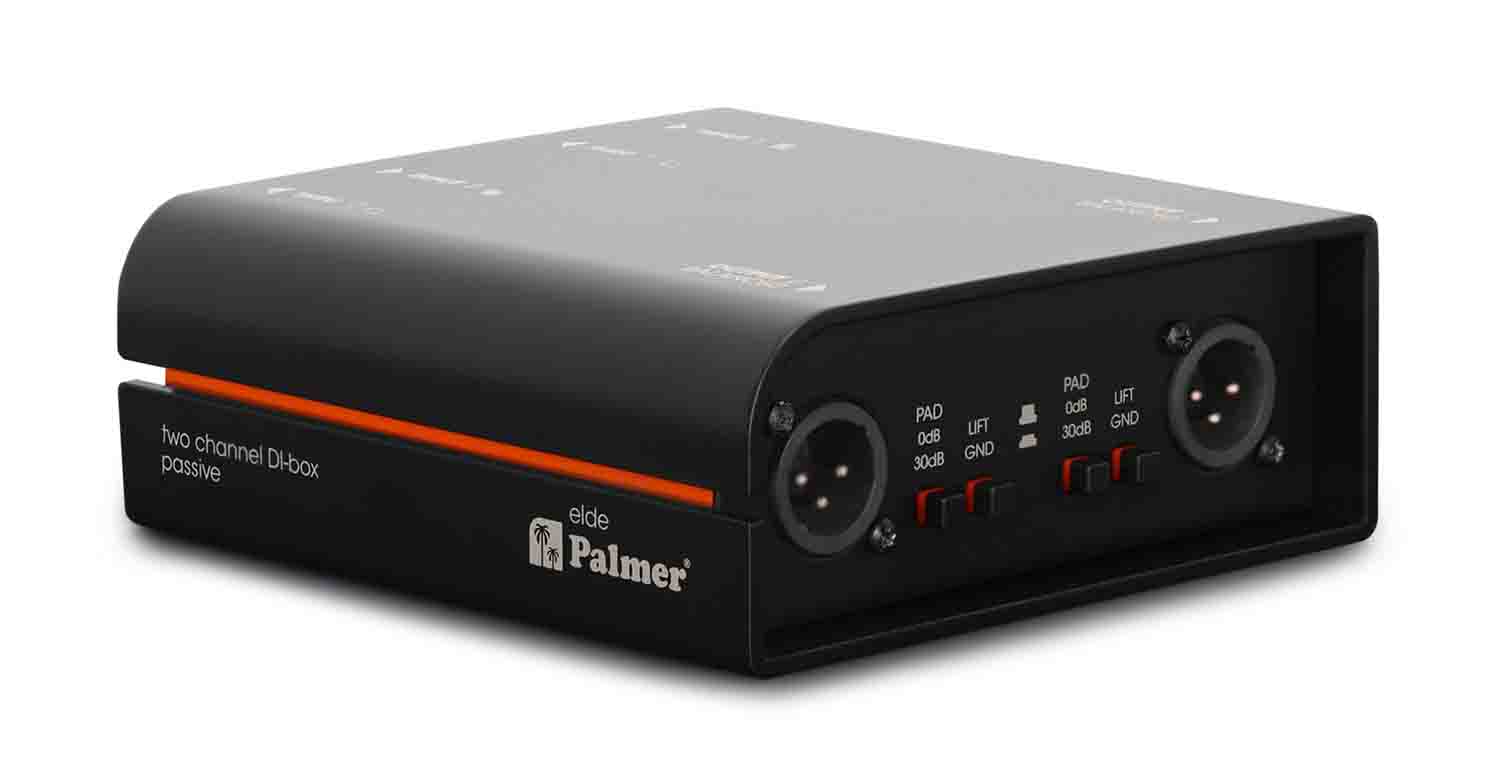

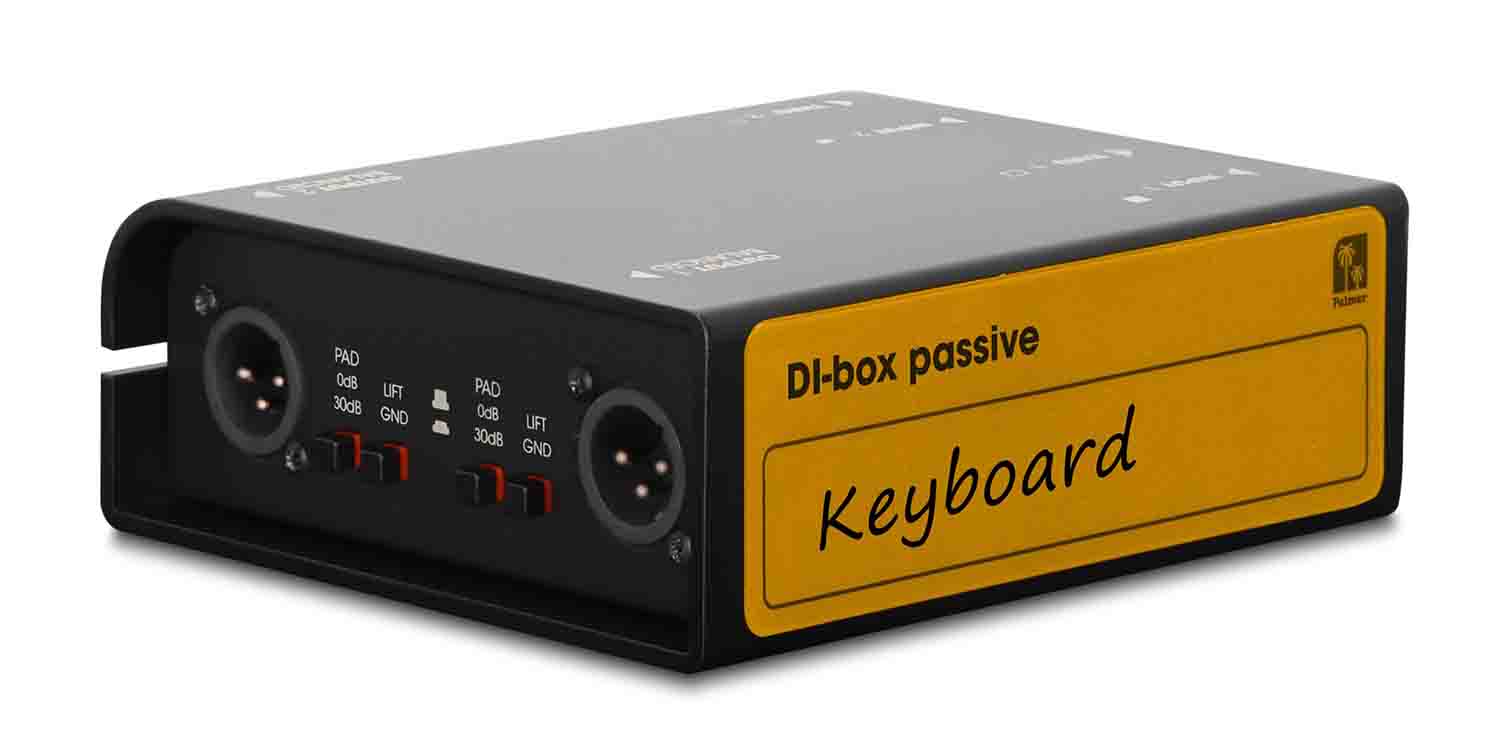

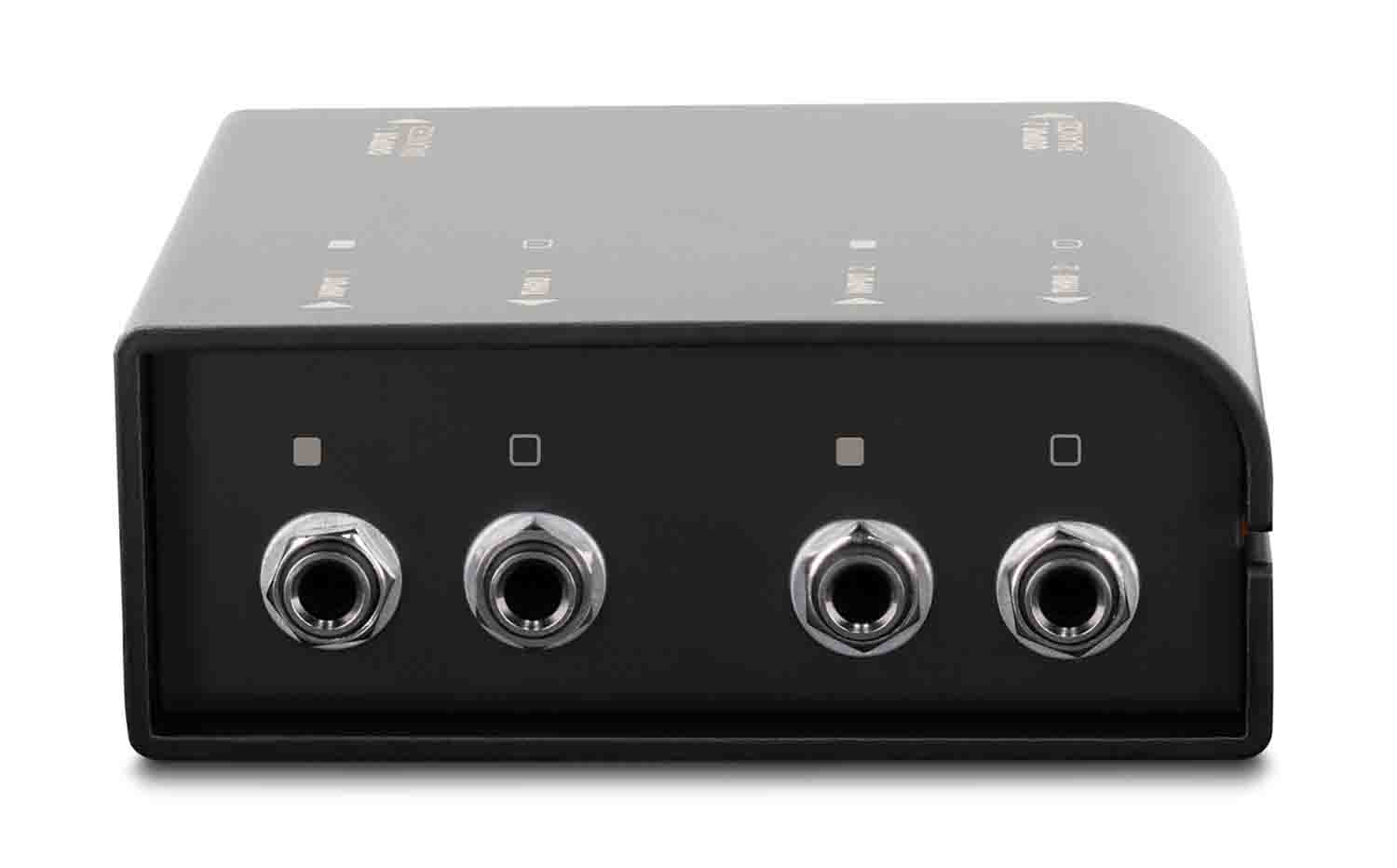

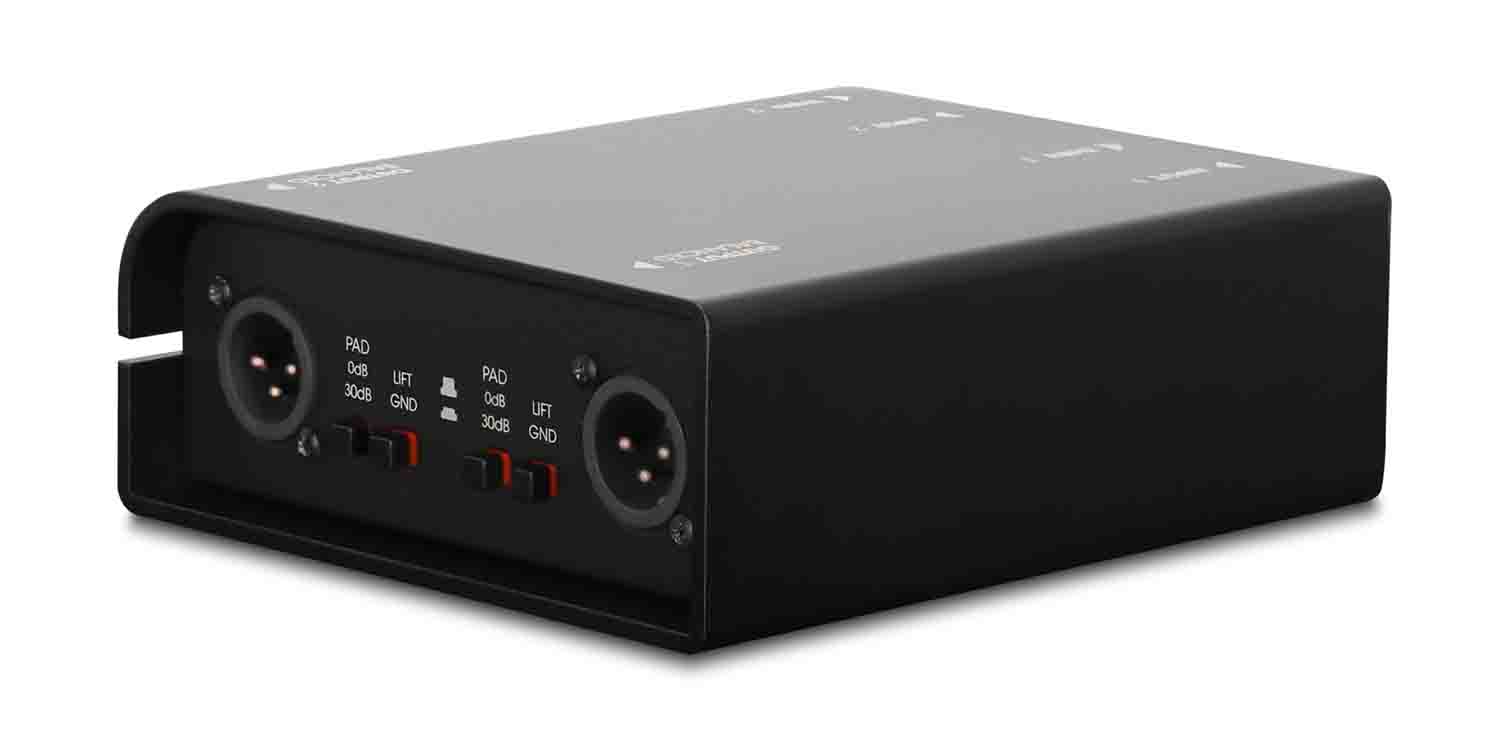

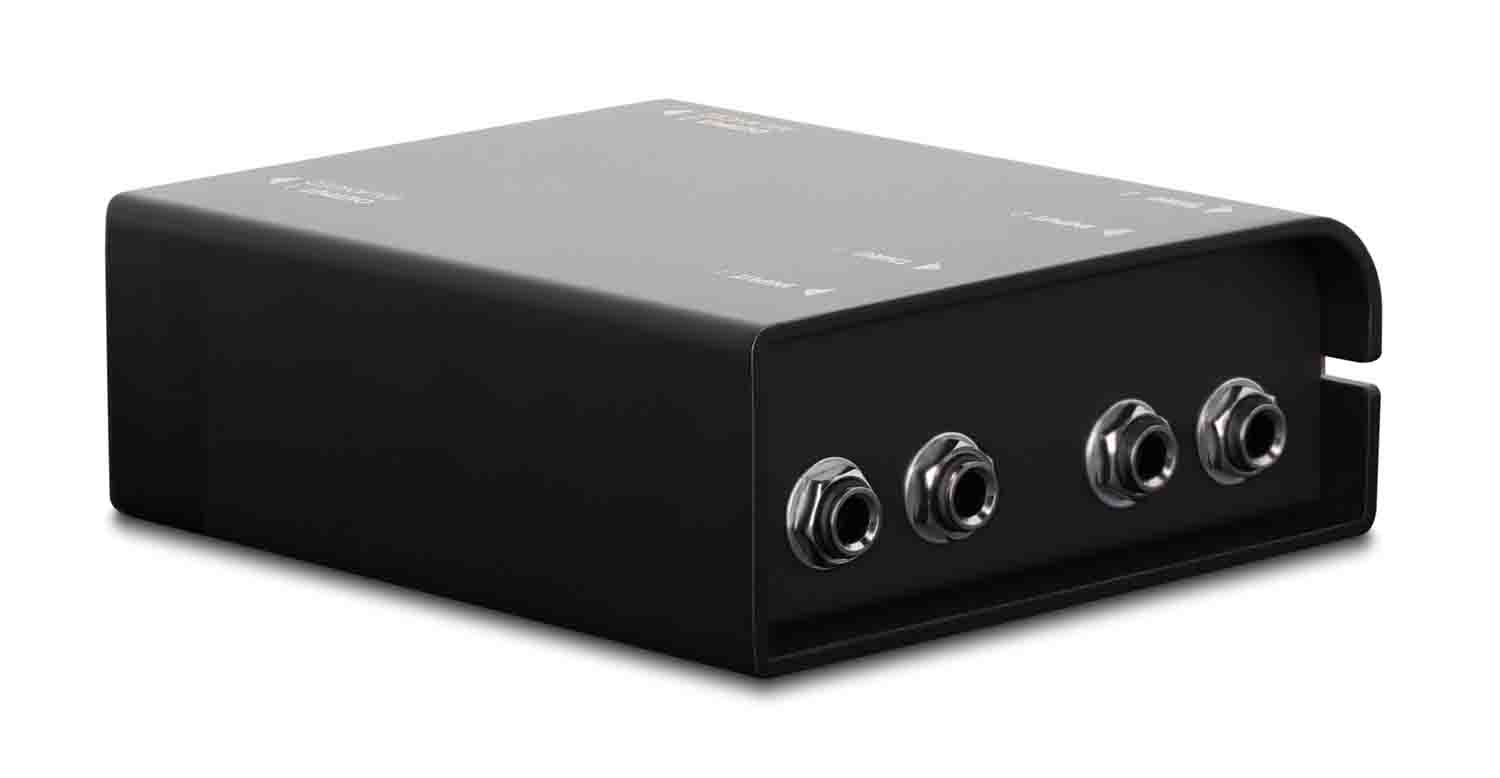

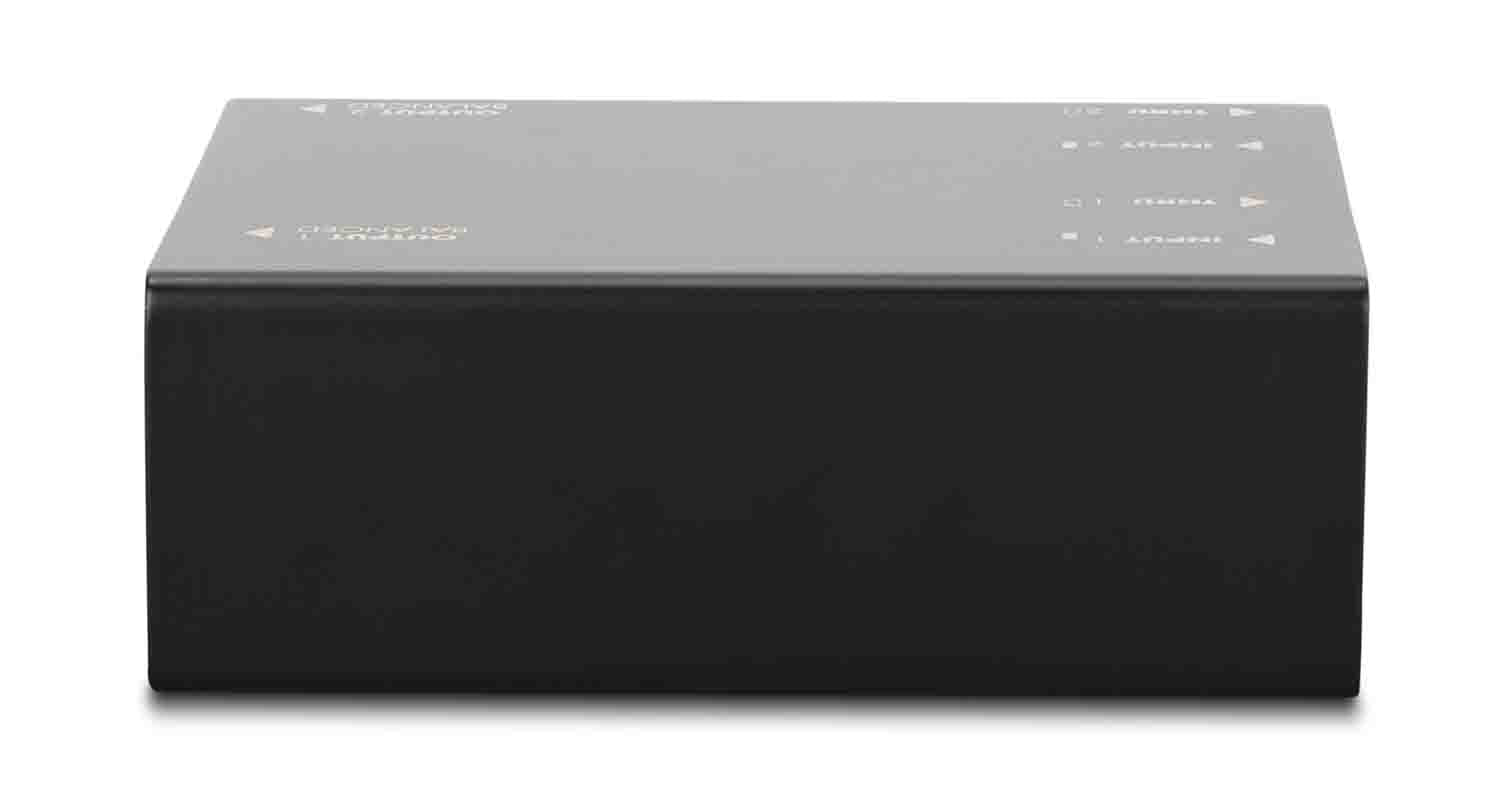

B-Stock: Palmer Elde Passive 2-Channel DI-Box

The Palmer elde Passive 2-Channel DI-Box is a high-quality two-channel di-box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminum/steel housing, the Palmer elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

The inputs are each looped to a Thru Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high-level signals, each channel has its own pad switch (-30 dB), so you can also insert the elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.

B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty.  Please call for details.

Product Specifications:

Product type: DI box

Channels: 2

Type: passive

Transformer isolated: Yes

Inputs: 2

input type: unbalanced

Input connectors: 6.3 mm jack

Outputs: 2

Output type: balanced

Output connectors: XLR

THRU outputs per channel: 1

Input attenuation (Pad): 0 dB / 30 dB

Ground lift switch: Yes

Housing: Aluminum continuous casting

Dimension (H/W/D): 140 x 50 x 128 mm

Weight: 0,66 kg

Ambient temperature during operation: -20 - 70 °C

Relative Humidity: < 80 %, not condensing

Accessories (included): Inscription label (tour label), rubber feet
