Description

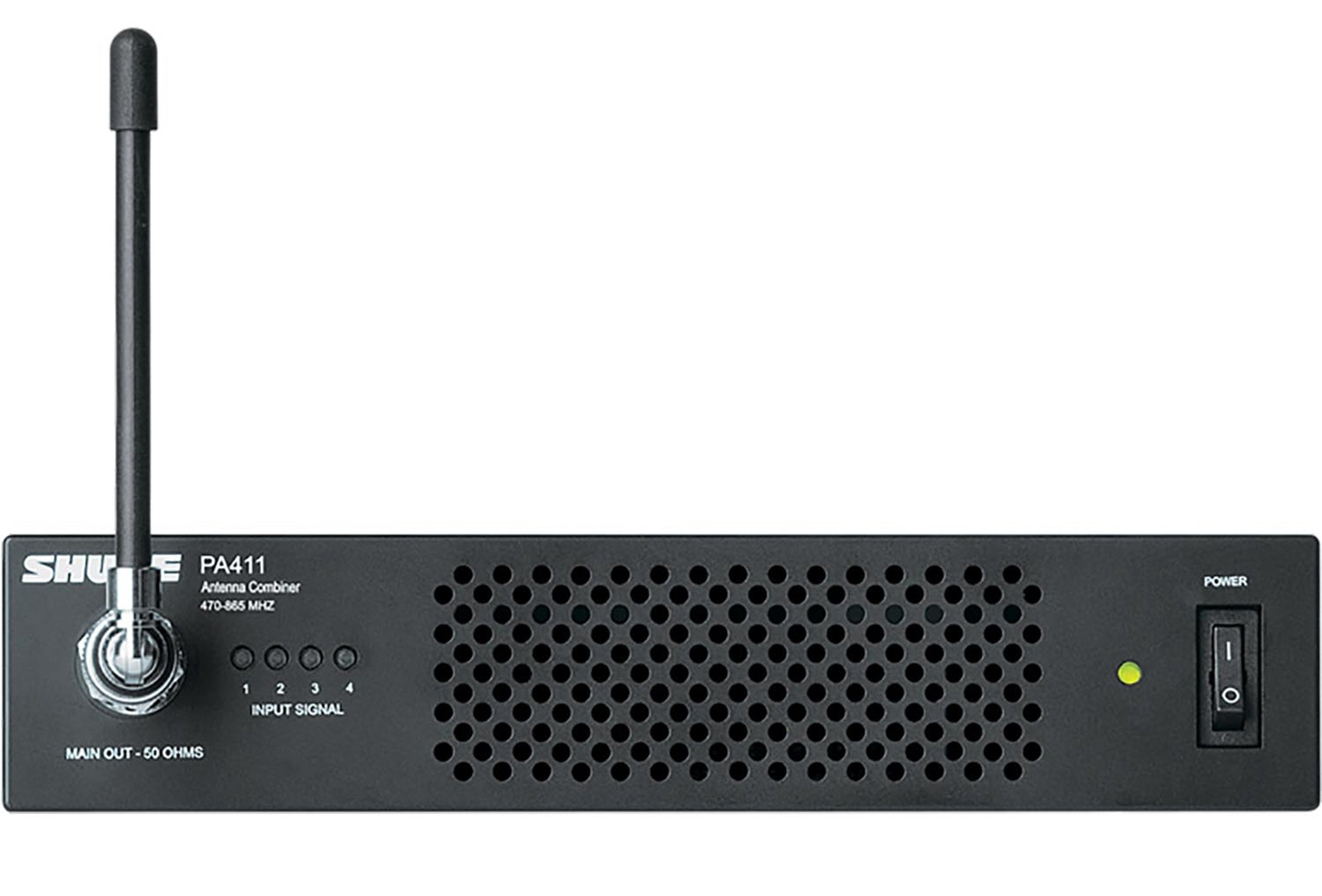

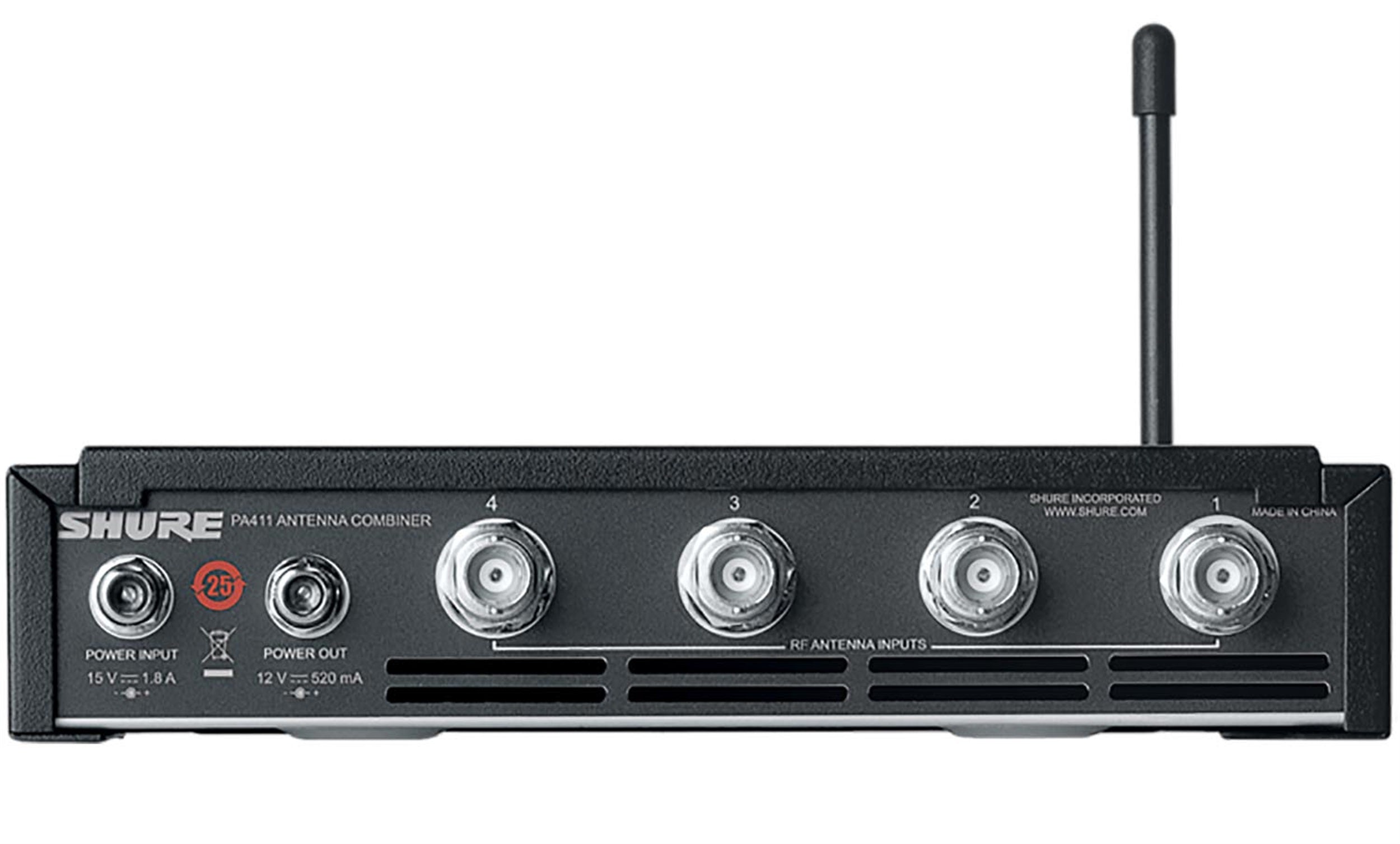

The Shure PA411 is a wideband antenna combiner that distributes DC power and RF signal for up to four Shure PSM300 transmitters (sold separately). It features a compact half-rack system that is used to reduce the amount of antennas and power supplies needed when using multiple systems in application such as for live stage, theater, rehearsals, and more. It features a RF LED indicator display to signal the presence of a signal and a signal overload. It is built with a front panel power switch. Included are rack-ears, 1/4 wave antenna, BNC bulkhead adapter, BNC cable and power supply.
B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty. Please call for details.
Product Specifications:
Power Requirements: 15 VDC
DC Output: 12 VDC (×4)
Output Current: Combined Total from All DC Outputs: 1.4 A, maximum
Operating Temperature Range: 0.40 to 145°F (-18 to 63°C)
Dimensions: 1.7 x 7.0 x 7.8 in (42 × 177 × 198 mm)
Weight: 3.6 lb (1.62 kg)
RF Input Specs:
Connector Type: BNC
RF Frequency Range: 470 to 865 MHz
Maximum Input Level: 20 dBm per channel
Input Port Isolation: 50 dB, typical
RF Input Power Operating Range: Per Channel: 4.5 to 15 dBm
LED Indicator: Minimum Detection Threshold: 3 dBm ± 1 dB
RF Overload LED Threshold: 17.5 dBm ± 1 dB
Impedance: 50 ohms
RF Output:
RF Frequency Range: 470 to 865 MHz
Output Intercept Point: OIP3: 48 dBm, typical
Connector Type: BNC
Impedance: 50 ohms
Reverse Isolation: Output to Input: 40 dB, typical
Gain: Input to any Output Port: -5 to 0 dB
Shipping Weight: 8 lb
Shipping Dimensions (LxWxH): 18.3 x 14.7 x 3.8 in
