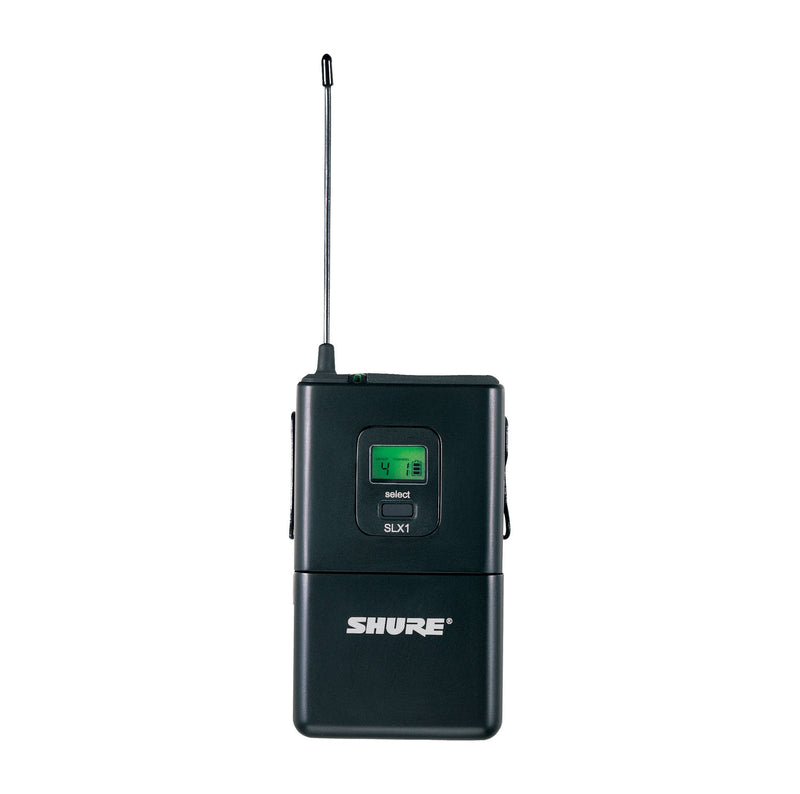

The Shure SLX1-J3, Wireless Bodypack Transmitter - J3: 572 to 596 MHz is a bodypack wireless transmitter compatible with the SLX4 receiver. Lightweight and comfortable for performers and presenters to wear, it provides up to 8 hours of continuous use on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330'.
The SLX1 features a locking TA4M connector with an adjustable input level to accommodate the compatible lavalier or headset microphone of your choice or an adapter cable for guitar and bass. The unit operates on a 24 MHz UHF tuning range with 960 selectable frequencies and quickly syncs with the wireless receiver via infrared at the touch of a button.
The transmitter's backlit LCD displays essential information, while the convenient programmable mute function can be locked out to prevent accidental changes during a performance.
B-stock units may have minor cosmetic scratches or dents. Some product accessories or the original packaging may be missing when received. B-Stock units are not covered by a full manufacturer warranty. Please call us for details.
Product Specifications:
RF Frequency Band: J3: 572 to 596 MHz
RF Bandwidth: 24 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 328.1' / 100 m
Transmitter Type: Bodypack
RF Output Power: 30 mW
Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Input (Locking)
Muting: Off/On Switch
Audio Input Level:
-10 dBV (Mic Level)
+10 dBV (at 0 dB Gain)
+20 dBV (Pad On)
Gain Range: 30 dB
Sync Method: IR
Antenna: 1x Flexible Whip, Fixed
Power Requirements: Battery
Battery Type: 2x AA (Included)
Approx. Battery Life: 8 Hours (Alkaline)
Display & Indicators: 1x LCD (Battery Status, Channel, Group)
Housing: ABS
Dimensions: 2.5 x 4.3 x 0.7" / 64 x 108 x 19 mm
Weight: 2.9 oz / 81 g (without Batteries)
Shipping Weight: 0.825 lbs
Shipping Dimensions (LxWxH): 11.15 x 5.3 x 3.55"
