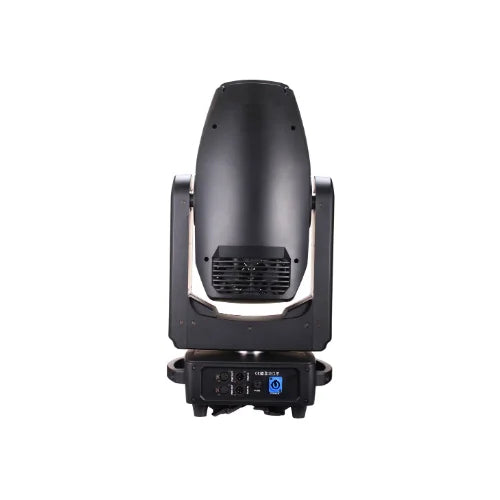

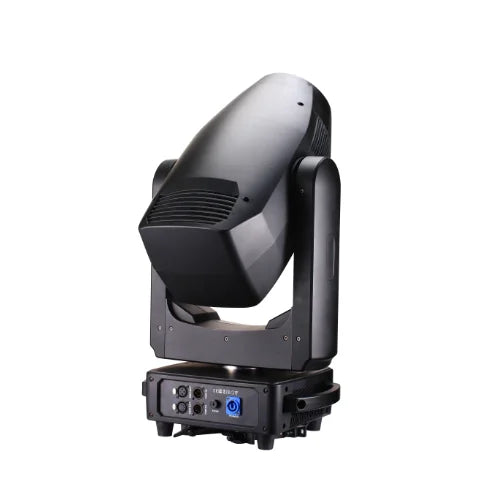

Bauer Lighting Venue 700 Ultra-Bright Hybrid Moving Head Light

600W LED IP65-rated hybrid moving head with CMY color mixing, Art-Net and sACN control, animation wheel, and motorized zoom for concert touring and rental production fleets.

The Bauer Venue 700 Hybrid Moving Head is a 600W LED IP65-rated hybrid moving head combining beam, spot, and wash functions with full CMY color mixing, Art-Net and sACN network control, and motorized zoom for concert touring and rental production companies. Its CMY color mixing system with linear CTO adjustment from 3200K to 6200K provides seamless full-spectrum fades and precise color temperature matching. An animation wheel generating cloud, fire, and water effects joins dual rotating prisms and a seven-gobo rotating wheel to deliver layered mid-air projections across large-format stages. Multi-protocol control via DMX, RDM, Art-Net, and sACN across up to 60 channels enables integration into complex touring and festival network infrastructures. With a 3-to-42-degree motorized zoom range, IP65 weatherproofing, and a frost effect for soft-edge wash conversion, the system handles indoor arenas and outdoor festival stages alike with the Bauer Venue 700 Hybrid Moving Head.

CMY Color Mixing and Linear CTO Control

The Bauer Venue 700 Hybrid Moving Head features a full CMY subtractive color mixing system backed by a nine-color wheel with CTO and CTB filters. Linear CTO adjustment from 3200K to 6200K provides continuous color temperature control without stepping through fixed gel positions. Four selectable dimming curves and four dimming speeds give further control over fade characteristics. For concert touring productions requiring consistent color matching across multi-fixture rigs, this combination delivers repeatable results night after night.

Animation Wheel, Dual Prisms, and Gobo Effects

The fixture includes an animation wheel generating cloud, fire, and water effects, adding organic atmospheric movement that static gobos cannot replicate. A rotating gobo wheel carries seven replaceable gobos, and dual prisms — 8-facet and 3-facet, both rotatable — enable layered beam-splitting and volumetric mid-air effects alongside a 1-to-25 Hz variable strobe. For rental houses and production companies building versatile inventories, the animation wheel and dual prism system provide the range to cover corporate galas, concert tours, and festival stages from a single fixture type.

Motorized Zoom and Frost Optics

The Bauer Venue 700 Hybrid Moving Head provides motorized zoom across a 3-to-42-degree beam angle, covering tight long-throw aerial beams to wide stage washes from a single fixture. A frost effect converts the beam into a soft-edge wash, extending the fixture into wash territory without requiring a dedicated wash unit. This three-in-one optical versatility reduces fixture counts on touring trucks and simplifies inventory for rental fleets covering diverse event types with fewer SKUs.

Art-Net, sACN, and Multi-Mode DMX Control

The fixture supports DMX, RDM, Art-Net, and sACN control protocols with selectable 35-channel, 38-channel, and 60-channel DMX modes. Art-Net and sACN network integration allows the Bauer Venue 700 Hybrid Moving Head to operate over standard Ethernet infrastructure, eliminating long DMX cable runs in large venues and outdoor festival grounds. Pan covers 540 degrees and tilt covers 270 degrees at 16-bit resolution, and an LCD color display provides on-fixture access to addressing and configuration. For touring lighting directors and rental companies managing large fixture counts, multi-protocol support simplifies integration and reduces infrastructure costs.

IP65 Weatherproofing, Build Quality, and Rigging

Rated IP65 for protection against dust ingress and water jets, the Bauer Venue 700 Hybrid Moving Head operates reliably in outdoor festival environments and dusty conditions that would compromise IP20-rated fixtures. The unit weighs 29 kg (63.8 lb), measures 389 by 389 by 678 mm, and draws 850W through a PowerCon connector. For rental companies deploying fixtures across indoor and outdoor events, the IP65 rating eliminates the need for separate weather-protected and indoor-only inventory lines.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Venue 700 Hybrid Moving Head or a different IP65 hybrid fixture is the right match for the application — Hollywood DJ specializes in stage and event lighting for concert touring and rental production companies. Whether specifying IP65-rated fixtures for an outdoor festival rider, outfitting an arena touring rig, or expanding a rental fleet with weatherproof hybrid moving heads, the team can help match the right fixture to the requirement. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 850W

Power Connector: PowerCon input

LIGHT SOURCE

Source: 600W LED

Average Lifespan: 20,000 hours

COLOR SYSTEM

Color Wheel: 9 colors plus open + CTO + CTB

CMY Color Mixing: Full CMY subtractive mixing

CTO Temperature: 3200K to 6200K linear adjustment

OPTICS

Beam Angle: 3 to 42 degrees (motorized zoom)

Frost Effect: Yes

Linear Dimming: 0-100% with 4 dimming curves and 4 dimming speeds

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Rotatable Gobo Wheel: 7 replaceable gobos + open

Animation Wheel: Cloud, fire, water effect

Prism 1: 8-facet rotatable

Prism 2: 3-facet rotatable

CONTROL

DMX Channels: 35 / 38 / 60

DMX Connector: 3-pin XLR input/output with integrated cable or 5-pin XLR input/output

Control Protocols: DMX / RDM / Art-Net / sACN

Pan: 540 degrees, 16-bit scanning

Tilt: 270 degrees, 16-bit scanning

Display: LCD color display

PHYSICAL

IP Rating: IP65

Housing Color: Black

Working Ambient Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)

Dimensions: 389 x 389 x 678 mm (15.3 x 15.3 x 26.7 in)

Weight: 29 kg (63.8 lb)
