Description

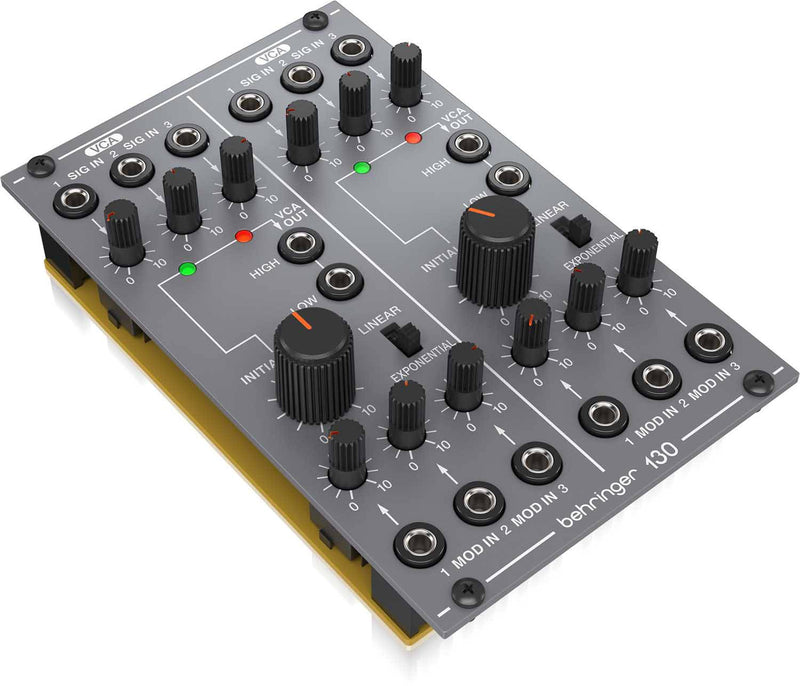

This is the Behringer SYSTEM 100 130 DUAL VCA. An authentic reproduction of the original “System 100M” circuitry from the 80’s that can fit in a standard Eurorack case. The best part It’s at a very affordable price. Mix the 130 DUAL VCA in with your existing rig or start your modular synth journey from here. Either way, you’re sure to have a lot of fun.
VCA Controls
Each VCA in the 130 DUAL VCA comes equipped with three Sig In signal input jacks with their own gain controls. These inputs can accept audio signals via a 3.5 mm jack. The VCA’s in the 130 also has a manual gain control, a low and high output as well as signal and clip indicators to keep an eye on your signal’s levels. The low output can be connected to guitar amplifiers or mixers while the high output can connect to line-level inputs in mixers or powered speakers. The outputs can be further modified to be linear or exponential via a switch located next to the gain knob.
Module Sculpting
The 130 DUAL VCA can also accept signals from other modules via the 3.5 mm Mod In jacks to shape the waveforms of the Sig In signals. These inputs have also had their own Mod In Knobs that control the amount of signal that goes through the Mod In jacks.
Eurorack Ready
Installing the 130 DUAL VCA is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and screw in the module using the included screws. This allows for the 130 to be mixed with other synth modules for a truly unique set up.
Complete Your Collection
Whether you’re just getting into modular synths or looking to complete your collection, the 130 DUAL VCA module from Behringer is a great tool to have when creating amazing music.
Product Specifications:
Signal in: 6 x 3.5 mm jack, summed
VCA out high / low: 4 x 3.5 mm jack
Mod in: 6 x 3.5 mm jack
Initial Gain: 2 x rotary knob, Linear/exponential, switchable
Sig In Level: 6 x rotary knob
Mod In Level: 6 x rotary knob
Linear / exponential CV: 2 x sliding switch
Power Supply: Eurorack
Current Draw: 30 mA (+12 V), 20 mA (-12 V)
Dimensions (H x W x D): 44 x 81 x 129 mm (1.7 x 3.2 x 5.1")
Rack Units: 16 HP
Weight: 0.18 kg (0.4 lbs)
