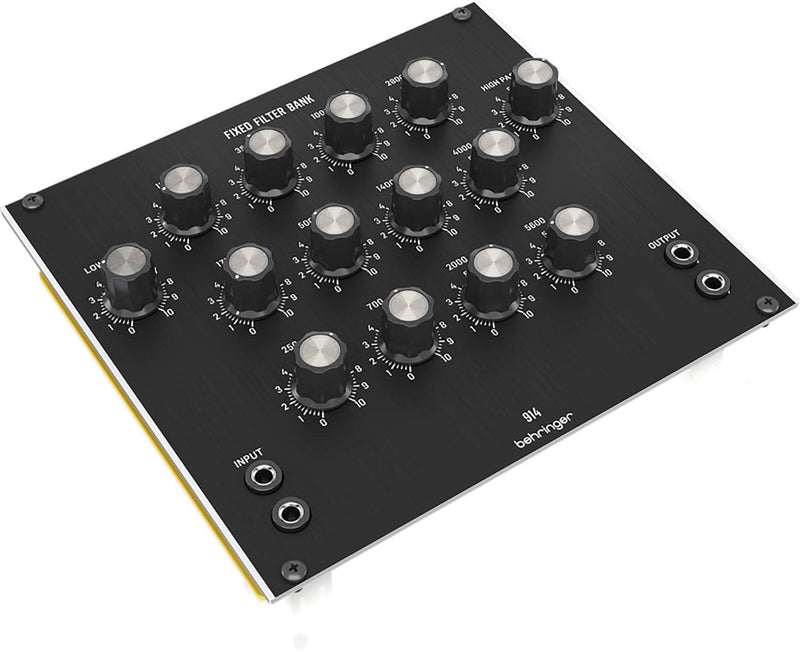

Behringer 914 Fixed Filter Bank, Legendary Analog Fixed Filter Bank Module For Eurorack

Enter the Behringer 914 FIXED FILTER BANK module. An authentic reproduction of the discrete I/O circuitry from the “Modular 55” Series.” The world’s most famous pop, rock and jazz musicians use this for their shows. Now, musicians can build their very own, unique, synthesizer that can fit in a standard Eurorack case for a very affordable price. Mix and match specific modules to create your personal, unique synth to complement the music you play or go all out and fill a room, from floor to ceiling, with modules that’ll fulfill any synth geek’s wildest dream.

Band Pass Filters

The 914 features 12 active bandpass filters ranging from 125 Hz – 5.6 kHz with additional Low Pass and High Pass filters to allow you, users, to adjust the gain on each of the indicated frequencies to fully shape and control a signal’s timbre and resonance.

Dual Input and Output Jacks

Mix the 914 in with your other modules via the dual 3.5 mm input and output jacks. The inputs are wired in parallel to allow the signal source to be filtered and to pass on the unfiltered signal to another module at the same time while the outputs can send two different signals to separate modules.

Eurorack Ready

Installing the 914 FIXED FILTER BANK is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 914 FIXED FILTER BANK to be mixed with other synth modules for a truly unique set up.

Complete Your Collection

Whether you’re just getting into modular synths or looking to complete your collection, the 914 FIXED FILTER BANK module from Behringer is a great tool to have when creating amazing music.

Product Specifications:

Power Supply: Eurorack

Current Draw: 60 mA (+12 V), 70 mA (-12 V)

Dimensions (H x W x D): 42 x 142 x 129 mm (1.7 x 5.6 x 5.1")

Rack Units: 28 HP

Weight: 0.26 kg (0.57 lbs)
