Description

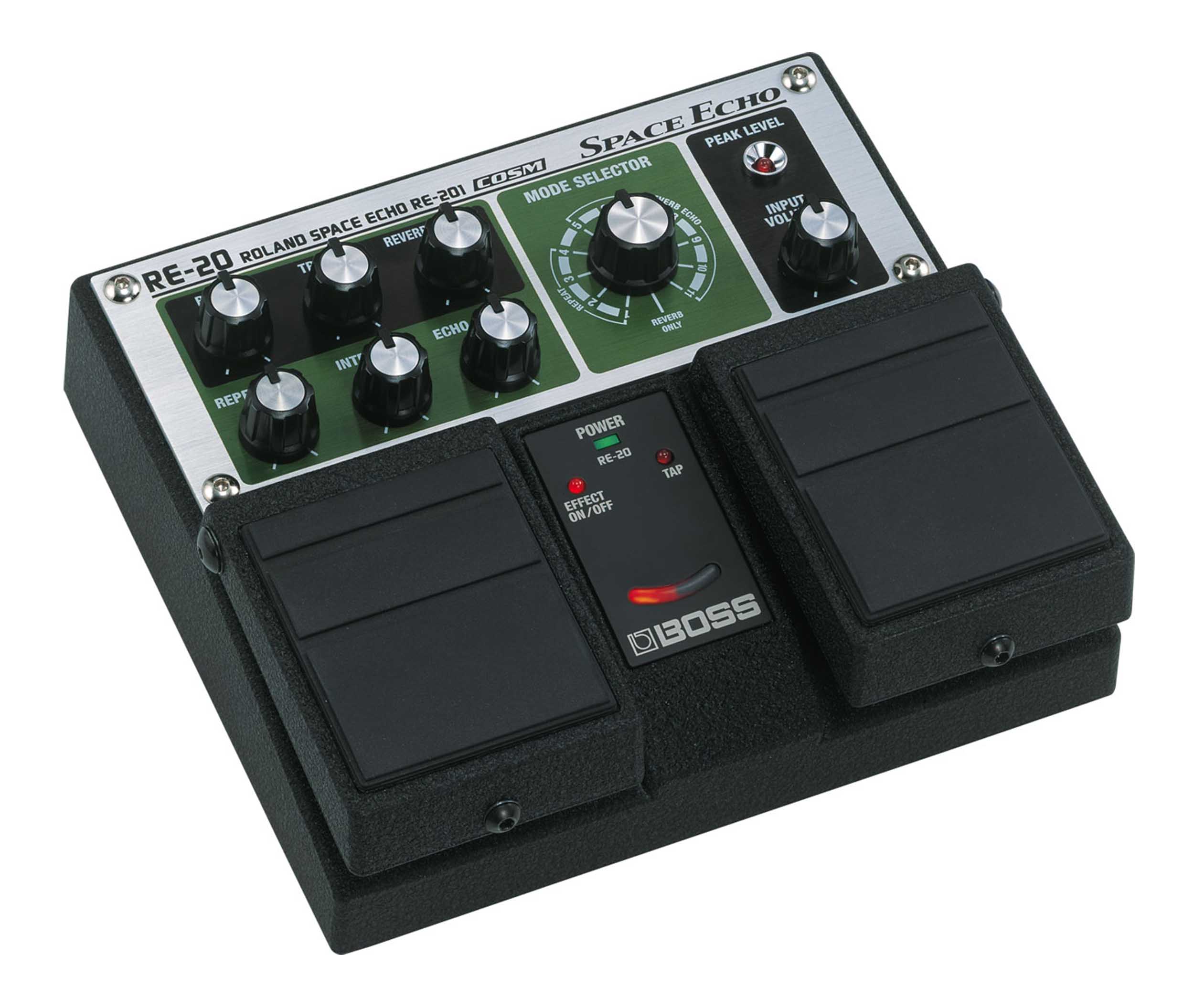

The BOSS RE-20 Space Echo Pedal achieves the same warm echo sound, but without the clunky form factor or rigorous maintenance of a real tape echo. The RE-20 maintains the signature tape wow and flutter sounds of the RE-201, as well as the input saturation and reverb applied to the echoes. While the sound is vintage, the functionality is not. Sounds can be manipulated in real time using the tap-tempo function or a separately available expression pedal like the Roland EV-5. 11 modes are available via the Mode Selector switch, varying the combination of reverb and echo, as well as offering reverb only. The RE-20 can operate in mono or stereo signal chains with its dual 1/4" inputs and outputs. Front panel controls include Input Volume, a Mode Selector, Echo Volume, Intensity, Repeat Rate, Bass, Treble, and Reverb Volume.
The RE-20 Features Two Modes to Select From:
Normal Mode:
The Repeat Rate knob functions over the same range as the RE-201. Additionally, the maximum value that can be set for the tap delay time is three seconds (when the Mode Selector knob is set to the 3 or 7 position).
Long Mode:
The range for the Repeat Rate knob setting is expanded to twice the normal setting. Additionally, the maximum value that can be set for the tap delay time is six seconds (when the Mode Selector knob is set to the 3 or 7 position).
Rugged Design with Flexible Power Options
The RE-20 can run off of six AA batteries or an optional external 9 VDC power supply. The electronics are encased in a durable dual-pedal metal housing with a non-slip rubber base. This pedal utilizes a buffered bypass for silent switching and driving long cable runs, even while the pedal is disengaged.
Product Specification:
Nominal Input Level: -20 dBu (INPUT VOLUME knob: center), max +4 dBu
Input Impedance: 1 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Display: Virtual Tape Display

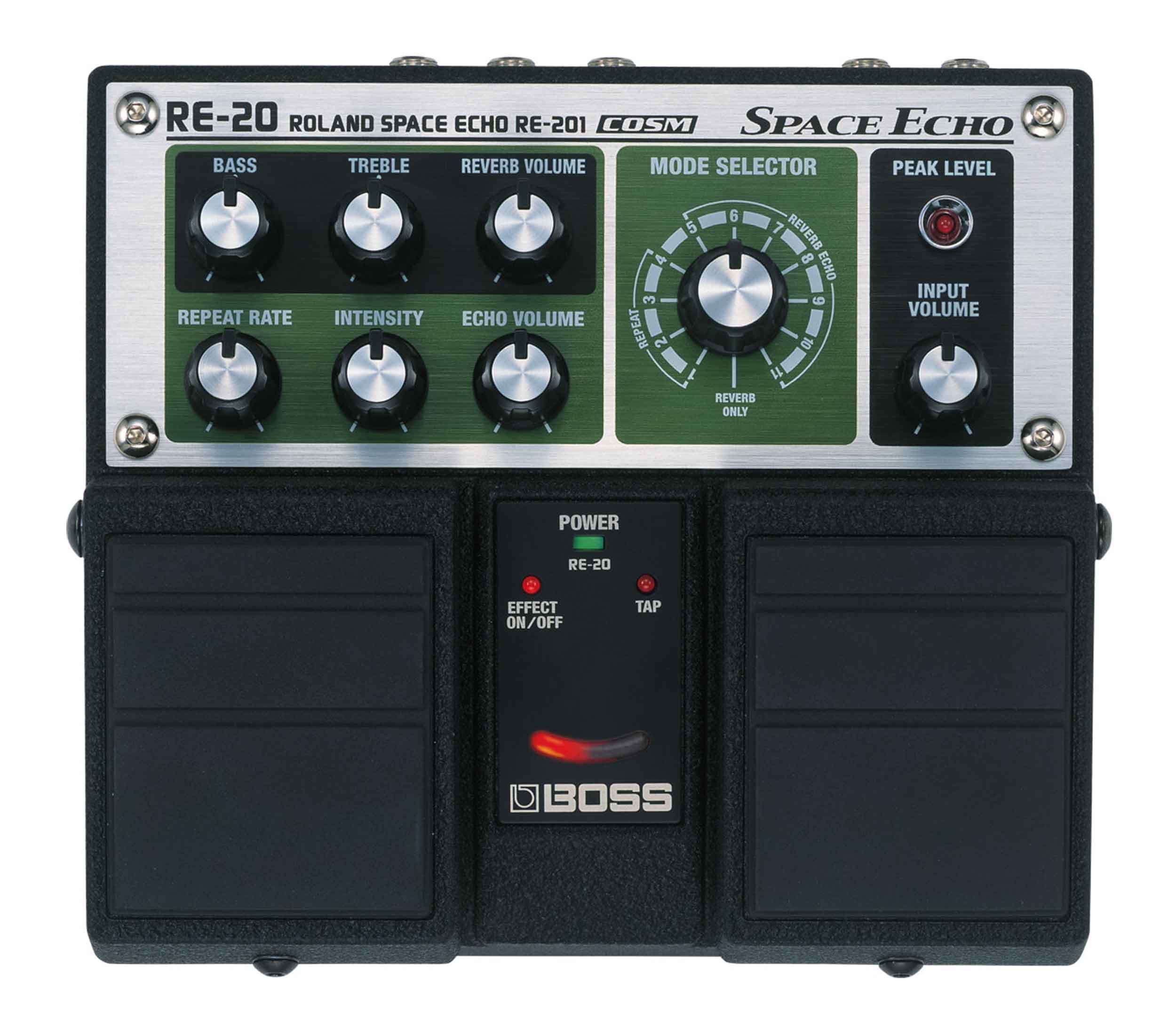

Controls
Effect On/Off Pedal
Tap Pedal
Bass Knob
Treble Knob
Reverb Volume Knob
Repeat Rate Knob
Intensity Knob
Echo Volume Knob
Mode Selector Knob
Input Volume Knob
Direct Switch
Indicators
Power Indicator (Serves Also as Battery Check Indicator)
Peak Level Indicator
Effect On/Off Indicator
Tap Indicator

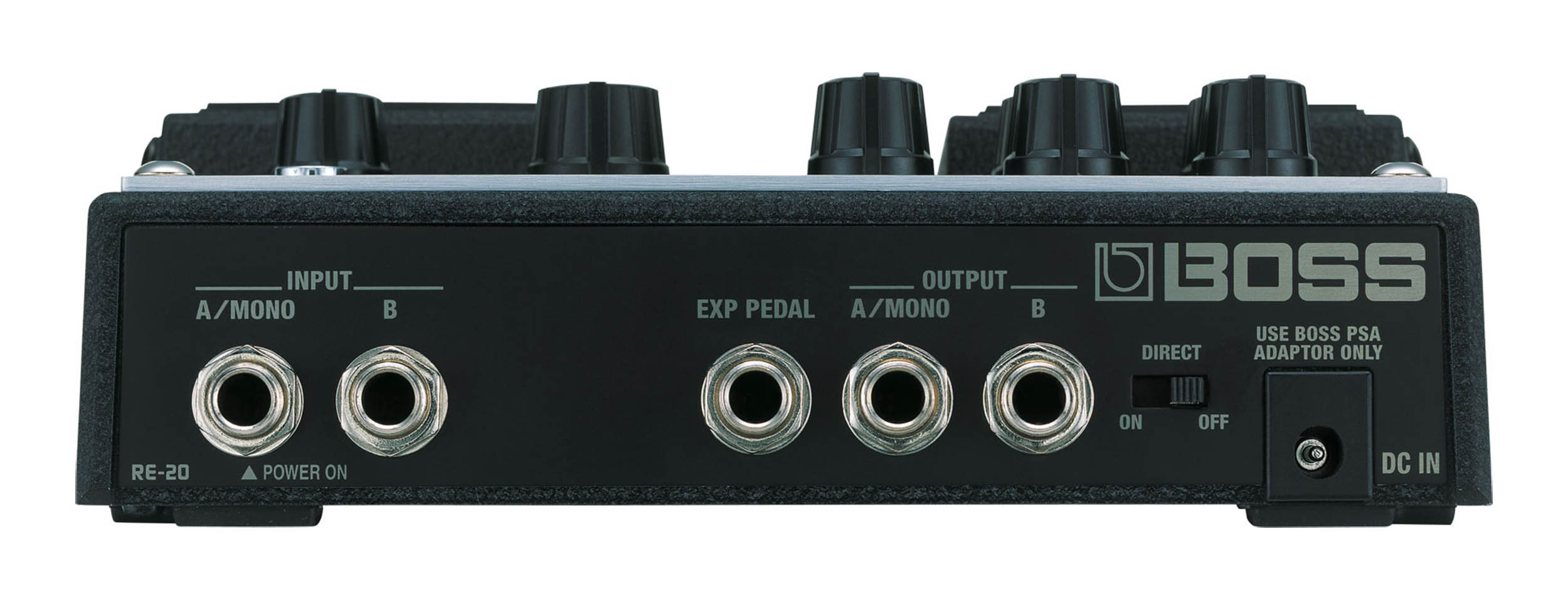

Connectors
Input Jacks A/Mono, B (1/4-Inch Phone Type)
Output Jacks A/Mono, B (1/4-Inch Phone Type)
Exp Pedal Jack (1/4-Inch Trs Phone Type)
Dc in Jack (Dc 9 V)
Power Supply
DC 9 V: Dry battery LR6/R6 (AA) type x 6, AC Adaptor (PSA series)
Current Draw: 75 mA (9 V max.)
Accessories
Owner’s Manual
Leaflet
Dry battery R6 (AA) type (carbon) x 6
Options (sold separately)
AC Adaptor (PSA series)
Expression pedal (Roland EV-5)
Size and Weight (Incl. Battery)
Width: 6-13/16 inches
Depth: 6-1/4 inches
Height: 2-1/4 inches
Weight: 2 lbs.
